◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#119124) — 20 parça

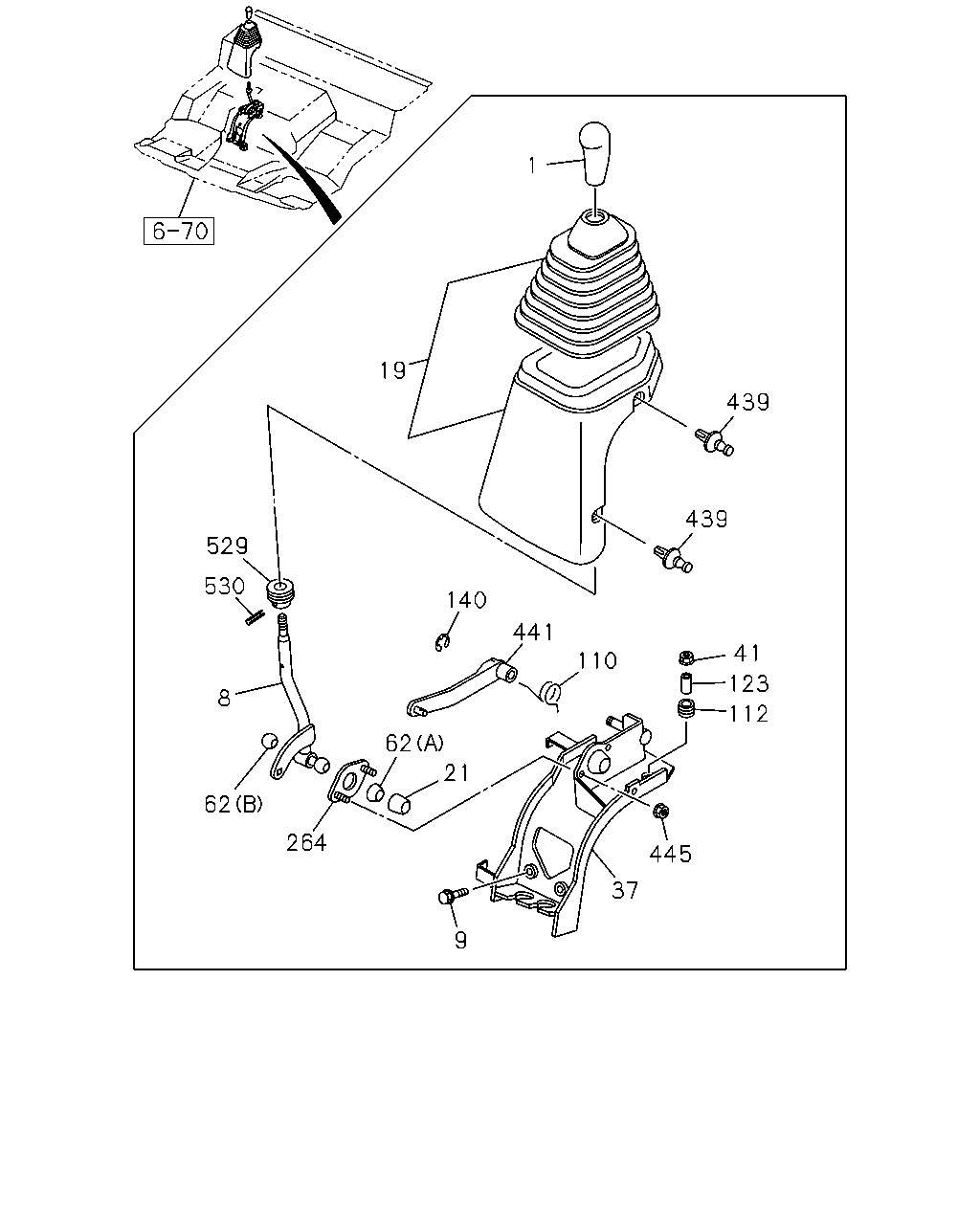

çizim 350690
1 19 529 530 8 62 264 21 62 140 441 110 41 123 112 445 37 9 439 439
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER 1-33611-099-1 01 1 1305- ● ●
8 LEVER; CHANGE 8-98079-299-0 01 1 1305- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1305- ● ●
19 COVER; CHANGE LEVER
GRAY 		8-97416-183-2 01 1 1305- ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1305- ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98079-297-0 01 1 1305-1311 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 8-98245-919-0 01 1 1312- ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1305- ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1305- ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1305- ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 1305- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1305- ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1305- ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1305- ● ●
264 PLATE; COVER 1-33619-430-0 01 1 1305- ● ●
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1305- ● ●
441 LEVER; SELECT 8-98079-302-0 01 1 1305- ● ●
445 NUT; PLATE
M6 FLANGE THA 		0-91180-106-0 02 1 1305- ● ●
529 RING; BOOT 1-33619-504-0 01 1 1305- ● ●
530 PIN; SPRING 1-33619-505-0 01 1 1305- ● ●
