Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11525 - CYZ CHINA EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#119120) — 39 parça
◀
[253A] FIXING,OTHER PARTS (25 parça)

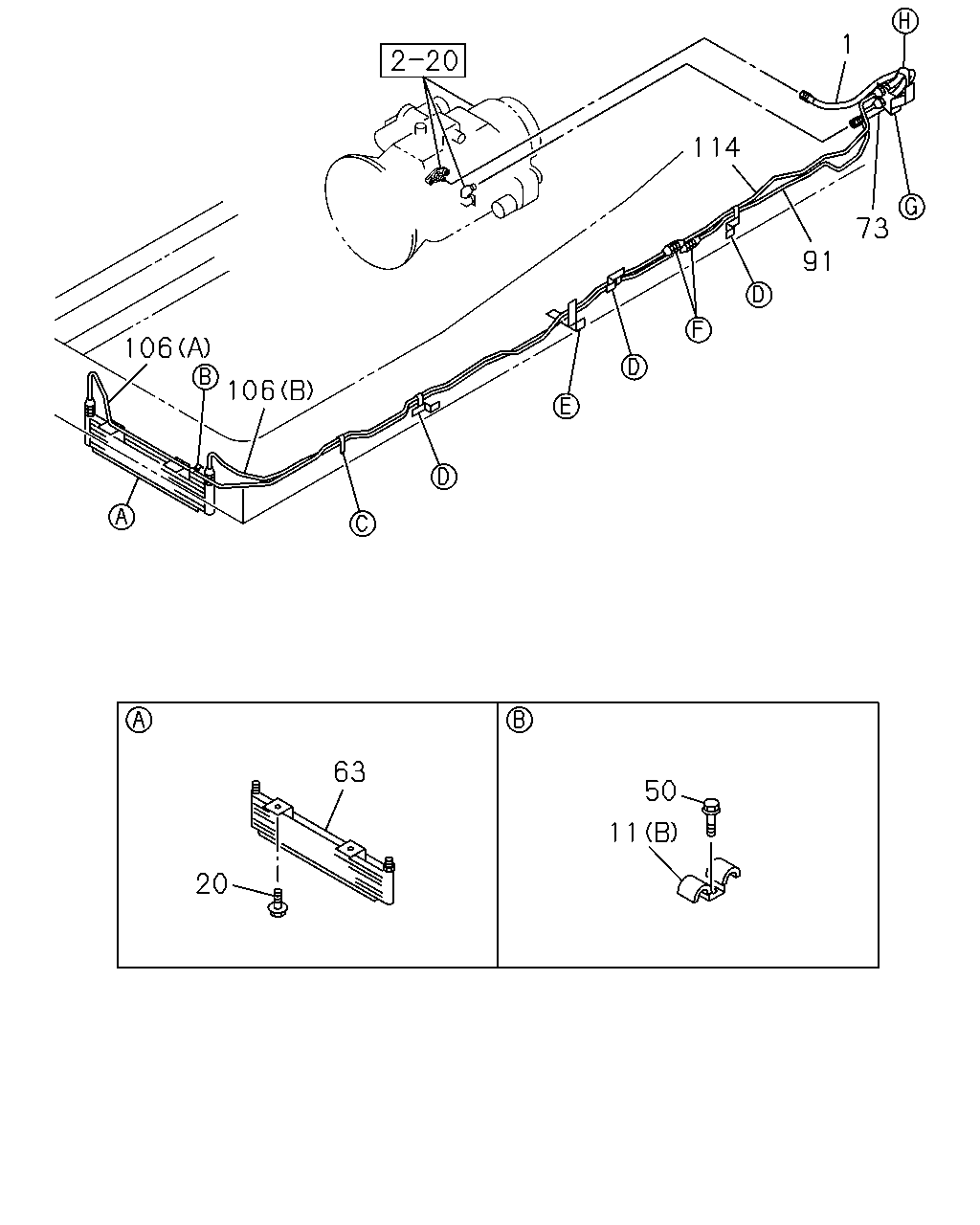

[253A] FRAME SIDE (14 parça)
▶
50
11
11
178
12
29
50
95
8
109
11
50
95
12
179
1
73
48
19
77
76
91
114
117
116
136
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=430
1-09364-872-0
01
1
1305-
8
UNION
M16 STRAIGHT L=42
0-92123-010-0
01
1
1305-
11
CLIP; PIPE
(A) ID=11X2 L=20
0-95325-035-0
05
1
1305-
11
CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5
1-09700-924-0
01
1
1305-
12
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
1305-
19
BRACKET; FLEX HOSE
1-47479-559-0
01
1
1305-
29
BOLT; FILTER TO BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1305-
48
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1305-
50
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1305-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1305-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
1305-
73
HOSE; FLEX,TRANS
L=430
1-09364-872-0
01
1
1305-
76
NUT; FLEX HOSE
M16
0-91111-516-0
01
1
1305-
77
WASHER; LK
ID=16.2
0-91510-516-0
01
1
1305-
91
PIPE; OIL,FLEX HOSE TO UNION
L=761
8-98229-849-0
01
1
1305-
95
BRACKET; CLIP
(A)
1-47479-482-0
03
1
1305-
95
BRACKET; CLIP
(B)
8-98199-287-2
01
1
1305-
109
UNION
M16 STRAIGHT L=42
0-92123-010-0
01
1
1305-
114
PIPE; OIL,UNION TO FLEX HOSE
L=692
8-98229-850-0
01
1
1305-
116
NUT; BRKT,FLEX HOSE
M16
0-91111-516-0
01
1
1305-
117
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
01
1
1305-
136
CLIP; FLEX HOSE
L=350
1-09707-183-0
01
1
1305-
178
BOLT; BRKT,CLIP
M8X35 FLANGE
0-28650-835-0
01
1
1305-
179
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
02
1
1305-
210
BAND; FLEX HOSE
L=175
1-09707-178-0
01
1
1305-
106
106
63
20
50
11
114
91
73
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
L=430
1-09364-872-0
01
1
1305-
11
CLIP; PIPE
(A) ID=11X2 L=20
0-95325-035-0
05
1
1305-
11
CLIP; PIPE
(B) ID=16 & 11 L=21.5 & 21.5
1-09700-924-0
01
1
1305-
20
BOLT; COOLER TO BRKT
M10X20 FLANGE
0-28051-020-0
02
1
1305-
50
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
01
1
1305-
50
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1305-
50
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
1305-
63
COOLER; OIL
1-21700-394-0
01
1
1305-1405
63
COOLER; OIL
8-98269-766-0
01
1
1406-
73
HOSE; FLEX,TRANS
L=430
1-09364-872-0
01
1
1305-
91
PIPE; OIL,FLEX HOSE TO UNION
L=761
8-98229-849-0
01
1
1305-
106
PIPE ASM; OIL,COOLER TO UNION
(B)
8-98230-092-0
01
1
1305-
106
PIPE ASM; OIL,COOLER TO UNION
(A)
8-98230-093-0
01
1
1305-
114
PIPE; OIL,UNION TO FLEX HOSE
L=692
8-98229-850-0
01
1
1305-
