Sayfa 0-38 - Isuzu EPC

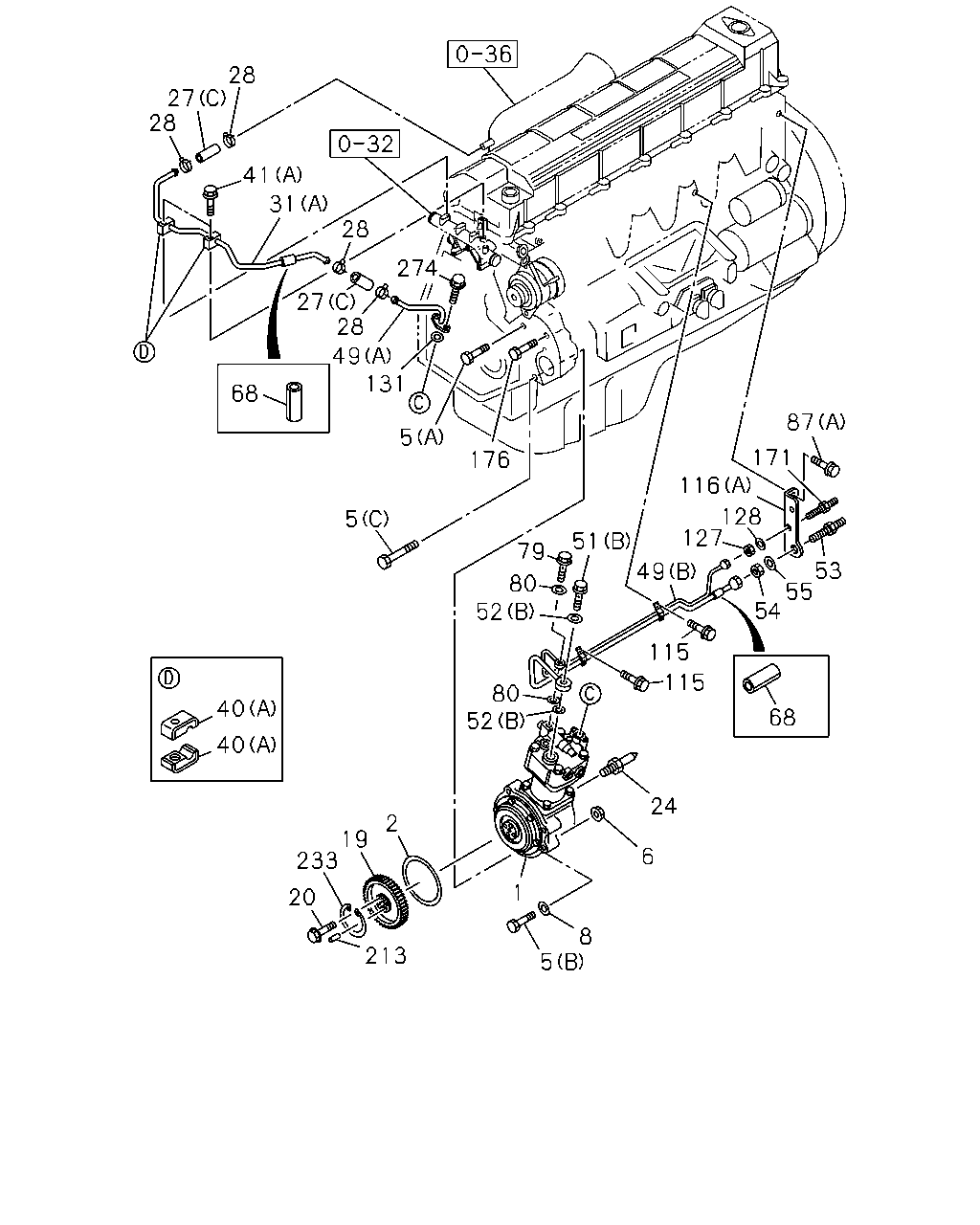

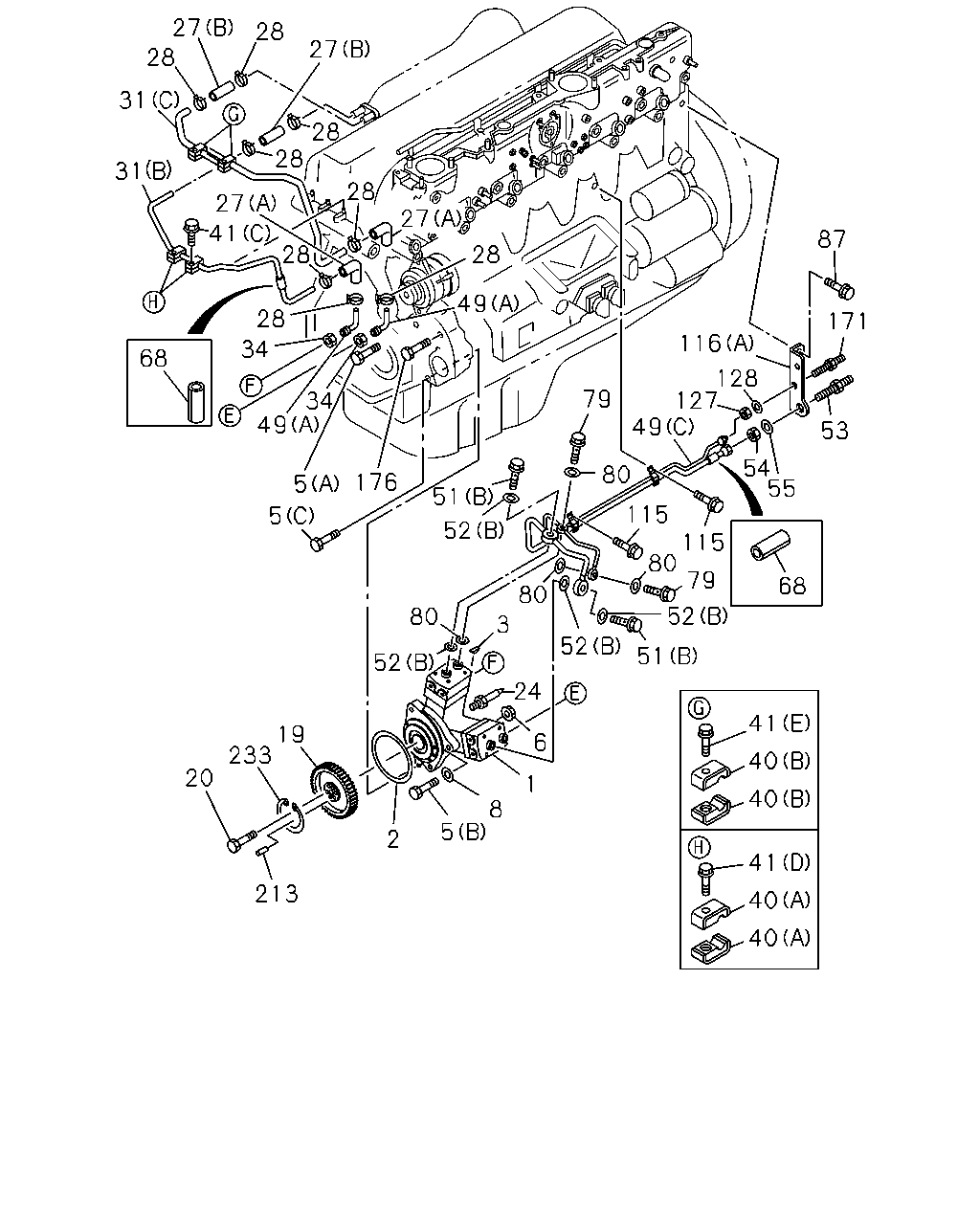

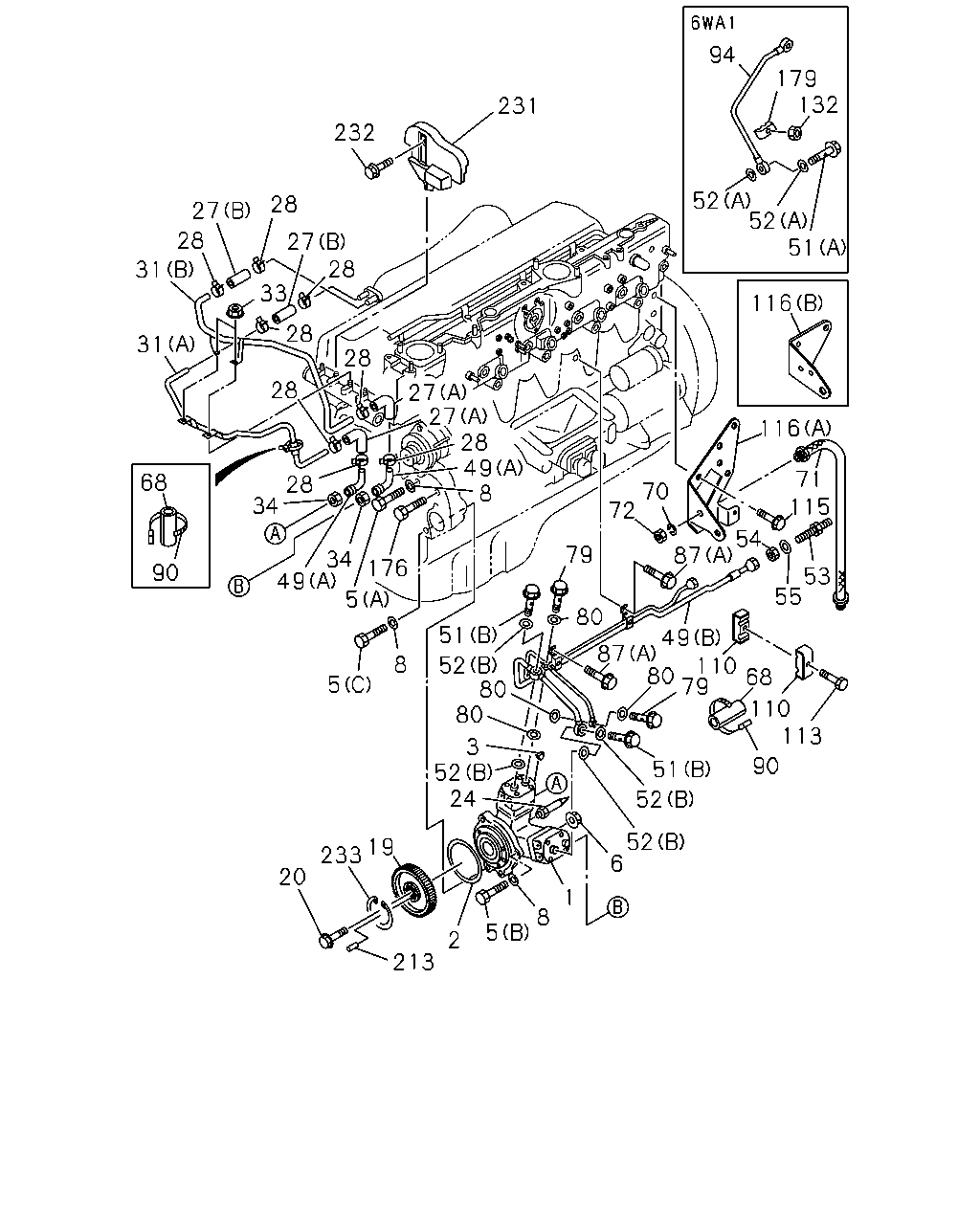

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#11912) — 398 parça

27 28 28 27 31 28 28 31 28 27 27 41 87 28 28 49 28 171 116 34 68 128 127 49 34 49 79 53 54 55 80 176 5 51 115 5 52 115 80 79 80 3 68 52 80 52 51 24 41 19 233 6 40 20 1 40 8 5 2 41 213 40 40 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0105-0107	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-0107	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-	●	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-				●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0306	●	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0105-0306	●			●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0307-0512	●	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202	●	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0202				●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-164-0	01	1	0203-0205				●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205				●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0105-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0105-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0105-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-				●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0105-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (B)	1-19193-278-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (C)	1-19193-455-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-0402				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-408-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-0402				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (B)	1-19193-409-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	1-19193-327-0	01	1	0105-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-				●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0105-0107	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0108-	●	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	0403-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	0403-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=17 L=17	1-09701-284-0	08	1	0108-0402				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	08	1	0403-				●
40	CLIP; AIR PIPE (A)	1-09701-281-0	04	1	0105-0107				●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09701-281-1	04	1	0108-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (E) M6X70 FLANGE	0-28080-670-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (E) M6X70 FLANGE	0-28050-670-0	02	1	0601-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (D) M8X40 FLANGE	0-28080-840-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28080-870-0	02	1	0108-0402				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (C) M8X70 FLANGE	0-28080-870-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28050-870-0	02	1	0601-				●
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-				●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512				●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28050-630-0	04	1	0601-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0105-0107	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0105-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-				●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-			●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512			●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-			●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603			●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-			●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0105-	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512				●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-				●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
116	BRACKET; AIR PIPE (A)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-				●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-				●
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-			●
127	NUT; UNION M12	9-09840-280-0	01	1	0105-				●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603				●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-				●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-0607				●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512				●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●	●

94 179 132 231 232 52 52 51 28 27 28 27 28 31 33 116 28 31 28 28 27 27 28 49 8 116 71 115 68 28 34 70 72 54 87 79 34 176 90 53 55 49 5 80 51 49 110 80 68 79 87 8 52 80 80 5 110 113 3 52 24 90 51 52 52 6 19 233 20 1 8 5 2 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0105-0107	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0105-0107	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	0108-	●	●	●
3	KEY; COUPLING,INJ PUMP AIR COMPRESSOR HEAVY DUTY(E1Q)	9-08055-622-0	01	1	0108-				●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0306	●	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0105-0306	●			●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0307-0512	●	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202	●	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0202				●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-164-0	01	1	0203-0205				●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205				●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0105-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0105-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0105-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-				●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0105-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (B)	1-19193-278-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (C)	1-19193-455-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-0402				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-408-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-0402				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (B)	1-19193-409-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	1-19193-327-0	01	1	0105-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-				●
33	NUT; PIPE FIX M8 FLANGE	0-91150-108-0	02	1	0105-0602	●	●	●
33	NUT; PIPE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0105-0107	●	●	●
34	NUT; LK SUCTION PIPE	9-09840-254-0	02	1	0108-	●	●	●
34	NUT; LK SUCTION PIPE AIR COMPRESSOR HEAVY DUTY(E1Q)	9-09840-254-0	02	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0105-0107	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0105-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-				●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-			●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512			●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-			●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603			●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-			●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0105-	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-				●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	0105-0603	●	●	●
70	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-	●	●	●
71	HOSE; FLEX,AIR GOV L=520	1-09363-657-0	01	1	0105-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	0105-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512				●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-				●
90	CLIP; HARNESS L=140	5-09707-031-1	02	1	0105-	●	●	●
94	PIPE; AIR,BOOST	1-19193-109-0	01	1	0105-	●
110	CLIP; AIR PIPE	1-09701-210-0	02	1	0105-	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28080-640-0	01	1	0105-0512	●	●
113	BOLT; CLIP,AIR PIPE M6X40 FLANGE	0-28050-640-0	01	1	0601-	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
116	BRACKET; AIR PIPE (A)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-				●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-				●
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-			●
132	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0105-0602	●
132	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-	●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512				●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-				●
179	CLIP; PIPE	1-09701-132-1	02	1	0105-	●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●	●
231	INSULATOR; HEAD COVER	1-19389-208-1	01	1	0105-		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28080-812-0	01	1	0105-0512		●	●
232	BOLT; INSULATOR M8X12 FLANGE	0-28050-812-0	01	1	0601-		●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●	●

28 27 28 41 31 1 28 274 27 28 49 131 68 87 5 171 176 116 128 127 5 79 51 53 55 54 49 80 52 115 115 80 52 40 68 40 24 2 19 233 6 1 20 8 5 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-2	01	1	0105-0107	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-300-5	01	1	0108-	●	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-300-5	01	1	0108-				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-328-1	01	1	0105-0107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19100-328-7	01	1	0108-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-476-0	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (A) M14X128	8-94399-253-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	9-91666-490-0	01	1	0105-0512	●	●	●	●
5	BOLT; AIR CMPR FIX (B) M14X90	0-16956-490-0	01	1	0601-	●	●	●	●
5	BOLT; AIR CMPR FIX AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X150	9-09804-172-1	01	1	0105-	●	●	●	●
5	BOLT; AIR CMPR FIX HEATER & DEFROSTER(C41) (C) M14X100	9-91666-400-0	01	1	0105-0306	●	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0105-0306	●			●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	9-91666-400-0	01	1	0307-0512	●	●	●	●
5	BOLT; AIR CMPR FIX EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) M14X100	0-16956-400-0	01	1	0601-	●	●	●	●
6	NUT; AIR CMPR M14 FLANGE	0-91150-114-0	01	1	0105-	●	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	03	1	0105-	●	●	●
8	WASHER; PL,AIR CMPR ID=15 OD=26	9-09164-514-0	01	1	0105-				●
19	GEAR; INJ PUMP Z=54	1-12524-111-1	01	1	0105-0202	●	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-111-1	01	1	0105-0202				●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0203-0205	●	●	●
19	GEAR; INJ PUMP EURO2 SPECIFICATION<THN> Z=54	1-12524-164-0	01	1	0203-0205				●
19	GEAR; INJ PUMP Z=54	1-12524-164-0	01	1	0206-	●	●	●	●
19	GEAR; INJ PUMP EURO3 SPECIFICATION<NJX> Z=54	1-12524-151-0	01	1	0107-0205				●
20	BOLT; GEAR TO SHAFT M12X39 FLANGE	1-09070-116-0	05	1	0105-	●	●	●	●
24	POINTER; AIR CMPR	1-11327-017-1	01	1	0105-	●	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0105-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (B)	0-02117-080-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	0-02117-080-0	02	1	0108-				●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0105-0107	●	●	●
27	HOSE; AIR CMPR,SUCTION (A)	1-09360-916-0	02	1	0108-	●	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09360-916-0	02	1	0108-				●
27	HOSE; AIR CMPR,SUCTION (C) L=55	1-09360-784-0	02	1	0105-0107				●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) L=55	1-09360-784-0	02	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0105-0107	●	●	●
28	CLIP; HOSE,AIR CMPR ID=22.7	8-94466-382-0	08	1	0108-	●	●	●
28	CLIP; HOSE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.7	8-94466-382-0	08	1	0108-				●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0105-0107				●
28	CLIP; HOSE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=28.5	1-09707-150-0	04	1	0108-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (B)	1-19193-278-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (C)	1-19193-455-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-408-0	01	1	0108-0402				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (C)	1-19193-408-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-409-0	01	1	0108-0402				●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (B)	1-19193-409-0	01	1	0403-				●
31	PIPE; AIR,AIR CMPR SUCTION (A)	1-19192-991-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION (B)	1-19192-992-0	01	1	0105-	●	●	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<THN> (A)	1-19193-327-0	01	1	0105-				●
31	PIPE; AIR,AIR CMPR SUCTION EURO3 SPECIFICATION<NJX> (A)	1-19193-279-0	01	1	0107-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (B)	1-09701-210-0	04	1	0403-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	04	1	0403-				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=17 L=17	1-09701-284-0	08	1	0108-0402				●
40	CLIP; AIR PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (A) ID=17 L=17	1-09701-284-0	08	1	0403-				●
40	CLIP; AIR PIPE (A)	1-09701-281-0	04	1	0105-0107				●
40	CLIP; AIR PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-09701-281-1	04	1	0108-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (E) M6X70 FLANGE	0-28080-670-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (E) M6X70 FLANGE	0-28050-670-0	02	1	0601-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (D) M8X40 FLANGE	0-28080-840-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28080-870-0	02	1	0108-0402				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (C) M8X70 FLANGE	0-28080-870-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28050-870-0	02	1	0601-				●
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-				●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512				●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28050-630-0	04	1	0601-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0108-	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-19119-032-0	02	1	0108-				●
49	PIPE; AIR,CHARGE (A)	9-19119-032-0	02	1	0105-0107	●	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-19193-132-0	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19192-661-2	01	1	0105-	●	●
49	PIPE; AIR,CHARGE (A)	1-19193-122-1	01	1	0105-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-19193-122-1	01	1	0108-0608				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97613-246-0	01	1	0609-				●
49	PIPE; AIR,CHARGE (B)	1-19193-126-2	01	1	0105-0107				●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19193-126-2	01	1	0108-				●
49	PIPE; AIR,CHARGE (B)	1-19193-371-0	01	1	0105-			●
51	BOLT; EYE,AIR PIPE TO CMPR (A) M10X21 FLANGE	1-09675-077-0	01	1	0105-	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	02	1	0105-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR (B) M24X39	1-09675-175-1	01	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-				●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	0105-			●	●
54	NUT; PIPE UNION M22	9-09111-522-0	01	1	0105-0512			●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	0601-			●	●
55	WASHER; LK,PIPE UNION ID=22.5	9-09150-522-0	01	1	0105-0603			●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	0604-			●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0105-0107	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	03	1	0105-	●	●	●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	02	1	0105-0107				●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-	●			●
68	SLEEVE; RUBBER ID=18 OD=22 L=25	8-94412-773-0	01	1	0108-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	02	1	0105-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0105-				●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0105-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	02	1	0105-				●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512				●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-				●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
115	BOLT; AIR PIPE M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
116	BRACKET; AIR PIPE (A)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-				●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-				●
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-			●
127	NUT; UNION M12	9-09840-280-0	01	1	0105-				●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0105-0603				●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-				●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0105-0107				●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=26.8	1-09623-415-0	01	1	0108-0608				●
131	GASKET; AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5	8-94399-398-0	01	1	0609-				●
171	UNION M12 L=62.5	9-09223-206-1	01	1	0105-0607				●
171	UNION M12 L=62.5	0-92113-206-0	01	1	0608-				●
176	BOLT; BRKT FIX M10X135	8-94397-139-1	01	1	0105-	●	●	●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28196-013-0	01	1	0105-0512				●
176	BOLT; BRKT FIX M10X130 FLANGE	0-28166-013-0	01	1	0601-				●
213	PIN; AIR CMPR GEAR OD=5 L=10	9-08150-510-0	01	1	0105-	●	●	●	●
233	RING; FRICTION	1-12529-003-0	01	1	0105-0205		●	●	●
274	BOLT; PIPE M8X20 FLANGE	0-28080-820-0	02	1	0105-0107				●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28080-820-0	02	1	0108-0512				●
274	BOLT; PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE	0-28050-820-0	02	1	0601-				●

152 76 69 152 271 76 69 271 116 87 41 52 52 35 29 29 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	CLIP; AIR PIPE EURO3 SPECIFICATION<NJX>	1-09701-132-1	08	1	0107-				●
35	BOLT; EYE,AIR PIPE EURO3 SPECIFICATION<NJX> M10X21 FLANGE	8-94396-711-0	04	1	0107-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (E) M6X70 FLANGE	0-28080-670-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (E) M6X70 FLANGE	0-28050-670-0	02	1	0601-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (D) M8X40 FLANGE	0-28080-840-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EURO3 SPECIFICATION<NJX> (D) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28080-870-0	02	1	0108-0402				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO3 SPECIFICATION<NJX> (C) M8X70 FLANGE	0-28080-870-0	02	1	0403-0512				●
41	BOLT; CLIP AIR COMPRESSOR HEAVY DUTY(E1Q) (C) M8X70 FLANGE	0-28050-870-0	02	1	0601-				●
41	BOLT; CLIP (A) M8X45 FLANGE	0-28080-845-0	02	1	0105-0107				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28080-845-0	02	1	0108-0512				●
41	BOLT; CLIP EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M8X45 FLANGE	0-28050-845-0	02	1	0601-				●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28080-630-0	04	1	0107-0512				●
41	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X30 FLANGE	0-28050-630-0	04	1	0601-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0105-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	04	1	0105-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=24.5 OD=32	9-09571-424-0	02	1	0105-				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=10.2 OD=15.2	1-09630-083-0	08	1	0107-				●
69	NUT; FLEX HOSE EURO3 SPECIFICATION<NJX> M12	9-09840-280-0	02	1	0107-				●
76	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	9-09150-512-0	02	1	0107-0603				●
76	WASHER; LK,FLEX HOSE EURO3 SPECIFICATION<NJX> ID=12.2	0-91510-512-0	02	1	0604-				●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28181-020-0	02	1	0105-0512	●	●	●	●
87	BOLT; BRKT FIX (A) M10X20 FLANGE	0-28151-020-0	02	1	0601-	●	●	●	●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28080-612-0	02	1	0107-0512				●
87	BOLT; BRKT FIX EURO3 SPECIFICATION<NJX> (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-				●
116	BRACKET; AIR PIPE (A)	1-19199-212-1	01	1	0105-	●	●
116	BRACKET; AIR PIPE (A)	1-19199-308-0	01	1	0105-				●
116	BRACKET; AIR PIPE EURO3 SPECIFICATION<NJX> (B)	1-19199-339-1	01	1	0107-				●
116	BRACKET; AIR PIPE (B)	1-19199-386-0	01	1	0105-			●
152	HOSE; FLEX EURO3 SPECIFICATION<NJX> L=280	1-09363-610-0	02	1	0107-				●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (A)	1-19193-236-0	01	1	0107-				●
271	PIPE; AIR,EGR CONT EURO3 SPECIFICATION<NJX> (B)	1-19193-237-0	01	1	0107-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
