◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-22 - ENGINE MOUNTING ▶
0-22 — ENGINE MOUNTING (#119119) — 63 parça
çizim 350123
10 10 52 10 20 52 78 52 10 20 20
BalonParca AdiParca NoAdetTipApplied Date A B
10 NUT; MTG RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1305- ● ●
10 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
10 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
10 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1305- ●
20 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1305- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1305- ●
20 BOLT; ENG FOOT
(F) M10X40 FLANGE 		0-28051-040-0 01 1 1305- ●
20 BOLT; ENG FOOT
(C) M14X20 FLANGE 		0-28851-420-0 01 1 1305- ● ●
20 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1305- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 04 1 1305- ●
20 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1305- ●
20 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (G) M10X55 FLANGE 		8-98035-672-0 02 1 1305- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 02 1 1305- ●
20 BOLT; ENG FOOT
4X4(TFS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1305- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS> (C) 		8-98270-987-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS> (A) 		8-98270-984-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EQUIPMENT IMPACT<EPS> (B) 		8-98270-985-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) EQUIPMENT IMPACT<EPS> (B) 		8-98238-913-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) (A) 		8-98193-626-0 01 1 1305-1409 ●
52 RUBBER; CUSHION,ENG MTG,RR
(A) 		8-98193-626-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS> (A) 		8-98193-626-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (C) 		8-98193-342-0 01 1 1305-1409 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X2 CREW CAB(TFB*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> (C) 		8-98193-342-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98193-344-0 01 1 1305-1409 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) M/T MUA 5 SPEED 5H(MWQ) EXC. EQUIPMENT IMPACT<EPS> (B) 		8-98193-344-0 01 1 1410- ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4(TFS***) A/T 5 SPEED-AISIN(MA1) (B) 		8-98193-346-0 01 1 1305-1409 ●
52 RUBBER; CUSHION,ENG MTG,RR
4X4 CREW CAB(TFS*W*) A/T 5 SPEED-AISIN(MA1) EXC. EQUIPMENT IMPACT<EPS> (B) 		8-98193-346-0 01 1 1410- ●
78 BRACKET; ENG MTG,RR
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) 		8-98164-580-2 01 1 1305- ●

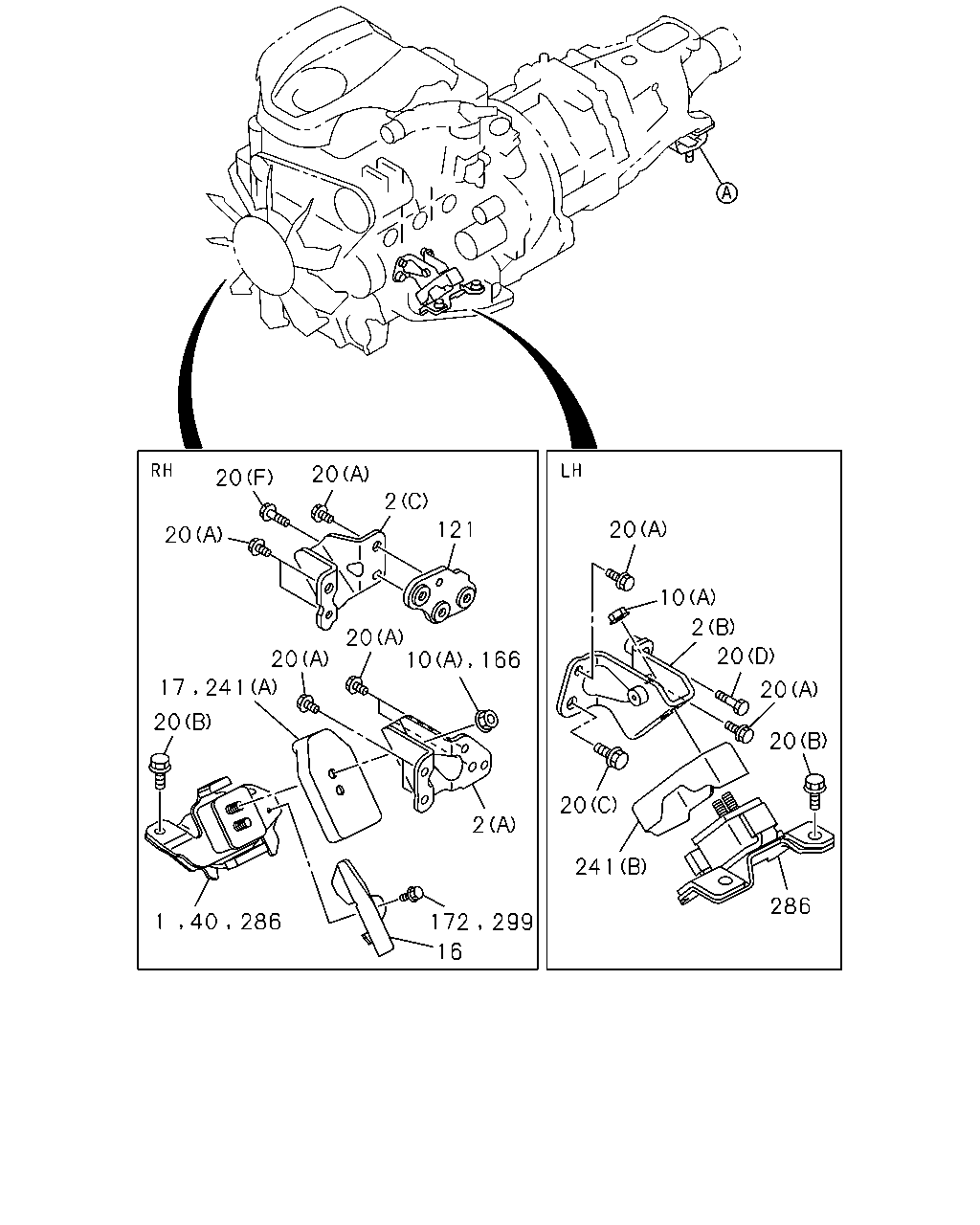

çizim 351869
20 20 20 121 2 20 10 166 20 241 17 20 1 40 286 16 172 299 2 20 10 2 20 20 20 286 241 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 RUBBER; ENG FOOT,FRT 8-98183-242-0 01 1 1307-1307 ●
1 RUBBER; ENG FOOT,FRT 8-98250-592-0 01 1 1308- ●
2 FOOT; ENG
(C) 		8-98208-226-0 01 1 1305- ●
2 FOOT; ENG
(B) 		8-98132-101-0 01 1 1305- ● ●
2 FOOT; ENG
(A) 		8-98132-100-0 01 1 1305- ●
10 NUT; MTG RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1305- ● ●
10 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1305- ● ●
10 NUT; MTG RUBBER
4X2(TFB***) M/T MUA 5 SPEED 5H(MWQ) (A) M10 FLANGE 		0-91180-210-0 02 1 1305- ●
10 NUT; MTG RUBBER
(A) M10 FLANGE 		0-91180-210-0 04 1 1305- ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-98215-263-0 01 1 1305- ●
16 PROTECTOR; HEAT,ENG MTG,FRT 8-98182-916-1 01 1 1305- ●
17 COVER; CUSHION RUBBER,FRT
A/T 5 SPEED-AISIN(MA1) 		8-98194-507-1 01 1 1305- ●
17 COVER; CUSHION RUBBER,FRT
M/T MUA 5 SPEED 5H(MWQ) 		8-98101-956-2 01 1 1305- ●
20 BOLT; ENG FOOT
(B) M10X30 FLANGE 		8-98013-800-0 04 1 1305- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 07 1 1305- ●
20 BOLT; ENG FOOT
(F) M10X40 FLANGE 		0-28051-040-0 01 1 1305- ●
20 BOLT; ENG FOOT
(C) M14X20 FLANGE 		0-28851-420-0 01 1 1305- ● ●
20 BOLT; ENG FOOT
(D) M10X35 W/LK WASHER 		0-50741-035-0 01 1 1305- ● ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 04 1 1305- ●
20 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (H) M10X25 FLANGE 		0-28651-025-0 04 1 1305- ●
20 BOLT; ENG FOOT
4X2(TFB***) A/T 5 SPEED-AISIN(MA1) (G) M10X55 FLANGE 		8-98035-672-0 02 1 1305- ●
20 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28051-020-0 02 1 1305- ●
20 BOLT; ENG FOOT
4X4(TFS***) (E) M10X35 FLANGE 		0-28751-035-0 02 1 1305- ●
40 BRACKET; ENG MTG 8-98183-242-0 01 1 1305-1306 ●
121 BRACKET; ENG FOOT,FRT 8-98208-227-0 01 1 1305- ●
166 NUT; SUPPORT RUBBER
M10 FLANGE 		0-91180-210-0 02 1 1305- ●
172 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28050-610-0 01 1 1305- ●
241 COVER; ENG MTG
(A) 		8-98101-956-2 01 1 1305- ●
241 COVER; ENG MTG
(B) 		8-98101-957-1 01 1 1305- ●
241 COVER; ENG MTG
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98101-957-1 01 1 1305- ●
241 COVER; ENG MTG
A/T 5 SPEED-AISIN(MA1) (B) 		8-98194-508-1 01 1 1305- ●
286 MOUNTING ASM; ENGINE 8-98183-242-0 01 1 1305-1308 ●
286 MOUNTING ASM; ENGINE 8-98250-592-0 01 1 1309- ●
286 MOUNTING ASM; ENGINE 8-98075-376-2 01 1 1305- ● ●
299 BOLT
M6X10 FLANGE 		0-28050-610-0 01 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
