Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

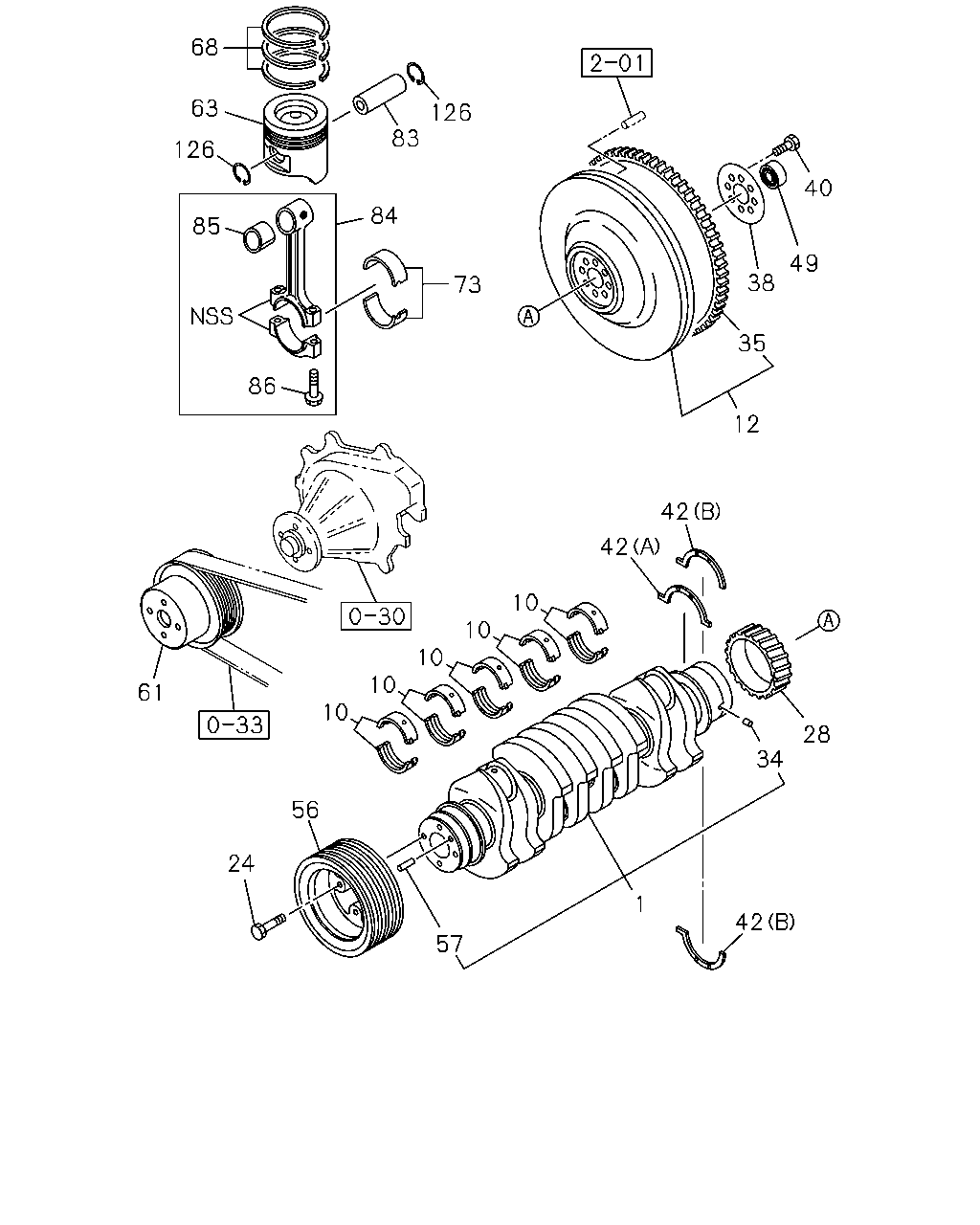

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#119115) — 27 parça
Tümü
A - 4HK1-TCN ENG
B - 4HK1-TCS ENG
42
1
34
28
42
42
10
10
10
10
10
57
56
24
61
12
35
38
49
40
73
84
83
126
86
85
126
63
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CRANKSHAFT
IMA
8-98029-270-0
01
1
1304-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BLUE IMA
8-97372-076-1
05
1
1304-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BLACK IMA
8-97372-077-1
05
1
1304-
●
●
10
METAL SET; CRANKSHAFT,STANDARD
BROWN IMA
8-97372-078-1
05
1
1304-
●
●
12
FLYWHEEL
IMA
8-97326-227-2
01
1
1304-
●
●
24
BOLT; DAMPER
M16X42 IMA
8-97028-733-0
04
1
1304-
●
●
28
GEAR; CR/SHF
Z=42 IMA
8-94394-342-4
01
1
1304-
●
●
34
PIN; GEAR SETTING
OD=5 L=6 IMA
9-09878-626-0
01
1
1304-
●
●
35
GEAR; RING
Z=138 IMA
8-97046-366-1
01
1
1304-
●
●
38
WASHER; FLYWHEEL
ID=55 OD=110 IMA
8-94397-496-1
01
1
1304-
●
●
40
BOLT; FLYWHEEL
M16X42 IMA
8-97178-013-0
08
1
1304-
●
●
42
WASHER; THRUST,CR/SHF
(A) IMA
8-97386-548-0
01
1
1304-
●
●
42
WASHER; THRUST,CR/SHF
(B) IMA
8-97386-549-0
02
1
1304-
●
●
49
BEARING; PILOT
IMA
8-97258-239-0
01
1
1304-
●
●
49
BEARING; PILOT
BEST VALUE PARTS
5-87610-164-0
01
1
1304-
●
●
56
PULLEY; CR/SHF DAMPER
3-GROOVE IMA
8-98004-024-3
01
1
1304-
●
●
57
PIN; PULLEY
OD=8 L=20 IMA
9-08150-820-0
02
1
1304-
●
●
61
PULLEY; FAN DRIVE
1-GROOVE IMA
8-98003-384-1
01
1
1304-
●
●
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE IMA
8-98041-141-2
04
1
1304-
●
●
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98040-125-0
04
1
1304-
●
●
73
METAL SET; CONN ROD,STANDARD
YELLOW IMA
8-98055-479-0
04
1
1304-
●
●
73
METAL SET; CONN ROD,STANDARD
GREEN IMA
8-98055-480-0
04
1
1304-
●
●
83
PIN; PISTON
ALSO INCLUDED IN LINER SET. IMA
8-98018-863-1
04
1
1304-
●
●
84
ROD ASM; CONN
IMA
8-98018-425-2
04
1
1304-
●
●
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. IMA
8-94391-794-1
04
1
1304-
●
●
86
BOLT; CONNROD
M13X57 FLANGE IMA
8-98091-141-0
08
1
1304-
●
●
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 IMA
8-98006-828-0
08
1
1304-
●
●
