Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

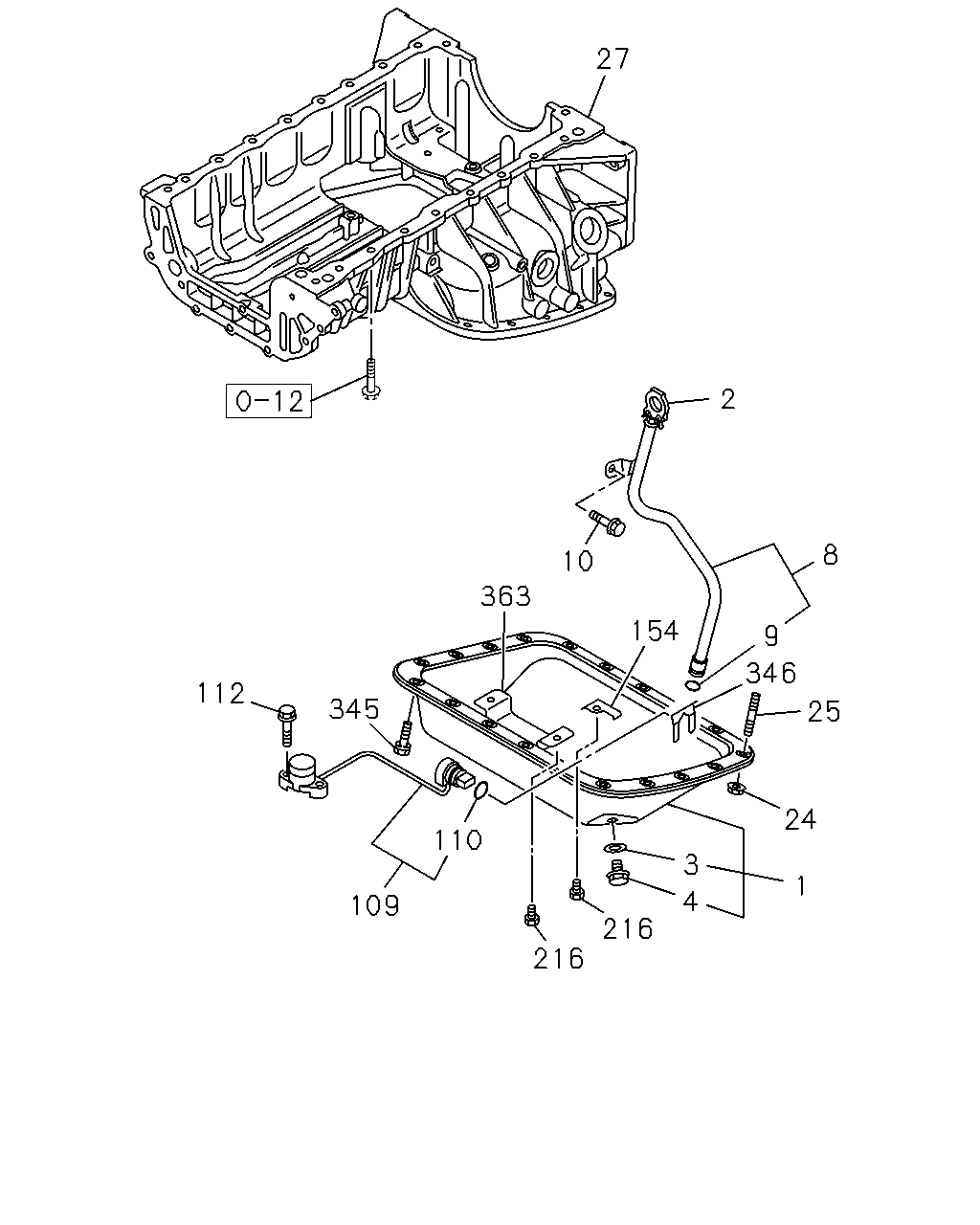

0-13 — OIL PAN AND LEVEL GAUGE
(#119101) — 22 parça
27
2
8
10
363
154
9
346
25
24
1
3
4
216
216
109
110
345
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
IMA
8-97383-067-3
01
1
1304-
2
GAUGE; OIL LEVEL
IMA
8-98112-777-1
01
1
1304-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 IMA
8-94158-328-0
01
1
1304-
4
PLUG; DRAIN,OIL
M14X14 IMA
8-94152-613-0
01
1
1304-
8
TUBE; GUIDE,OIL LEVEL GAUGE
IMA
8-97381-490-3
01
1
1304-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 IMA
1-09623-469-0
01
1
1304-
10
BOLT; GUIDE TUBE
M8X12 FLANGE THA
0-28050-812-0
01
1
1304-
24
NUT; OIL PAN
M8 FLANGE THA
0-91180-208-0
02
1
1304-
25
STUD; OIL PAN
EXC. ENGINE MADE IN THAILAND<6ZP> M8X20 L=31 THA
8-97945-022-0
02
1
1406-
25
STUD; OIL PAN
EXC. ENGINE MADE IN THAILAND<6ZP> M8X16 L=28 THA
0-41010-816-0
02
1
1304-1405
25
STUD; OIL PAN
ENGINE MADE IN THAILAND<6ZP> M8X16 L=28 THA
0-41010-816-0
02
1
1406-
27
CRANKCASE
ENGINE MADE IN THAILAND<6ZP> IMA
8-98191-052-0
01
1
1304-
27
CRANKCASE
VIN MODEL YEAR 2011<VZB> EXC. ENGINE MADE IN THAILAND<6ZP> IMA
8-98191-052-0
01
1
1304-
27
CRANKCASE
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP>
8-97381-483-7
02
1
1304-
109
SWITCH; OIL LEVEL
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP>
8-97328-879-0
01
1
1304-
110
GASKET; SW,OIL LEVEL
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP>
8-98048-191-0
01
1
1304-
112
BOLT; SW,OIL LEVEL
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP> M6X30 FLANGE THA
0-28650-630-0
02
1
1304-
154
BRACKET; CLIP,ENG HARNESS
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP>
8-97386-380-0
01
1
1304-
216
BOLT; BRKT
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA
0-28050-812-0
03
1
1304-
345
BOLT; SENSOR,OIL LEVEL
M8X12 FLANGE THA
0-28050-812-0
17
1
1304-
346
CLIP; OIL LEVEL SW
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP> ID=19.2 IMA
8-97211-011-0
01
1
1304-
363
BRACKET; OIL LEVEL SW
EXC. VIN MODEL YEAR 2011<VZB>,ENGINE MADE IN THAILAND<6ZP>
8-97381-486-0
01
1
1304-
