Isuzu WW
▶
TRUCKS
▶
FVR
▶
10631 - FVR-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#1191) — 56 parça
Tümü
A - 6SA1 STD ENG
B - 6HE1 STD ENG
C - 6SA1TC ENG
◀

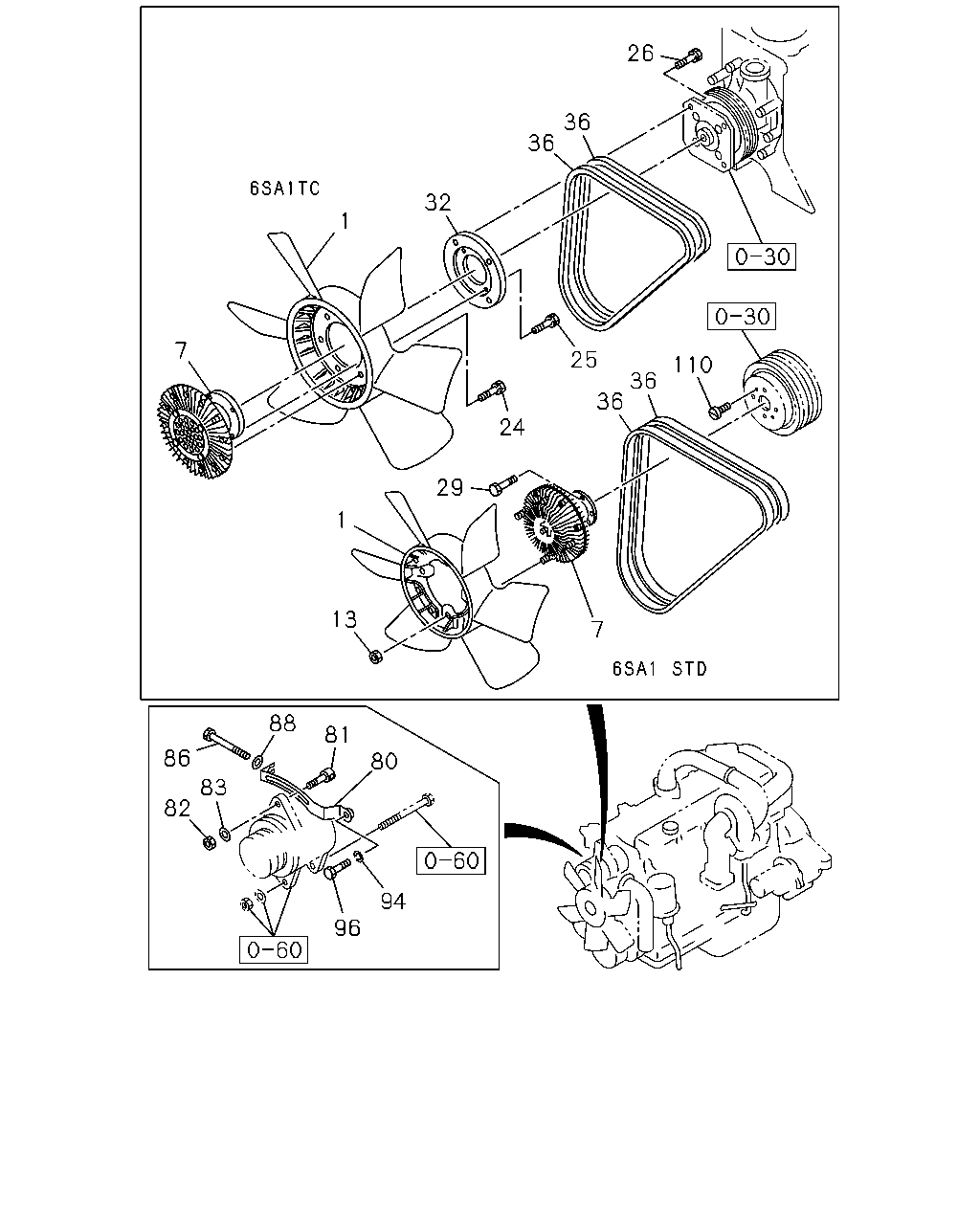

[033A] 6SA1 ENG (30 parça)

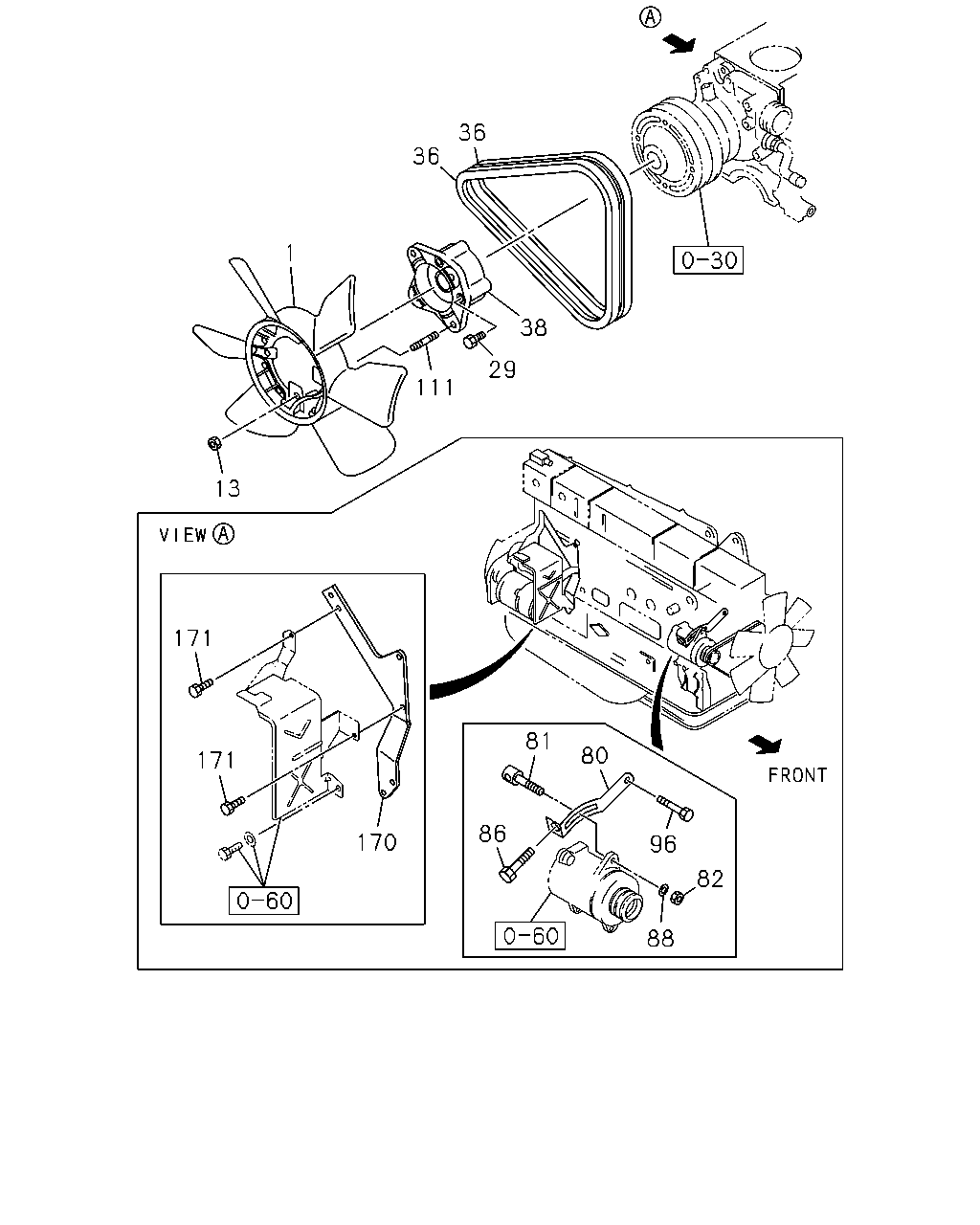

[033A] 6HE1 ENG (26 parça)
▶
26
36
36
32
1
7
25
110
36
36
24
29
1
13
7
88
81
86
80
83
82
94
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FAN; COOLING
1-13660-189-2
01
1
9202-
●
1
FAN; COOLING
5-13662-012-1
01
1
9202-
●
1
FAN; COOLING
1-13660-219-0
01
1
9306-
●
7
COUPLING; FAN
1-21650-097-1
01
1
9202-
●
7
COUPLING; FAN
1-21650-139-1
01
1
9306-
●
13
NUT; COOLING FAN
M6 FLANGE
0-91150-106-0
04
1
9202-
●
●
24
BOLT; FAN
M8X16 W/LK WASHER
0-50040-816-0
06
1
9306-
●
25
BOLT; ADAPTER
M10X22 W/LK WASHER
0-50041-022-0
04
1
9306-
●
26
BOLT; FAN TO CLU
M10X22 W/LK WASHER
0-50041-022-0
04
1
9306-
●
29
BOLT; COUPLING TO WATER PUMP
M8X20
1-09070-120-0
04
1
9202-
●
29
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
0-28080-870-0
04
1
9202-
●
32
ADAPTER; FAN TO PULLEY
1-21659-006-1
01
1
9306-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711420) MITSUBOSHI
1-13671-143-0
01
1
9202-
●
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
9202-
●
80
PLATE; ADJ
1-13674-126-0
01
1
9202-
●
●
80
PLATE; ADJ
8-94396-271-0
01
1
9202-9411
●
80
PLATE; ADJ
8-94395-469-0
01
1
9412-9502
●
80
PLATE; ADJ
8-94390-021-1
01
1
9503-
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9202-
●
●
●
82
NUT; ADJ PLATE
M12
9-99110-412-0
01
1
9202-
●
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
9202-
●
83
WASHER; PL
ID=12.5 T=5.8
8-94217-363-0
01
1
9202-
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9202-
●
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
9202-9501
●
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
9502-
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09164-712-0
01
1
9502-
●
94
WASHER; LK,ADJ PLATE
ID=12.2
9-09150-512-0
01
1
9202-
●
●
96
BOLT; ADJ PLATE
M12X25
0-23801-225-0
01
1
9202-
●
●
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28181-045-0
01
1
9202-
●
110
SCREW; PULLEY
M6X10
9-03490-610-0
02
1
9202-
●
36
36
1
38
29
111
13
171
81
80
171
86
170
96
82
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
FAN; COOLING
1-13660-189-2
01
1
9202-
●
1
FAN; COOLING
5-13662-012-1
01
1
9202-
●
1
FAN; COOLING
1-13660-219-0
01
1
9306-
●
13
NUT; COOLING FAN
M6 FLANGE
0-91150-106-0
04
1
9202-
●
●
29
BOLT; COUPLING TO WATER PUMP
M8X20
1-09070-120-0
04
1
9202-
●
29
BOLT; COUPLING TO WATER PUMP
M8X70 FLANGE
0-28080-870-0
04
1
9202-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711420) MITSUBOSHI
1-13671-143-0
01
1
9202-
●
●
36
BELT; COOLING FAN
1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
9202-
●
38
SPACER; FAN
8-94393-896-0
01
1
9202-
●
80
PLATE; ADJ
1-13674-126-0
01
1
9202-
●
●
80
PLATE; ADJ
8-94396-271-0
01
1
9202-9411
●
80
PLATE; ADJ
8-94395-469-0
01
1
9412-9502
●
80
PLATE; ADJ
8-94390-021-1
01
1
9503-
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9202-
●
●
●
82
NUT; ADJ PLATE
M12
9-99110-412-0
01
1
9202-
●
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
9202-
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9202-
●
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
9202-9501
●
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
9502-
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09164-712-0
01
1
9502-
●
96
BOLT; ADJ PLATE
M12X25
0-23801-225-0
01
1
9202-
●
●
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28181-045-0
01
1
9202-
●
111
STUD; FAN DRIVE
M6X12 L=21
9-04110-612-0
04
1
9202-
●
170
BRACKET; HEAT PROTECTOR
8-94393-024-0
01
1
9202-
●
171
BOLT; HEAT PROTECTOR
M8X14 FLANGE
0-28080-814-0
02
1
9202-
●
171
BOLT; HEAT PROTECTOR
M10X20 FLANGE
0-28181-020-0
01
1
9202-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
