Sayfa 8-15 - Isuzu EPC

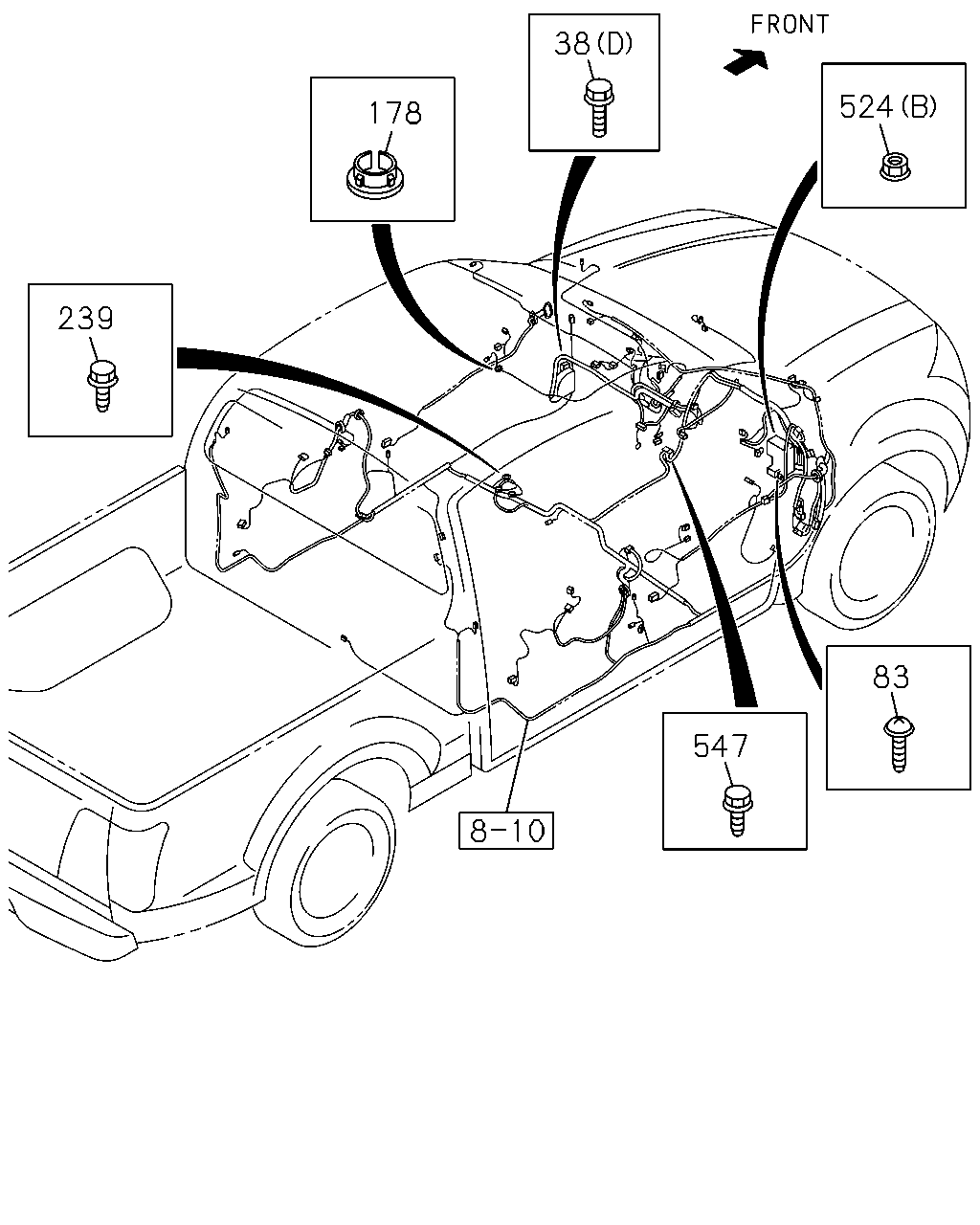

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
38	BOLT; CLIP,HARNESS (D) M6X16 FLANGE	0-28650-616-0	05	1	1305-	●	●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (A) M6X12 FLANGE	0-28050-612-0	02	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (B) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (C) M8X16 FLANGE	0-28050-816-0	02	1	1305-		●	●	●
83	SCREW; HARNESS M5X25 TAPPING W/PL WASHER	0-74360-525-0	01	1	1305-	●	●	●	●
178	GROMMET; HARNESS	8-97027-381-0	01	1	1305-	●	●	●	●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501	●	●	●	●
239	BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501	●	●
239	BOLT; GRAND FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501		●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501				●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●
239	BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●
239	BOLT; GRAND FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-				●
239	BOLT; GRAND 4JK1-TCX ENG(LR0) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1305-1501		●	●	●
239	BOLT; GRAND 4JK1-TCX ENG(LR0) M6X14 W/PL WASHER	8-98164-836-0	03	1	1502-		●	●	●
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	01	1	1305-	●	●	●	●
524	NUT; HARNESS 4JK1-TCX ENG(LR0) (A) M8 FLANGE	0-91180-108-0	01	1	1305-		●	●	●
547	BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	1305-1501	●	●	●	●
547	BOLT AIR BAG DRIVER & PASSENGER(AK5) M6X14 W/PL WASHER	8-98164-836-0	01	1	1502-	●	●	●	●

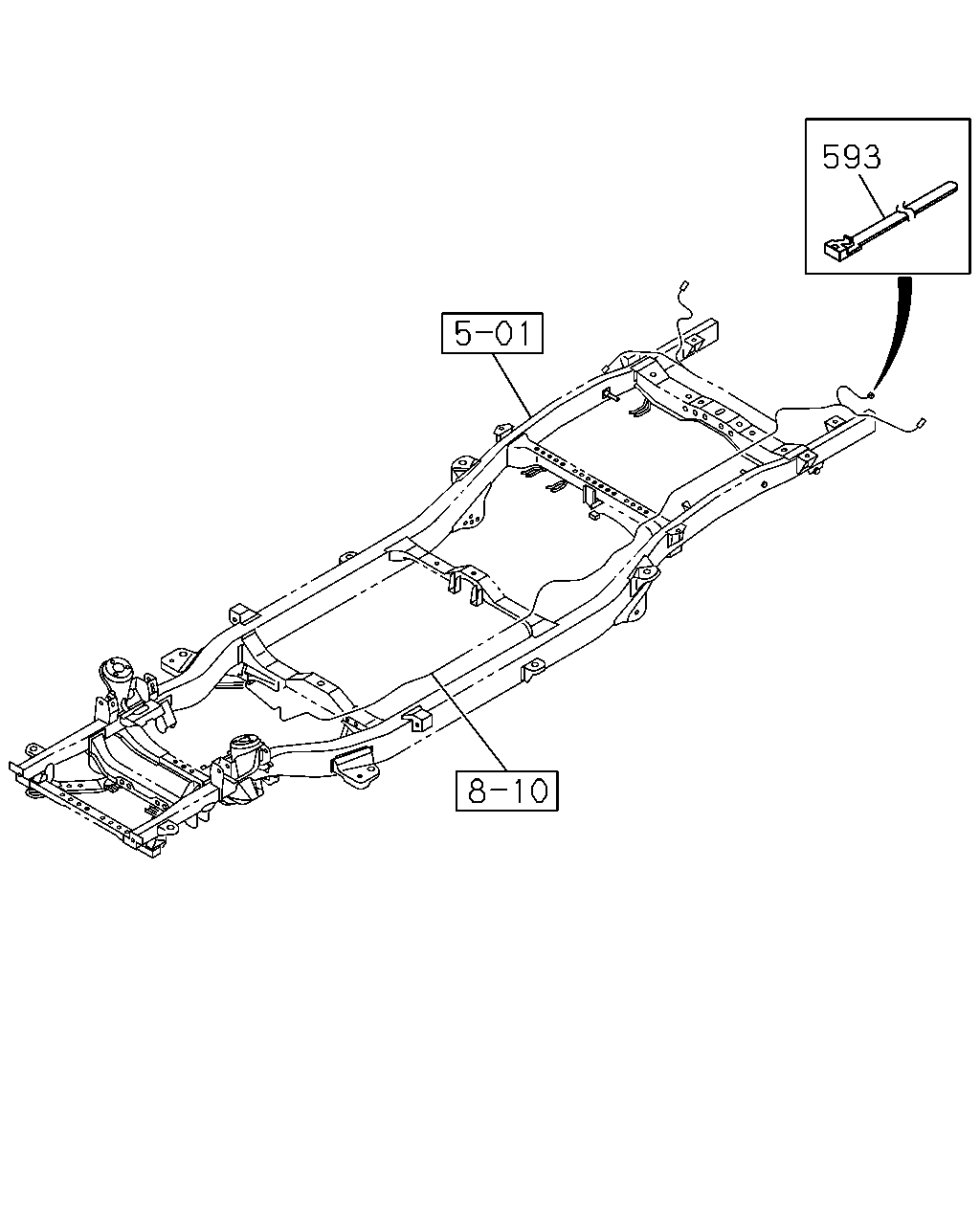

593

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	593	CLIP REAR BODY DELETE(8HH) L=250	5-09707-030-1	01	1	1305-	●	●	●	●

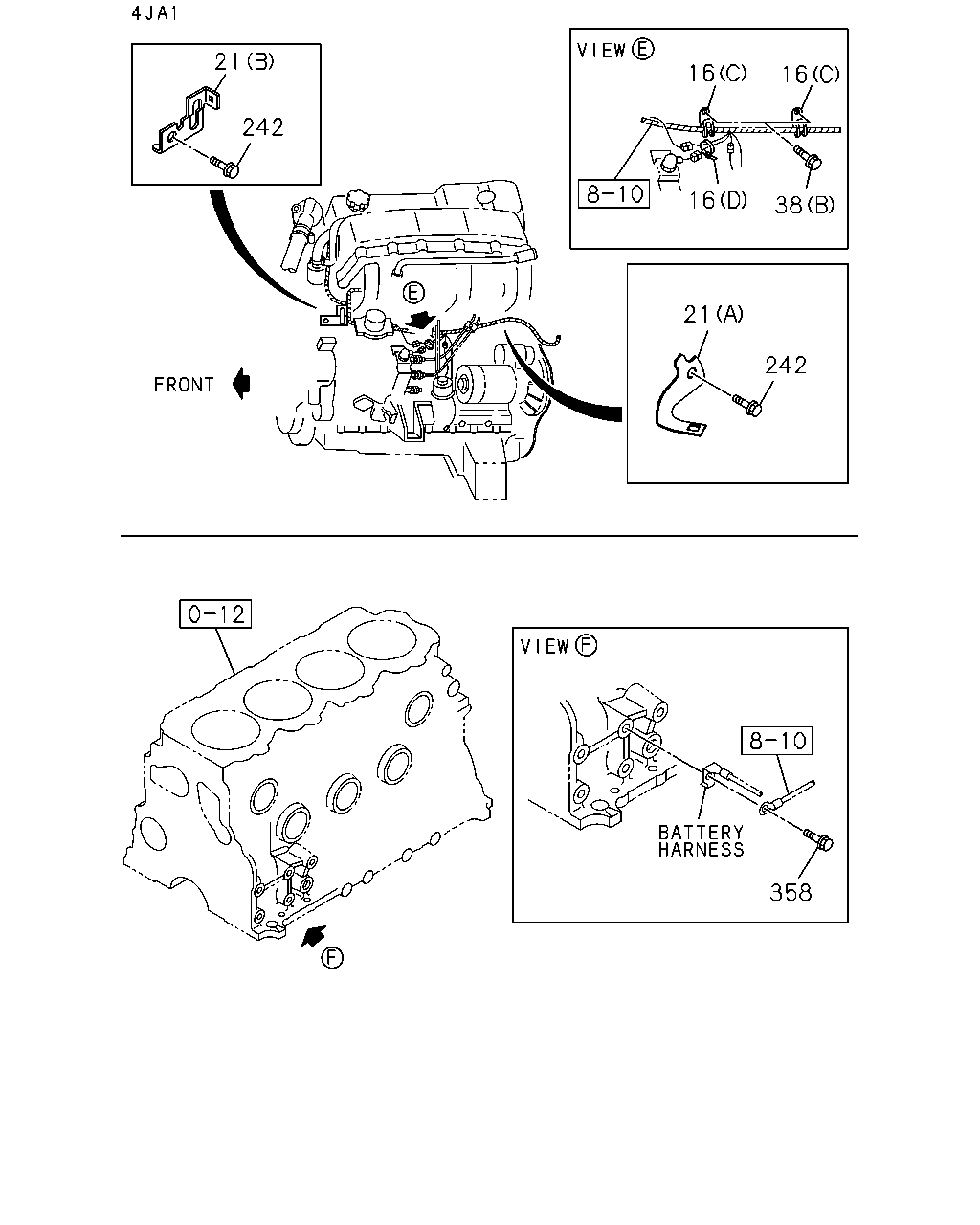

21 242 16 16 16 38 21 242 358

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) L=155	8-97173-307-0	02	1	1305-				●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) L=155	8-97173-307-0	02	1	1305-				●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	01	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	01	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (B) L=140	8-97378-707-0	01	1	1305-				●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (B) L=140	8-97378-707-0	01	1	1305-				●
16	CLIP; HARNESS 4JA1-T ENG(LP0) (D) L=140	5-09707-031-1	01	1	1305-	●	●
16	CLIP; HARNESS 4JA1-T ENG(LP0) (C) ID=18 L=44	8-97367-985-1	02	1	1305-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	04	1	1305-	●		●
16	CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	04	1	1305-		●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	02	1	1305-	●		●
16	CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	02	1	1305-		●
21	BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (B)	8-97249-918-1	01	1	1305-	●	●
21	BRACKET; ENG HARNESS 4JA1-T ENG(LP0) (A)	8-98179-923-0	01	1	1305-	●	●
38	BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
38	BOLT; CLIP,HARNESS (D) M6X16 FLANGE	0-28650-616-0	05	1	1305-	●	●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (A) M6X12 FLANGE	0-28050-612-0	02	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (B) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (C) M8X16 FLANGE	0-28050-816-0	02	1	1305-		●	●	●
242	BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) M8X12 FLANGE	0-28050-812-0	03	1	1305-1503	●	●
242	BOLT; BRKT,HARNESS 4JA1-T ENG(LP0) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
358	BOLT; EARTH 4JA1-T ENG(LP0) M10X16 FLANGE	0-28051-016-0	01	1	1305-	●	●

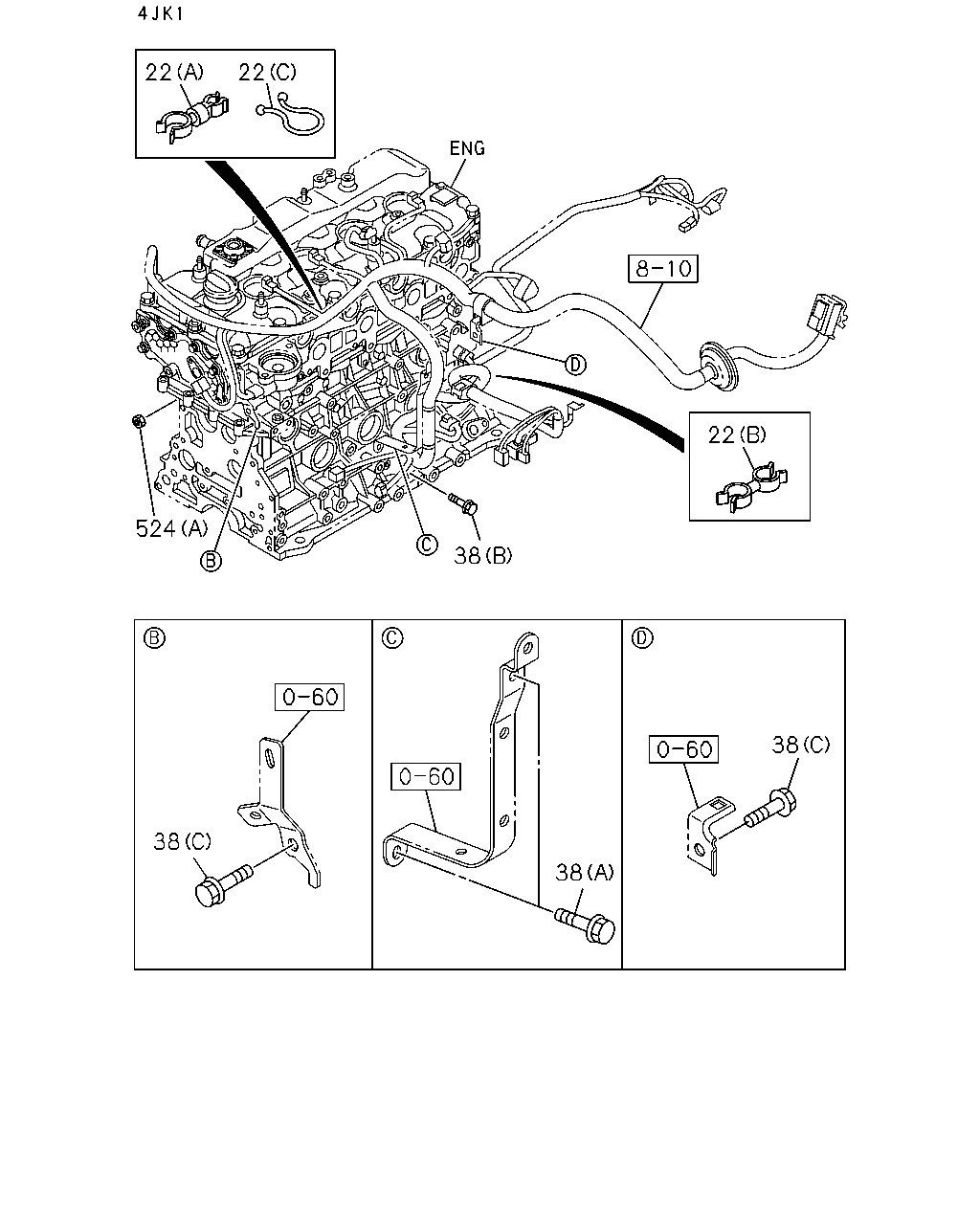

38 38 22 22 22 524 38 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42) (C) ID=15	1-09709-003-0	01	1	1305-		●	●	●
22	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (A) ID=11.8 & 7.5	1-09709-182-0	01	1	1305-		●	●	●
22	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (B) ID=7.5 & 7.5	8-97019-084-0	01	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JA1-T ENG(LP0) (B) M8X12 FLANGE	0-28050-812-0	02	1	1504-	●	●
38	BOLT; CLIP,HARNESS (D) M6X16 FLANGE	0-28650-616-0	05	1	1305-	●	●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (A) M6X12 FLANGE	0-28050-612-0	02	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (B) M8X12 FLANGE	0-28050-812-0	01	1	1305-		●	●	●
38	BOLT; CLIP,HARNESS 4JK1-TCX ENG(LR0) (C) M8X16 FLANGE	0-28050-816-0	02	1	1305-		●	●	●
524	NUT; HARNESS (B) M6 FLANGE	0-91180-106-0	01	1	1305-	●	●	●	●
524	NUT; HARNESS 4JK1-TCX ENG(LR0) (A) M8 FLANGE	0-91180-108-0	01	1	1305-		●	●	●

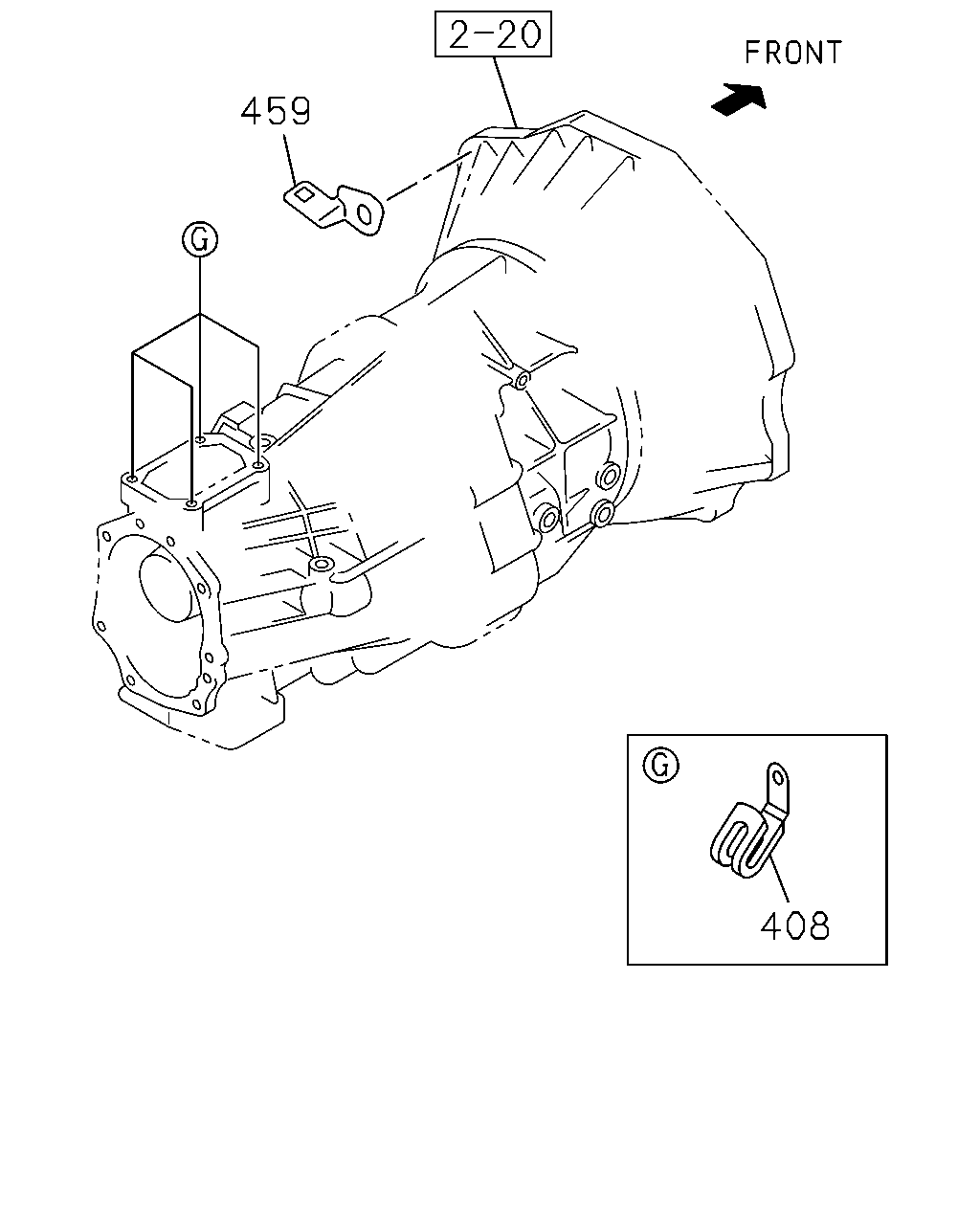

459 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
408	CLIP; TRANS HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	04	1	1305-	●	●	●	●
459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5G(RSP)	8-98050-882-0	01	1	1305-	●
459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP)	8-98050-882-0	01	1	1305-		●
459	BRACKET; SUPPORT,HARNESS M/T MUA 5 SPEED 5H(MWQ)	8-98050-882-0	01	1	1305-			●	●

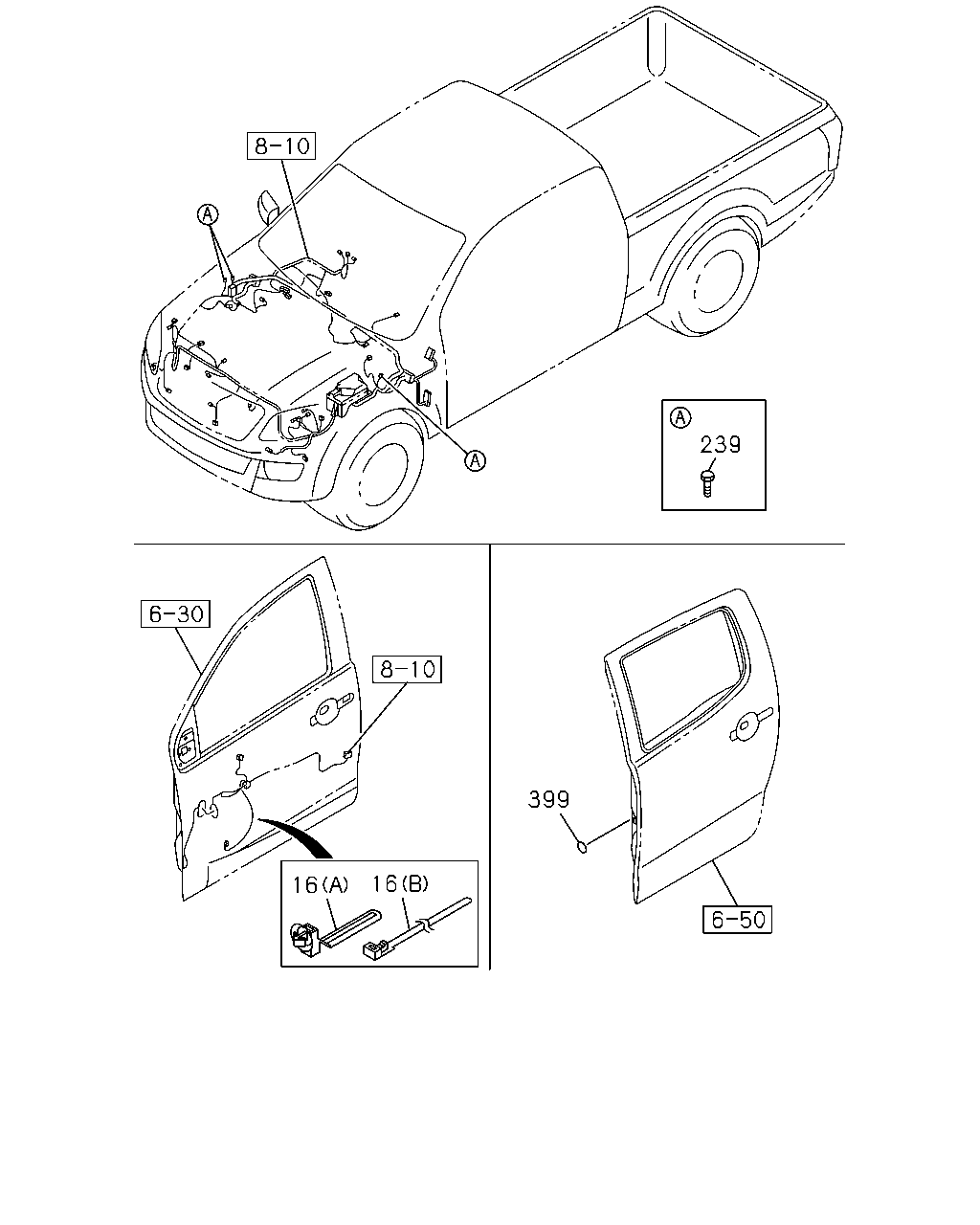

239 399 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	02	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> (A) L=155	8-97173-307-0	02	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) L=155	8-97173-307-0	02	1	1305-				●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) L=155	8-97173-307-0	02	1	1305-				●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	01	1	1305-	●		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	01	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> ,DOOR MIRROR<RT9> (B) L=140	8-97378-707-0	01	1	1305-		●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (B) L=140	8-97378-707-0	01	1	1305-				●
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (B) L=140	8-97378-707-0	01	1	1305-				●
16	CLIP; HARNESS 4JA1-T ENG(LP0) (D) L=140	5-09707-031-1	01	1	1305-	●	●
16	CLIP; HARNESS 4JA1-T ENG(LP0) (C) ID=18 L=44	8-97367-985-1	02	1	1305-	●	●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	04	1	1305-	●		●
16	CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	04	1	1305-		●
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	02	1	1305-	●		●
16	CLIP; HARNESS DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4> (B) L=140	8-97378-707-0	02	1	1305-		●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501	●	●	●	●
239	BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501	●	●
239	BOLT; GRAND FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501		●
239	BOLT; GRAND M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	1305-1501				●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●	●	●
239	BOLT; GRAND 4JA1-T ENG(LP0) M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-	●	●
239	BOLT; GRAND FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-		●
239	BOLT; GRAND M6X14 W/PL WASHER	8-98164-836-0	02	1	1502-				●
239	BOLT; GRAND 4JK1-TCX ENG(LR0) M6X14 W/LK&PL WASHER	8-97086-822-0	03	1	1305-1501		●	●	●
239	BOLT; GRAND 4JK1-TCX ENG(LR0) M6X14 W/PL WASHER	8-98164-836-0	03	1	1502-		●	●	●
399	COVER; HOLE,HARNESS,RR DOOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> OD=44 BLACK	5-76777-037-0	02	1	1305-		●		●
