7-60 — SEAT BELT (#119097) — 34 parça

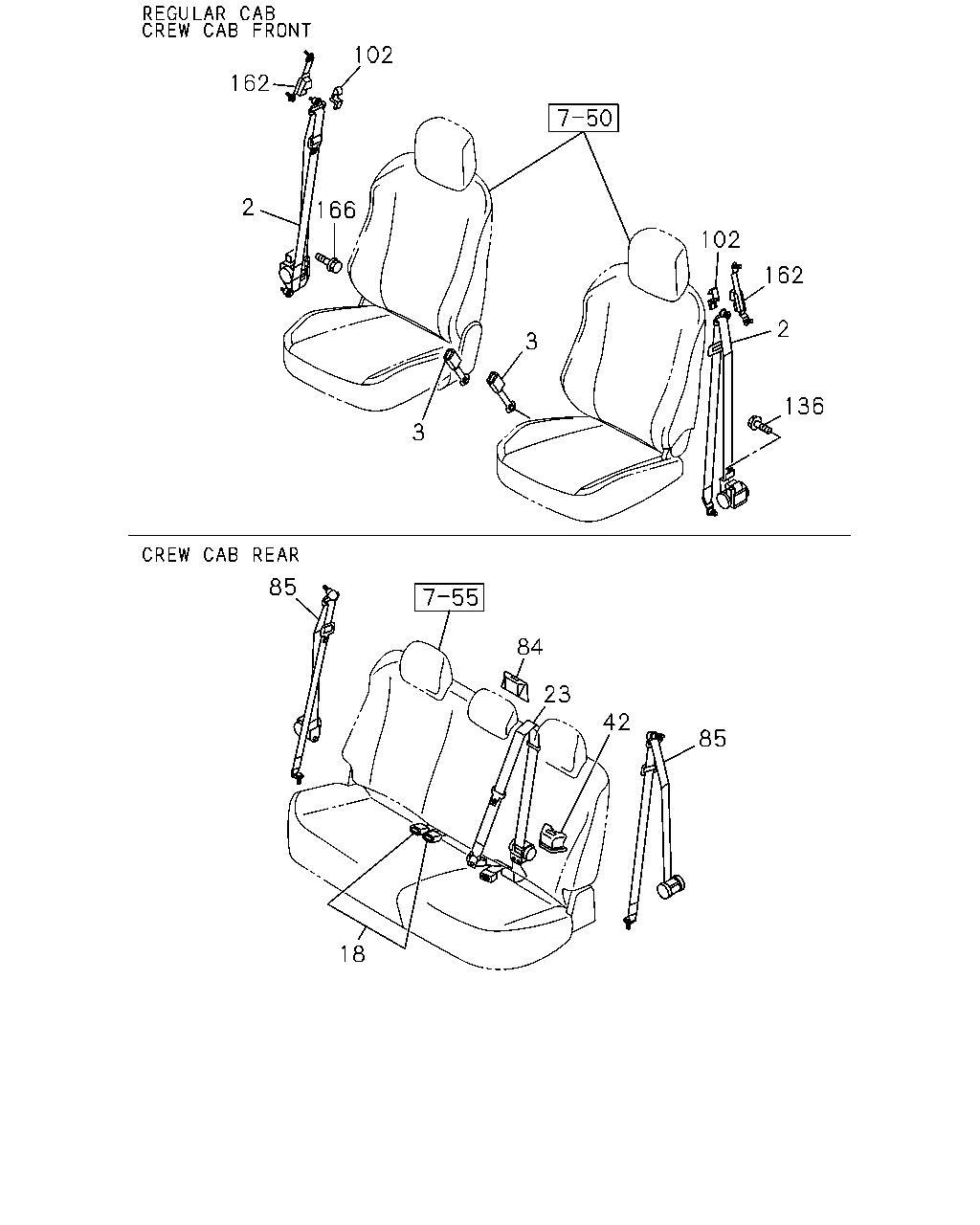

çizim 351516
102 162 2 136 3 3 166 2 162 102 85 42 23 84 85 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) EQUIPMENT IMPACT<EPS> BLACK 		8-97423-663-0 01 1 1410- ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97423-667-0 01 1 1305- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97423-662-0 01 1 1305-1409 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) BLACK 		8-97423-662-0 01 1 1410- ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER(AK5) EXC. EQUIPMENT IMPACT<EPS> BLACK 		8-97423-662-0 01 1 1410- ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-665-0 01 1 1305- ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-661-0 01 1 1305-1409 ● ● ● ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) BLACK 		8-97423-661-0 01 1 1410- ●
2 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. EQUIPMENT IMPACT<EPS> BLACK 		8-97423-661-0 01 1 1410- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97416-839-0 01 1 1305-1403 ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97416-839-0 01 1 1305-1403 ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97416-839-0 01 1 1404- ● ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM BASE CLOTH<8LK>,SEAT TRIM HIGH GRADE CLOTH<8LM> FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> BLACK 		8-97416-839-0 01 1 1404- ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97416-837-3 01 1 1305-1311 ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97416-837-3 01 1 1305-1311 ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-632-0 01 1 1312- ● ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM BASE CLOTH<8LK> BLACK 		8-97426-632-0 01 1 1312- ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97423-147-1 01 1 1305-1311 ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97423-147-1 01 1 1305-1311 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97426-631-0 01 1 1312- ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-631-0 01 1 1312- ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97419-435-1 01 1 1305-1311 ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97419-435-1 01 1 1305-1311 ●
3 BELT; SEAT,BUCKLE SIDE
SEAT TRIM HIGH GRADE CLOTH<8LM> BLACK 		8-97426-630-0 01 1 1312-1403 ●
3 BELT; SEAT,BUCKLE SIDE
BLACK 		8-97426-630-0 01 1 1312-1403 ●
18 BELT; SEAT,RR
BLACK 		8-97416-937-1 01 1 1305- ● ●
23 BELT; SEAT,CENTER
BLACK 		8-97417-405-3 01 1 1305- ● ●
42 COVER; SEAT BELT
INTERIOR BASIC(RBA) BLACK 		8-97417-408-0 01 1 1305- ●
84 COVER; RETRACTOR,RR SEAT BELT
BLACK 		8-97417-409-1 01 1 1305- ● ●
85 BELT; SEAT,RR OUTER
BLACK 		8-97423-669-0 02 1 1305- ● ●
102 COVER; SHOULDER ANCHOR
BLACK 		8-97416-646-2 02 1 1305- ● ● ● ●
136 BOLT; SEAT BELT
M6X16 FLANGE 		0-28650-616-0 01 1 1305- ● ● ● ●
162 ADJUSTER; SEAT BELT
BLACK 		8-97416-645-1 02 1 1305- ● ● ● ●
166 BOLT; SEAT BELT ANCHOR
M6X16 FLANGE 		0-28650-616-0 01 1 1305- ● ● ● ●
