◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11542 - FXZ/GXZ CNG(THAI)EU3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#119096) — 14 parça

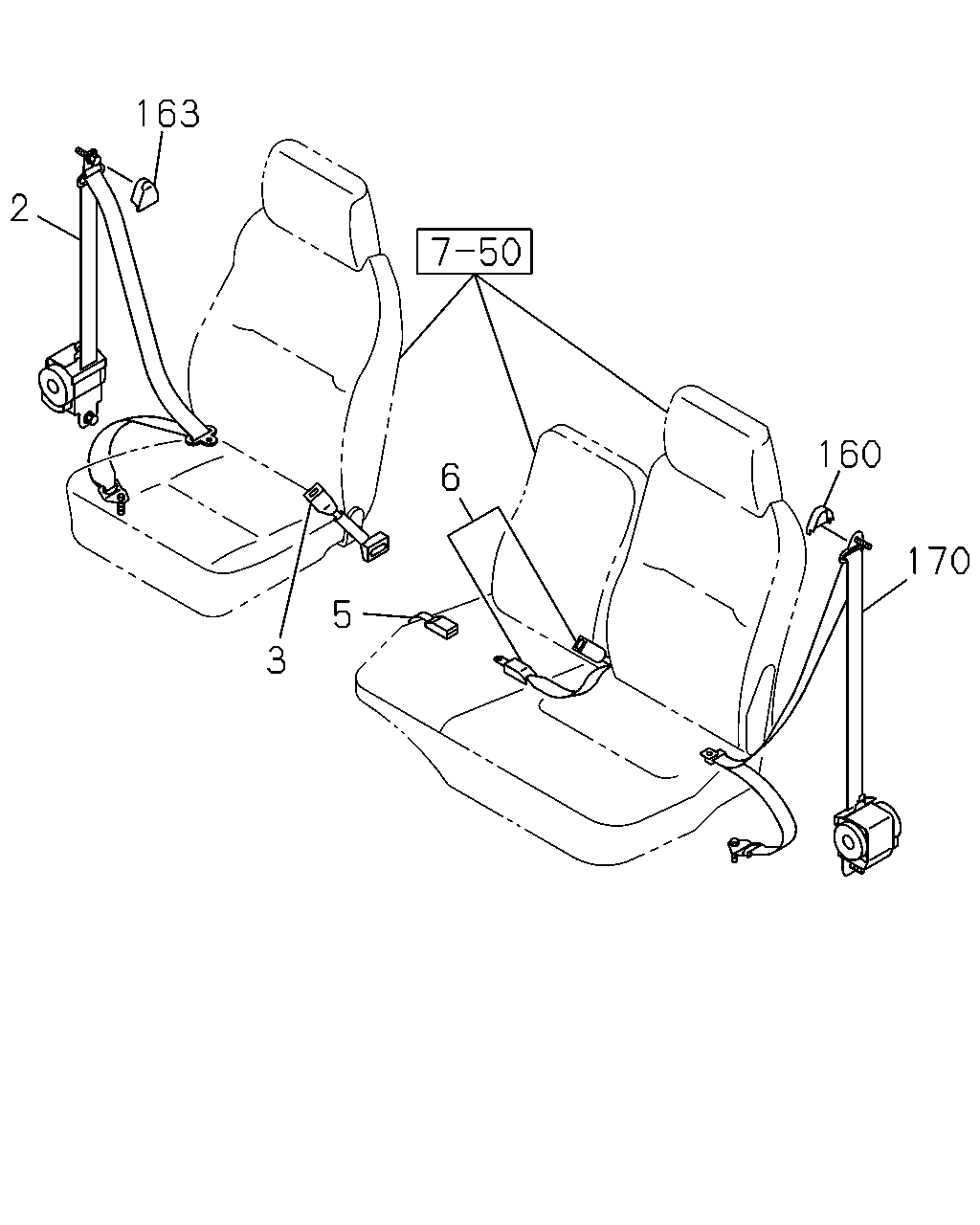

çizim 351509
160 170 6 5 3 2 163
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-600-0 01 1 1305- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-604-0 01 1 1305- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE<SP9> GRAY THA 		8-97423-512-0 01 1 1305- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1305- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1305- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305- ● ●
çizim 351517
2 3 4 160 170 169 163
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY THA 		8-97417-600-0 01 1 1305- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY THA 		8-97417-603-0 01 1 1305- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1305- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1305- ● ●
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK THA 		1-76798-019-0 01 1 1305- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY THA 		8-97423-511-0 01 1 1305- ● ●
