Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#119095) — 54 parça
◀
[810A] FRAME HARNESS;FRONT (14 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] CAB HARNESS (14 parça)
[810A] ENG HARNESS (14 parça)
[810A] REAR FRAME HARNESS (2 parça)
[810A] IDEL CONT HARNESS AND BRACKET (6 parça)
[810A] FLOOR HARNESS AND PLUG (2 parça)
▶

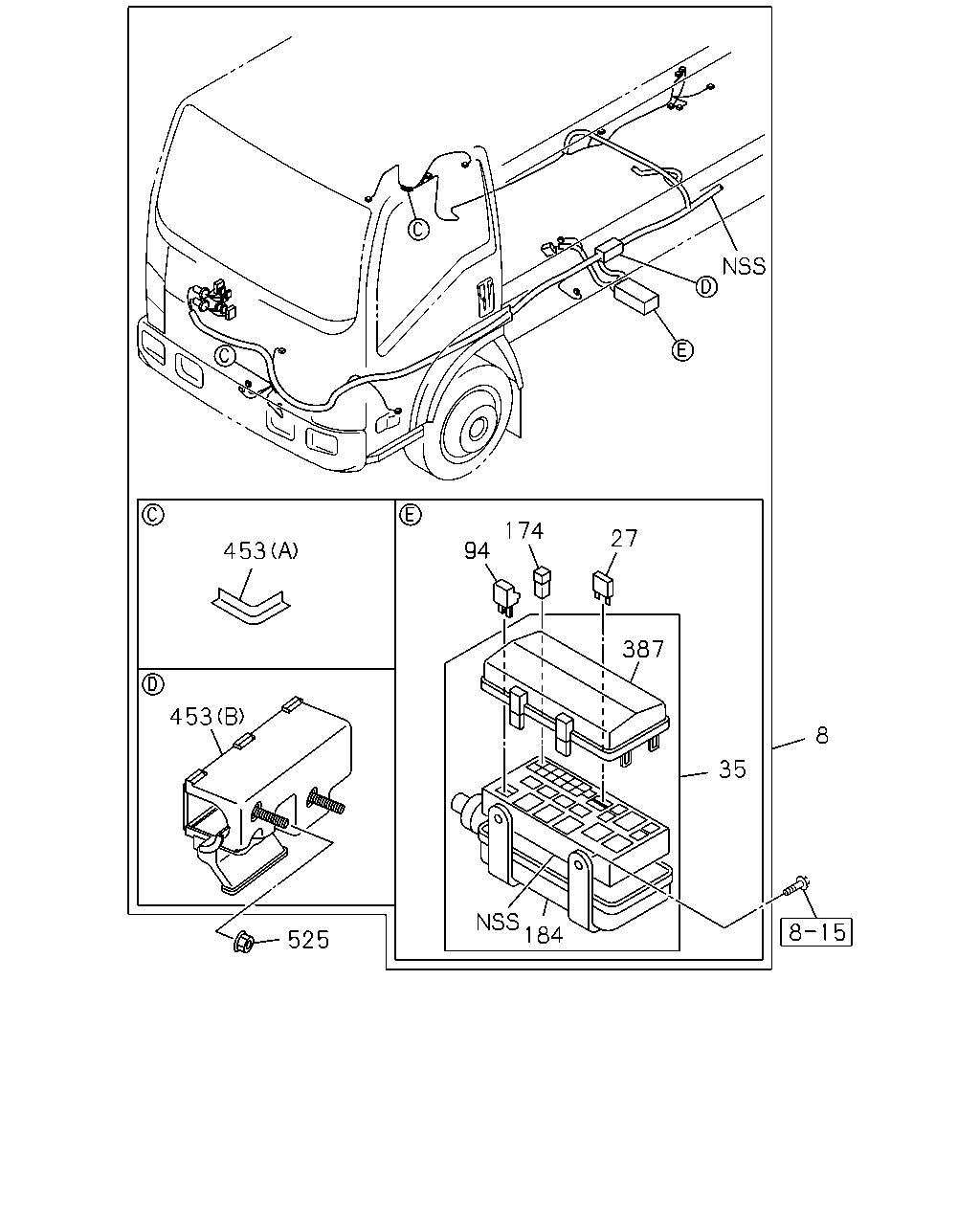

27
174
94
453
453
525
184
35
387
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
THA
8-97924-464-0
01
1
1304-
27
FUSE UNIT
10A RED THA
8-98054-257-0
AR
1
1304-
35
BOX; RELAY & FUSE
THA
8-98030-763-0
01
1
1304-
94
DIODE; FRAME HARNESS
BLACK 2P-1.5A THA
8-94422-639-1
AR
1
1304-
174
FUSE; SLOW BLOW
30A PINK THA
8-98079-191-0
AR
1
1304-
174
FUSE; SLOW BLOW
40A GREEN THA
8-98079-192-0
AR
1
1304-
174
FUSE; SLOW BLOW
50A RED THA
8-98079-193-0
AR
1
1304-
174
FUSE; SLOW BLOW
60A YELLOW 60A YELLOW THA
8-97219-407-0
AR
1
1304-
184
COVER; RELAY & FUSE BOX
THA
8-98030-766-0
01
1
1304-
387
COVER; RELAY BOX
IMA
8-98081-367-0
01
1
1304-
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
01
1
1304-
453
PROTECTOR; HARNESS
(B) THA
8-98031-620-1
01
1
1304-
453
PROTECTOR; HARNESS
(C) IMA
8-98034-039-1
01
1
1304-
525
NUT; CLIP
M8 FLANGE THA
0-91180-108-0
02
1
1304-

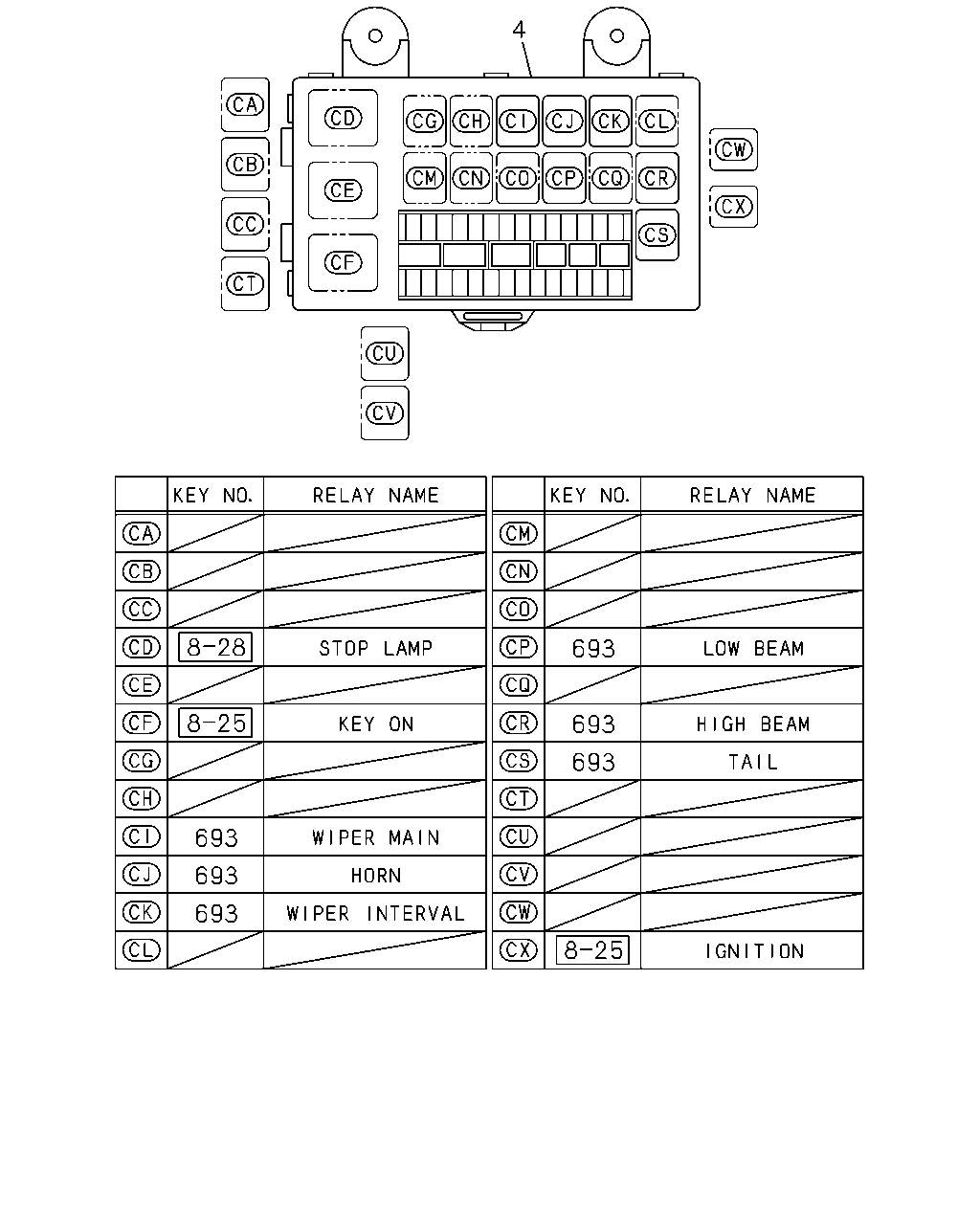

4
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
VIN MODEL YEAR 2011<VZB> THA
8-98067-619-1
01
1
1304-
693
RELAY; FUSE BOX
VIN MODEL YEAR 2011<VZB> 24V 10A PANASONIC IMA
8-97173-035-1
AR
1
1304-

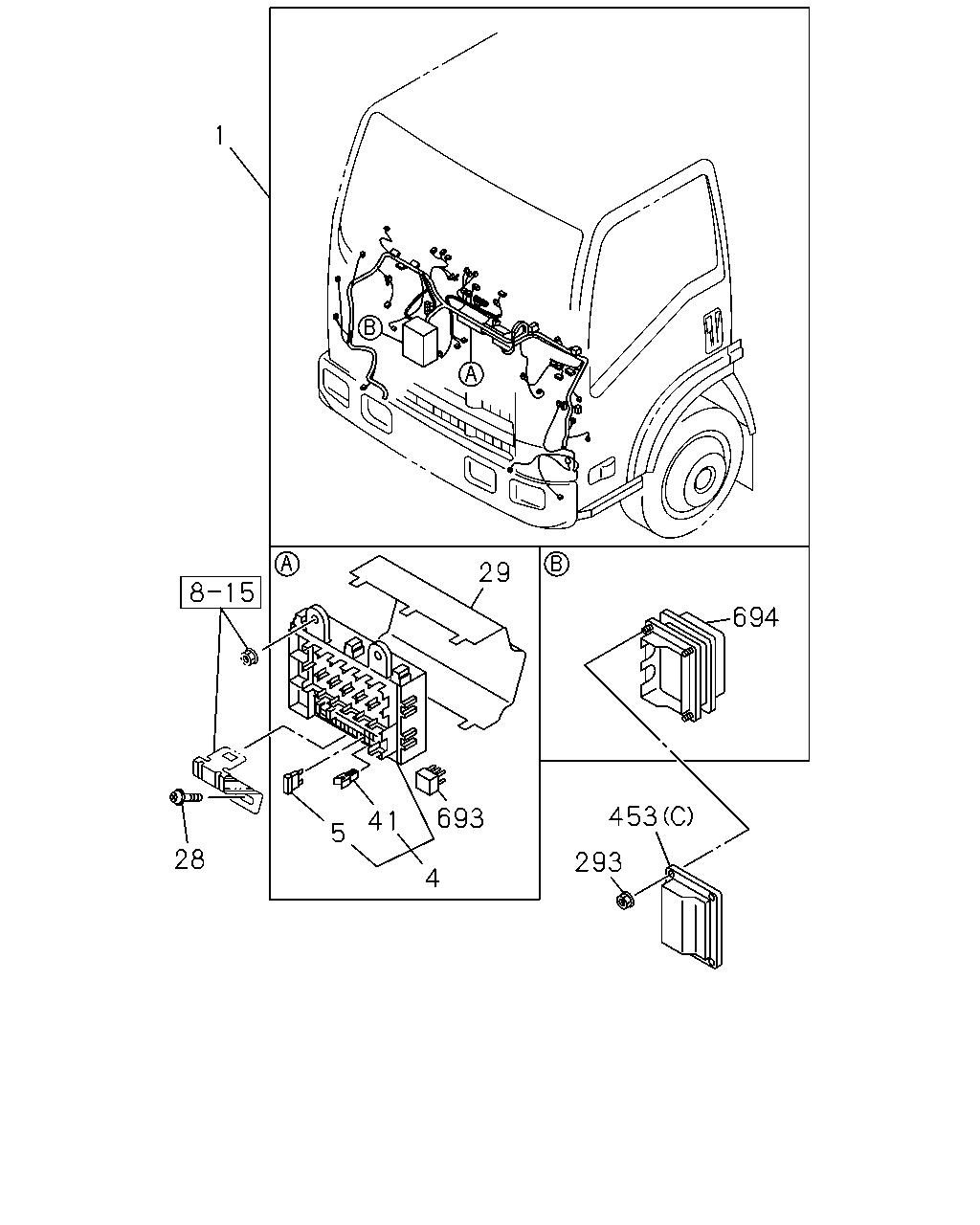

28
4
5
693
41
293
453
694
29
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2011<VZB> THA
8-97926-445-0
01
1
1304-
4
BOX ASM; FUSE,HARNESS
VIN MODEL YEAR 2011<VZB> THA
8-98067-619-1
01
1
1304-
5
FUSE; FACIA HARNESS
10A RED THA
8-98054-257-0
AR
1
1304-
5
FUSE; FACIA HARNESS
15A BLUE THA
8-98054-258-0
AR
1
1304-
5
FUSE; FACIA HARNESS
20A YELLOW THA
8-98054-259-0
AR
1
1304-
28
SCREW; FUSE BOX
T25 M5X16 TAPPING HEXALOBULAR IMA
0-72180-516-0
01
1
1304-
29
COVER; FUSE BOX
VIN MODEL YEAR 2011<VZB> THA
8-98056-968-0
01
1
1304-
41
PULLER; FUSE
VIN MODEL YEAR 2011<VZB> THA
8-98054-260-0
01
1
1304-
293
NUT
M6 FLANGE THA
0-91180-106-0
04
1
1304-
453
PROTECTOR; HARNESS
(A) THA
8-94417-716-0
01
1
1304-
453
PROTECTOR; HARNESS
(B) THA
8-98031-620-1
01
1
1304-
453
PROTECTOR; HARNESS
(C) IMA
8-98034-039-1
01
1
1304-
693
RELAY; FUSE BOX
VIN MODEL YEAR 2011<VZB> 24V 10A PANASONIC IMA
8-97173-035-1
AR
1
1304-
694
BOX ASM; CONNECTOR
VIN MODEL YEAR 2011<VZB> THA
8-98057-772-0
01
1
1304-

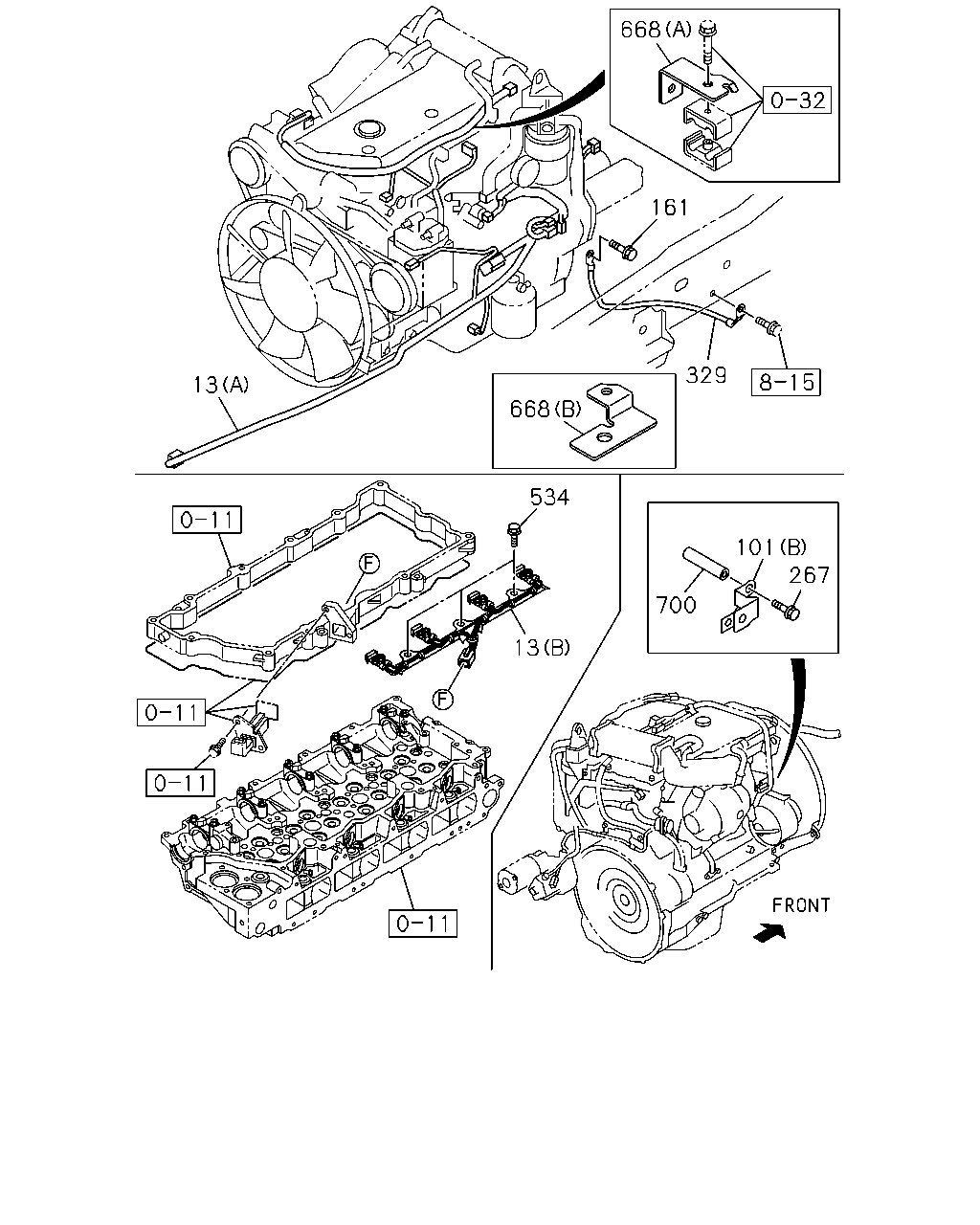

668
161
329
668
13
101
267
700
534
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
GENERATOR 24V80A<7YN> (A) THA
8-98209-816-0
01
1
1304-
13
HARNESS; ENG
(B) IMA
8-98171-638-0
01
1
1304-
13
HARNESS; ENG
EXC. GENERATOR 24V80A<7YN> (A)
8-98209-815-0
01
1
1304-
101
BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (A) IMA
8-98079-137-2
01
1
1304-
101
BRACKET; HARNESS CONNECTOR
(B) IMA
8-98052-805-0
01
1
1304-
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-1409
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
1304-1409
161
BOLT; GROUND,HARNESS
M8X16 FLANGE THA
0-28050-816-0
01
1
1410-
267
BOLT; BRKT
M10X120 FLANGE IMA
0-28156-012-0
01
1
1304-
329
CABLE; ENG TO FRAME
THA
8-97924-248-0
01
1
1304-
534
BOLT
M10X55 FLANGE IMA
8-97365-449-0
03
1
1304-
668
BRACKET; HARNESS
(A) IMA
8-98001-095-0
01
1
1304-
668
BRACKET; HARNESS
(B) IMA
8-98205-089-0
01
1
1304-
700
TUBE; DISTANCE
8-98084-726-0
01
1
1304-

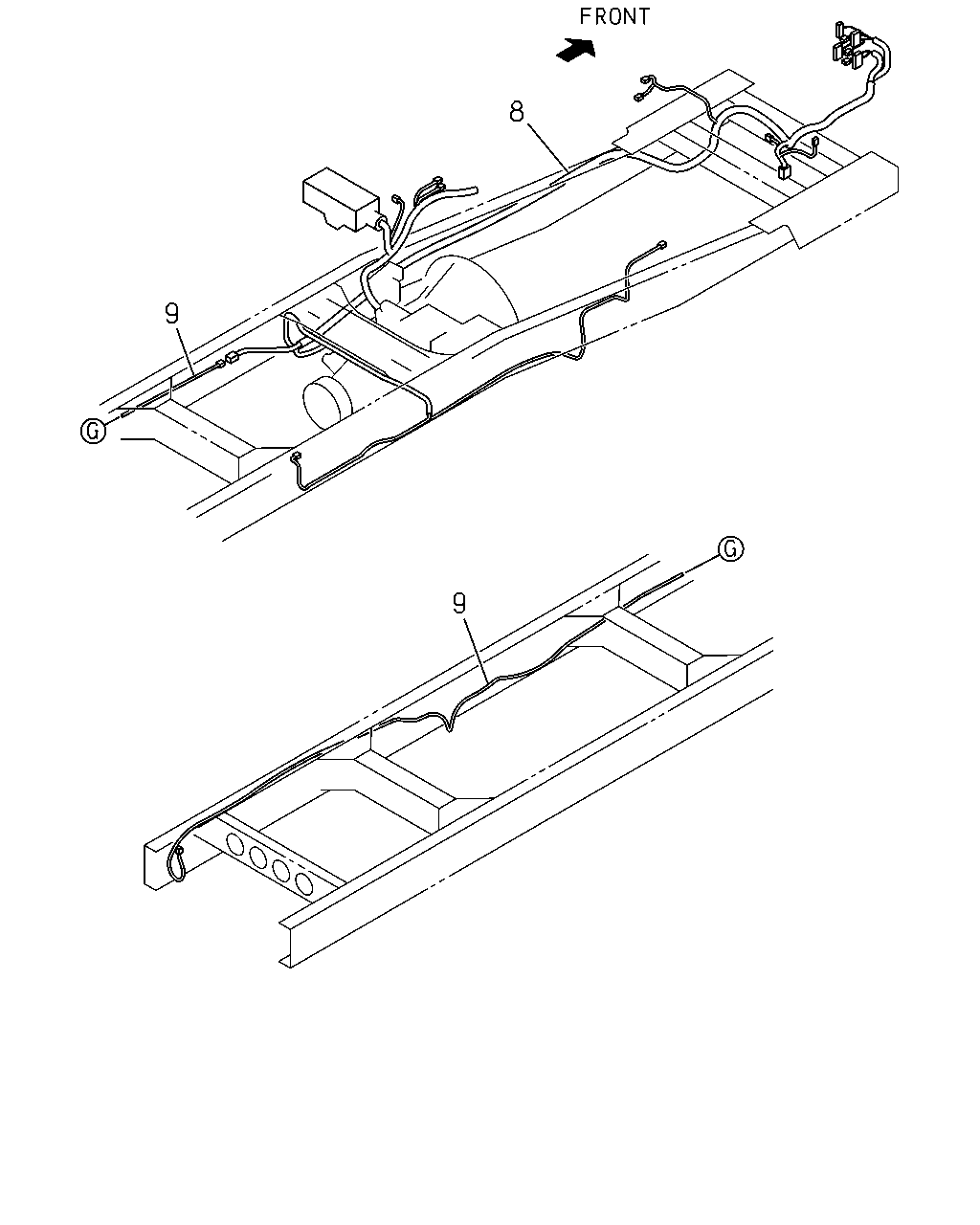

9
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
HARNESS; FRAME,FRT
THA
8-97924-464-0
01
1
1304-
9
HARNESS; FRAME,RR
THA
8-97923-932-1
01
1
1304-

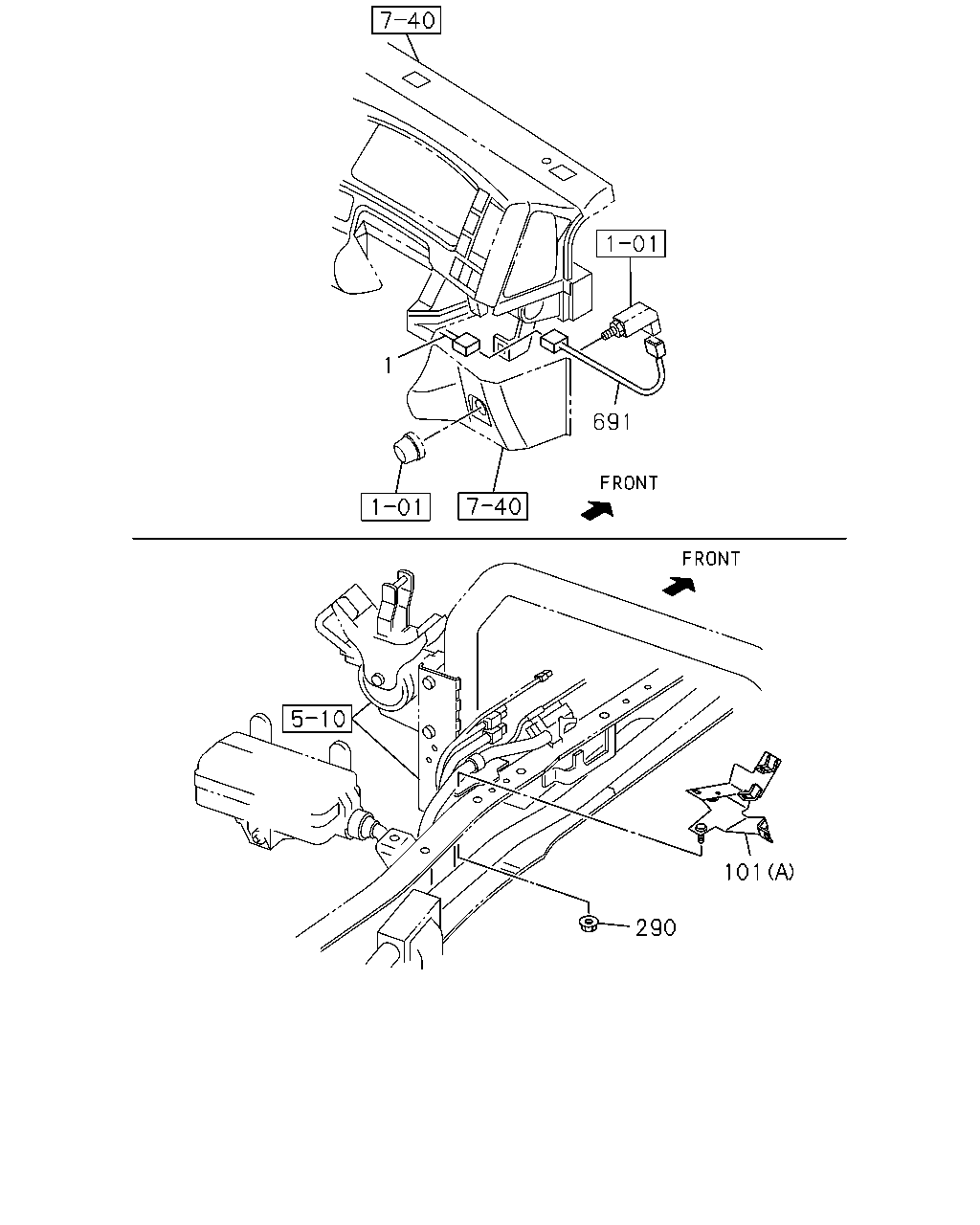

1
691
101
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
VIN MODEL YEAR 2011<VZB> THA
8-97926-445-0
01
1
1304-
101
BRACKET; HARNESS CONNECTOR
FRAME STRAIGHT TYPE<7KJ> (A) IMA
8-98079-137-2
01
1
1304-
101
BRACKET; HARNESS CONNECTOR
(B) IMA
8-98052-805-0
01
1
1304-
290
NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> M8 FLANGE THA
0-91180-108-0
01
1
1304-
691
HARNESS; IDLE CONT
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT>
8-98049-014-2
01
1
1304-1308
691
HARNESS; IDLE CONT
SWITCH HIGH IDLE ENGINE SPEED CONTROL<NMT> THA
8-97948-238-0
01
1
1309-
204
374
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
204
HARNESS; CABLE,FLOOR
THA
8-98070-787-4
01
1
1304-
374
PLUG; HARNESS CONNECTOR
OD=32 BLACK IMA
8-98031-126-0
01
1
1304-
