Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#119093) — 241 parça

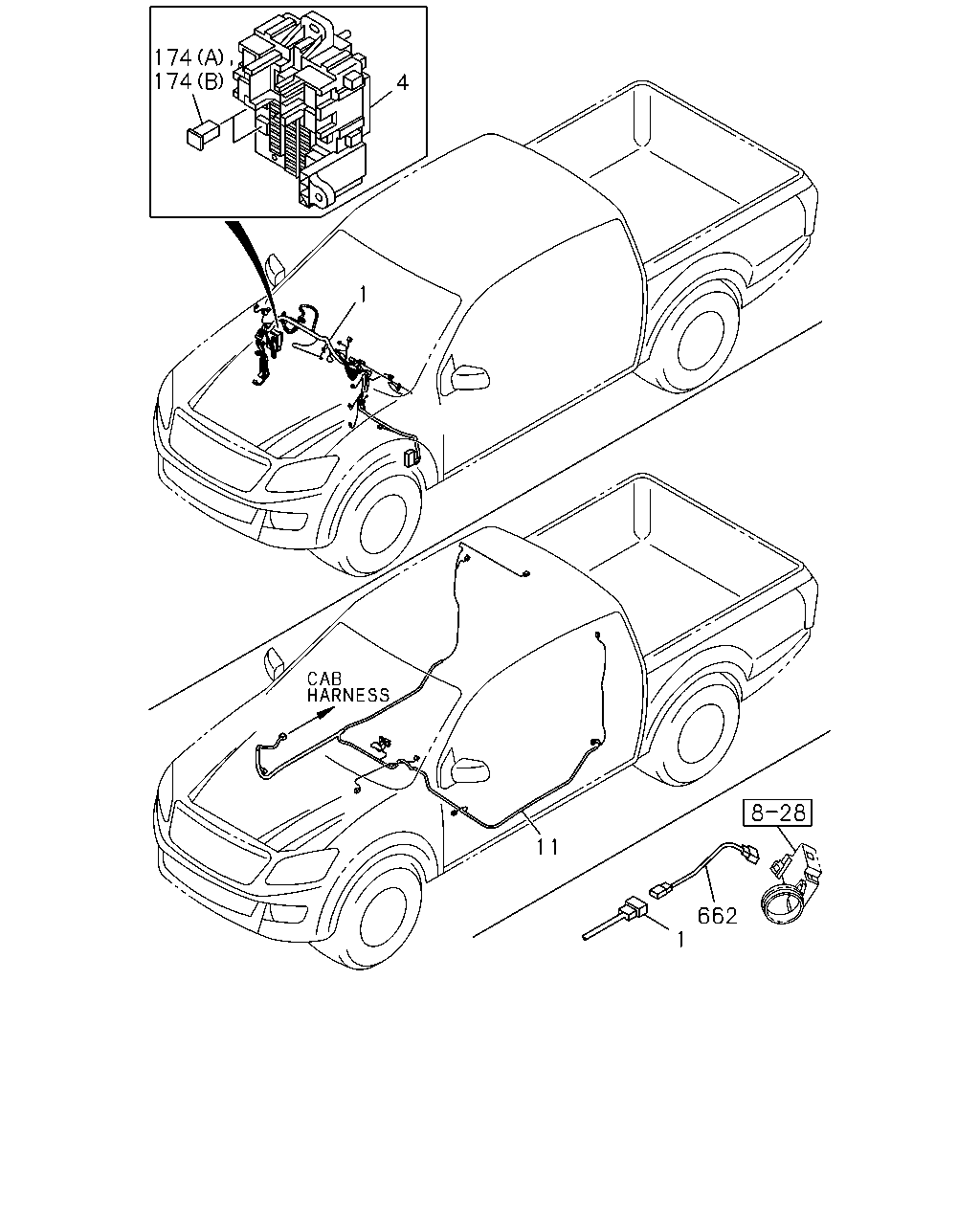

1 662 11 1 4 174 174

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HARNESS; CAB 4JA1-T ENG(LP0) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98160-481-1	01	1	1305-	●
1	HARNESS; CAB 4JA1-T ENG(LP0) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98160-481-1	01	1	1305-		●
1	HARNESS; CAB 4JA1-T ENG(LP0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. AUTO DOOR LOCK<AU4>	8-98160-482-1	01	1	1305-	●
1	HARNESS; CAB 4JA1-T ENG(LP0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-482-1	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98185-261-6	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98160-468-7	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATERFRESH AIR(8NF)	8-98160-468-7	01	1	1305-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-470-5	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATERFRESH AIR(8NF) EXC. AUTO DOOR LOCK<AU4>	8-98160-470-5	01	1	1305-			●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-463-8	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-463-8	01	1	1305-				●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-455-7	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-455-7	01	1	1305-				●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-458-7	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-458-7	01	1	1305-				●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-460-7	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98160-460-7	01	1	1305-				●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> AUTO COOLER SYSTEM(CJ2) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98160-462-7	01	1	1305-				●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1305-		●
1	HARNESS; CAB 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98160-465-7	01	1	1305-				●
4	BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1305-	●	●	●	●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5)	8-98160-558-5	01	1	1305-	●		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-557-2	01	1	1305-	●		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>	8-98160-597-7	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>	8-98160-597-7	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>	8-98160-590-7	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>	8-98160-590-7	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>	8-98160-614-7	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>	8-98160-614-7	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>	8-98160-607-7	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>	8-98160-607-7	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>	8-98160-592-5	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> REAR DEFOGGER<C49>	8-98160-592-5	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>	8-98160-594-5	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO DOOR LOCK<AU4> EXC. REAR DEFOGGER<C49>	8-98160-594-5	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>	8-98160-609-5	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) REAR DEFOGGER<C49> EXC. AUTO DOOR LOCK<AU4>	8-98160-609-5	01	1	1305-				●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>	8-98160-611-5	01	1	1305-		●
11	HARNESS; BODY AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. AUTO DOOR LOCK<AU4>,REAR DEFOGGER<C49>	8-98160-611-5	01	1	1305-				●
174	FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW 60A YELLOW	8-97219-407-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (C) 80A BLACK	8-94388-305-1	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1305-	●	●	●	●
662	HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0) IMMOBILIZER SYSTEM<7KC>	8-98163-074-0	01	1	1305-		●
662	HARNESS; IMMOBILIZER 4JK1-TCX ENG(LR0)	8-98163-074-0	01	1	1305-			●	●

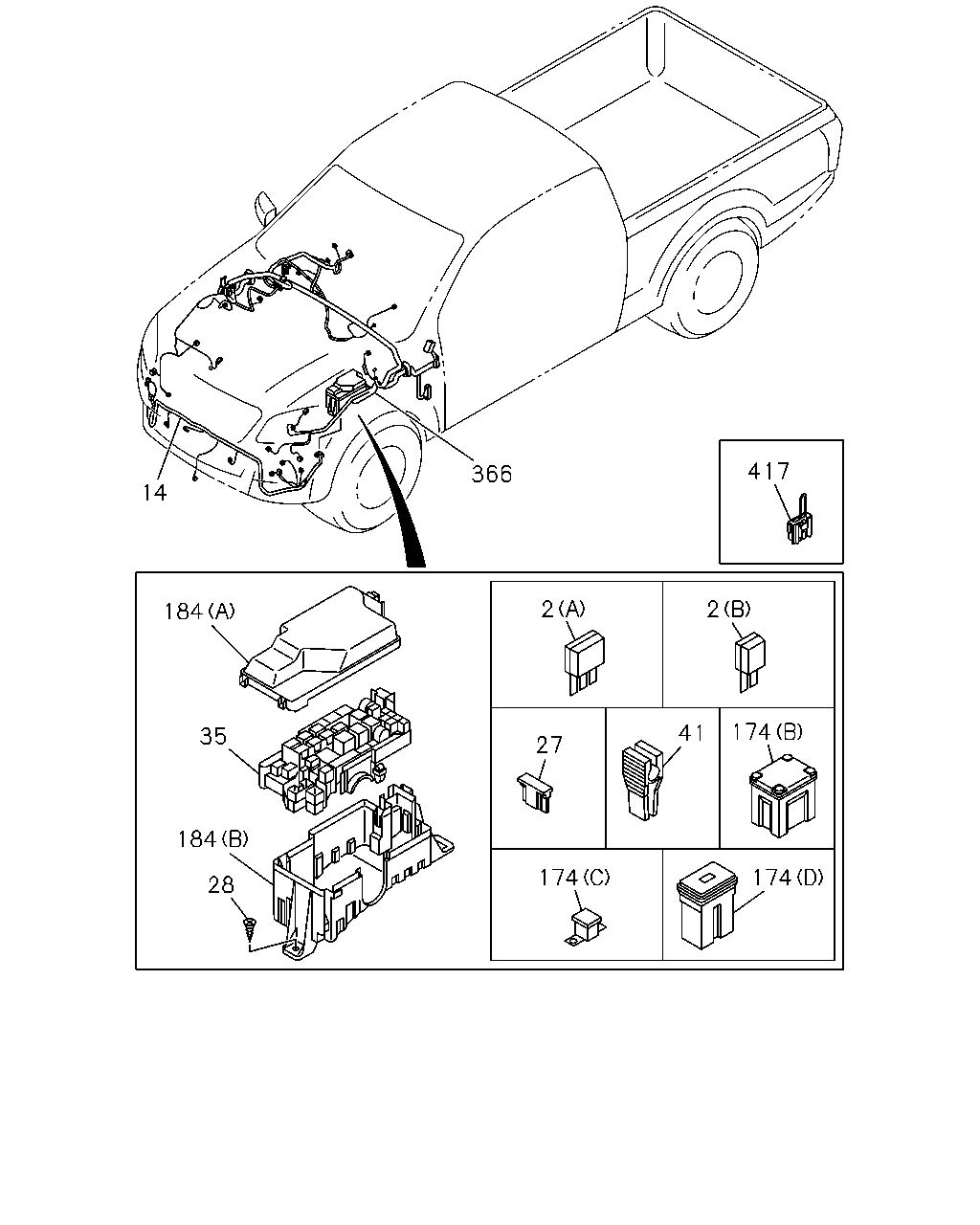

366 14 184 35 184 28 27 2 2 41 174 174 174 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1305-	●	●	●	●
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94422-640-1	AR	1	1305-	●	●	●	●
14	HARNESS; HEADLAMP	8-98159-338-1	01	1	1305-	●		●
14	HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-338-1	01	1	1305-		●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-349-1	01	1	1305-		●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-349-1	01	1	1305-				●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-341-1	01	1	1305-		●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> HEADLAMPS PROJECTOR BEAM<8LH> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-348-1	01	1	1305-		●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-348-1	01	1	1305-				●
14	HARNESS; HEADLAMP ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-340-1	01	1	1305-		●
14	HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA>	8-98159-347-1	01	1	1305-		●
14	HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA>	8-98159-347-1	01	1	1305-				●
14	HARNESS; HEADLAMP REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA>,HEADLAMPS PROJECTOR BEAM<8LH>	8-98159-339-1	01	1	1305-		●
14	HARNESS; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-346-1	01	1	1305-		●
14	HARNESS; HEADLAMP EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-346-1	01	1	1305-				●
27	FUSE UNIT 10A RED	8-98054-257-0	AR	1	1305-	●	●	●	●
27	FUSE UNIT 15A BLUE	8-98054-258-0	AR	1	1305-	●	●	●	●
27	FUSE UNIT 20A YELLOW	8-98054-259-0	AR	1	1305-	●	●	●	●
28	SCREW; FUSE BOX	8-97249-192-0	02	1	1305-	●	●	●	●
35	BOX; RELAY & FUSE	8-98113-097-0	01	1	1305-	●	●	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (A) 20A BLUE	8-98079-189-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 30A PINK	8-98079-191-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 40A GREEN	8-98079-192-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 50A RED	8-98079-193-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (B) 60A YELLOW 60A YELLOW	8-97219-407-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (D) 60A YELLOW	8-98197-288-0	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (C) 80A BLACK	8-94388-305-1	AR	1	1305-	●	●	●	●
174	FUSE; SLOW BLOW (C) 120A WHITE	1-82516-028-1	AR	1	1305-	●	●	●	●
184	COVER; RELAY & FUSE BOX (A)	8-98113-098-0	01	1	1305-	●	●	●	●
184	COVER; RELAY & FUSE BOX (B)	8-98113-099-0	01	1	1305-	●	●	●	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5)	8-98201-058-5	01	1	1305-	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98201-058-5	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98201-059-5	01	1	1305-	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98201-059-5	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-556-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-550-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9>	8-98160-544-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-555-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-547-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-541-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-541-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-533-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-533-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-536-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-536-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-530-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-530-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9>	8-98160-527-7	01	1	1305-				●
417	CONNECTOR ASM; ENG HARNESS COOLER WO/HEATER(C65)	8-97362-918-0	01	1	1305-		●		●
417	CONNECTOR ASM; ENG HARNESS COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF)	8-97362-918-0	01	1	1305-			●

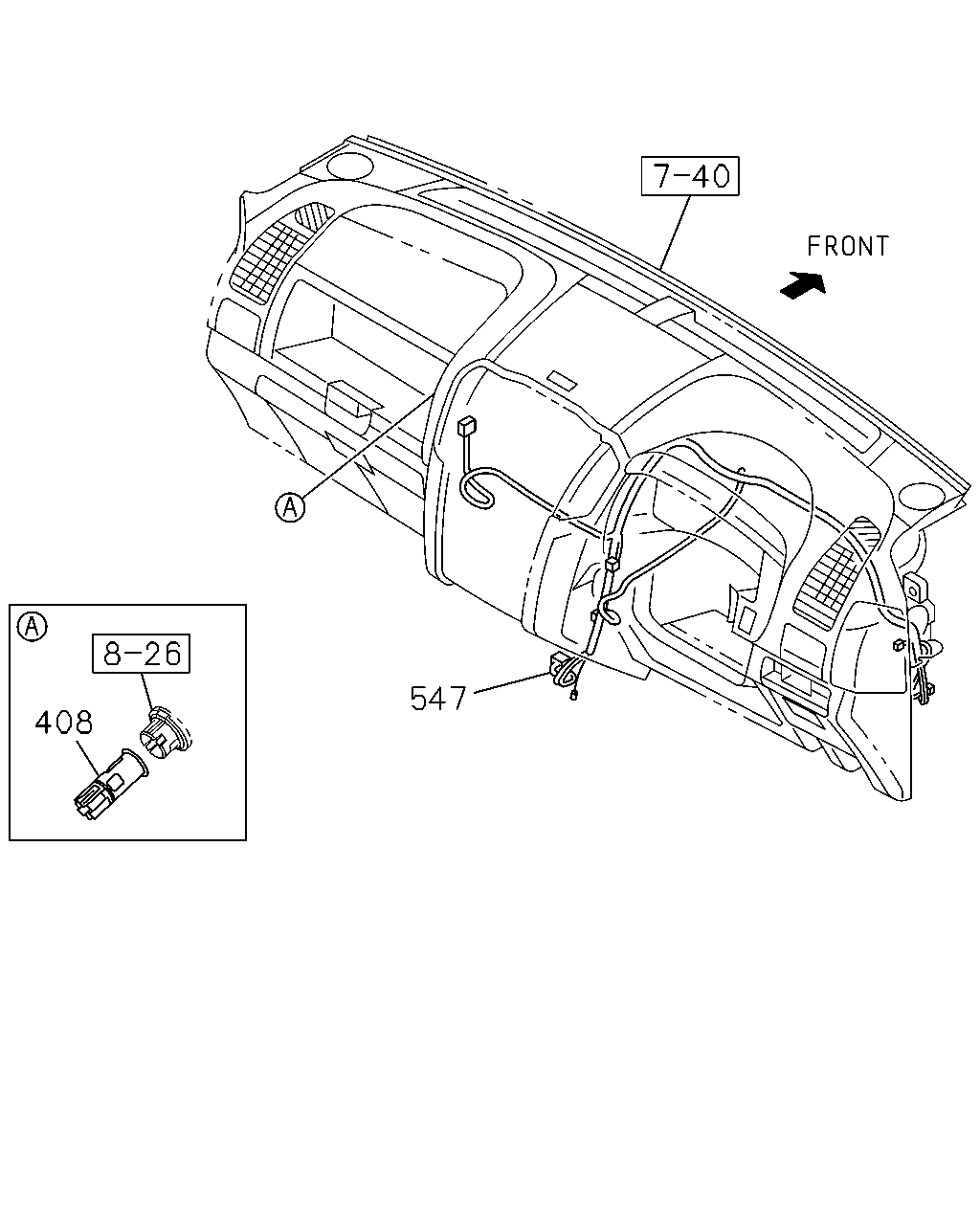

547 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
408	SOCKET ASM; ACCESSORY ACCESSORY SOCKET FRT CONSOLE<KC5>	8-98123-115-0	01	1	1305-	●	●	●
408	SOCKET ASM; ACCESSORY	8-98123-115-0	01	1	1305-				●
547	HARNESS; CABLE,SRS AIR BAG DRIVER & PASSENGER(AK5)	8-98159-334-4	01	1	1305-	●	●	●	●

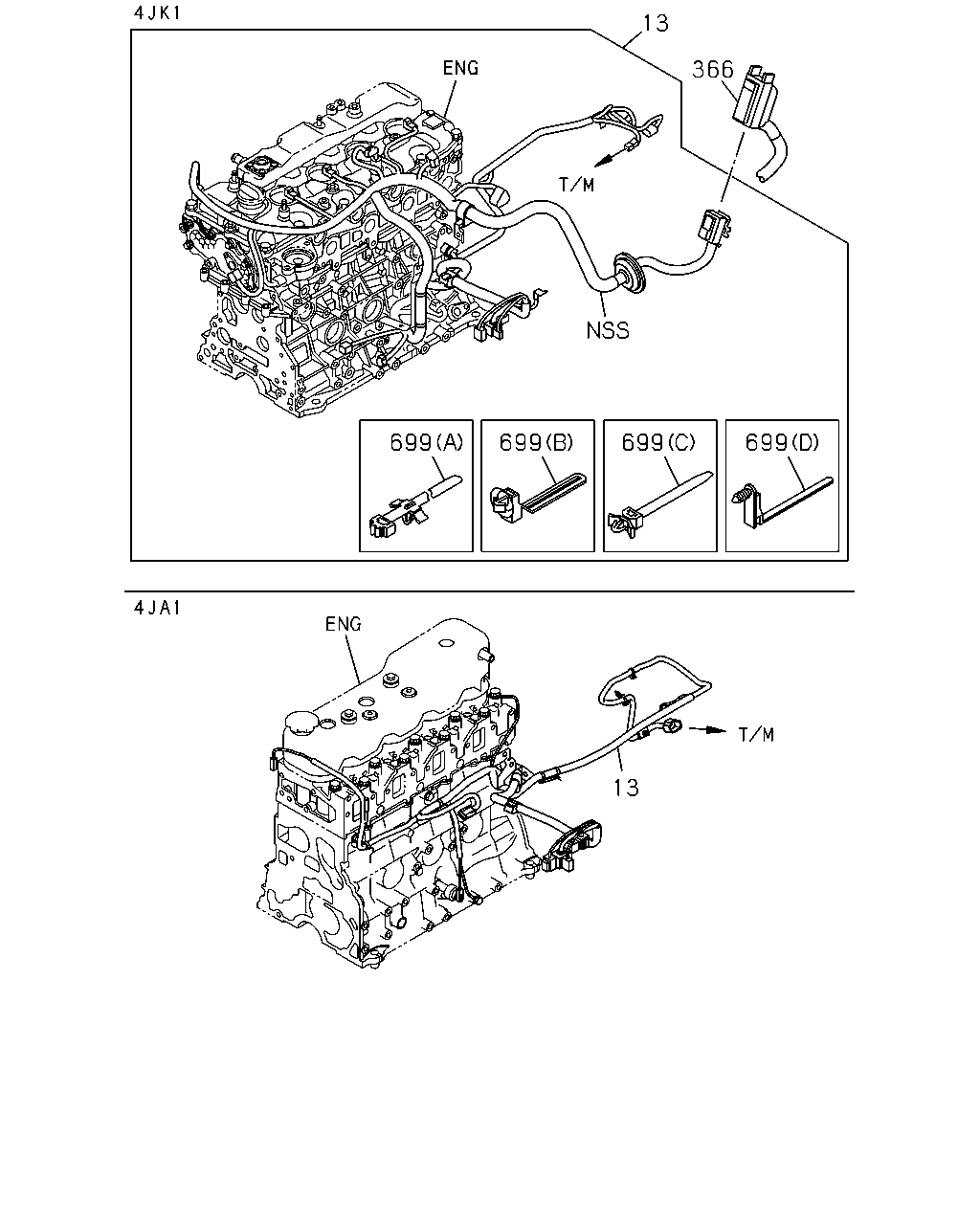

366 736 738 739 741 743 742 746 737 745 747 748

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5)	8-98201-058-5	01	1	1305-	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98201-058-5	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98201-059-5	01	1	1305-	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98201-059-5	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-556-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-550-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9>	8-98160-544-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-555-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-547-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-541-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-541-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-533-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-533-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-536-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-536-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-530-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-530-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9>	8-98160-527-7	01	1	1305-				●
736	RELAY; STARTER CUT 12V YAZAKI	8-97309-292-0	01	1	1305-	●	●	●	●
737	RELAY; DIMMER 12V YAZAKI	8-97309-292-0	01	1	1305-	●	●	●	●
738	RELAY; HEADLAMP 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
739	RELAY; TAIL LAMP 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
741	RELAY; HORN 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
742	RELAY; THERMO 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
743	RELAY; A/C COMPRESSOR 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI	8-97309-293-0	01	1	1305-		●	●	●
745	RELAY; HEATER 4JA1-T ENG(LP0) (B) 12V YAZAKI	8-97309-292-0	01	1	1305-	●	●
745	RELAY; HEATER (A) 12V YAZAKI	8-98146-834-0	01	1	1305-	●	●	●	●
746	RELAY; ECM,MAIN 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 12V YAZAKI	8-98146-834-0	01	1	1305-		●	●	●
747	RELAY; GLOW 12V YAZAKI	8-98146-837-0	01	1	1305-	●	●	●	●
748	RELAY; STARTER 12V YAZAKI	8-98146-837-0	01	1	1305-	●	●	●	●

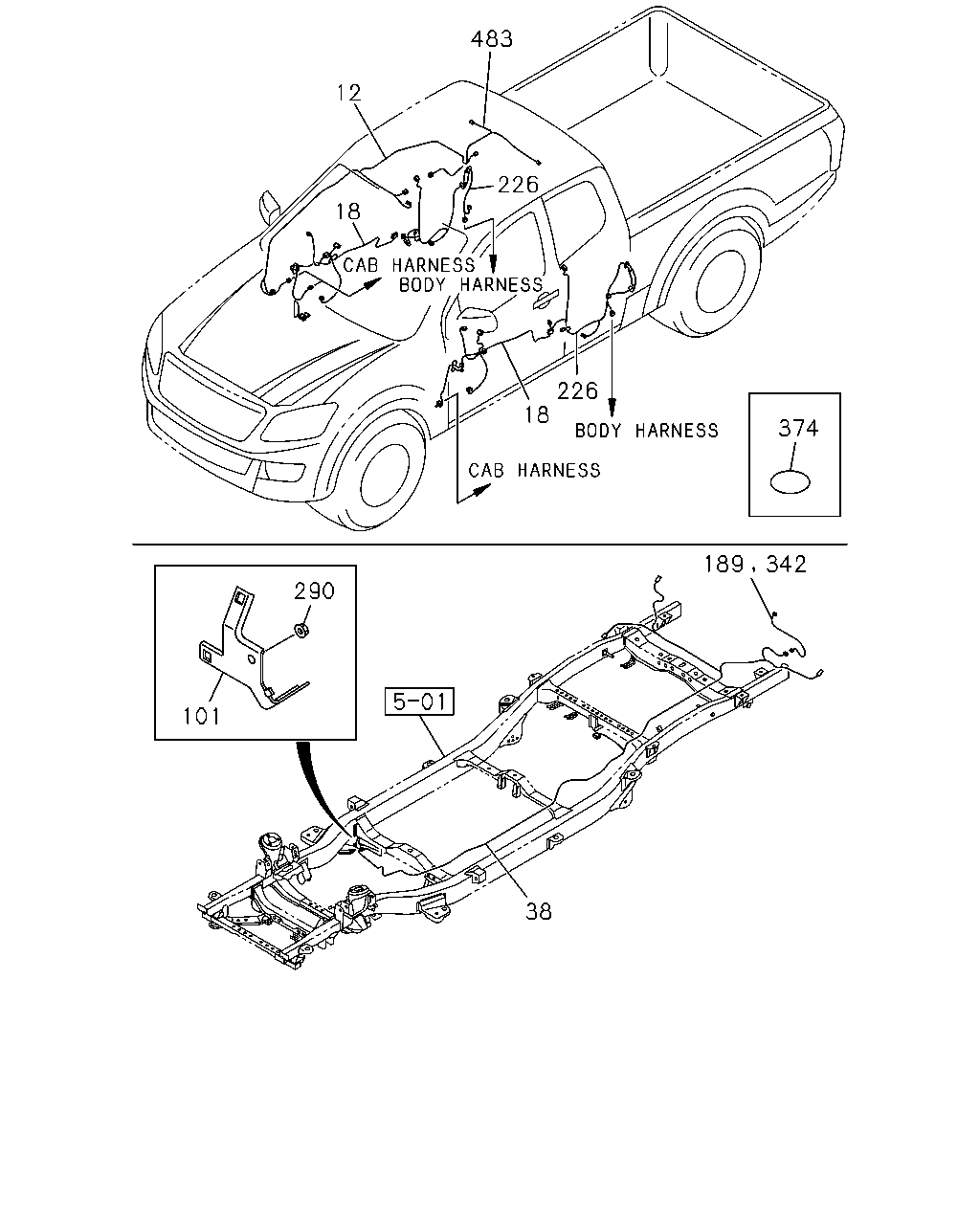

374 342 189 290 101 18 226 226 483 12 18 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	HARNESS; ROOF MAP LAMP<C74> EQUIPMENT IMPACT<EPS> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98275-273-0	01	1	1410-		●		●
12	HARNESS; ROOF MAP LAMP<C74> EQUIPMENT IMPACT<EPS> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98275-272-0	01	1	1410-		●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> EQUIPMENT IMPACT<EPS> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>	8-98275-275-0	01	1	1410-		●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> EQUIPMENT IMPACT<EPS> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98275-274-0	01	1	1410-		●		●
12	HARNESS; ROOF EQUIPMENT IMPACT<EPS> EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>, 6-SPEAKERSYSTEM CUSTOM<UW6>	8-98275-271-0	01	1	1410-		●		●
12	HARNESS; ROOF	8-98159-332-0	01	1	1305-	●		●
12	HARNESS; ROOF MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98159-477-3	01	1	1305-1409		●		●
12	HARNESS; ROOF MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>	8-98159-477-3	01	1	1410-		●		●
12	HARNESS; ROOF MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-476-2	01	1	1305-1409		●		●
12	HARNESS; ROOF MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,EQUIPMENT IMPACT<EPS>, 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-476-2	01	1	1410-		●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>	8-98159-479-3	01	1	1305-1409		●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74>,EQUIPMENT IMPACT<EPS>	8-98159-479-3	01	1	1410-		●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-478-2	01	1	1305-1409		●		●
12	HARNESS; ROOF HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,EQUIPMENT IMPACT<EPS>, 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-478-2	01	1	1410-		●		●
12	HARNESS; ROOF EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>, 6-SPEAKERSYSTEM CUSTOM<UW6>	8-98159-475-2	01	1	1305-1409		●		●
12	HARNESS; ROOF EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>, EQUIPMENTIMPACT<EPS>,6-SPEAKER SYSTEM CUSTOM<UW6>	8-98159-475-2	01	1	1410-		●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98159-490-3	01	1	1305-	●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-490-3	01	1	1305-		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4>	8-98159-508-5	01	1	1305-	●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-508-5	01	1	1305-		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98159-492-3	01	1	1305-	●		●
18	HARNESS; DOOR DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4>	8-98159-492-3	01	1	1305-		●
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>	8-98159-510-4	01	1	1305-	●		●
18	HARNESS; DOOR DOOR MIRROR<RT9> EXC. AUTO DOOR LOCK<AU4>	8-98159-510-4	01	1	1305-		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-486-4	01	1	1305-		●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-502-5	01	1	1305-		●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-488-4	01	1	1305-		●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-506-5	01	1	1305-		●		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98200-072-3	01	1	1305-		●
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> DOOR MIRROR<RT9> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98200-117-1	01	1	1305-		●
38	HARNESS; CHAS 4JA1-T ENG(LP0) REAR BODY FLAT BED(E39)	8-98198-446-1	01	1	1305-	●
38	HARNESS; CHAS 4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-318-2	01	1	1305-	●
38	HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-318-2	01	1	1305-		●
38	HARNESS; CHAS 4JA1-T ENG(LP0) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-317-2	01	1	1305-	●
38	HARNESS; CHAS 4JA1-T ENG(LP0) REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98159-317-2	01	1	1305-	●
38	HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,HIGH RIDE SUSPENSION(7YC)	8-98159-317-2	01	1	1305-		●
38	HARNESS; CHAS REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98159-317-2	01	1	1305-		●
38	HARNESS; CHAS REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>,REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-317-2	01	1	1305-		●
38	HARNESS; CHAS 4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98159-317-2	01	1	1305-			●
38	HARNESS; CHAS 4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98159-317-2	01	1	1305-				●
38	HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-323-2	01	1	1305-		●
38	HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) EXC. HIGH RIDE SUSPENSION(7YC)	8-98159-322-2	01	1	1305-		●
38	HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC)	8-98159-322-2	01	1	1305-		●
38	HARNESS; CHAS 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98159-322-2	01	1	1305-		●
38	HARNESS; CHAS 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH)	8-98159-322-2	01	1	1305-			●	●
101	BRACKET; HARNESS CONNECTOR	8-98102-999-0	01	1	1305-	●	●	●	●
189	HARNESS; EXT REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1305-	●
189	HARNESS; EXT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) HIGH RIDE SUSPENSION(7YC) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1305-		●
189	HARNESS; EXT REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42),HIGH RIDE SUSPENSION(7YC)	8-98140-863-0	01	1	1305-		●
189	HARNESS; EXT REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98140-863-0	01	1	1305-			●	●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-533-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-534-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-527-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> 6-SPEAKER SYSTEM BASE<UW5> EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98159-528-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-535-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> EXC. 6-SPEAKER SYSTEM BASE<UW5>	8-98159-536-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98159-525-3	01	1	1305-		●		●
226	HARNESS; RR DOOR AUTO DOOR LOCK<AU4> EXC. 6-SPEAKER SYSTEM BASE<UW5>,REMOTE CONT DOORLOCK W/ANTI THEFT<7KY>	8-98159-526-3	01	1	1305-		●		●
290	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	1305-	●	●	●	●
342	HARNESS; EXT,LICENSE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98137-579-2	01	1	1305-	●	●	●	●
374	PLUG; HARNESS CONNECTOR EXC. AUTO DOOR LOCK<AU4>,6-SPEAKER SYSTEM BASE<UW5> D=58 BLACK	8-97302-191-0	02	1	1305-		●		●
483	HARNESS; EXT,RADIO HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6>	8-98165-202-2	01	1	1305-		●		●
483	HARNESS; EXT,RADIO 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6>	8-98129-592-2	01	1	1305-		●		●

13 366 699 699 699 699 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	HARNESS; ENG 4JA1-T ENG(LP0)	8-98190-106-4	01	1	1305-	●	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98224-348-2	01	1	1305-		●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98224-343-2	01	1	1305-		●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98224-344-2	01	1	1305-1412			●	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)	8-98260-541-0	01	1	1501-			●	●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98224-347-2	01	1	1305-1408				●
13	HARNESS; ENG 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1)	8-98260-547-0	01	1	1409-				●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5)	8-98201-058-5	01	1	1305-	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98201-058-5	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98201-059-5	01	1	1305-	●
366	HARNESS; CABLE,ENG ROOM 4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER DELETE(AK6) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98201-059-5	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-556-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-550-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9>	8-98160-544-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-555-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-547-7	01	1	1305-		●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-541-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-541-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98160-533-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9>	8-98160-533-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5)	8-98160-536-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-536-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6)	8-98160-530-7	01	1	1305-			●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98160-530-7	01	1	1305-				●
366	HARNESS; CABLE,ENG ROOM 4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> AIR BAG DRIVER & PASSENGER(AK5) ELECTRONIC TRACTION CONTROL<NW9>	8-98160-527-7	01	1	1305-				●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (D)	8-98182-511-0	02	1	1305-1412		●	●	●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (D)	8-98182-511-0	02	1	1501-		●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (A) L=135	8-94473-399-0	01	1	1305-1412		●	●	●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (A) L=135	8-94473-399-0	01	1	1501-		●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (B) L=155	8-97173-307-0	02	1	1305-1412		●	●	●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (B) L=155	8-97173-307-0	02	1	1501-		●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (B) L=140	8-97378-707-0	01	1	1305-1412		●	●	●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (B) L=140	8-97378-707-0	01	1	1501-		●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (C) L=146.2	8-98052-677-0	01	1	1305-1412		●	●	●
699	CLIP; ENG HARNESS 4JK1-TCX ENG(LR0) (C) L=146.2	8-98052-677-0	01	1	1501-		●

4 734 751 745 750 749

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	BOX ASM; FUSE,HARNESS	8-98166-751-0	01	1	1305-	●	●	●	●
734	RELAY; ACC SOCKET 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
745	RELAY; HEATER 4JA1-T ENG(LP0) (B) 12V YAZAKI	8-97309-292-0	01	1	1305-	●	●
745	RELAY; HEATER (A) 12V YAZAKI	8-98146-834-0	01	1	1305-	●	●	●	●
749	RELAY; POWER WINDOW 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
750	RELAY; RR DEFOGGER 12V YAZAKI	8-97309-293-0	01	1	1305-	●	●	●	●
751	RELAY; DEAD LOCK 4JK1-TCX ENG(LR0) INTERIOR BASIC(RBA) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATERFRESH AIR(8NF) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI	8-97309-292-0	01	1	1305-	●	●	●
751	RELAY; DEAD LOCK 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AUTO DOOR LOCK<AU4> HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATERFRESH AIR(8NF) 12V YAZAKI	8-97309-292-0	01	1	1305-		●		●
751	RELAY; DEAD LOCK 4JK1-TCX ENG(LR0) INTERIOR CUSTOM(RBD) AUTO COOLER SYSTEM(CJ2) EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 12V YAZAKI	8-97309-292-0	01	1	1305-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
