Isuzu WW
▶
TRUCKS
▶
NPR
▶
51483 - NPR/NQR(THAILAND)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶

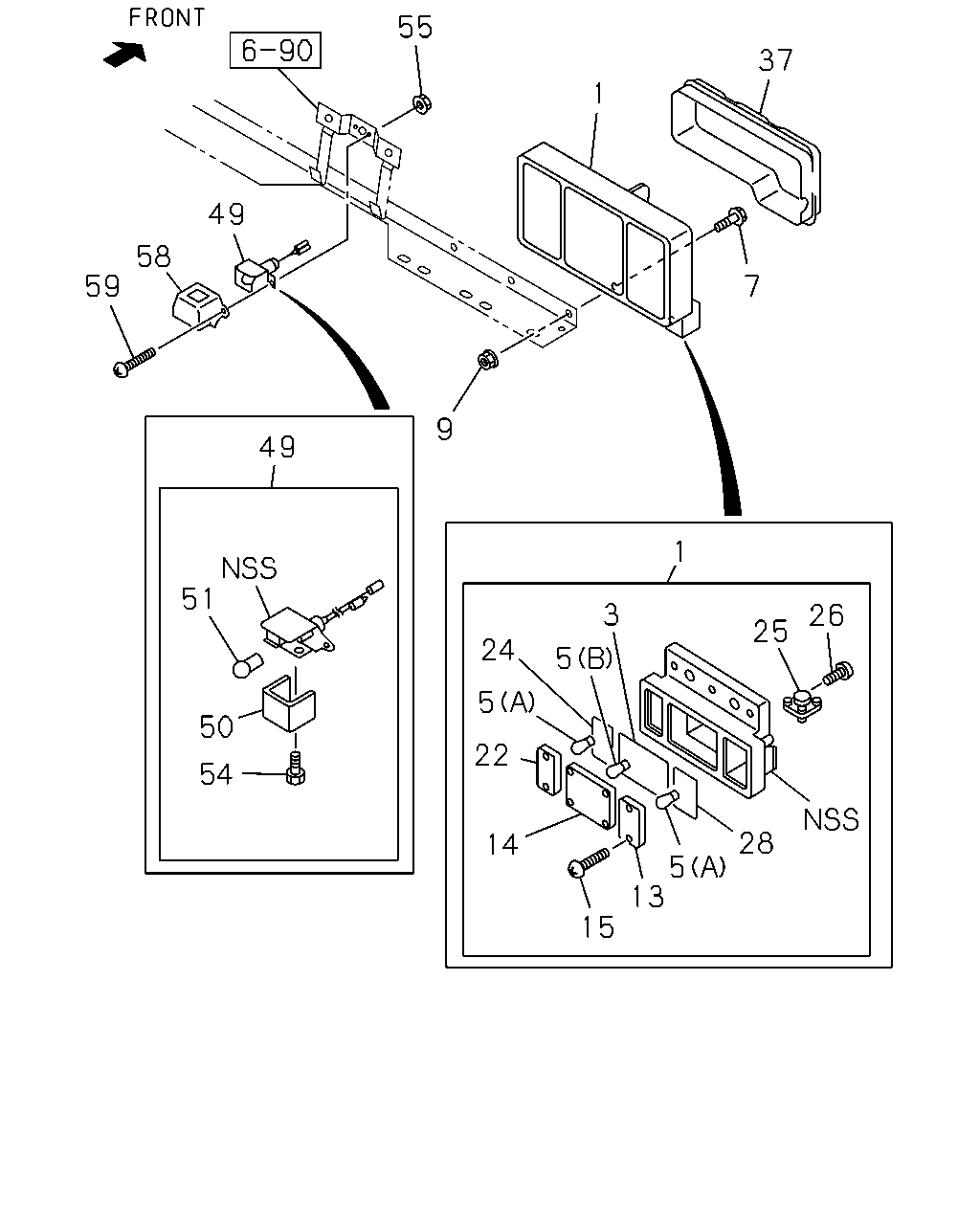

8-03 — LAMP; REAR AND REAR SIDE
(#119090) — 33 parça
Tümü
A - NPR5SN
B - NPR5SS
55
1
37
7
9
49
49
58
59
51
50
54
24
26
1
3
5
5
22
14
25
28
5
13
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LAMP ASM; RR COMB
BACK BUZZER<YM9> THA
8-97917-073-0
01
1
1304-
●
●
1
LAMP ASM; RR COMB
THA
8-97917-050-0
01
1
1304-
●
●
1
LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9>
8-98034-324-0
01
1
1304-
●
●
3
GASKET; RR COMB LAMP
THA
8-94257-505-0
02
1
1304-
●
●
5
BULB; RR COMB LAMP
(B) 24V 21/5W THA
8-97916-983-0
01
1
1304-
●
●
5
BULB; RR COMB LAMP
BACK BUZZER<YM9> (B) 24V 21/5W THA
8-97916-983-0
01
1
1304-
●
●
5
BULB; RR COMB LAMP
(A) 24V 21W THA
8-97916-984-0
02
1
1304-
●
●
5
BULB; RR COMB LAMP
BACK BUZZER<YM9> (A) 24V 21W THA
8-97916-984-0
02
1
1304-
●
●
5
BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (A) 24V 21W
1-82194-108-0
02
1
1304-
●
●
5
BULB; RR COMB LAMP
EXC. BACK BUZZER<YM9> (B) 24V 21/5W
1-82194-109-0
01
1
1304-
●
●
7
SCREW; RR COMB LAMP
M6X20 W/LK&PL WASHER THA
0-50640-620-0
04
1
1304-
●
●
9
NUT; LAMP,RR COMB
M6 FLANGE IMA
5-09440-004-0
04
1
1304-
●
●
13
LENS; TURN SIGNAL
THA
8-94174-638-0
01
1
1304-
●
●
13
LENS; TURN SIGNAL
THA
8-94174-639-0
01
1
1304-
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
THA
8-94178-624-0
01
1
1304-
●
●
14
LENS; TAIL & STOP,RR COMB LAMP
THA
8-94178-625-0
01
1
1304-
●
●
15
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS THA
0-71190-420-0
16
1
1304-
●
●
22
LENS; BACKUP,RR COMB LAMP
THA
8-94257-512-1
02
1
1304-
●
●
24
GASKET; BACK,LAMP
THA
8-94257-506-0
02
1
1304-
●
●
25
HORN ASM; BACK
BACK BUZZER<YM9> THA
8-94257-518-0
01
1
1304-
●
●
26
SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING THA
9-07076-412-0
02
1
1304-
●
●
26
SCREW; BACK HORN
M4X14 TAPPING THA
9-07076-414-0
01
1
1304-
●
●
26
SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING THA
9-07076-412-0
01
1
1304-
●
●
28
GASKET; TURN,LAMP
THA
8-94257-507-0
01
1
1304-
●
●
37
COVER; RR COMB LAMP
IMA
8-94128-858-4
01
1
1304-
●
●
37
COVER; RR COMB LAMP
IMA
8-94129-274-4
01
1
1304-
●
●
49
LAMP; LICENSE PLATE
24V 10W IMA
8-98029-477-0
01
1
1304-
●
●
50
LENS; LICENSE PLATE LAMP
IMA
5-82125-004-0
01
1
1304-
●
●
51
BULB; LICENSE PLATE LAMP
24V 10W THA
1-82194-037-0
01
1
1304-
●
●
54
SCREW; LICENSE PLATE LAMP
M4X8 IMA
8-94419-312-0
01
1
1304-
●
●
55
NUT; LICENSE PLATE LAMP
M5 FLANGE IMA
8-94153-039-0
02
1
1304-
●
●
58
COVER; LICENSE PLATE LAMP
IMA
8-97076-590-1
01
1
1304-
●
●
59
SCREW; TAP,LICENSE LAMP BODY
M5X20 IMA
9-93490-520-0
02
1
1304-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
