Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10878 - EXZ RHD FUEL TANK 400L
▶
0 - Engine, Emission, Engine Electrical
▶
0-35 - ENGINE CONTROL VALVE AND LEVER
▶
0-35 — ENGINE CONTROL VALVE AND LEVER
(#11909) — 34 parça
Tümü
A - 6WF1 TC-C
B - 6WG1 TC-N
C - 6WG1 TC-C
D - 6WA1 TC-C
◀

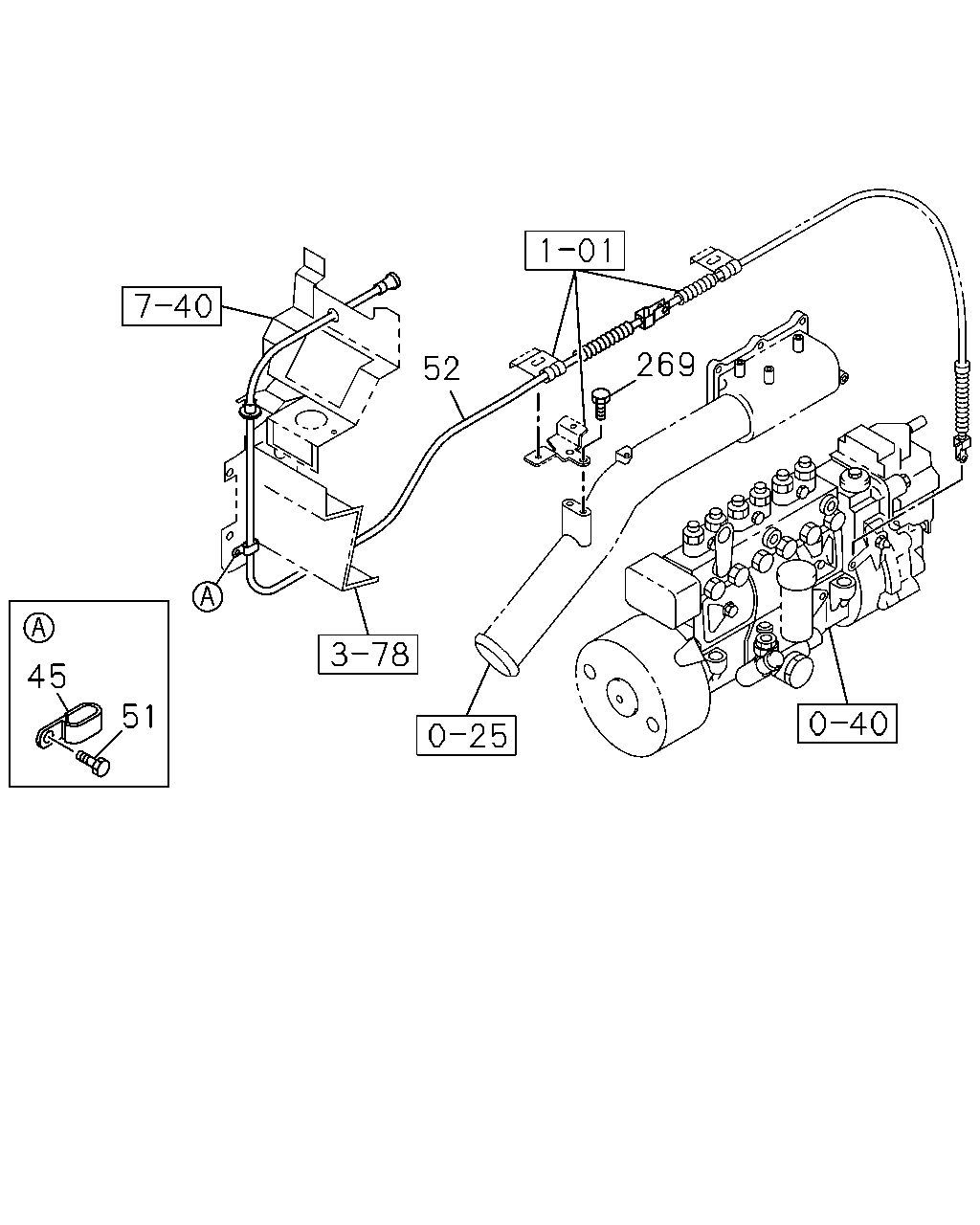

[035A] FUEL CUT CABLE;ELECTRONIC GOV (8 parça)

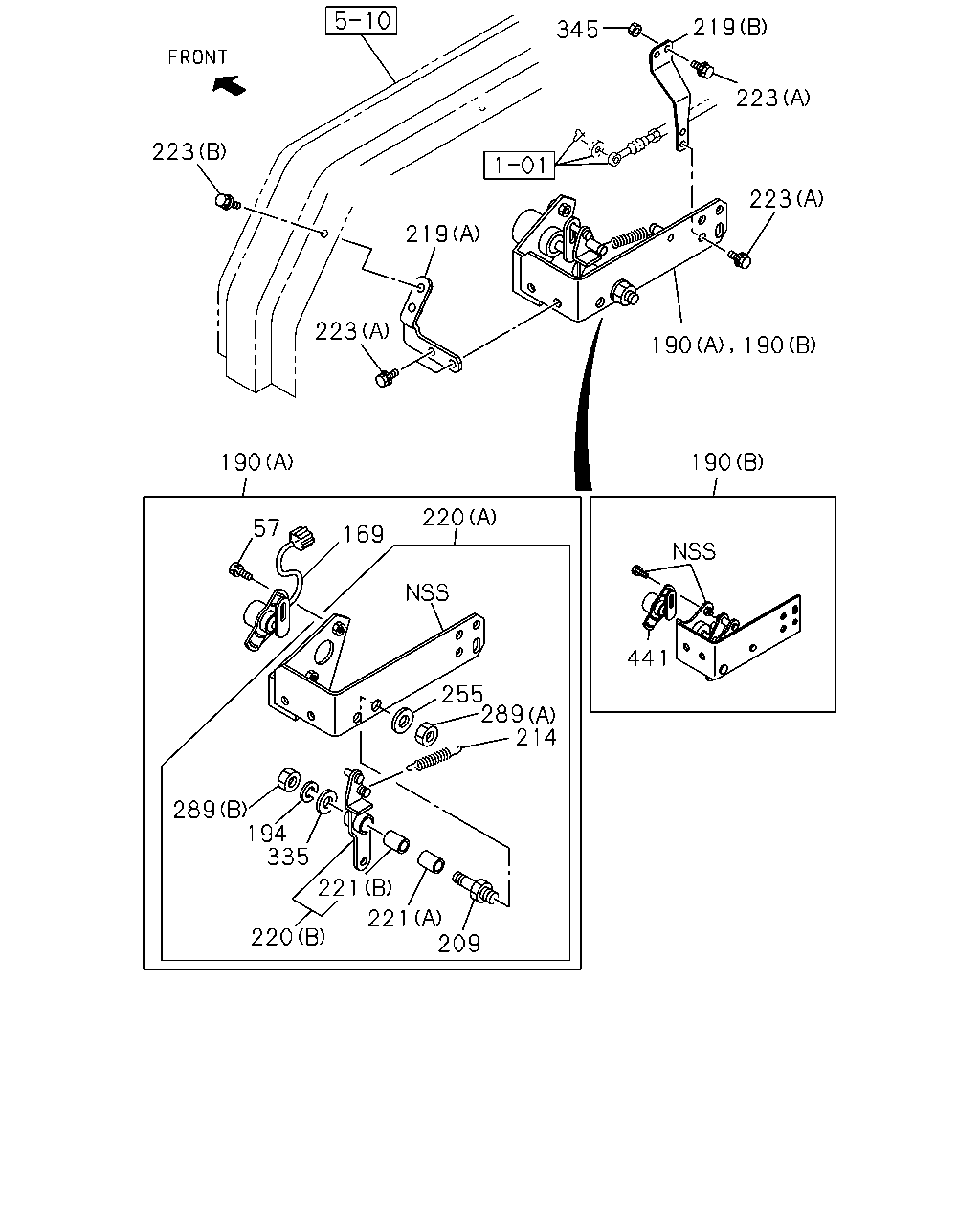

[035A] LEVER ASM;PTO CONT OPERATION CAB BACK (26 parça)
▶
269
52
45
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
45
CLIP; FUEL CUT CABLE
ID=11 L=20
9-09525-035-0
02
1
0105-0606
●
●
●
45
CLIP; FUEL CUT CABLE
ID=11 L=20
0-95235-035-0
02
1
0607-
●
●
●
51
BOLT; CLIP,FUEL CUT CABLE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0105-
●
●
●
52
CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=3334
1-73907-534-0
01
1
0105-
●
●
●
●
52
CABLE; FUEL CUT
ELECTRONIC GOV RED4(Q4F) L=3479
1-73907-677-0
01
1
0105-0404
●
●
●
●
52
CABLE; FUEL CUT
ELECTRONIC GOV RED4(Q4F) L=3479
1-73907-720-0
01
1
0405-
●
●
●
●
269
BOLT; BRKT FIX
M10X20 FLANGE
0-28181-020-0
02
1
0105-0512
●
269
BOLT; BRKT FIX
M10X20 FLANGE
0-28151-020-0
02
1
0601-
●
219
345
223
223
223
219
223
190
190
190
190
220
57
169
441
255
214
289
194
335
221
221
209
220
289
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
57
BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER
0-50140-620-0
02
1
0105-0206
●
●
●
●
169
SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ>
1-81534-010-0
01
1
0105-0206
●
●
●
●
190
LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-504-0
01
1
0105-0206
●
●
●
●
190
LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
8-97219-466-3
01
1
0207-
●
●
●
●
194
WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2
9-09150-508-0
01
1
0105-0206
●
●
●
●
209
SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ>
1-14336-002-1
01
1
0105-0206
●
●
●
●
214
SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ>
8-94481-840-1
01
1
0105-0206
●
●
●
●
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-511-0
01
1
0105-0206
●
●
●
●
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23335-580-0
01
1
0207-
●
●
●
●
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-512-0
01
1
0105-0206
●
●
●
●
219
BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-582-0
01
1
0207-
●
●
●
●
220
LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-23311-357-0
01
1
0105-0206
●
●
●
●
220
LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-23335-505-0
01
1
0105-0206
●
●
●
●
221
BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-09330-057-0
01
1
0105-0206
●
●
●
●
221
BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B)
1-09330-058-0
01
1
0105-0206
●
●
●
●
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE
0-28680-820-0
06
1
0105-0512
●
●
●
●
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M8X20 FLANGE
0-28650-820-0
06
1
0601-
●
●
●
●
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE
0-28680-825-0
02
1
0105-0512
●
●
●
●
223
BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8X25 FLANGE
0-28650-825-0
02
1
0601-
●
●
●
●
255
WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2
9-09150-510-0
01
1
0105-0206
●
●
●
●
289
NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10
9-09110-410-0
01
1
0105-0206
●
●
●
●
289
NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8
9-09111-408-0
01
1
0105-0206
●
●
●
●
335
WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ>
5-09503-135-0
01
1
0105-0206
●
●
●
●
345
NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE
0-91150-108-0
02
1
0105-0602
●
●
●
●
345
NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
●
441
SENSOR; THROTTLE POSITION
PTO CONTROL OPERATION CAB BACK<TBZ>
8-97200-308-0
01
1
0207-
●
●
●
●
