Sayfa 8-03 - Isuzu EPC

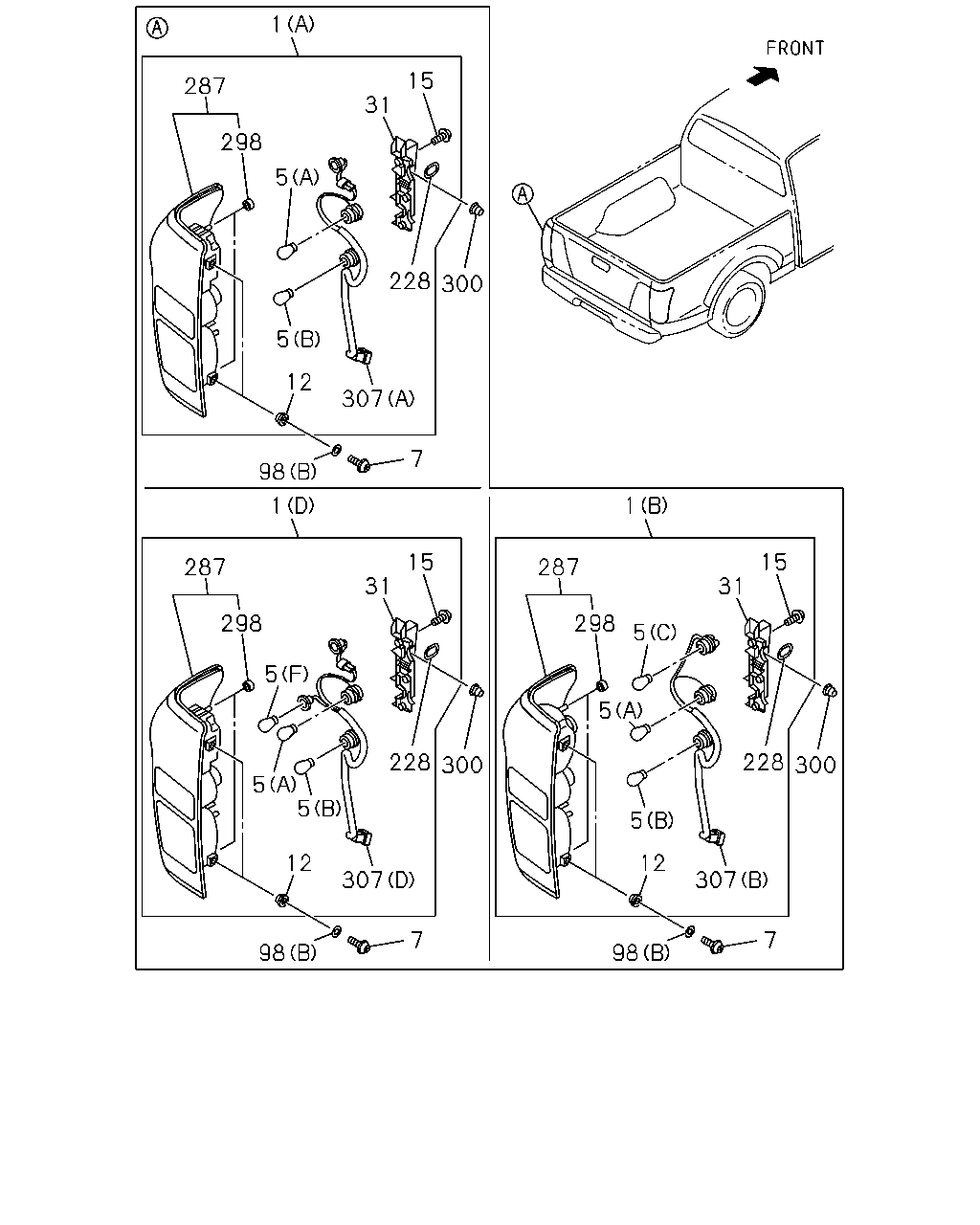

8-03 — LAMP; REAR AND REAR SIDE (#119089) — 140 parça

1 31 15 287 298 5 5 12 228 300 307 98 7 15 1 287 298 31 5 5 5 228 300 12 307 98 7 98 7 307 12 5 5 5 298 287 1 31 15 228 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LAMP ASM; RR COMB EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98233-092-2	01	1	1410-	●	●
1	LAMP ASM; RR COMB EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98233-093-2	01	1	1410-	●	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1305-			●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1305-	●	●		●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1305-			●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1305-	●	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-402-3	01	1	1305-			●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-402-3	01	1	1305-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-403-3	01	1	1305-			●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-403-3	01	1	1305-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98125-398-3	01	1	1305-1409	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98125-398-3	01	1	1410-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98125-399-3	01	1	1305-1409	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98125-399-3	01	1	1410-	●	●
5	BULB; RR COMB LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1410-	●	●
5	BULB; RR COMB LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1410-	●	●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1305-			●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1305-	●	●		●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1305-			●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1305-	●	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-			●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-			●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-	●	●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	1305-	●	●	●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97349-413-0	02	1	1305-	●	●	●	●
12	GROMMET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97349-413-0	02	1	1305-	●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1305-			●
15	SCREW; RR COMB LAMP REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1305-	●	●		●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1305-	●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1305-	●	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98193-892-0	01	1	1305-	●	●	●	●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98193-893-0	01	1	1305-	●	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (B) D=16	8-94427-941-0	04	1	1305-	●	●	●	●
98	WASHER (A)	8-94279-039-0	02	1	1305-1312	●	●	●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1401-	●	●	●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97376-769-0	01	1	1305-	●	●	●	●
228	CLIP; COVER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97376-769-0	01	1	1305-	●	●	●	●
287	LAMP UNIT; RR COMB EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98235-556-0	01	1	1410-	●	●
287	LAMP UNIT; RR COMB EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98235-557-0	01	1	1410-	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98131-706-0	01	1	1305-			●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81>	8-98131-706-0	01	1	1305-	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98131-707-0	01	1	1305-			●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81>	8-98131-707-0	01	1	1305-	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98131-710-0	01	1	1305-1409	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS>	8-98131-710-0	01	1	1410-	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81>	8-98131-711-0	01	1	1305-1409	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS>	8-98131-711-0	01	1	1410-	●	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	1305-	●	●	●	●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97289-148-0	02	1	1305-	●	●	●	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63)	8-97372-854-0	02	1	1305-	●	●	●	●
307	CORD ASM; LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98250-079-0	01	1	1410-	●	●
307	CORD ASM; LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98250-079-0	01	1	1410-	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1305-			●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1305-			●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1305-	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1305-	●	●
307	CORD ASM; LAMP (C)	8-98193-900-0	01	1	1305-	●	●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98193-891-0	01	1	1305-1409	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98193-891-0	01	1	1305-1409	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98193-891-0	01	1	1410-	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98193-891-0	01	1	1410-	●	●

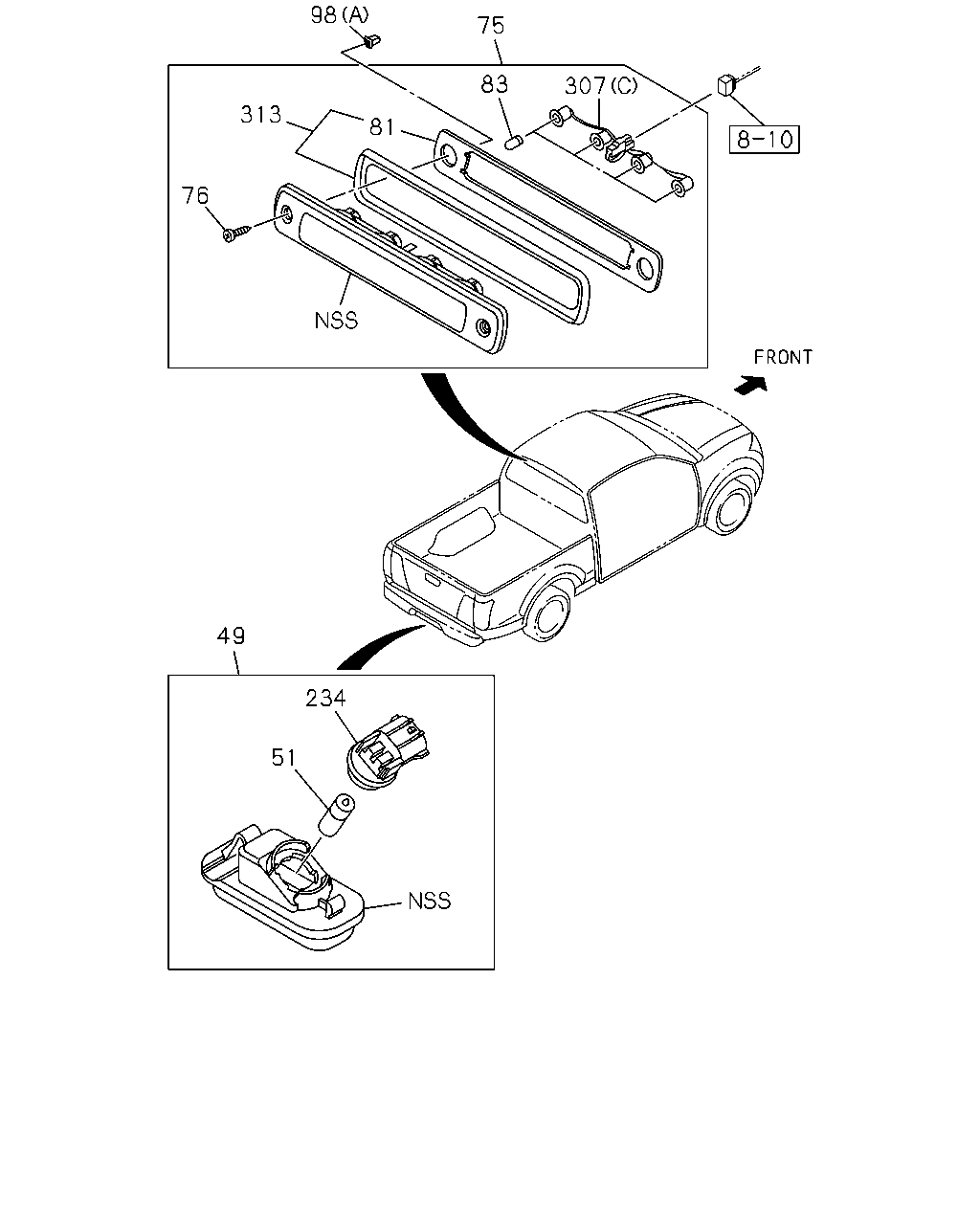

75 98 313 81 76 83 307 49 234 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	LAMP; LICENSE PLATE	8-98224-482-0	02	1	1305-			●
49	LAMP; LICENSE PLATE REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98224-482-0	02	1	1305-	●	●		●
49	LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98224-482-0	02	1	1305-	●	●		●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98200-930-0	02	1	1305-			●
49	LAMP; LICENSE PLATE REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98200-930-0	02	1	1305-	●	●		●
51	BULB; LICENSE PLATE LAMP EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W	8-94124-595-0	04	1	1305-			●
51	BULB; LICENSE PLATE LAMP REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W	8-94124-595-0	04	1	1305-	●	●		●
51	BULB; LICENSE PLATE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 12V 5W	8-94124-595-0	02	1	1305-	●	●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED	8-98084-142-2	01	1	1305-1312	●	●	●	●
75	LAMP ASM; STOP,HIGHMOUNTED	8-98255-655-2	01	1	1401-	●	●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED	8-98193-901-0	02	1	1305-	●	●	●	●
81	GASKET; STOP LAMP	8-98193-899-0	01	1	1305-1312	●	●	●	●
81	GASKET; STOP LAMP	8-98257-962-0	01	1	1401-	●	●	●	●
83	BULB; STOP LAMP,HIGHMOUNTED 12V 5W	8-98193-898-0	04	1	1305-	●	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (B) D=16	8-94427-941-0	04	1	1305-	●	●	●	●
98	WASHER (A)	8-94279-039-0	02	1	1305-1312	●	●	●	●
98	WASHER (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1401-	●	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	1-82119-148-0	04	1	1305-			●
234	SOCKET ASM; LICENSE PLATE LAMP REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	1-82119-148-0	04	1	1305-	●	●		●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	1-82119-148-0	02	1	1305-	●	●	●	●
307	CORD ASM; LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98250-079-0	01	1	1410-	●	●
307	CORD ASM; LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98250-079-0	01	1	1410-	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1305-			●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-98193-896-0	01	1	1305-			●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1305-	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98193-896-0	01	1	1305-	●	●
307	CORD ASM; LAMP (C)	8-98193-900-0	01	1	1305-	●	●	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98193-891-0	01	1	1305-1409	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98193-891-0	01	1	1305-1409	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98193-891-0	01	1	1410-	●	●
307	CORD ASM; LAMP REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98193-891-0	01	1	1410-	●	●
313	RUBBER & GASKET	8-98250-208-0	01	1	1305-	●	●	●	●

1 5 5 15 6 3 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LAMP ASM; RR COMB EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98233-092-2	01	1	1410-	●	●
1	LAMP ASM; RR COMB EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (D)	8-98233-093-2	01	1	1410-	●	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1305-			●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-731-0	01	1	1305-	●	●		●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1305-			●
1	LAMP ASM; RR COMB REAR BODY DELETE(8HH) (C)	8-97137-732-0	01	1	1305-	●	●		●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-402-3	01	1	1305-			●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-402-3	01	1	1305-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98125-403-3	01	1	1305-			●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (B)	8-98125-403-3	01	1	1305-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98125-398-3	01	1	1305-1409	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98125-398-3	01	1	1410-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (A)	8-98125-399-3	01	1	1305-1409	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> EXC. EQUIPMENT IMPACT<EPS> (A)	8-98125-399-3	01	1	1410-	●	●
3	GASKET; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	5-82236-001-0	01	1	1305-			●
3	GASKET; RR COMB LAMP REAR BODY DELETE(8HH)	5-82236-001-0	01	1	1305-	●	●		●
3	GASKET; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	5-82236-002-0	01	1	1305-			●
3	GASKET; RR COMB LAMP REAR BODY DELETE(8HH)	5-82236-002-0	01	1	1305-	●	●		●
5	BULB; RR COMB LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1410-	●	●
5	BULB; RR COMB LAMP EQUIPMENT IMPACT<EPS> REAR BODY DBL WALL CTR PULL(E63) LAMPS TAIL AND STOP DELUXE<T81> (F) TAIL 12V 5W	8-94124-595-0	01	1	1410-	●	●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1305-			●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (D) BACK-UP AND TURN SIGNAL 12V 21W	8-94124-074-0	04	1	1305-	●	●		●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1305-			●
5	BULB; RR COMB LAMP REAR BODY DELETE(8HH) (E) STOP 12V 21/5W	8-94125-959-0	02	1	1305-	●	●		●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (B) BACK-UP AND RR FOG 12V 21W	8-94124-074-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) TURN SIGNAL 12V 21W	8-97179-967-0	01	1	1305-	●	●	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-			●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-			●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) EXC. LAMPS TAIL AND STOP DELUXE<T81> (C) STOP 12V 21/5W	8-94125-959-0	01	1	1305-	●	●
6	LENS; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	5-82235-001-0	01	1	1305-			●
6	LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-001-0	01	1	1305-	●	●		●
6	LENS; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH)	5-82235-002-0	01	1	1305-			●
6	LENS; RR COMB LAMP REAR BODY DELETE(8HH)	5-82235-002-0	01	1	1305-	●	●		●
9	NUT; LAMP,RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M5 FLANGE	8-98049-363-0	08	1	1305-			●
9	NUT; LAMP,RR COMB REAR BODY DELETE(8HH) M5 FLANGE	8-98049-363-0	08	1	1305-	●	●		●
15	SCREW; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1305-			●
15	SCREW; RR COMB LAMP REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS	0-71090-420-0	16	1	1305-	●	●		●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1305-	●	●	●	●
15	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M4X12 TAPPING	8-97376-768-0	03	1	1305-	●	●	●	●
