Isuzu WW
▶
TRUCKS
▶
FYH
▶
11500 - FYH(THAILAND)EURO3
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

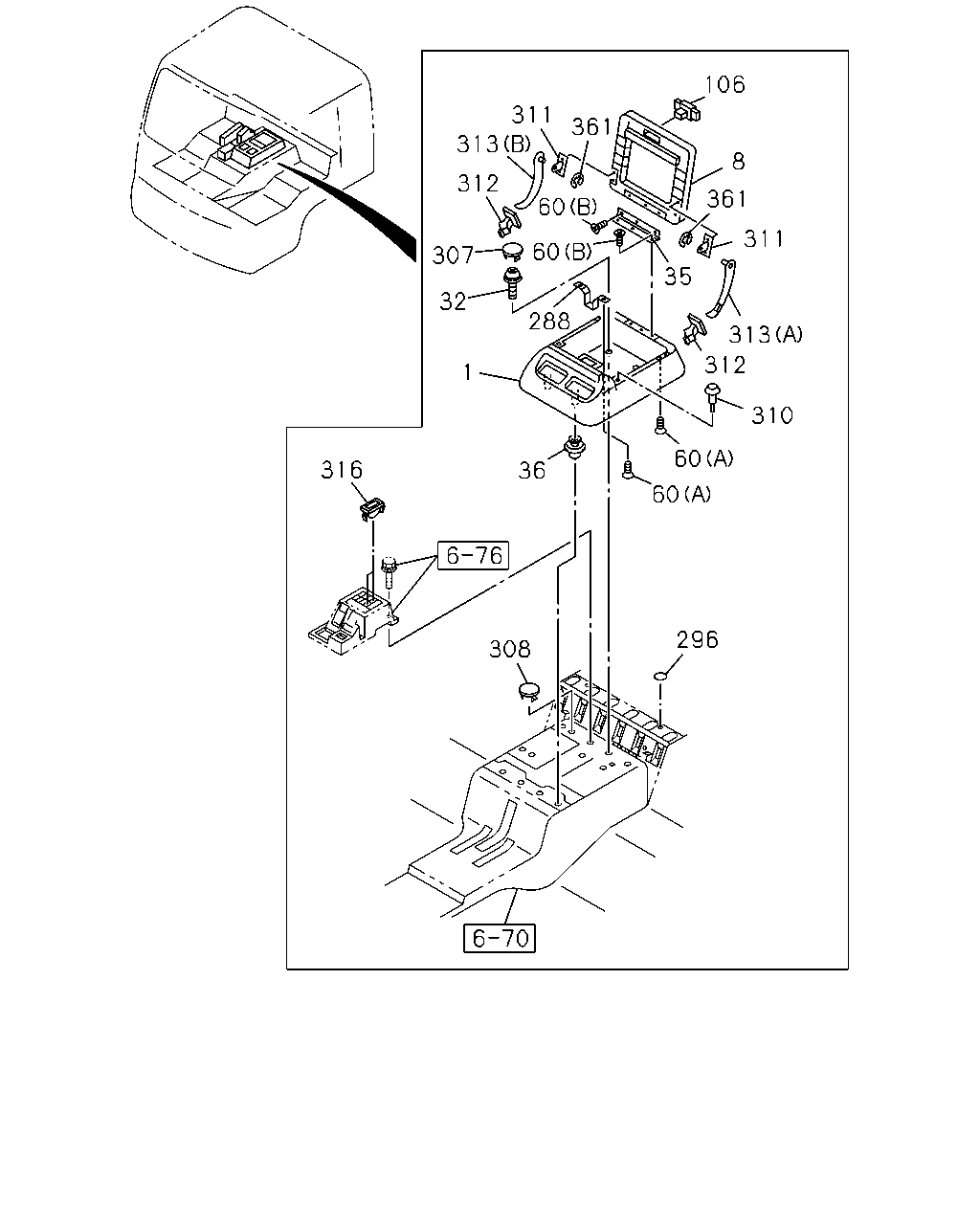

7-45 — CONSOLE BOX
(#119085) — 19 parça
60
60
310
312
313
311
361
8
106
361
311
313
312
307
32
1
36
316
288
60
60
35
296
308
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY
8-97408-710-0
01
1
1305-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97408-712-0
01
1
1305-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16
0-38050-616-0
02
1
1305-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-182-1
01
1
1305-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-09984-190-0
02
1
1305-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
1305-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14
8-94279-325-0
04
1
1305-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9>
1-72538-312-0
01
1
1305-
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-190-0
01
1
1305-
296
SEAL
OD=25 BLACK THA
1-76798-019-0
04
1
1305-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97407-951-0
02
1
1305-
308
GROMMET
OD=35
8-94122-971-0
01
1
1305-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-187-0
02
1
1305-
311
HOLDER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-188-2
02
1
1305-
312
STOPPER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-186-1
02
1
1305-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-184-3
01
1
1305-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-185-3
01
1
1305-
316
BOX; COIN
8-94482-280-2
02
1
1305-
361
RING; SNAP
CENTER SEAT DELETE<SP9> ID=5
9-09185-405-0
02
1
1305-
