7-43 — SUN VISOR AND ASSIST GRIP (#119084) — 42 parça

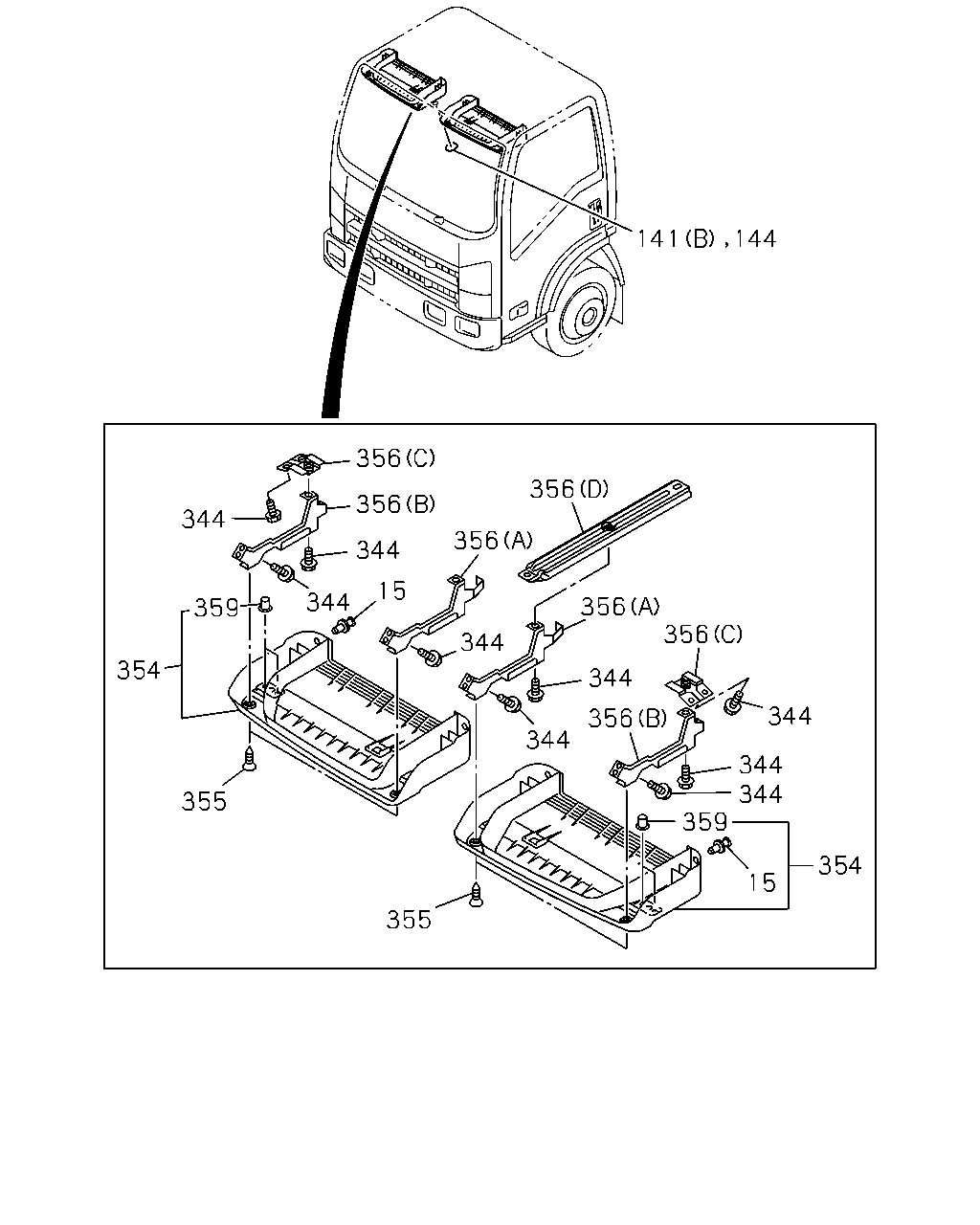

çizim 351479
141 144 356 356 356 356 356 356 344 356 344 344 344 354 15 359 355 355 354 359 344 344 15 344 344 344
BalonParca AdiParca NoAdetTipApplied Date A B
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97406-299-0 02 1 1304- ● ●
15 FASTENER; HEADER SHELF BOARD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97406-299-0 02 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IMA 		8-97405-173-0 01 1 1304- ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IMA 		8-97405-173-0 01 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IMA 		8-97405-173-0 01 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY IMA 		8-97408-029-0 01 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY IMA 		8-97408-030-0 01 1 1304- ● ●
144 SEAL; LOCATION HOLE
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> OD=20 T=0.05 WHITE IMA 		8-98059-421-0 01 1 1304- ● ●
144 SEAL; LOCATION HOLE
HEADER TRAY DRIVER<W56> OD=20 T=0.05 WHITE IMA 		8-98059-421-0 01 1 1304- ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE IMA 		8-97108-669-0 08 1 1304- ● ●
344 BOLT; BRKT,FRT
HEADER TRAY DRIVER & PASSENGER<8LY> M6X12 FLANGE IMA 		8-97108-669-0 08 1 1304- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97408-064-2 01 1 1304- ● ●
354 TRAY; HEADER ROOF
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97408-065-2 01 1 1304- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72380-516-0 04 1 1304- ● ●
355 SCREW; TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72380-516-0 04 1 1304- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) IMA 		8-98036-022-4 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER & PASSENGER<8LY> (A) IMA 		8-98036-023-4 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (C) IMA 		8-97386-874-1 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> (C) IMA 		8-97386-874-1 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (B) IMA 		8-97585-576-4 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> (B) IMA 		8-97585-576-4 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (D) IMA 		8-97585-577-1 01 1 1304- ● ●
356 BRACKET; ROOF OUTER
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> (D) IMA 		8-97585-577-1 01 1 1304- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> IMA 		8-98041-754-0 02 1 1304- ● ●
359 HOLDER; HEADER TRAY
HEADER TRAY DRIVER & PASSENGER<8LY> IMA 		8-98041-754-0 02 1 1304- ● ●

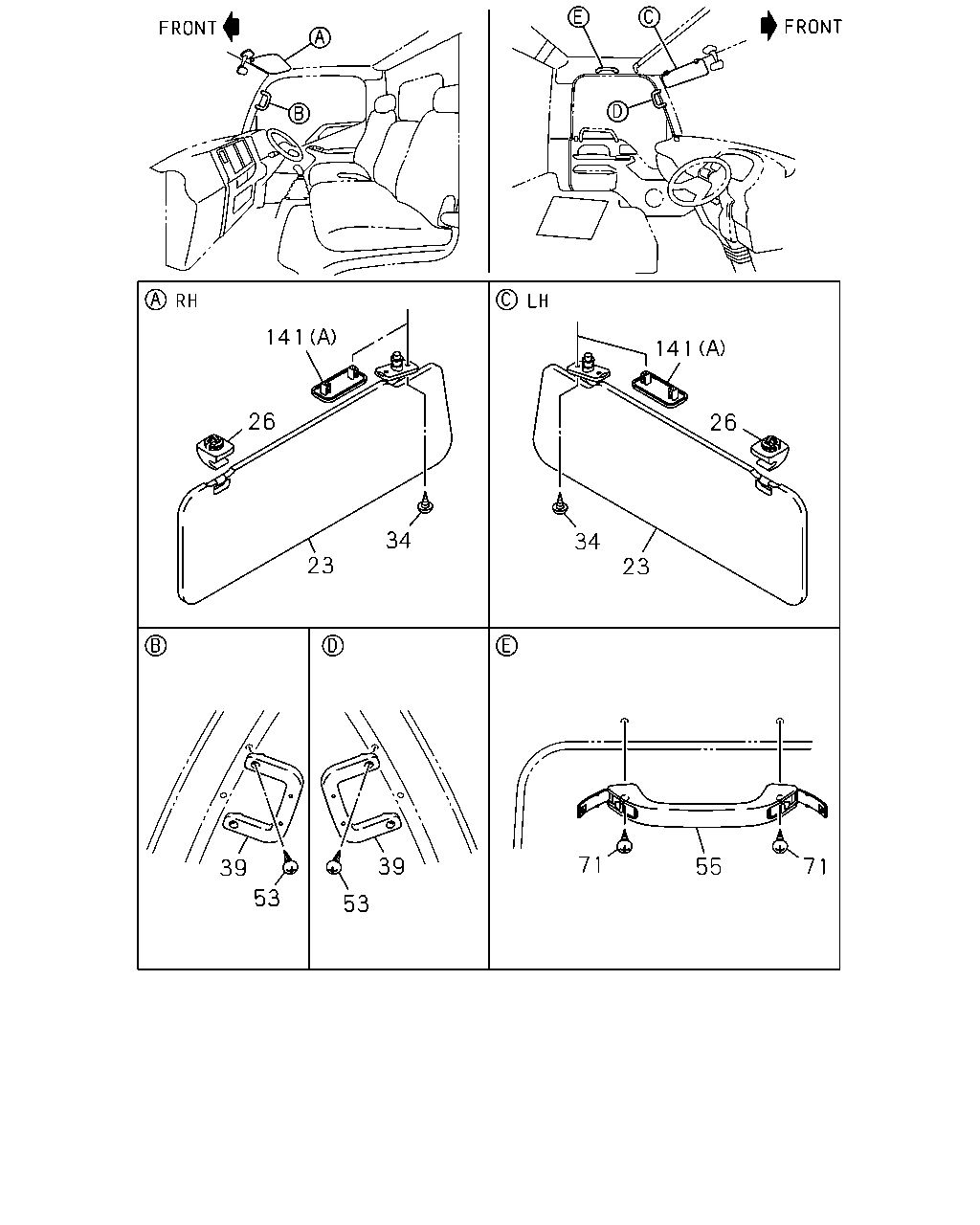

çizim 351484
141 26 23 34 34 23 26 141 39 53 53 39 71 55 71
BalonParca AdiParca NoAdetTipApplied Date A B
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> THA 		8-97923-767-2 01 1 1304- ● ●
23 SUN VISOR
SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-169-1 01 1 1304- ● ●
23 SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> THA 		8-97923-766-2 01 1 1304- ● ●
26 HOLDER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97405-171-0 01 1 1304- ● ●
26 HOLDER; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IMA 		8-97405-171-0 01 1 1304- ● ●
34 SCREW; SUN VISOR
M6X26 IMA 		8-98033-674-0 02 1 1304- ● ●
34 SCREW; SUN VISOR
SUNVISOR PASSENGER SIDE<D20> M6X26 IMA 		8-98033-674-0 02 1 1304- ● ●
34 SCREW; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26 IMA 		8-98033-674-0 02 1 1304- ● ●
39 HANDLE; ASSIST,A-POST
DARK GRAY IMA 		8-97405-249-2 02 1 1304- ● ●
53 SCREW; ASSIST HANDLE
M6X28 IMA 		8-98004-344-0 04 1 1304- ● ●
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY IMA 		8-97405-285-2 01 1 1304- ● ●
71 SCREW
M6X28 IMA 		8-98004-344-0 02 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IMA 		8-97405-173-0 01 1 1304- ● ●
141 COVER; SUN VISOR
EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IMA 		8-97405-173-0 01 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IMA 		8-97405-173-0 01 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY IMA 		8-97408-029-0 01 1 1304- ● ●
141 COVER; SUN VISOR
HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY IMA 		8-97408-030-0 01 1 1304- ● ●
