7-43 — SUN VISOR AND ASSIST GRIP
(#119083) — 45 parça
◀

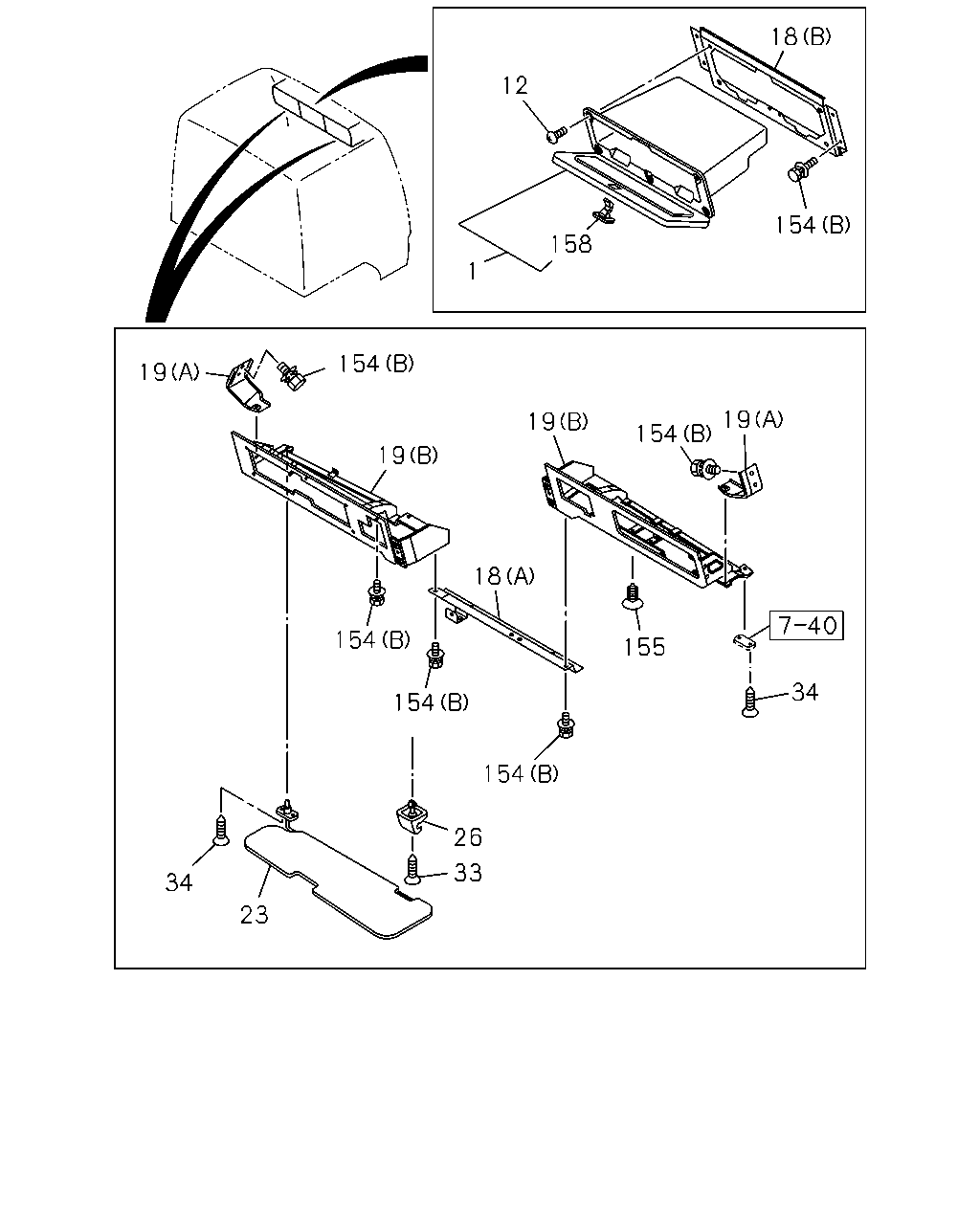

[743A] SUN VISOR AND SUPPORT ASM (16 parça)
[743A] ASSIST GRIP;CAB INSIDE (12 parça)
[743A] ASSIST GRIP;CAB OUTSIDE (17 parça)
▶
12
1
158
154
18
154
19
19
19
154
19
18
154
154
154
155
34
26
33
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
1-72447-968-0
01
1
1305-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
1305-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
1305-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-937-0
01
1
1305-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-938-4
01
1
1305-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
1305-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
1305-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
1305-
23
SUN VISOR
1-73138-157-1
01
1
1305-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
1305-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
1305-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
1305-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1305-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1305-
155
FASTENER; HOLDER
1-09983-181-0
01
1
1305-
158
LOCK; HEADER SHELF
1-72538-312-0
01
1
1305-
150
150
54
71
48
48
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1305-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1305-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1305-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1305-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1305-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-071-2
01
1
1305-
54
GRIP; ASSIST,QUARTER SIDE
8-98139-070-2
01
1
1305-
56
GRIP; ASSIST,SIDE SILL
8-98139-073-1
01
1
1305-
56
GRIP; ASSIST,SIDE SILL
8-98139-072-1
01
1
1305-
71
SCREW
M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
1305-
150
CLIP; ASSIST GRIP HOLE
(A) OD=6 L=17 LIGHT GRAY
1-73996-301-0
04
1
1305-
150
CLIP; ASSIST GRIP HOLE
(B) OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
1305-

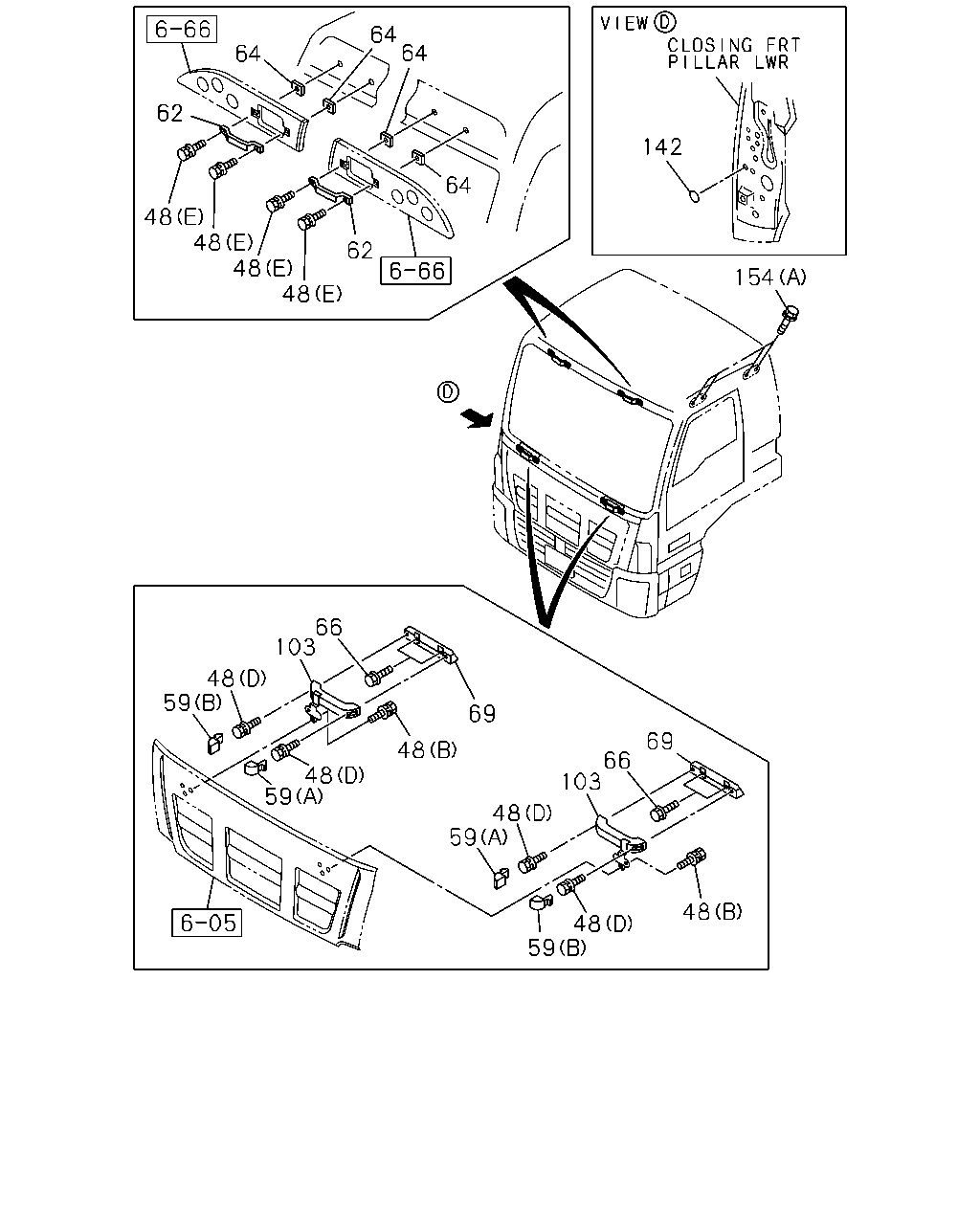

64
62
48
48
48
48
62
64
64
64
142
154
66
103
48
59
59
48
48
69
59
48
103
66
69
59
48
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
1305-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
1305-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
1305-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
1305-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
1305-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
1305-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
1305-
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
1305-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
1305-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
1305-
69
BRACKET; ASSIST GRIP
1-65570-243-0
01
1
1305-
69
BRACKET; ASSIST GRIP
1-65570-242-0
01
1
1305-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
1305-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
1305-
142
SEAL; ASSIST GRIP
OD=25 BLACK
1-76798-019-0
01
1
1305-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
1305-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
1305-
