Sayfa 0-33 - Isuzu EPC

0-33 — FAN AND FAN BELT (#11908) — 220 parça

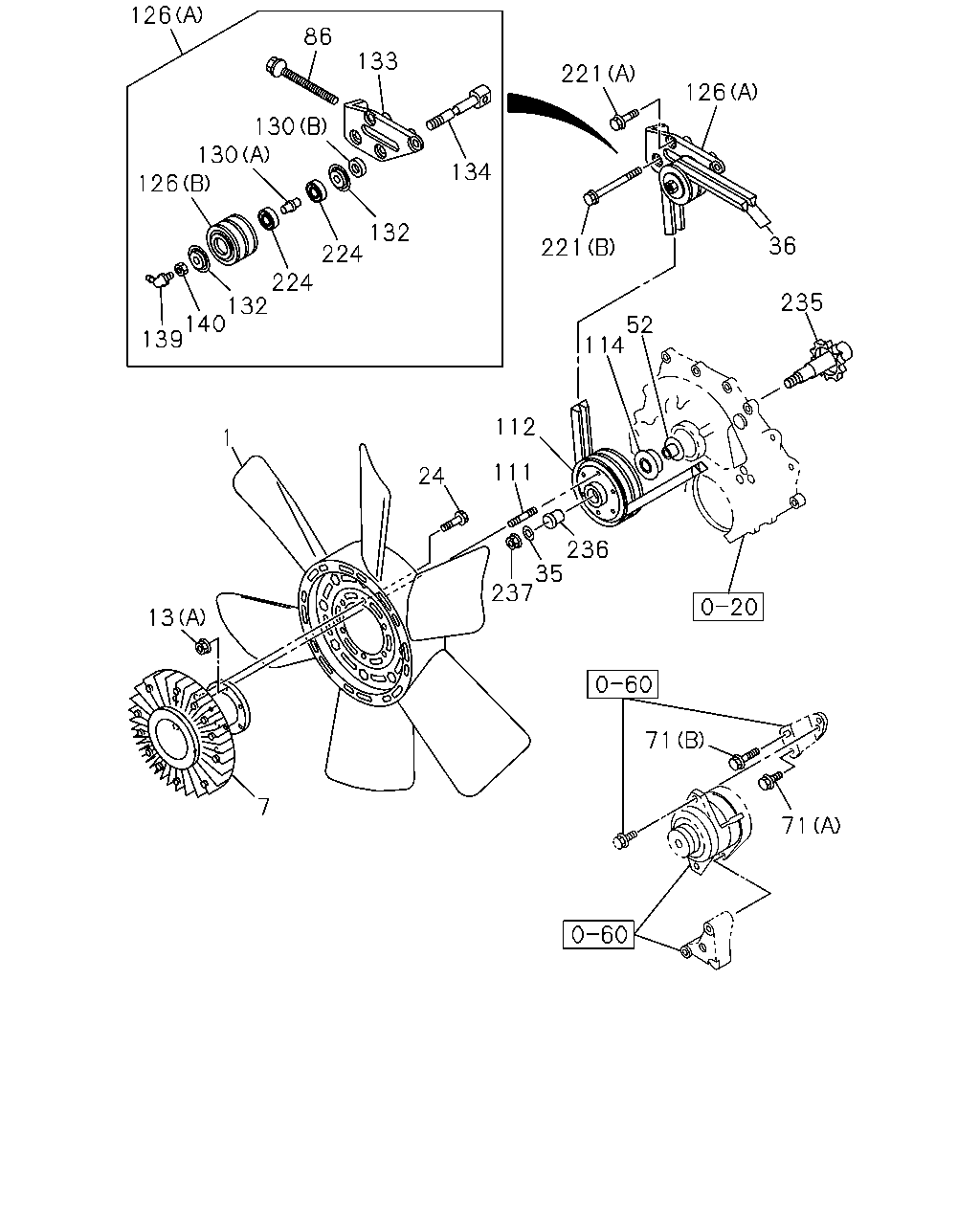

134 71 69 126 126 133 224 126 139 130 132 130 221 221 36 224 132 140 235 52 114 112 1 111 236 35 237 24 13 71 7 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FAN; COOLING	1-13660-224-0	01	1	0105-	●
1	FAN; COOLING	1-13660-286-1	01	1	0105-		●	●	●
7	COUPLING; FAN EURO3 SPECIFICATION<NJX>	1-21650-209-1	01	1	0107-		●
7	COUPLING; FAN	1-21650-178-1	01	1	0105-	●
7	COUPLING; FAN EURO2 SPECIFICATION<THN>	1-21650-204-1	01	1	0105-		●
7	COUPLING; FAN	1-21650-188-1	01	1	0105-			●	●
13	NUT; COOLING FAN (B) M8 FLANGE	0-91150-208-0	06	1	0105-0602	●
13	NUT; COOLING FAN (B) M8 FLANGE	0-91180-208-0	06	1	0603-	●
13	NUT; COOLING FAN (A) M10 FLANGE	0-91150-210-0	06	1	0105-0602	●	●	●	●
13	NUT; COOLING FAN (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
24	BOLT; FAN EURO3 SPECIFICATION<NJX> M10X35	0-28191-035-0	06	1	0107-0512		●
24	BOLT; FAN EURO3 SPECIFICATION<NJX> M10X35	0-28161-035-0	06	1	0601-		●
24	BOLT; FAN M10X40 FLANGE	0-28791-040-0	06	1	0105-0107		●	●	●
24	BOLT; FAN EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28791-040-0	06	1	0108-0512		●
24	BOLT; FAN M10X40 FLANGE	0-28791-040-0	06	1	0108-0512			●	●
24	BOLT; FAN EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28761-040-0	06	1	0601-		●
24	BOLT; FAN M10X40 FLANGE	0-28761-040-0	06	1	0601-			●	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	0105-0312	●	●	●	●
35	WASHER; PL	1-09503-242-0	01	1	0401-	●	●	●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714310) MITSUBOSHI	1-13671-430-0	01	1	0105-		●	●	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	0105-	●	●	●	●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	0105-	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0105-0105			●	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0105-0107		●	●	●
69	WASHER; PL,ADJ PLATE,GEN EURO2 SPECIFICATION<THN> ID=10.5 OD=18	9-09160-510-0	01	1	0108-0605		●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0108-0605			●	●
69	WASHER; PL,ADJ PLATE,GEN EURO2 SPECIFICATION<THN> ID=10.5	0-91610-510-0	01	1	0606-		●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5	0-91610-510-0	01	1	0606-			●	●
71	BOLT; ADJ PLATE,GEN (D) M10X60 FLANGE	0-28181-060-0	01	1	0105-0512	●
71	BOLT; ADJ PLATE,GEN (D) M10X60 FLANGE	0-28151-060-0	01	1	0601-	●
71	BOLT; ADJ PLATE,GEN (E) M10X135	1-09009-113-1	01	1	0105-	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28181-025-0	01	1	0105-0512	●	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	0601-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28186-011-0	01	1	0105-0512	●	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	0105-0107		●	●	●
71	BOLT; ADJ PLATE,GEN EURO2 SPECIFICATION<THN> (C) M10X140	1-09000-104-1	01	1	0108-		●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	0108-			●	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	0105-0604	●	●	●	●
111	STUD; FAN DRIVE M10X25 L=45	0-43211-025-0	06	1	0605-	●	●	●	●
112	PULLEY; FAN CENTER	1-13663-123-2	01	1	0105-	●
112	PULLEY; FAN CENTER	1-13663-124-1	01	1	0105-		●	●	●
114	SEAL; OIL	1-09625-570-0	01	1	0105-	●	●	●	●
126	PULLEY; IDLE EURO3 SPECIFICATION<NJX> (A)	1-13660-364-3	01	1	0107-		●
126	PULLEY; IDLE EURO2 SPECIFICATION<THN> (A)	1-13660-358-1	01	1	0105-0107		●
126	PULLEY; IDLE (A)	1-13660-358-1	01	1	0105-0107			●	●
126	PULLEY; IDLE EURO2 SPECIFICATION<THN> (A)	1-13660-358-2	01	1	0108-		●
126	PULLEY; IDLE (A)	1-13660-358-2	01	1	0108-			●	●
126	PULLEY; IDLE (B)	1-13663-111-2	01	1	0105-		●	●	●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	0105-		●	●	●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	0105-		●	●	●
132	COVER; DUST	1-13664-009-2	02	1	0105-		●	●	●
133	BRACKET; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13669-150-1	01	1	0105-0107		●
133	BRACKET; IDLE PULLEY	1-13669-150-1	01	1	0105-0107			●	●
133	BRACKET; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13669-150-1	01	1	0108-		●
133	BRACKET; IDLE PULLEY	1-13669-150-1	01	1	0108-			●	●
133	BRACKET; IDLE PULLEY EURO3 SPECIFICATION<NJX>	1-13669-198-4	01	1	0107-		●
134	SPINDLE; IDLE PULLEY EURO3 SPECIFICATION<NJX>	1-13665-064-0	01	1	0107-		●
134	SPINDLE; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13665-035-0	01	1	0105-0107		●
134	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	0105-0107			●	●
134	SPINDLE; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13665-035-0	01	1	0108-		●
134	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	0108-			●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	9-09031-210-0	01	1	0105-0512		●	●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●	●	●
140	NUT; IDLE PULLEY M18	9-99111-518-0	01	1	0105-0512		●	●	●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	0601-		●	●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (B) M10X80 FLANGE	0-28181-080-0	01	1	0105-0512		●
221	BOLT; IDLE PULLEY (B) M10X80 FLANGE	0-28181-080-0	01	1	0105-0512			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (B) M10X80 FLANGE	0-28151-080-0	01	1	0601-		●
221	BOLT; IDLE PULLEY (B) M10X80 FLANGE	0-28151-080-0	01	1	0601-			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (A) M10X90 FLANGE	0-28181-090-0	03	1	0105-0107		●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28181-090-0	03	1	0105-0107			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (A) M10X90 FLANGE	0-28181-090-0	03	1	0108-0512		●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28181-090-0	03	1	0108-0512			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (A) M10X90 FLANGE	0-28151-090-0	03	1	0601-		●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28151-090-0	03	1	0601-			●	●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (B) M10X80 FLANGE	0-28181-080-0	02	1	0107-0512		●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (B) M10X80 FLANGE	0-28151-080-0	02	1	0601-		●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (A) M10X90 FLANGE	0-28181-090-0	02	1	0107-0512		●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (A) M10X90 FLANGE	0-28151-090-0	02	1	0601-		●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	0105-		●	●	●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	0105-0106	●		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-13660-279-2	01	1	0105-0106		●
235	SHAFT; FAN CENTER	1-13660-279-3	01	1	0107-	●		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-13660-279-3	01	1	0107-		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-13660-278-3	01	1	0105-		●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	0105-				●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	0105-	●	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	0105-	●	●	●	●

235 52 114 185 1 112 13 111 13 236 35 237 7 81 71 71 80 71 71 69 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FAN; COOLING	1-13660-224-0	01	1	0105-	●
1	FAN; COOLING	1-13660-286-1	01	1	0105-		●	●	●
7	COUPLING; FAN EURO3 SPECIFICATION<NJX>	1-21650-209-1	01	1	0107-		●
7	COUPLING; FAN	1-21650-178-1	01	1	0105-	●
7	COUPLING; FAN EURO2 SPECIFICATION<THN>	1-21650-204-1	01	1	0105-		●
7	COUPLING; FAN	1-21650-188-1	01	1	0105-			●	●
13	NUT; COOLING FAN (B) M8 FLANGE	0-91150-208-0	06	1	0105-0602	●
13	NUT; COOLING FAN (B) M8 FLANGE	0-91180-208-0	06	1	0603-	●
13	NUT; COOLING FAN (A) M10 FLANGE	0-91150-210-0	06	1	0105-0602	●	●	●	●
13	NUT; COOLING FAN (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	0105-0312	●	●	●	●
35	WASHER; PL	1-09503-242-0	01	1	0401-	●	●	●	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	0105-	●	●	●	●
69	WASHER; PL,ADJ PLATE,GEN ID=12.5 OD=32	9-09160-712-0	01	1	0105-	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0105-0105			●	●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0105-0107		●	●	●
69	WASHER; PL,ADJ PLATE,GEN EURO2 SPECIFICATION<THN> ID=10.5 OD=18	9-09160-510-0	01	1	0108-0605		●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5 OD=18	9-09160-510-0	01	1	0108-0605			●	●
69	WASHER; PL,ADJ PLATE,GEN EURO2 SPECIFICATION<THN> ID=10.5	0-91610-510-0	01	1	0606-		●
69	WASHER; PL,ADJ PLATE,GEN ID=10.5	0-91610-510-0	01	1	0606-			●	●
70	NUT; ADJ PLATE,GEN M12 FLANGE	0-91150-112-0	01	1	0105-0602	●
70	NUT; ADJ PLATE,GEN M12 FLANGE	0-91180-112-0	01	1	0603-	●
71	BOLT; ADJ PLATE,GEN (D) M10X60 FLANGE	0-28181-060-0	01	1	0105-0512	●
71	BOLT; ADJ PLATE,GEN (D) M10X60 FLANGE	0-28151-060-0	01	1	0601-	●
71	BOLT; ADJ PLATE,GEN (E) M10X135	1-09009-113-1	01	1	0105-	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28181-025-0	01	1	0105-0512	●	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	0601-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28186-011-0	01	1	0105-0512	●	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	0105-0107		●	●	●
71	BOLT; ADJ PLATE,GEN EURO2 SPECIFICATION<THN> (C) M10X140	1-09000-104-1	01	1	0108-		●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	0108-			●	●
80	PLATE; ADJ	1-13674-241-0	01	1	0105-	●
81	PIECE; SLIDING M12X45	1-13674-160-0	01	1	0105-	●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	0105-0604	●	●	●	●
111	STUD; FAN DRIVE M10X25 L=45	0-43211-025-0	06	1	0605-	●	●	●	●
112	PULLEY; FAN CENTER	1-13663-123-2	01	1	0105-	●
112	PULLEY; FAN CENTER	1-13663-124-1	01	1	0105-		●	●	●
114	SEAL; OIL	1-09625-570-0	01	1	0105-	●	●	●	●
185	BELT; GEN DRIVE 1 SET=2 PIECE(1136714290) MITSUBOSHI	1-13671-428-0	01	1	0105-	●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	0105-0106	●		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-13660-279-2	01	1	0105-0106		●
235	SHAFT; FAN CENTER	1-13660-279-3	01	1	0107-	●		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-13660-279-3	01	1	0107-		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-13660-278-3	01	1	0105-		●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	0105-				●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	0105-	●	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	0105-	●	●	●	●

126 86 133 221 126 130 130 126 134 132 224 224 132 140 139 36 221 235 52 114 112 1 111 24 236 35 237 13 71 7 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	FAN; COOLING	1-13660-224-0	01	1	0105-	●
1	FAN; COOLING	1-13660-286-1	01	1	0105-		●	●	●
7	COUPLING; FAN EURO3 SPECIFICATION<NJX>	1-21650-209-1	01	1	0107-		●
7	COUPLING; FAN	1-21650-178-1	01	1	0105-	●
7	COUPLING; FAN EURO2 SPECIFICATION<THN>	1-21650-204-1	01	1	0105-		●
7	COUPLING; FAN	1-21650-188-1	01	1	0105-			●	●
13	NUT; COOLING FAN (B) M8 FLANGE	0-91150-208-0	06	1	0105-0602	●
13	NUT; COOLING FAN (B) M8 FLANGE	0-91180-208-0	06	1	0603-	●
13	NUT; COOLING FAN (A) M10 FLANGE	0-91150-210-0	06	1	0105-0602	●	●	●	●
13	NUT; COOLING FAN (A) M10 FLANGE	0-91180-210-0	06	1	0603-	●	●	●	●
24	BOLT; FAN EURO3 SPECIFICATION<NJX> M10X35	0-28191-035-0	06	1	0107-0512		●
24	BOLT; FAN EURO3 SPECIFICATION<NJX> M10X35	0-28161-035-0	06	1	0601-		●
24	BOLT; FAN M10X40 FLANGE	0-28791-040-0	06	1	0105-0107		●	●	●
24	BOLT; FAN EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28791-040-0	06	1	0108-0512		●
24	BOLT; FAN M10X40 FLANGE	0-28791-040-0	06	1	0108-0512			●	●
24	BOLT; FAN EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28761-040-0	06	1	0601-		●
24	BOLT; FAN M10X40 FLANGE	0-28761-040-0	06	1	0601-			●	●
35	WASHER; PL ID=28 T=4	1-09503-016-0	01	1	0105-0312	●	●	●	●
35	WASHER; PL	1-09503-242-0	01	1	0401-	●	●	●	●
36	BELT; COOLING FAN 1 SET=2 PIECE(1136714310) MITSUBOSHI	1-13671-430-0	01	1	0105-		●	●	●
52	SPACER; FAN DRIVE	1-13669-165-0	01	1	0105-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (D) M10X60 FLANGE	0-28181-060-0	01	1	0105-0512	●
71	BOLT; ADJ PLATE,GEN (D) M10X60 FLANGE	0-28151-060-0	01	1	0601-	●
71	BOLT; ADJ PLATE,GEN (E) M10X135	1-09009-113-1	01	1	0105-	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28181-025-0	01	1	0105-0512	●	●	●	●
71	BOLT; ADJ PLATE,GEN (A) M10X25 FLANGE	0-28151-025-0	01	1	0601-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28186-011-0	01	1	0105-0512	●	●	●	●
71	BOLT; ADJ PLATE,GEN (B) M10X110 FLANGE	0-28156-011-0	01	1	0601-	●	●	●	●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	0105-0107		●	●	●
71	BOLT; ADJ PLATE,GEN EURO2 SPECIFICATION<THN> (C) M10X140	1-09000-104-1	01	1	0108-		●
71	BOLT; ADJ PLATE,GEN (C) M10X140	1-09000-104-1	01	1	0108-			●	●
86	BOLT; ADJ EURO3 SPECIFICATION<NJX> M10X135	1-09009-113-1	01	1	0107-		●
111	STUD; FAN DRIVE M10X25 L=45	9-04321-025-0	06	1	0105-0604	●	●	●	●
111	STUD; FAN DRIVE M10X25 L=45	0-43211-025-0	06	1	0605-	●	●	●	●
112	PULLEY; FAN CENTER	1-13663-123-2	01	1	0105-	●
112	PULLEY; FAN CENTER	1-13663-124-1	01	1	0105-		●	●	●
114	SEAL; OIL	1-09625-570-0	01	1	0105-	●	●	●	●
126	PULLEY; IDLE EURO3 SPECIFICATION<NJX> (A)	1-13660-364-3	01	1	0107-		●
126	PULLEY; IDLE EURO2 SPECIFICATION<THN> (A)	1-13660-358-1	01	1	0105-0107		●
126	PULLEY; IDLE (A)	1-13660-358-1	01	1	0105-0107			●	●
126	PULLEY; IDLE EURO2 SPECIFICATION<THN> (A)	1-13660-358-2	01	1	0108-		●
126	PULLEY; IDLE (A)	1-13660-358-2	01	1	0108-			●	●
126	PULLEY; IDLE (B)	1-13663-111-2	01	1	0105-		●	●	●
130	SPACER; IDLE PULLEY BRG (A)	1-13666-007-0	01	1	0105-		●	●	●
130	SPACER; IDLE PULLEY BRG (B)	1-13666-032-0	01	1	0105-		●	●	●
132	COVER; DUST	1-13664-009-2	02	1	0105-		●	●	●
133	BRACKET; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13669-150-1	01	1	0105-0107		●
133	BRACKET; IDLE PULLEY	1-13669-150-1	01	1	0105-0107			●	●
133	BRACKET; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13669-150-1	01	1	0108-		●
133	BRACKET; IDLE PULLEY	1-13669-150-1	01	1	0108-			●	●
133	BRACKET; IDLE PULLEY EURO3 SPECIFICATION<NJX>	1-13669-198-4	01	1	0107-		●
134	SPINDLE; IDLE PULLEY EURO3 SPECIFICATION<NJX>	1-13665-064-0	01	1	0107-		●
134	SPINDLE; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13665-035-0	01	1	0105-0107		●
134	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	0105-0107			●	●
134	SPINDLE; IDLE PULLEY EURO2 SPECIFICATION<THN>	1-13665-035-0	01	1	0108-		●
134	SPINDLE; IDLE PULLEY	1-13665-035-0	01	1	0108-			●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	9-09031-210-0	01	1	0105-0512		●	●	●
139	NIPPLE; GREASE,IDLE PULLEY PT1/8 ELBOW	0-90301-610-0	01	1	0601-		●	●	●
140	NUT; IDLE PULLEY M18	9-99111-518-0	01	1	0105-0512		●	●	●
140	NUT; IDLE PULLEY M18	0-91111-518-0	01	1	0601-		●	●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (B) M10X80 FLANGE	0-28181-080-0	01	1	0105-0512		●
221	BOLT; IDLE PULLEY (B) M10X80 FLANGE	0-28181-080-0	01	1	0105-0512			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (B) M10X80 FLANGE	0-28151-080-0	01	1	0601-		●
221	BOLT; IDLE PULLEY (B) M10X80 FLANGE	0-28151-080-0	01	1	0601-			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (A) M10X90 FLANGE	0-28181-090-0	03	1	0105-0107		●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28181-090-0	03	1	0105-0107			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (A) M10X90 FLANGE	0-28181-090-0	03	1	0108-0512		●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28181-090-0	03	1	0108-0512			●	●
221	BOLT; IDLE PULLEY EURO2 SPECIFICATION<THN> (A) M10X90 FLANGE	0-28151-090-0	03	1	0601-		●
221	BOLT; IDLE PULLEY (A) M10X90 FLANGE	0-28151-090-0	03	1	0601-			●	●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (B) M10X80 FLANGE	0-28181-080-0	02	1	0107-0512		●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (B) M10X80 FLANGE	0-28151-080-0	02	1	0601-		●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (A) M10X90 FLANGE	0-28181-090-0	02	1	0107-0512		●
221	BOLT; IDLE PULLEY EURO3 SPECIFICATION<NJX> (A) M10X90 FLANGE	0-28151-090-0	02	1	0601-		●
224	BEARING; IDLE PULLEY	1-09800-176-0	02	1	0105-		●	●	●
235	SHAFT; FAN CENTER	1-13660-279-2	01	1	0105-0106	●		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-13660-279-2	01	1	0105-0106		●
235	SHAFT; FAN CENTER	1-13660-279-3	01	1	0107-	●		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-13660-279-3	01	1	0107-		●
235	SHAFT; FAN CENTER CLUTCH 15.5" TWIN PLATE SPICER(TEY)	1-13660-278-3	01	1	0105-		●
235	SHAFT; FAN CENTER	1-13660-278-3	01	1	0105-				●
236	BUSHING; FAN CENTER	1-13669-160-2	01	1	0105-	●	●	●	●
237	NUT; SHAFT M27 FLANGE	1-09440-058-0	01	1	0105-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
