8-90 — RADIO AND TV (#119076) — 14 parça

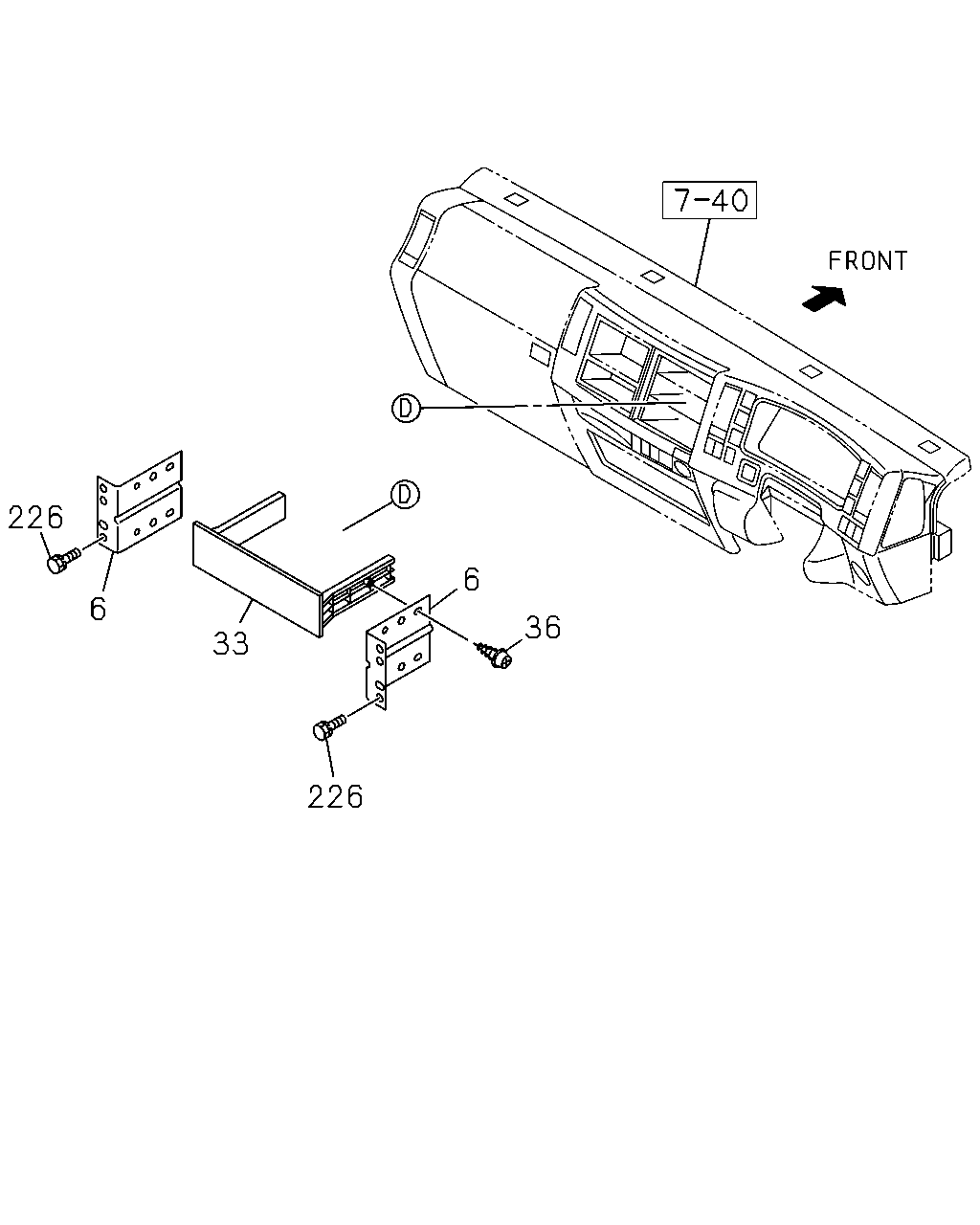

çizim 351810
226 33 36 6 6 226
BalonParca AdiParca NoAdetTipApplied Date A B
6 BRACKET; RADIO TO PANEL
IMA 		8-97585-617-0 02 1 1304- ● ●
33 COVER; RADIO
BLACK 		8-97407-896-2 01 1 1304- ● ●
36 SCREW; COVER
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 02 1 1304- ● ●
226 BOLT; BRKT
T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 02 1 1304- ● ●

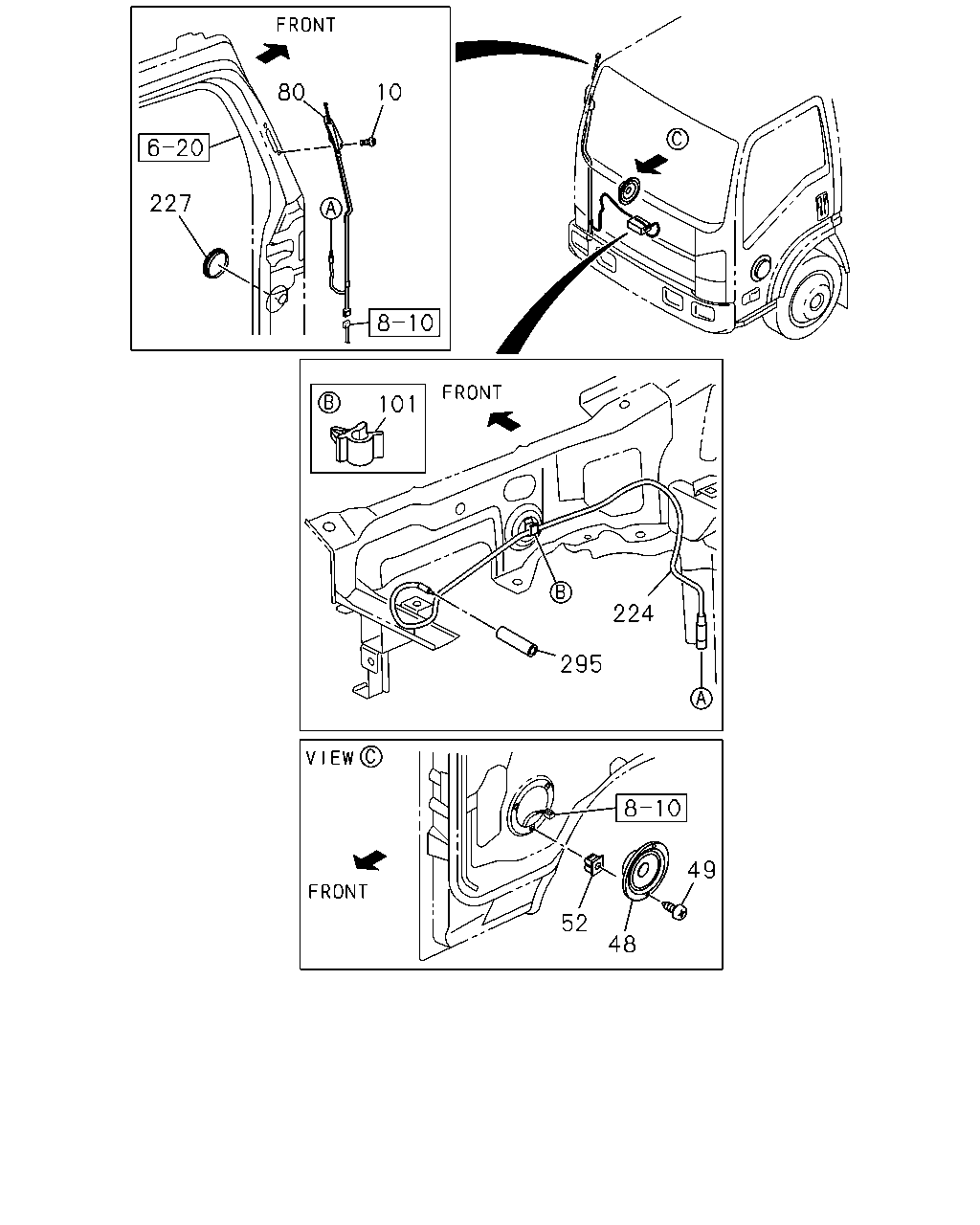

çizim 351834
80 10 227 101 224 295 52 49 48
BalonParca AdiParca NoAdetTipApplied Date A B
10 SCREW; ANTENNA CABLE
M5X11 TAPPING W/TORQUES IMA 		8-98061-742-0 02 1 1304- ● ●
48 SPEAKER; AUDIO
IMA 		8-97317-001-1 02 1 1304- ● ●
49 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES IMA 		8-98061-856-0 06 1 1304- ● ●
52 GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5 IMA 		8-94279-078-0 06 1 1304- ● ●
80 ANTENNA
IMA 		8-97387-265-3 01 1 1304- ● ●
101 CLIP; FEEDER TO BRKT
ID=4.8 IMA 		8-94128-483-0 01 1 1304- ● ●
224 CABLE; EXT,FEEDER
VIN MODEL YEAR 2011<VZB> THA 		8-98029-970-1 01 1 1304- ●
224 CABLE; EXT,FEEDER
VIN MODEL YEAR 2011<VZB> TRANSMISSION CONTROL-SMOOTHER DELETE<8GJ> THA 		8-98029-970-1 01 1 1304- ●
227 PROTECTOR; EDGE
IMA 		8-98053-117-0 01 1 1304- ● ●
295 INSULATOR; ANTENNA
IMA 		8-98095-617-1 01 1 1304- ● ●
