8-65 — CONTROL LEVER; HEATER AND AIR CON (#119070) — 11 parça

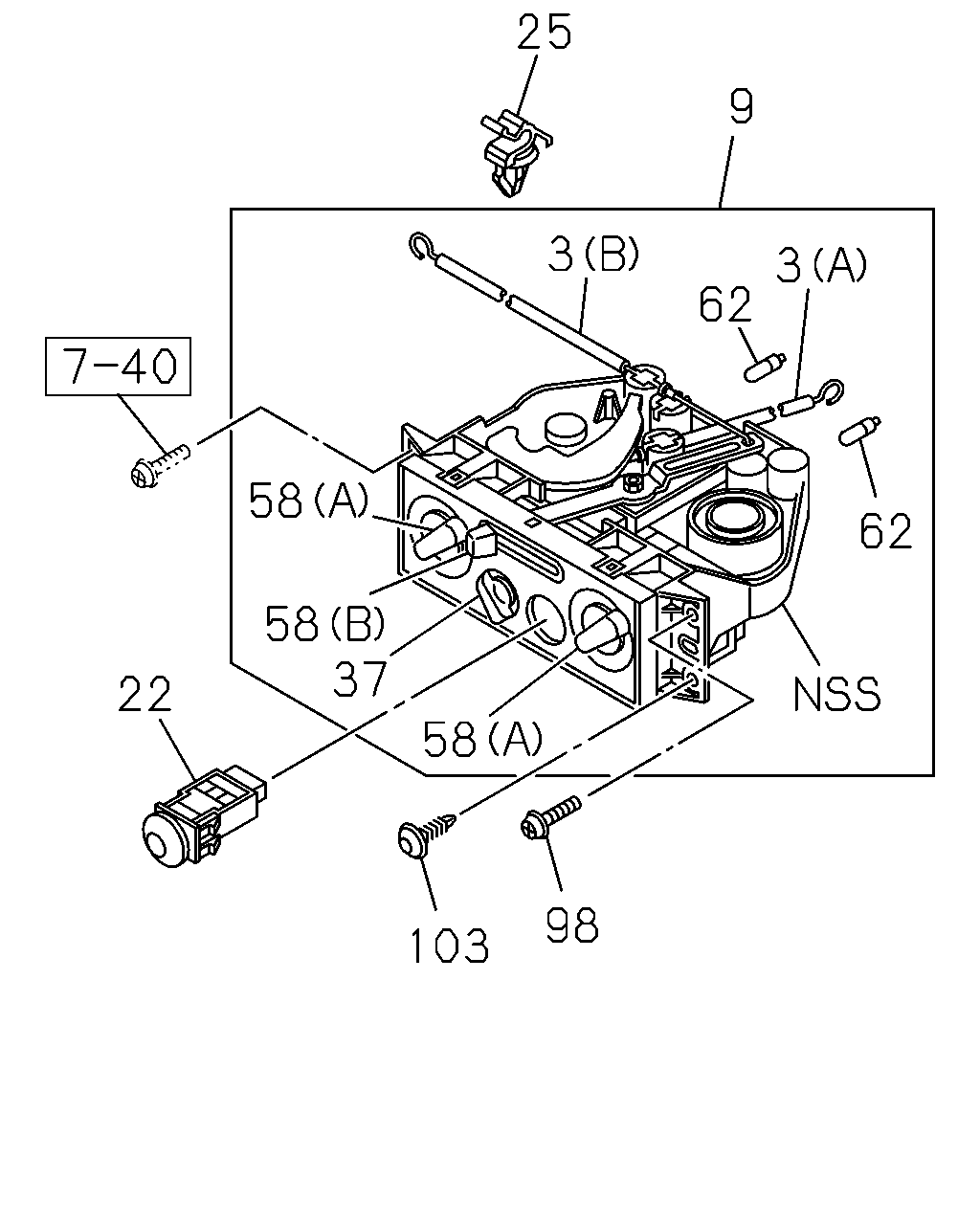

çizim 351791
98 103 58 37 58 22 58 3 3 62 62 25 9
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (A) MODE 		8-98039-250-0 01 1 1304- ● ●
3 CABLE; HTR CONT LVR
COOLER WO/HEATER<C65> (B) FRESH 		8-98039-253-2 01 1 1304- ● ●
9 LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER<C65> 		8-98066-000-1 01 1 1304- ● ●
22 SWITCH; A/C,MAIN
COOLER WO/HEATER<C65> 		8-98021-982-0 01 1 1304- ● ●
25 CLIP; CABLE,CONT LEVER
COOLER WO/HEATER<C65> ID=4.8 IMA 		8-94128-483-0 01 1 1304- ● ●
37 KNOB; SW,HTR CONT LVR
COOLER WO/HEATER<C65> 		8-98037-368-0 01 1 1304- ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (A) 		8-98037-369-0 02 1 1304- ● ●
58 KNOB; LVR,HTR CONT LVR
COOLER WO/HEATER<C65> (B) 		8-98037-370-0 01 1 1304- ● ●
62 BULB; HTR CONT LVR
COOLER WO/HEATER<C65> 24V 1.1W 		8-98037-371-0 02 1 1304- ● ●
98 SCREW; CONT PANEL
COOLER WO/HEATER<C65> T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 01 1 1304- ● ●
103 CLIP
COOLER WO/HEATER<C65> DARK GRAY IMA 		8-97098-326-0 01 1 1304- ● ●
