Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#11907) — 216 parça

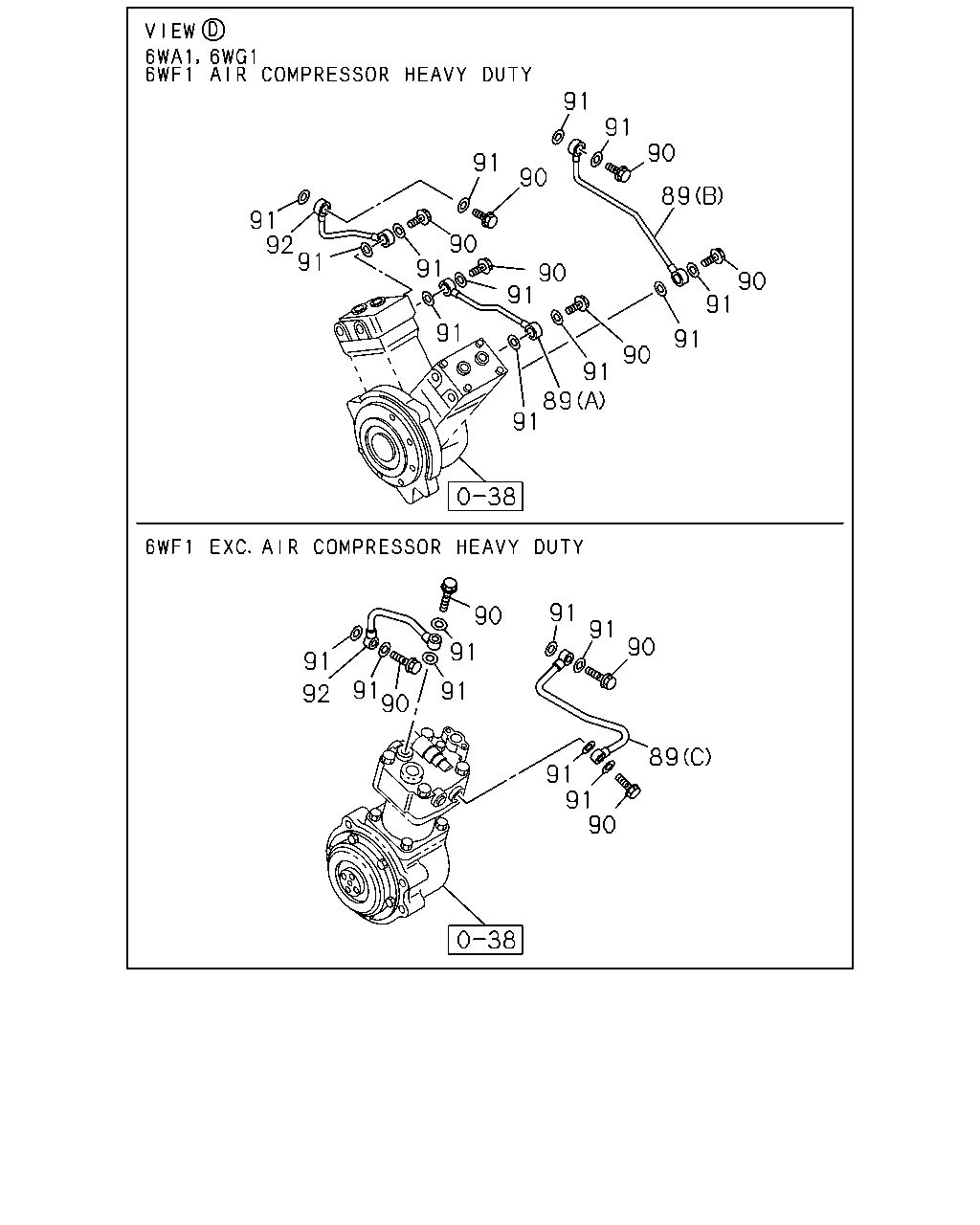

91 91 90 91 90 89 91 92 91 90 91 90 91 90 91 91 91 90 91 89 91 91 90 91 91 90 91 91 90 91 92 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0105-0107	●	●	●
89	PIPE; WATER,AIR CMPR,IN (A)	1-13711-687-0	01	1	0108-	●	●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	1-13711-687-0	01	1	0108-				●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0105-0107	●	●	●
89	PIPE; WATER,AIR CMPR,IN (B)	1-13711-689-0	01	1	0108-	●	●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-13711-689-0	01	1	0108-				●
89	PIPE; WATER,AIR CMPR,IN (C)	1-13721-794-0	01	1	0105-0107				●
89	PIPE; WATER,AIR CMPR,IN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	1-13721-794-0	01	1	0108-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 EYE-BOLT	1-09675-193-0	02	1	0108-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	06	1	0105-	●	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2 OD=25	1-09630-141-0	04	1	0108-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	12	1	0105-	●	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	0105-				●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0105-0107	●	●	●
92	PIPE; WATER,AIR CMPR,OUT	1-13711-691-0	01	1	0108-	●	●	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13711-691-0	01	1	0108-				●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-946-0	01	1	0105-0105				●
92	PIPE; WATER,AIR CMPR,OUT	1-13722-003-0	01	1	0106-0107				●
92	PIPE; WATER,AIR CMPR,OUT EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-13722-003-0	01	1	0108-				●

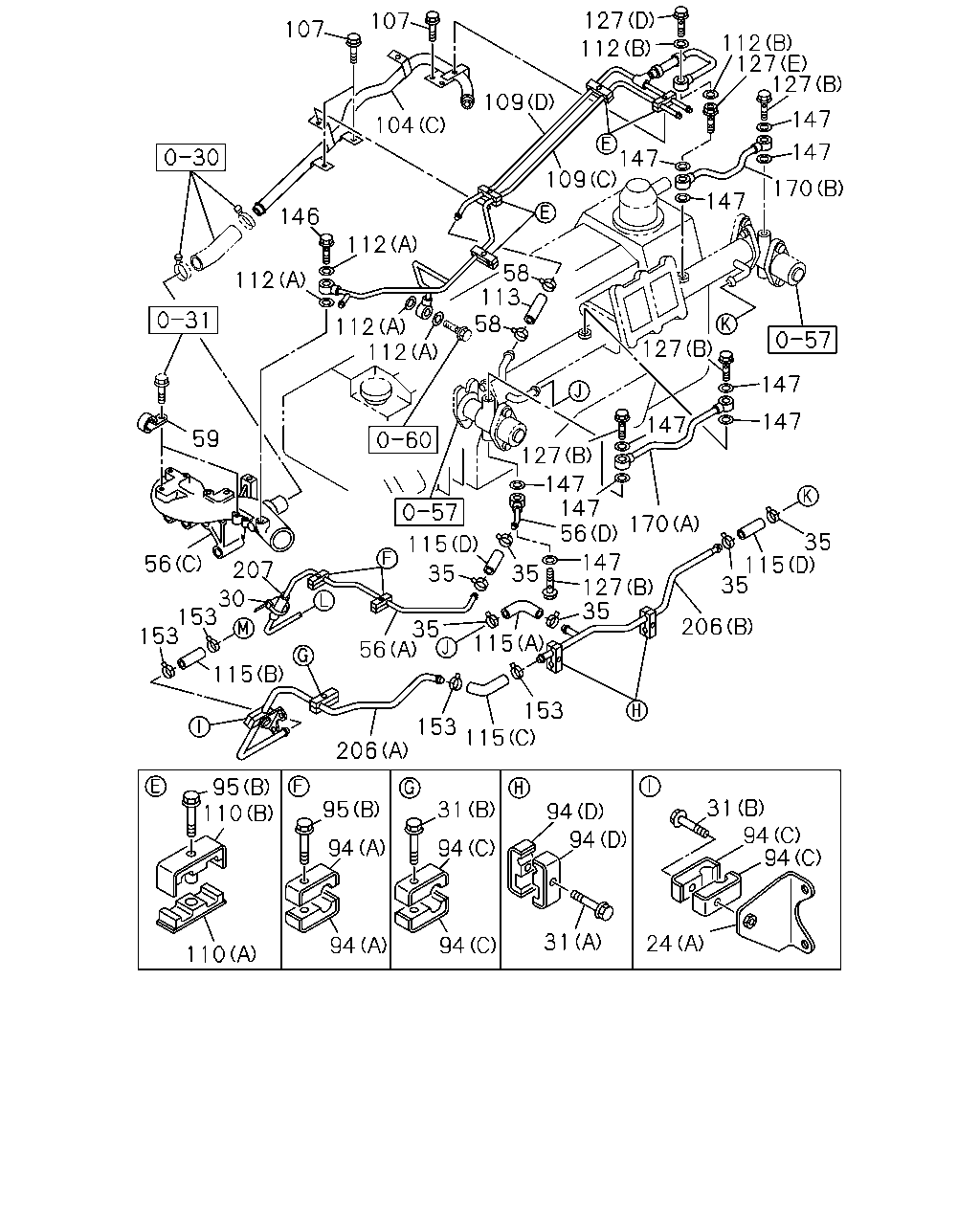

127 112 107 107 112 127 127 109 147 104 147 109 147 170 147 146 112 58 113 112 58 112 112 127 147 147 147 59 127 147 147 56 35 170 35 115 35 115 147 127 35 56 207 35 30 153 153 206 35 115 56 115 153 115 153 206 95 110 31 94 94 95 31 94 94 94 94 31 24 94 94 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-13729-023-0	01	1	0107-				●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	1-13729-024-0	01	1	0107-				●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-060-0	01	1	0107-				●
30	CLIP; HARNESS L=140	5-09707-031-1	02	1	0108-				●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X40 FLANGE	0-28080-640-0	02	1	0107-0512				●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (A) M6X40 FLANGE	0-28050-640-0	02	1	0601-				●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M8X40 FLANGE	0-28080-840-0	02	1	0107-0512				●
31	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M8X40 FLANGE	0-28050-840-0	02	1	0601-				●
35	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX>	1-09707-143-0	06	1	0107-				●
56	PIPE; WATER OUTLET	1-13721-763-0	01	1	0105-0108	●	●	●
56	PIPE; WATER OUTLET	1-13721-587-1	01	1	0109-	●	●	●
56	PIPE; WATER OUTLET EURO2 SPECIFICATION<THN>	1-13721-935-1	01	1	0105-0106				●
56	PIPE; WATER OUTLET EURO2 SPECIFICATION<THN>	1-13722-006-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (B)	1-13721-747-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-831-3	01	1	0109-0606				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	8-98039-673-0	01	1	0607-				●
58	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=14	1-09704-102-0	02	1	0107-				●
59	CLIP; HARNESS,WATER OUTLET PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 L=44	8-94225-185-0	02	1	0111-				●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0105-0606	●	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	0-95235-035-0	02	1	0607-	●	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0105-0110				●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	9-09525-045-0	02	1	0111-0606				●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	0-95235-045-0	02	1	0607-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	1-09701-210-0	04	1	0107-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-282-0	04	1	0107-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B) ID=17 L=17	1-09701-284-0	04	1	0107-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	0107-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
104	PIPE; WATER CHARGE (A)	1-13721-617-0	01	1	0105-	●
104	PIPE; WATER CHARGE EURO2 SPECIFICATION<THN> (B)	1-13721-934-0	01	1	0105-				●
104	PIPE; WATER CHARGE EURO3 SPECIFICATION<NJX> (C)	1-13721-847-2	01	1	0107-				●
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	0105-		●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0105-0512				●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-971-0	01	1	0105-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO2 SPECIFICATION<THN> (B)	1-13721-933-0	01	1	0105-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (C)	1-13721-833-1	01	1	0107-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (D)	1-13721-834-1	01	1	0107-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0105-		●	●
110	CLIP; AIR PIPE (C) ID=9.7 L=20	1-09700-878-1	03	1	0105-	●	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0105-				●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0105-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-141-0	02	1	0107-	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=14.2 OD=25	1-09630-141-0	02	1	0107-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-				●
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> L=70 SERVICED BY L=3000	0-03259-300-0	01	1	0107-0206				●
113	HOSE; RUBBER,AIR LEAK EURO3 SPECIFICATION<NJX> L=70 SERVICED BY L=3000	0-03559-300-0	01	1	0207-				●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=55 SERVICED BY L=3000	0-03266-300-0	01	1	0107-0206				●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (B) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	0207-				●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C)	1-09360-378-0	01	1	0107-0305				●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (C)	1-09361-081-1	01	1	0306-				●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (A)	1-13729-039-0	01	1	0107-				●
115	HOSE; RUBBER EURO3 SPECIFICATION<NJX> (D) L=60	8-97079-996-0	02	1	0107-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-				●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●
146	BOLT; EYE EURO3 SPECIFICATION<NJX> M14X27 EYE-BOLT	1-09675-193-0	01	1	0107-				●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0107-				●
153	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NJX> ID=20	1-09707-084-1	04	1	0107-				●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (A)	1-13721-744-0	01	1	0107-				●
170	PIPE; WATER,INL EURO3 SPECIFICATION<NJX> (B)	1-13721-745-0	01	1	0107-				●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (B)	1-13721-853-0	01	1	0107-				●
206	PIPE; WATER,EGR COOLER EURO3 SPECIFICATION<NJX> (A)	1-13721-899-0	01	1	0107-				●
207	COUPLING; RUBBER EURO3 SPECIFICATION<NJX> ID=14 OD=18 L=60	1-09337-030-0	02	1	0107-0107				●
207	COUPLING; RUBBER ID=14 OD=18 L=60	1-09337-030-0	02	1	0108-				●

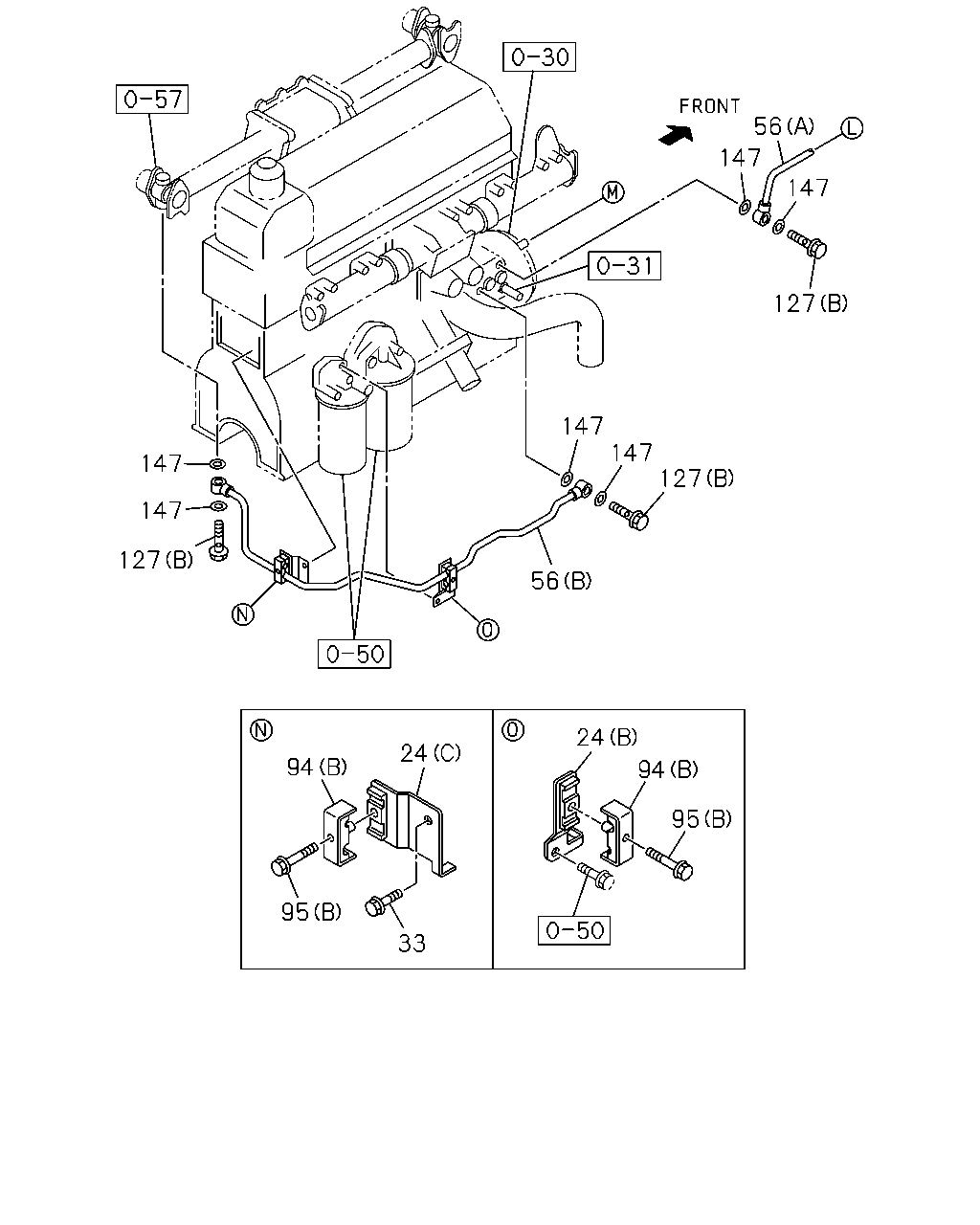

56 147 147 127 147 147 127 147 147 127 56 24 24 94 94 95 95 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (B)	1-13729-023-0	01	1	0107-				●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	1-13729-024-0	01	1	0107-				●
24	BRACKET; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-13729-060-0	01	1	0107-				●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> M14X20 FLANGE	0-28981-420-0	01	1	0107-0512				●
33	BOLT; BRKT EURO3 SPECIFICATION<NJX> M14X20 FLANGE	0-28951-420-0	01	1	0601-				●
56	PIPE; WATER OUTLET	1-13721-763-0	01	1	0105-0108	●	●	●
56	PIPE; WATER OUTLET	1-13721-587-1	01	1	0109-	●	●	●
56	PIPE; WATER OUTLET EURO2 SPECIFICATION<THN>	1-13721-935-1	01	1	0105-0106				●
56	PIPE; WATER OUTLET EURO2 SPECIFICATION<THN>	1-13722-006-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (B)	1-13721-747-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-831-3	01	1	0109-0606				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	8-98039-673-0	01	1	0607-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (D)	1-09701-210-0	04	1	0107-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (A)	1-09701-282-0	04	1	0107-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (B) ID=17 L=17	1-09701-284-0	04	1	0107-				●
94	CLIP; WATER PIPE EURO3 SPECIFICATION<NJX> (C)	8-94393-037-0	02	1	0107-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-				●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> ID=16.2	1-09630-086-0	16	1	0107-				●

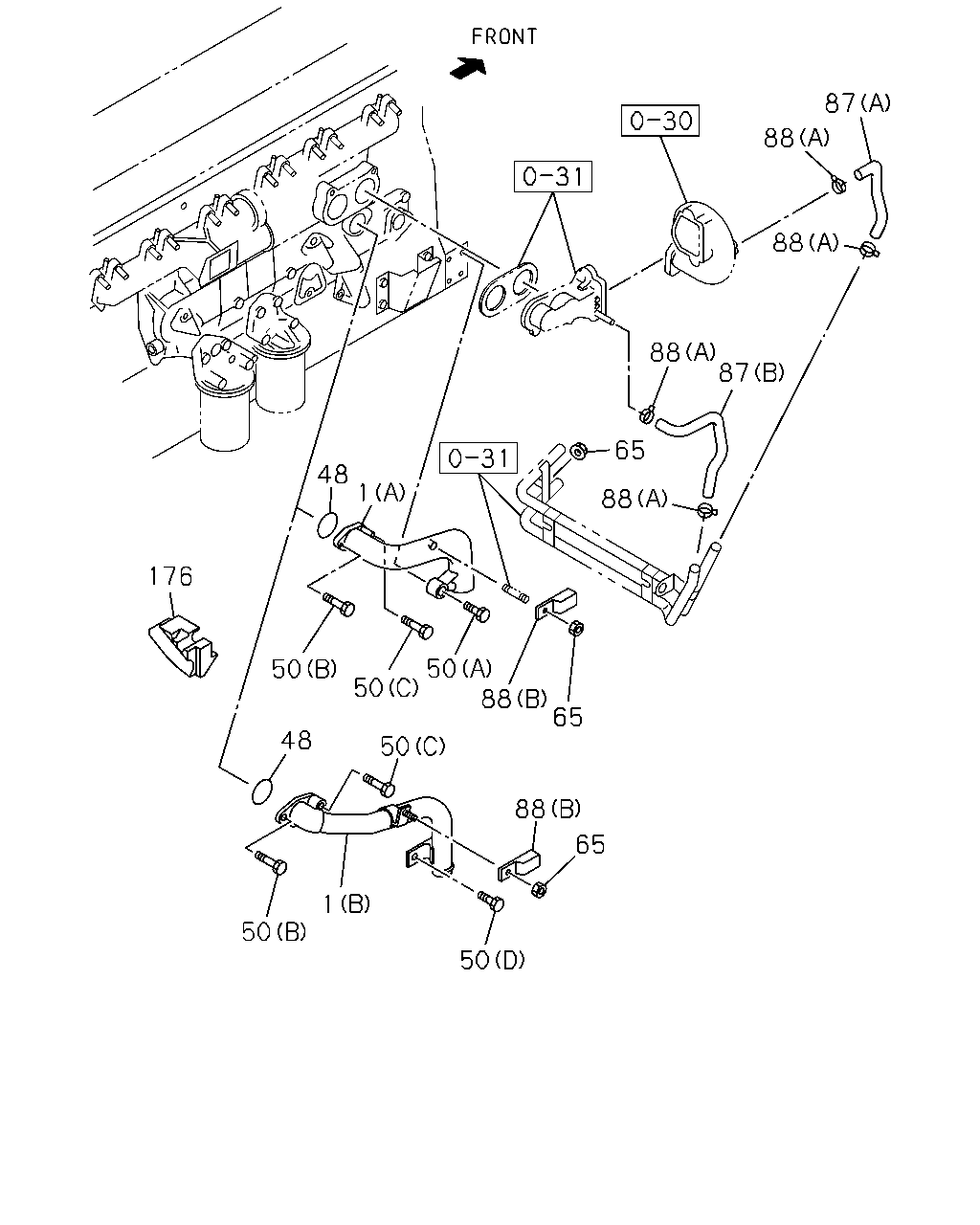

87 88 88 88 87 65 48 1 88 176 50 50 50 88 65 48 50 88 65 1 50 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; WATER PUMP,INL (A)	1-13711-718-0	01	1	0105-0106	●	●	●	●
1	PIPE; WATER PUMP,INL (A)	1-13711-611-2	01	1	0107-0512	●	●	●	●
1	PIPE; WATER PUMP,INL (B)	8-97606-255-1	01	1	0601-	●	●	●	●
48	GASKET; PIPE TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-406-0	01	1	0105-	●	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28181-030-0	01	1	0105-0512	●	●	●	●
50	BOLT; WATER PIPE INL (B) M10X30 FLANGE	0-28151-030-0	01	1	0601-	●	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28181-080-0	01	1	0105-0512	●	●	●	●
50	BOLT; WATER PIPE INL (C) M10X80 FLANGE	0-28151-080-0	01	1	0601-	●	●	●	●
50	BOLT; WATER PIPE INL (A) M14X50 FLANGE	0-28981-450-0	01	1	0105-0512	●	●	●	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28981-425-0	01	1	0601-0601	●	●	●	●
50	BOLT; WATER PIPE INL (D) M14X25 FLANGE	0-28951-425-0	01	1	0601-	●	●	●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91150-110-0	02	1	0105-0602	●			●
65	NUT M10 FLANGE	0-91150-110-0	02	1	0105-0602		●	●
65	NUT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M10 FLANGE	0-91180-110-0	02	1	0603-	●			●
65	NUT M10 FLANGE	0-91180-110-0	02	1	0603-		●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83565-572-0	01	1	0105-	●			●
87	HOSE; RUBBER,HTR (A)	1-83565-572-0	01	1	0105-		●	●
87	HOSE; RUBBER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83565-577-0	01	1	0105-	●			●
87	HOSE; RUBBER,HTR (B)	1-83565-577-0	01	1	0105-		●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20	1-09707-084-1	04	1	0105-	●			●
88	CLIP; HOSE,HTR (A) ID=20	1-09707-084-1	04	1	0105-		●	●
88	CLIP; HOSE,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	9-09915-663-0	01	1	0105-	●			●
88	CLIP; HOSE,HTR (B)	9-09915-663-0	01	1	0105-		●	●
176	INSULATOR; WATER PIPE	1-19389-189-1	01	1	0105-		●	●

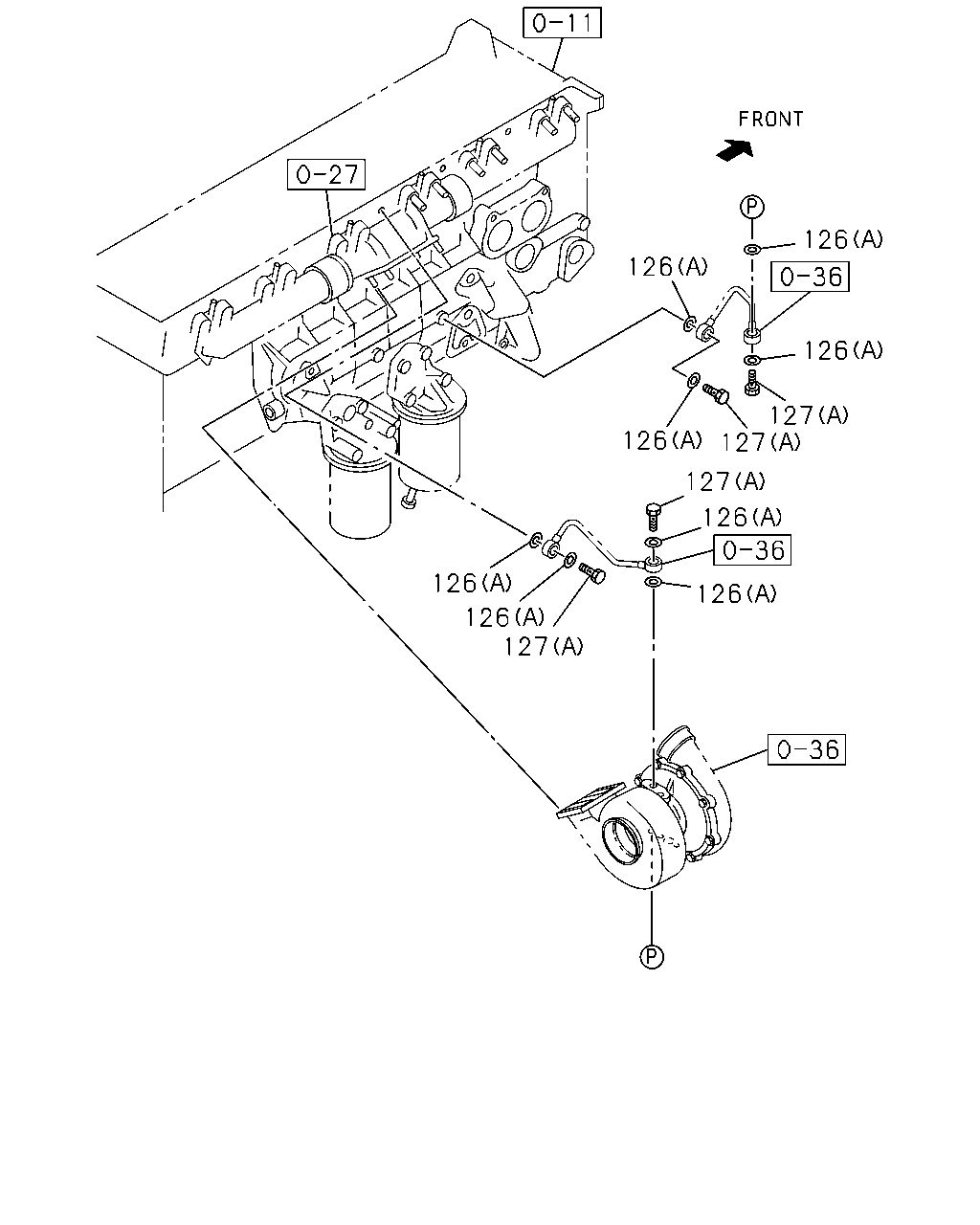

126 126 126 127 127 126 127 126 126 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0105-	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0105-				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0105-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-				●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●

126 126 126 127 127 126 126 126 127 126 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	08	1	0105-	●	●	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	0105-				●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=25	1-09630-141-0	06	1	0105-				●
127	BOLT; EYE (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0105-	●	●	●
127	BOLT; EYE (B) M16X30 FLANGE	1-09675-095-1	01	1	0105-				●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0105-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (D) M10X21 FLANGE	1-09675-077-0	01	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (B) M16X30 FLANGE	1-09675-095-1	07	1	0107-				●
127	BOLT; EYE EURO3 SPECIFICATION<NJX> (E) M16X30 FLANGE	1-09675-230-0	01	1	0107-				●

109 107 104 95 110 107 110 95 95 112 110 110 112 95 104 110 109 105 112 105 105 112 56 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
56	PIPE; WATER OUTLET	1-13721-763-0	01	1	0105-0108	●	●	●
56	PIPE; WATER OUTLET	1-13721-587-1	01	1	0109-	●	●	●
56	PIPE; WATER OUTLET EURO2 SPECIFICATION<THN>	1-13721-935-1	01	1	0105-0106				●
56	PIPE; WATER OUTLET EURO2 SPECIFICATION<THN>	1-13722-006-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (B)	1-13721-747-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (D)	1-13721-855-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (A)	1-13721-958-0	01	1	0107-				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-960-0	01	1	0107-0108				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	1-13721-831-3	01	1	0109-0606				●
56	PIPE; WATER OUTLET EURO3 SPECIFICATION<NJX> (C)	8-98039-673-0	01	1	0607-				●
59	CLIP; HARNESS,WATER OUTLET PIPE AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18 L=44	8-94225-185-0	02	1	0111-				●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	9-09525-035-0	02	1	0105-0606	●	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=20	0-95235-035-0	02	1	0607-	●	●	●
59	CLIP; HARNESS,WATER OUTLET PIPE ID=11 L=24	9-09525-045-0	02	1	0105-0110				●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	9-09525-045-0	02	1	0111-0606				●
59	CLIP; HARNESS,WATER OUTLET PIPE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=11 L=24	0-95235-045-0	02	1	0607-				●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28080-616-0	03	1	0105-0512	●	●	●
95	BOLT; CLIP (A) M6X16 FLANGE	0-28050-616-0	03	1	0601-	●	●	●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0105-0106				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28080-640-0	04	1	0107-0512				●
95	BOLT; CLIP (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
95	BOLT; CLIP EURO3 SPECIFICATION<NJX> (B) M6X40 FLANGE	0-28050-640-0	04	1	0601-				●
104	PIPE; WATER CHARGE (A)	1-13721-617-0	01	1	0105-	●
104	PIPE; WATER CHARGE EURO2 SPECIFICATION<THN> (B)	1-13721-934-0	01	1	0105-				●
104	PIPE; WATER CHARGE EURO3 SPECIFICATION<NJX> (C)	1-13721-847-2	01	1	0107-				●
104	PIPE; WATER CHARGE (A)	1-13721-647-0	01	1	0105-		●	●
105	NUT; PIPE M10 FLANGE	0-91150-210-0	03	1	0105-0602	●	●	●
105	NUT; PIPE M10 FLANGE	0-91180-210-0	03	1	0603-	●	●	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28181-020-0	04	1	0105-0512				●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28151-020-0	04	1	0601-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-971-0	01	1	0105-	●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO2 SPECIFICATION<THN> (B)	1-13721-933-0	01	1	0105-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (C)	1-13721-833-1	01	1	0107-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG EURO3 SPECIFICATION<NJX> (D)	1-13721-834-1	01	1	0107-				●
109	PIPE; AIR,LEAK,THERMOSTAT HSG (A)	1-13721-648-0	01	1	0105-		●	●
110	CLIP; AIR PIPE (C) ID=9.7 L=20	1-09700-878-1	03	1	0105-	●	●	●
110	CLIP; AIR PIPE (A) ID=9 & 9 L=25	1-09701-180-0	04	1	0105-				●
110	CLIP; AIR PIPE (B) ID=9 & 9 L=25	8-94393-280-3	04	1	0105-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=25	1-09630-141-0	02	1	0105-0106	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE).	1-09630-141-0	02	1	0107-	●	●	●	●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (A) ID=14.2 OD=25	1-09630-141-0	02	1	0107-				●
112	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NJX> (B) ID=10.2 OD=15.2	1-09630-083-0	02	1	0107-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
