◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11539 - CYH CHINA EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#119069) — 40 parça

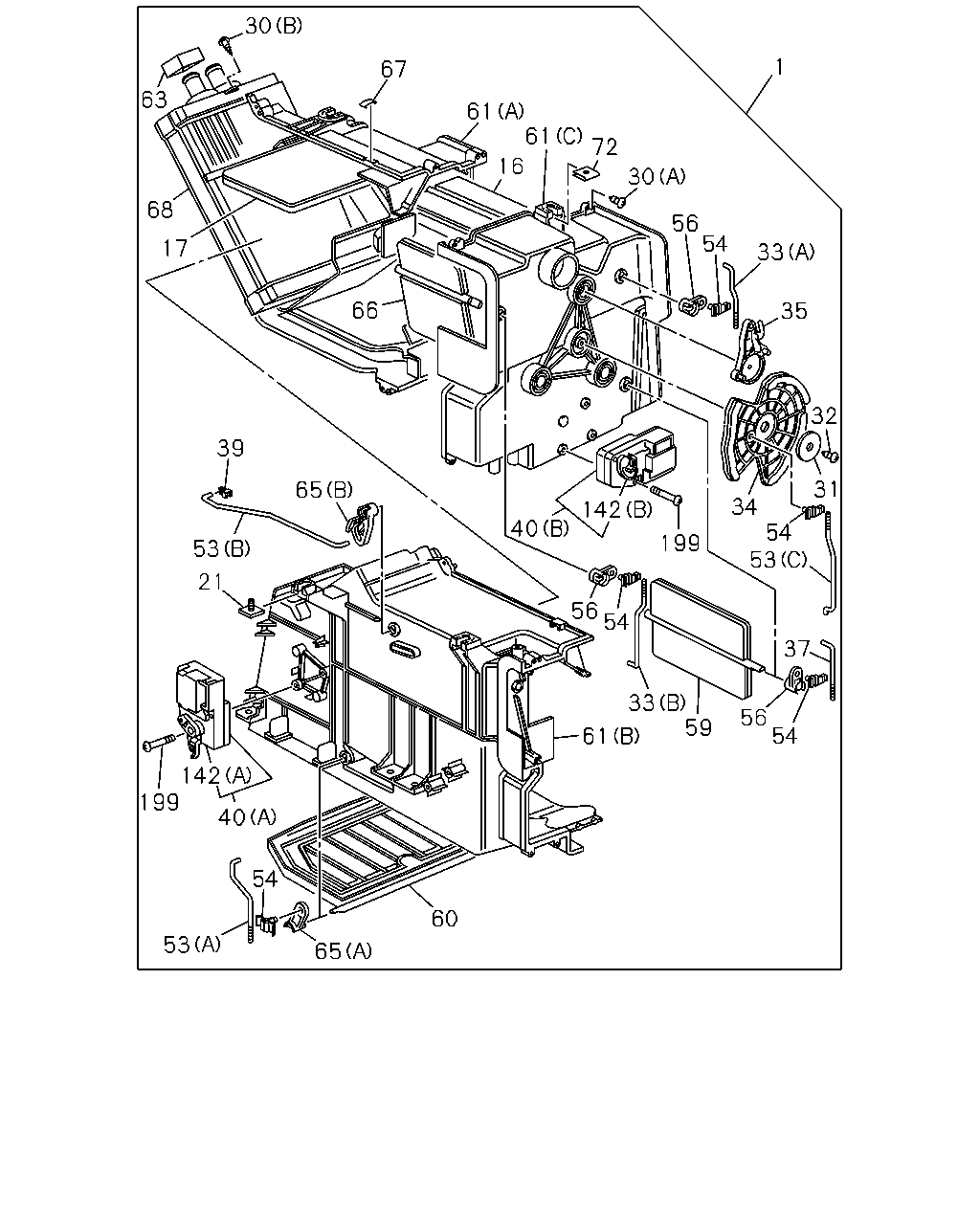

çizim 352308
60 65 53 54 40 142 199 21 65 53 39 40 56 54 33 61 59 54 56 37 53 199 142 17 68 63 30 67 72 61 61 30 16 54 56 35 33 1 32 34 31 54 66
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-137-4 01 1 1305-1409
1 HEATER UNIT 8-98238-491-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1305-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1305-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1305-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1305-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 1305-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1305-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1305-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1305-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1305-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1305-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1305-
37 ROD; LEVER 1-83579-620-1 01 1 1305-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1305-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1305-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1305-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1305-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1305-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1305-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1305-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1305-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1305-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1305-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1305-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1305-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1305-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1305-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1305-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1305-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1305-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1305-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1305-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1305-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1305-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1305-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1305-
