Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#119066) — 20 parça

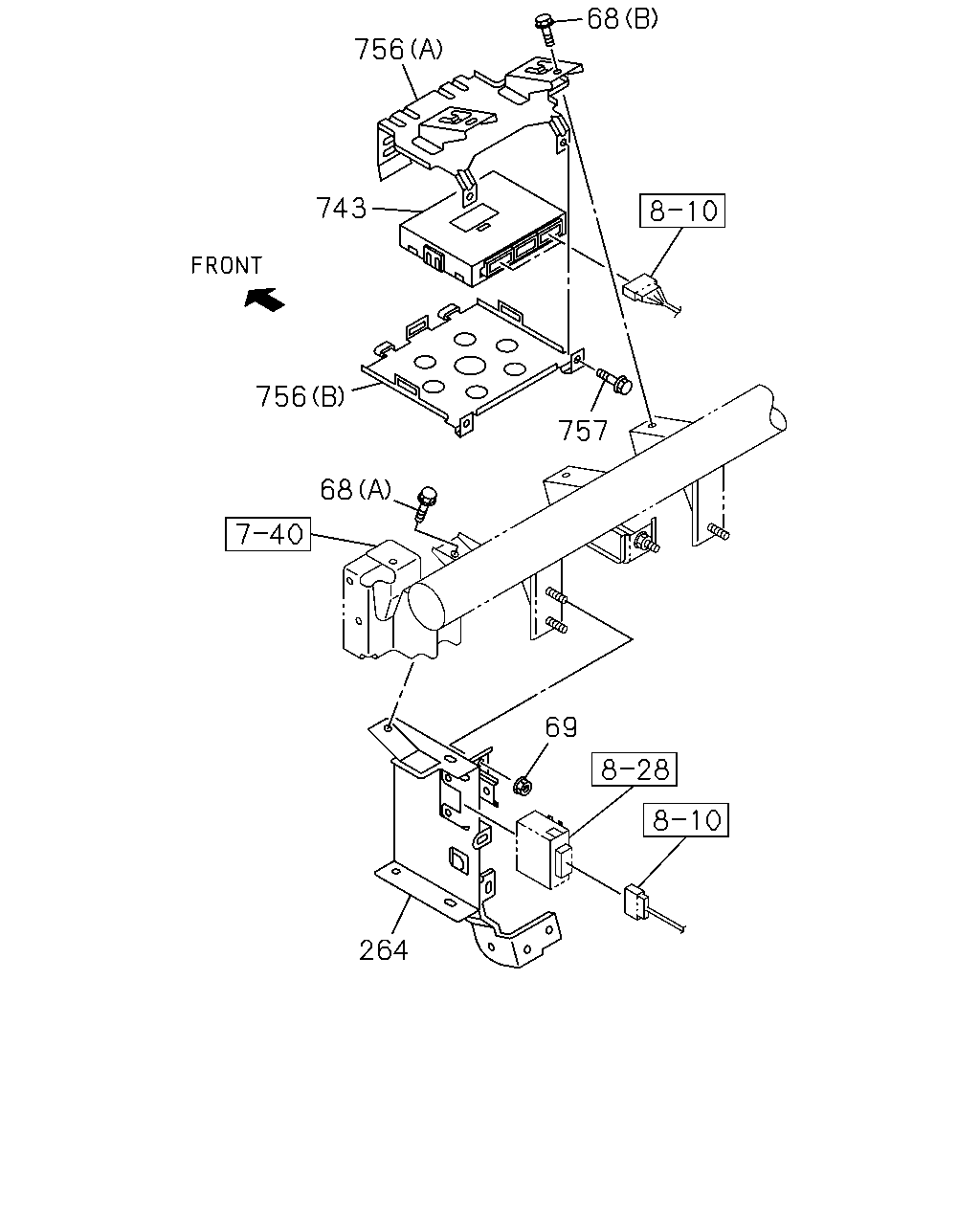

68 756 743 757 756 68 69 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; BRKT (A) M6X16 FLANGE THA	0-28650-616-0	01	1	1305-
68	BOLT; BRKT MEMORY SYSTEM RUNNING CONDITION<NCR> (B) M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	1305-
69	NUT; BRKT M6 FLANGE THA	0-91180-106-0	01	1	1305-
264	BRACKET; CONT UNIT	8-97609-985-9	01	1	1305-
743	CONTROL UNIT; BCM MEMORY SYSTEM RUNNING CONDITION<NCR>	8-98182-026-2	01	1	1305-
756	BRACKET; ECU,BCM MEMORY SYSTEM RUNNING CONDITION<NCR> (A)	8-98056-411-3	01	1	1305-
756	BRACKET; ECU,BCM MEMORY SYSTEM RUNNING CONDITION<NCR> (B)	8-98111-836-1	01	1	1305-
757	BOLT; BRKT,BCM MEMORY SYSTEM RUNNING CONDITION<NCR> M6X16 FLANGE THA	0-28650-616-0	02	1	1305-

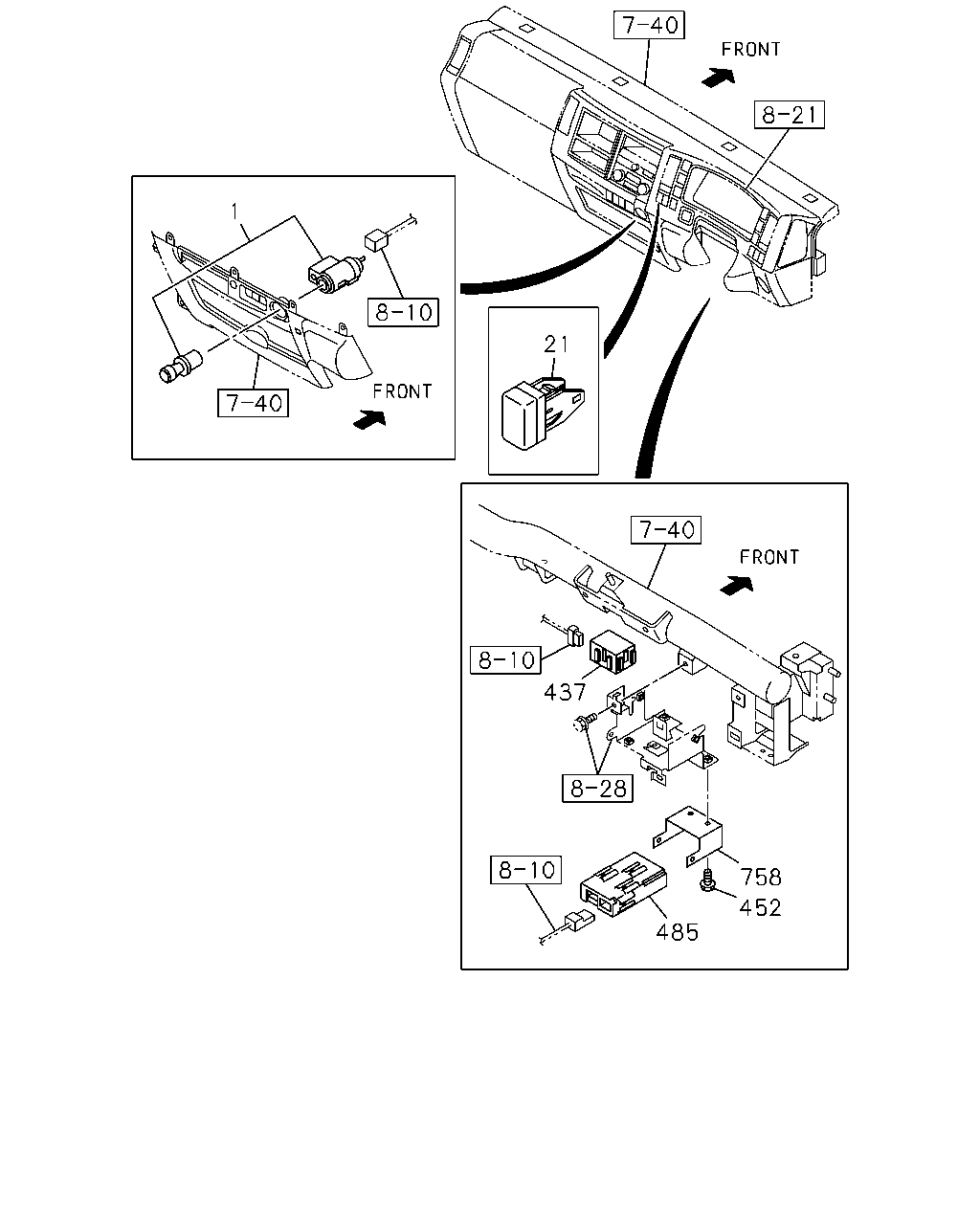

1 21 437 758 452 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR	8-98142-962-0	01	1	1305-
21	COVER; HOLE	8-98025-954-1	01	1	1305-
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	1305-
452	BOLT; BRKT M6X16 FLANGE THA	0-28650-616-0	02	1	1305-
485	CONTROL UNIT; SPEED SENSOR	1-80190-063-0	01	1	1305-
758	BRACKET; ELEC CONT UNIT,SPEED SENSOR	8-98048-743-1	01	1	1305-

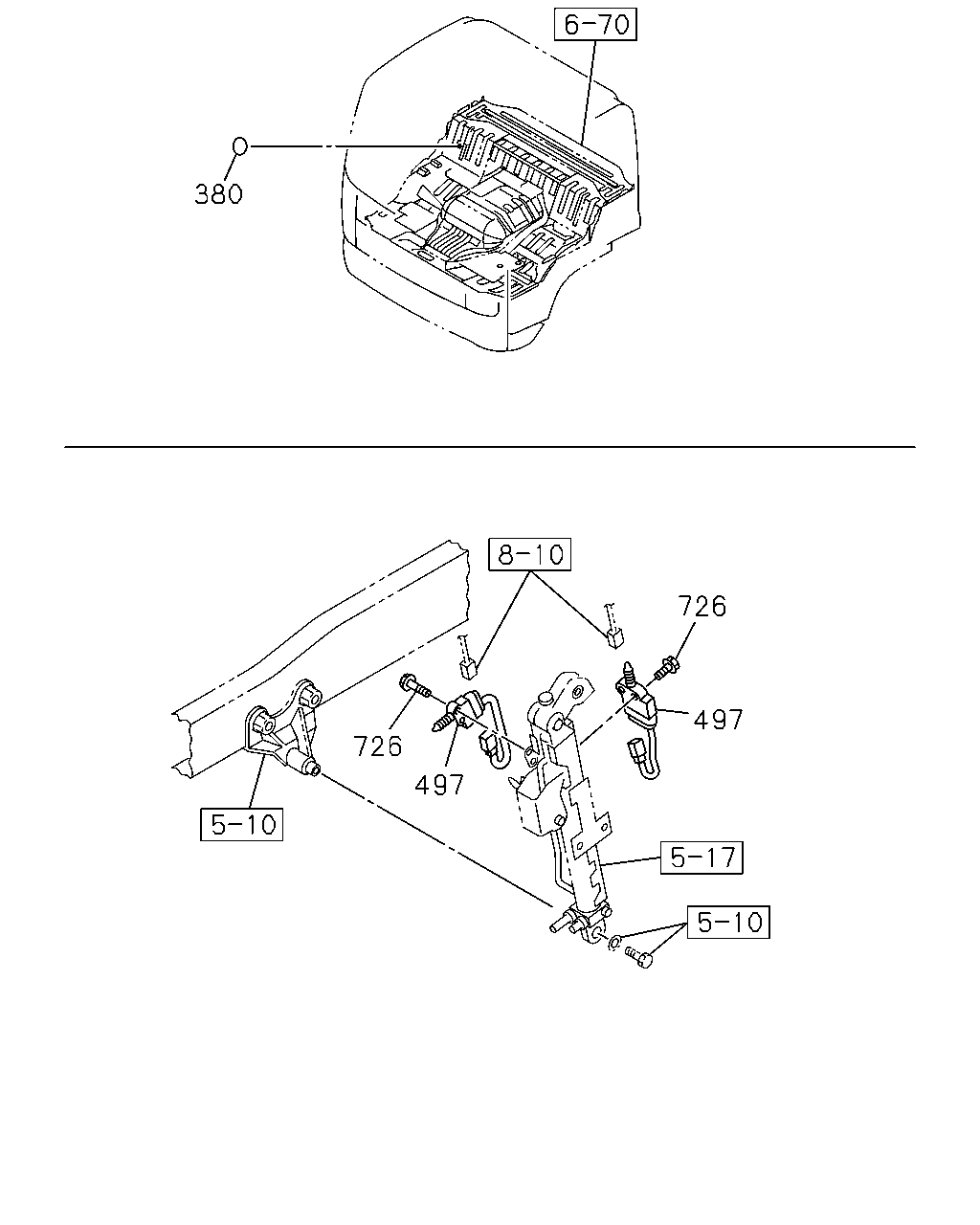

380 726 497 726 497

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
380	SEAL OD=25 BLACK THA	1-76798-019-0	01	1	1305-
497	SWITCH; CAB TILT AUTO CAB TILT<WV2> STAMP NO	1-82380-172-1	02	1	1305-
726	BOLT; SW,CAB TILT AUTO CAB TILT<WV2> M6X25 FLANGE	0-28050-625-0	04	1	1305-

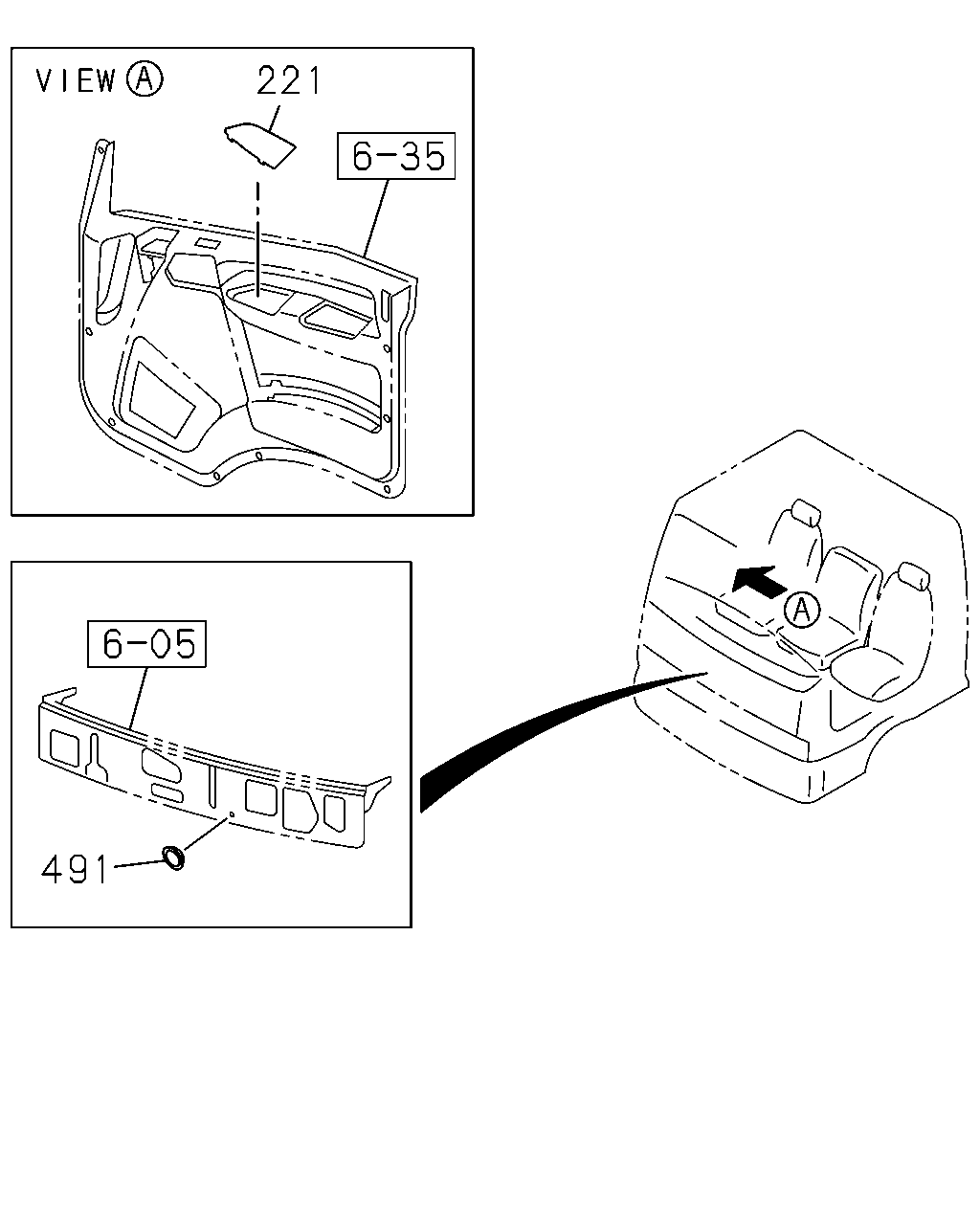

221 491

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
221	COVER; HOLE,DOOR LOCK SW	8-98029-915-2	01	1	1305-
221	COVER; HOLE,DOOR LOCK SW	8-98029-916-2	01	1	1305-
491	PLUG; HOLE,CONT UNIT	8-98054-651-0	01	1	1305-
