8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#119065) — 56 parça

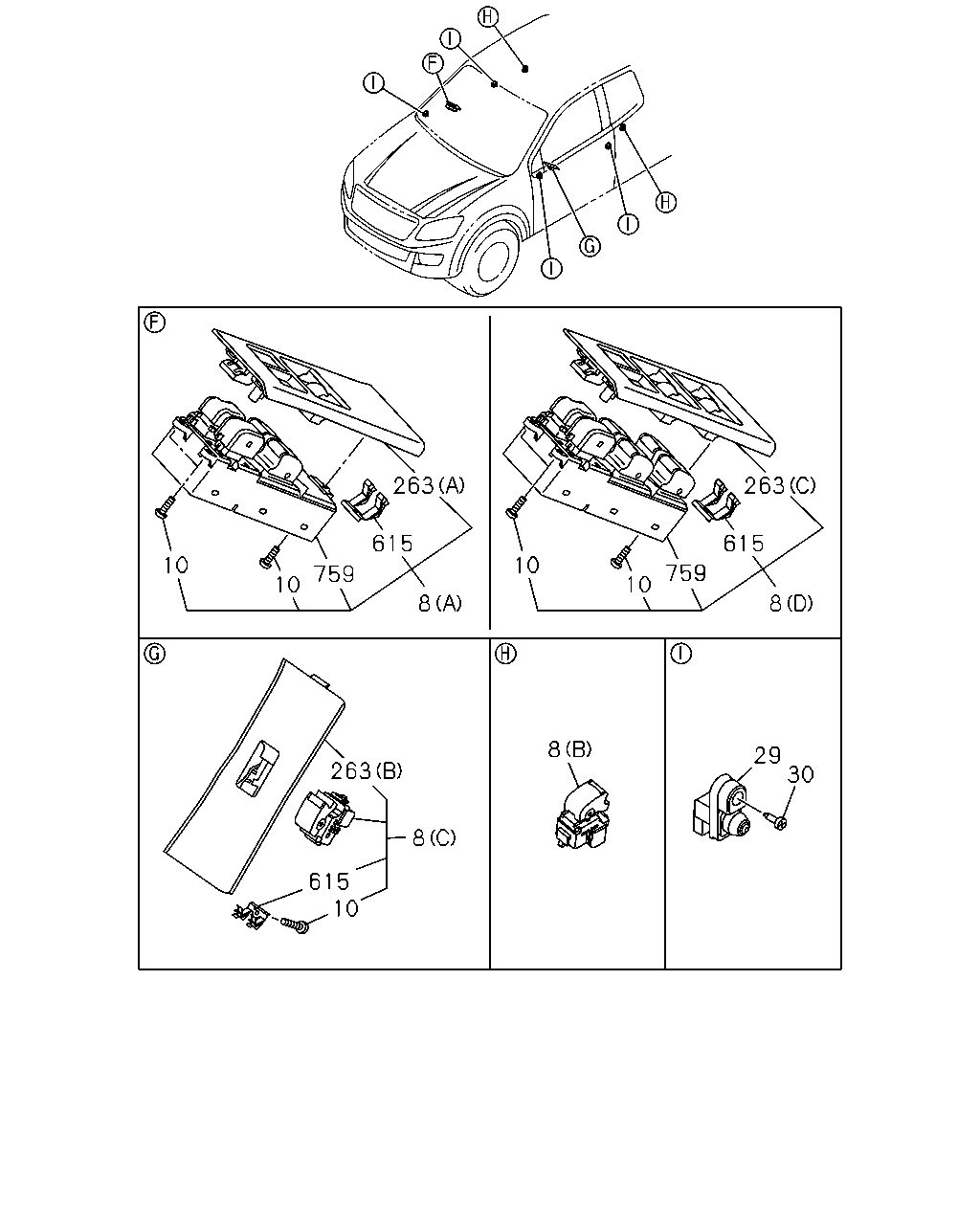

çizim 351657
263 615 8 759 10 10 10 10 263 615 759 8 8 29 30 8 263 615 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (A) BLACK 		8-97416-734-0 01 1 1305- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) BLACK 		8-97416-810-0 01 1 1305- ● ● ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) BLACK 		8-97416-735-0 01 1 1305- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ> (D) BLACK 		8-97416-975-0 01 1 1305- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) BLACK 		8-97417-004-0 02 1 1305- ● ●
8 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (D) BLACK 		8-97416-976-0 01 1 1305- ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 03 1 1305- ● ● ● ●
10 SCREW; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-450-0 01 1 1305- ● ● ● ●
29 SWITCH; DOOR 8-97313-208-0 02 1 1305- ● ● ● ●
29 SWITCH; DOOR 8-97313-208-0 02 1 1305- ● ●
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 02 1 1305- ● ● ● ●
30 SCREW; DOOR SW
M5X14 		8-94120-095-0 02 1 1305- ● ●
263 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98192-247-0 01 1 1305- ● ● ● ●
263 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98192-243-0 01 1 1305- ● ●
263 COVER; SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98192-244-0 01 1 1305- ● ●
615 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1305- ● ● ● ●
615 SPRING; POWER WINDOW SW
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-268-0 01 1 1305- ● ● ● ●
759 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-249-0 01 1 1305- ● ●
759 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-250-0 01 1 1305- ● ●
759 SWITCH ASM; WINDOW
POWER WINDOW SAFETY DOOR<ABZ> 		8-98192-251-0 01 1 1305- ● ●
759 SWITCH ASM; WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 		8-98192-252-0 01 1 1305- ● ●
çizim 351671
99
BalonParca AdiParca NoAdetTipApplied Date A B C D
99 RELAY; FOG LAMP
FOG LAMP<T96> 12V YAZAKI 		8-97309-293-0 01 1 1305- ● ● ● ●

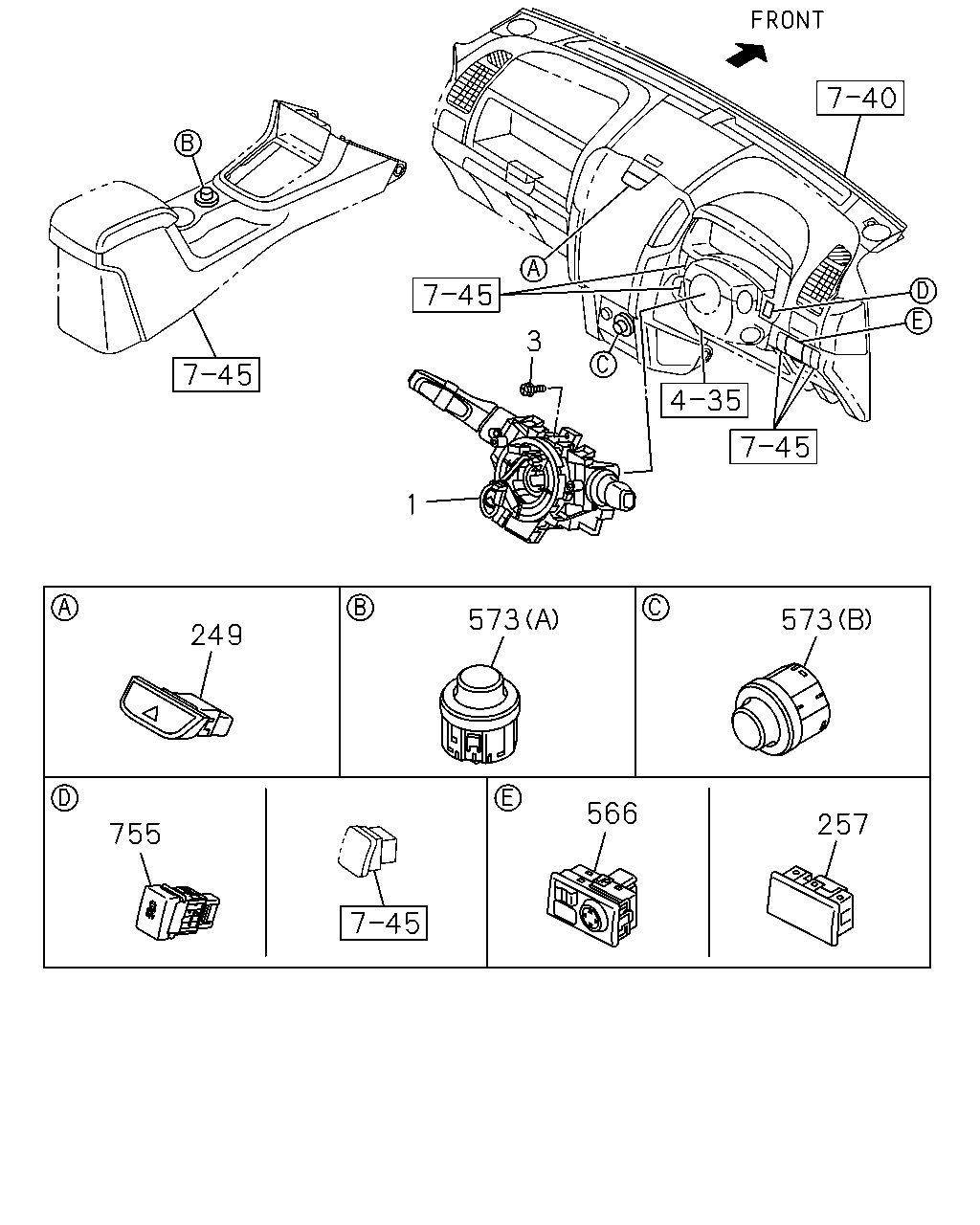

çizim 352095
3 1 573 257 566 755 249 573
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> 		8-98194-136-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-136-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> 		8-98194-134-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-134-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13> 		8-98194-138-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,E LECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-138-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96> 		8-98194-139-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,F OG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATIONCLUSTER<UCA> 		8-98194-139-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> 		8-98059-573-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> FOG LAMP<T96> EXC. ELECTRONIC TRACTION CONTROL<NW9>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-573-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96> 		8-98059-571-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) INTERMITTENT WIPER<C13> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-571-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13> 		8-98059-580-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) FOG LAMP<T96> EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,E LECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98059-580-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96> 		8-98059-570-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) EXC. VARIABLE INTERMITTENT WIPER<CD4>, INTERMITTENT WIPER<C13>,ELECTRONIC TRACTION CONTROL<NW9>,F OG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATIONCLUSTER<UCA> 		8-98059-570-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-137-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98194-135-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> 		8-98194-140-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> FOG LAMP<T96> EXC. ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER <UCA> 		8-98194-142-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER(AK5) INTERMITTENT WIPER<C13> ELECTRONIC TRACTION CONTROL<NW9> EXC. FOG LAMP<T96>,ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> 		8-98194-141-1 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> FOG LAMP<T96> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98059-575-2 01 1 1305- ● ●
1 SWITCH; COMB
AIR BAG DRIVER & PASSENGER DELETE(AK6) VARIABLE INTERMITTENT WIPER<CD4> ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER<UCA> EXC. ELECTRONIC TRACTION CONTROL<NW9>,FOG LAMP<T96> 		8-98132-625-2 01 1 1305- ● ●
3 SCREW; COMB SW
M5X20 W/LK&PL WASHER 		0-36230-520-0 01 1 1305- ● ● ● ●
249 SWITCH; HAZARD
BLACK 		8-97416-805-0 01 1 1305- ● ● ● ●
257 COVER; HOLE,SW 8-98106-389-2 01 1 1305- ● ●
257 COVER; HOLE,SW
DOOR MIRROR<RT9> 		8-98106-389-2 01 1 1305- ●
566 SWITCH; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98058-078-1 01 1 1305- ● ●
573 SWITCH; 4WD
FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1305- ●
573 SWITCH; 4WD
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98065-836-2 01 1 1305- ●
573 SWITCH; 4WD
EXC. FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1305- ●
573 SWITCH; 4WD
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98058-076-2 01 1 1305- ●
755 SWITCH; ESC OFF
ELECTRONIC TRACTION CONTROL<NW9> 		8-98058-081-1 01 1 1305- ● ●
çizim 352125
99
BalonParca AdiParca NoAdetTipApplied Date A B C D
99 RELAY; FOG LAMP
FOG LAMP<T96> 12V YAZAKI 		8-97309-293-0 01 1 1305- ● ● ● ●
