8-60 — HEATER UNIT; FRONT (#119062) — 40 parça

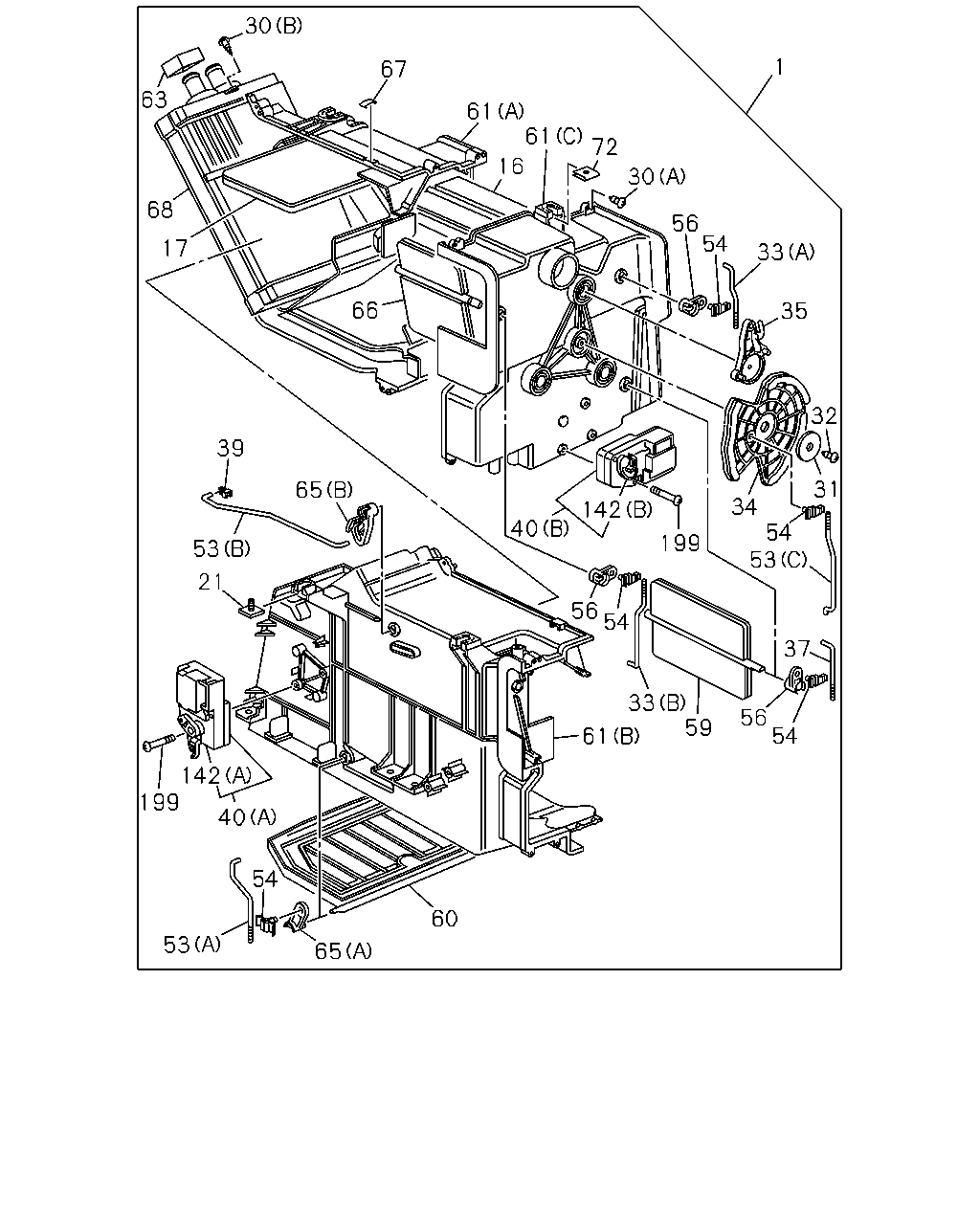

çizim 352072
60 65 53 40 199 21 65 142 53 39 40 61 59 54 33 56 37 53 34 32 31 54 142 66 17 68 63 30 67 61 61 30 72 16 56 35 33 54 199 54 56 54 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-137-4 01 1 1305-1409
1 HEATER UNIT 8-98238-491-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-789-0 01 1 1305-
17 SHUTTER; HTR UNIT,CENTER 1-83579-787-0 01 1 1305-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 1305-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 1305-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 1305-1409
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 1305-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 1305-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 1305-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 1305-
34 LEVER; SHUTTER,HTR UNIT 1-83564-367-0 01 1 1305-
35 LEVER; SHUTTER,HTR UNIT 8-94380-580-0 03 1 1305-
37 ROD; LEVER 1-83579-620-1 01 1 1305-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 1305-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-792-1 01 1 1305-
40 ACTUATOR; HTR UNIT
(B) 		8-97087-574-1 01 1 1305-
53 ROD; SHUTTER LEVER
(A) 		1-83579-623-0 01 1 1305-
53 ROD; SHUTTER LEVER
(B) 		1-83579-793-0 01 1 1305-
53 ROD; SHUTTER LEVER
(C) 		1-83579-794-0 01 1 1305-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 1305-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 1305-
59 SHUTTER; HTR UNIT,SIDE 1-83579-790-0 01 1 1305-
60 DOOR; MIX,HTR UNIT 1-83579-788-0 01 1 1305-
61 CASE; HTR UNIT
(A) 		1-83564-363-0 01 1 1305-
61 CASE; HTR UNIT
(B) 		1-83564-364-0 01 1 1305-
61 CASE; HTR UNIT
(C) 		1-83564-365-1 01 1 1305-
63 LINING; HTR UNIT 1-83579-557-0 02 1 1305-
65 LEVER; MIX,DOOR
(A) 		1-83564-328-1 01 1 1305-
65 LEVER; MIX,DOOR
(B) 		1-83564-366-0 01 1 1305-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-791-0 01 1 1305-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 1305-
68 CORE; HTR UNIT 1-83562-078-1 01 1 1305-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 1305-
142 LEVER; ACTUATOR
(A) 		1-83564-384-0 01 1 1305-
142 LEVER; ACTUATOR
(B) 		1-83564-385-0 01 1 1305-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 1305-
