◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-52 - PIPING; AIR CONDITIONING ▶
8-52 — PIPING; AIR CONDITIONING (#119060) — 76 parça
çizim 351771
66 66 53 123 146 202 122 146 123 67 147 67 67 67 147
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ● ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98209-993-0 01 1 1305- ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98164-687-0 01 1 1305- ● ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (C) 		8-98164-688-0 01 1 1305- ● ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98193-624-0 02 1 1305- ● ● ● ●
122 GASKET
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98164-690-0 01 1 1305- ● ● ● ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98164-689-0 02 1 1305- ● ● ● ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98193-622-0 02 1 1305- ● ● ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98193-623-0 01 1 1305- ● ● ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98193-625-0 01 1 1305- ● ● ● ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98164-691-0 01 1 1305- ● ● ● ●

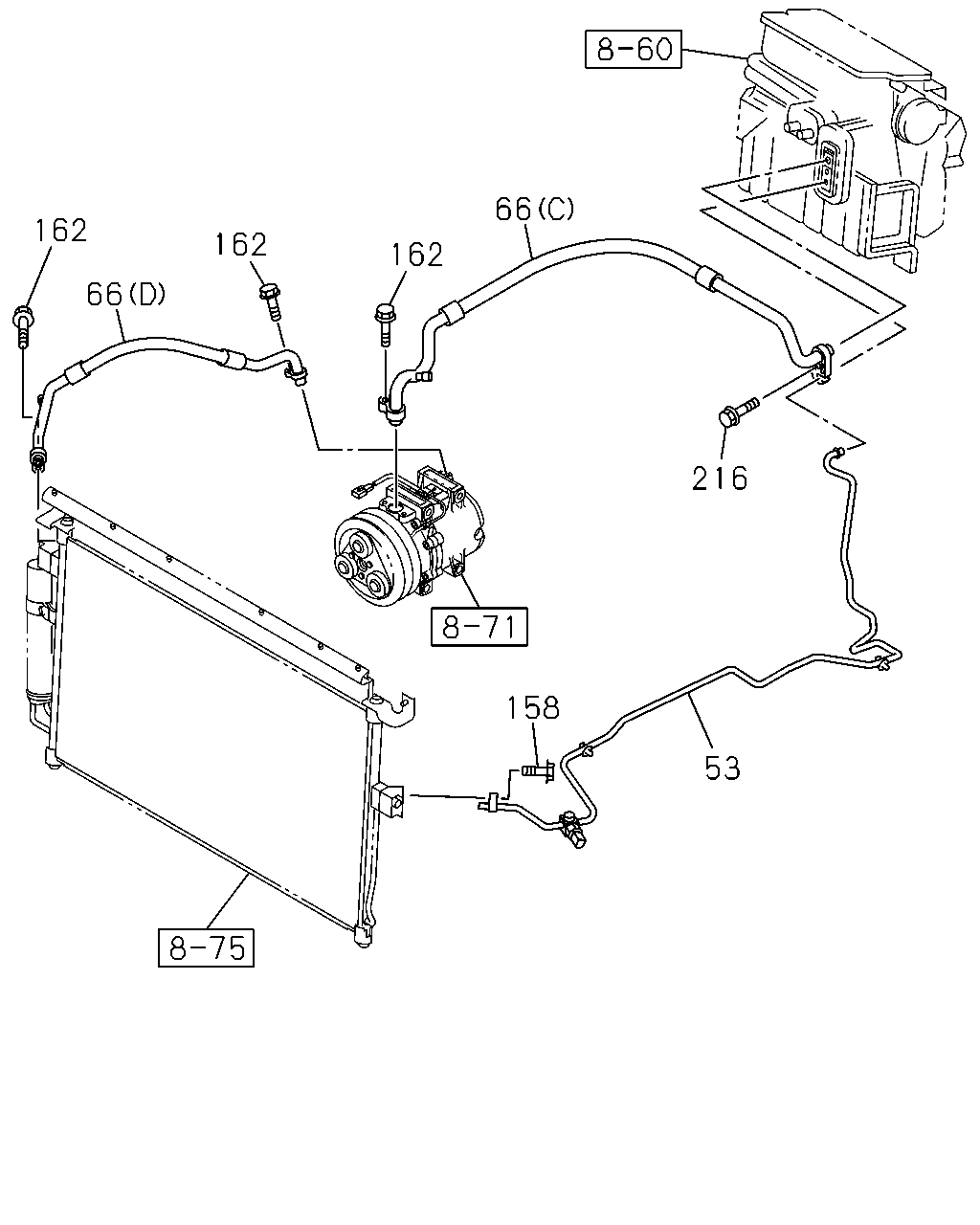

çizim 351774
53 158 162 66 162 66 162 216
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ● ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98209-993-0 01 1 1305- ● ● ●
158 BOLT; PIPE FIX
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE 		0-28650-625-0 01 1 1305- ●
158 BOLT; PIPE FIX
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M6X25 FLANGE 		0-28650-625-0 01 1 1305- ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M8X25 FLANGE 		0-28650-825-0 03 1 1305- ● ● ● ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M6X20 FLANGE 		0-28650-620-0 01 1 1305- ● ● ● ●
çizim 351775
67 147 67 66 66 67 147 67 202 122 146 123 53 146 123
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ● ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98209-993-0 01 1 1305- ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98164-687-0 01 1 1305- ● ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (C) 		8-98164-688-0 01 1 1305- ● ● ● ●
67 GASKET; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98193-624-0 02 1 1305- ● ● ● ●
122 GASKET
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98164-690-0 01 1 1305- ● ● ● ●
123 GASKET; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98164-689-0 02 1 1305- ● ● ● ●
146 CLIP; RECEIVER PIPE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98193-622-0 02 1 1305- ● ● ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98193-623-0 01 1 1305- ● ● ● ●
147 CAP; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98193-625-0 01 1 1305- ● ● ● ●
202 SWITCH; PRESSURE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98164-691-0 01 1 1305- ● ● ● ●

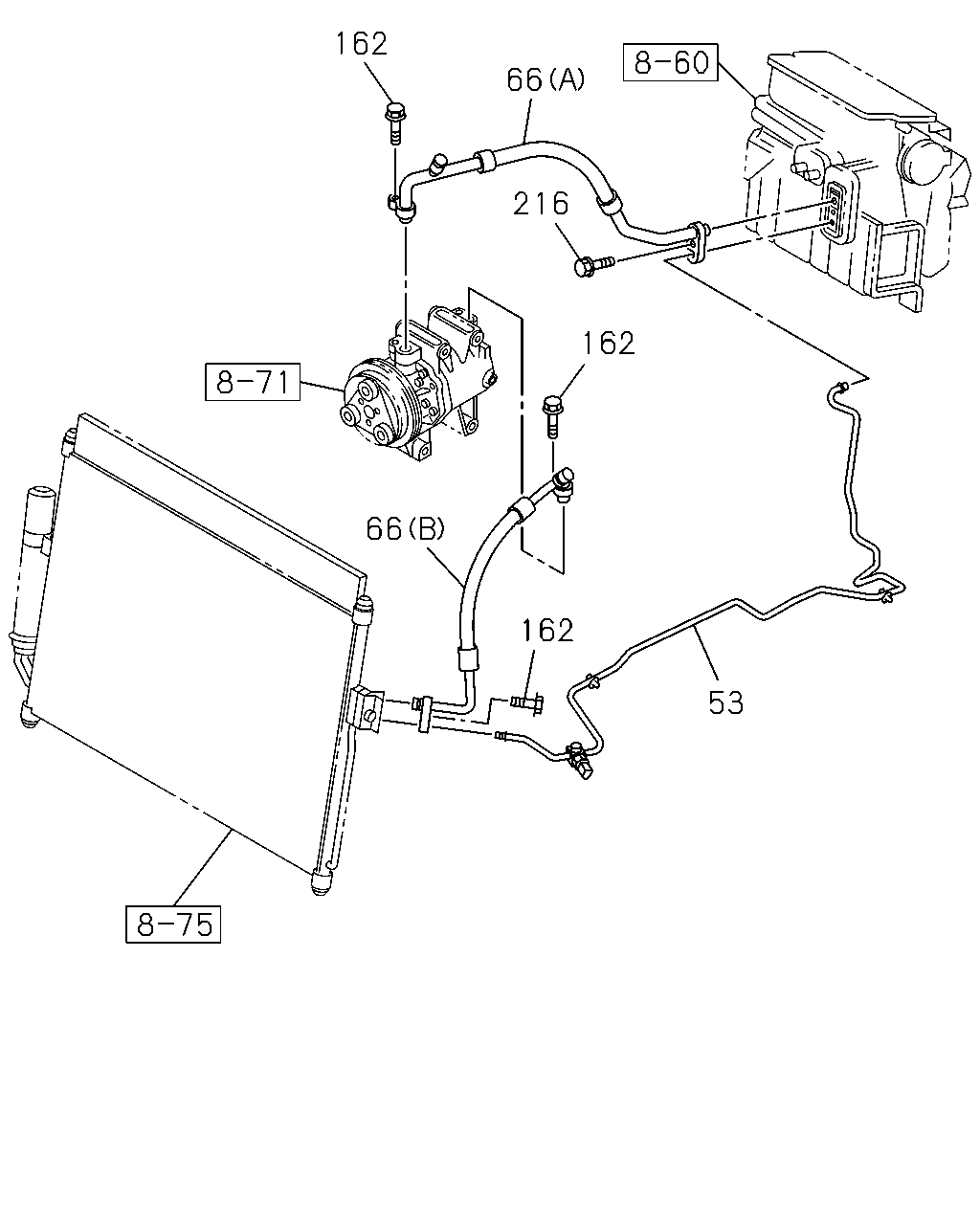

çizim 352163
53 162 66 162 216 66 162
BalonParca AdiParca NoAdetTipApplied Date A B C D
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98102-232-2 01 1 1305- ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ● ●
53 PIPE; RECEIVER TANK TO EVAP
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) HIGH PRESSURE 		8-98129-150-4 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) LOW PRESSURE 		8-98102-234-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AIR CONDITIONER MANUAL CONT(C60) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JA1-T ENG(LP0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (D) HIGH PRESSURE 		8-98102-236-2 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) HIGH PRESSURE 		8-98129-345-1 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ● ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) LOW PRESSURE 		8-98102-233-3 01 1 1305- ●
66 HOSE; FLEX,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A) LOW PRESSURE 		8-98209-993-0 01 1 1305- ● ● ●
162 BOLT; FLEX HOSE
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M8X25 FLANGE 		0-28650-825-0 03 1 1305- ● ● ● ●
216 BOLT; HOSE FIX
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M6X20 FLANGE 		0-28650-620-0 01 1 1305- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
