Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11525 - CYZ CHINA EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

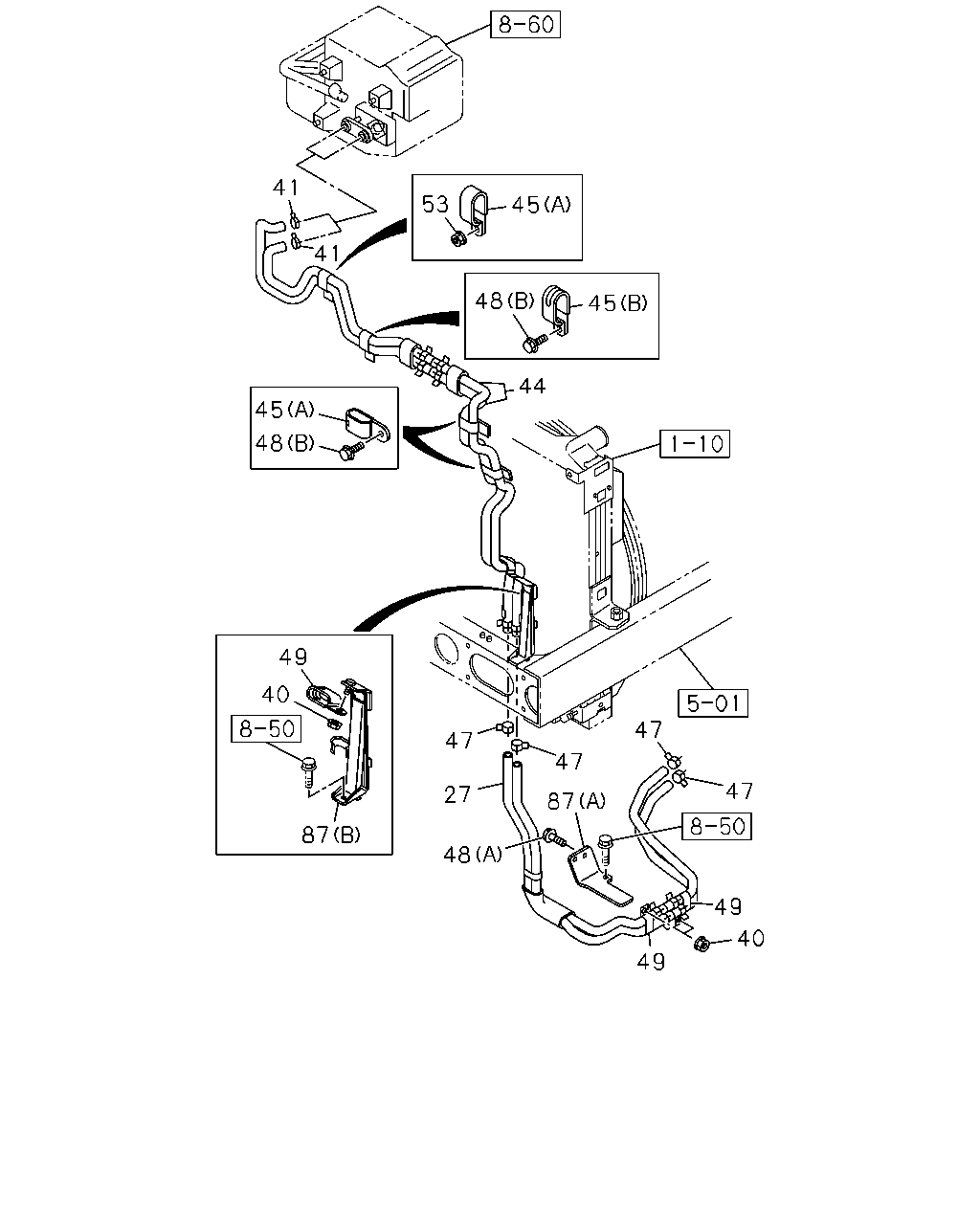

8-45 — HEATER PIPING
(#119054) — 13 parça
41
41
45
48
48
45
45
53
44
49
40
87
47
27
47
48
87
49
49
40
47
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
8-98218-184-2
01
1
1305-
40
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1305-
41
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
02
1
1305-
44
HOSE; WATER,HTR,INL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
8-98199-134-2
01
1
1305-
45
CLIP; WATER PIPE
(B) WO/SCREW
1-09701-143-1
01
1
1305-
45
CLIP; WATER PIPE
(A)
1-09701-238-0
02
1
1305-
47
CLAMP; WATER HOSE,HTR
ID=22
8-97359-141-0
04
1
1305-
48
BOLT; CLIP FIX
(A) M8X20 FLANGE
0-28650-820-0
01
1
1305-
48
BOLT; CLIP FIX
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
1305-
49
CLIP; WATER HOSE,HTR
ID=24X2 L=25
1-09700-710-0
03
1
1305-
53
NUT; HOSE CLIP
M8 FLANGE
0-91180-108-0
01
1
1305-
87
BRACKET; HTR HOSE CLIP
(B)
8-97641-301-1
01
1
1305-
87
BRACKET; HTR HOSE CLIP
(A)
8-97643-349-0
01
1
1305-
