4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#119049) — 69 parça

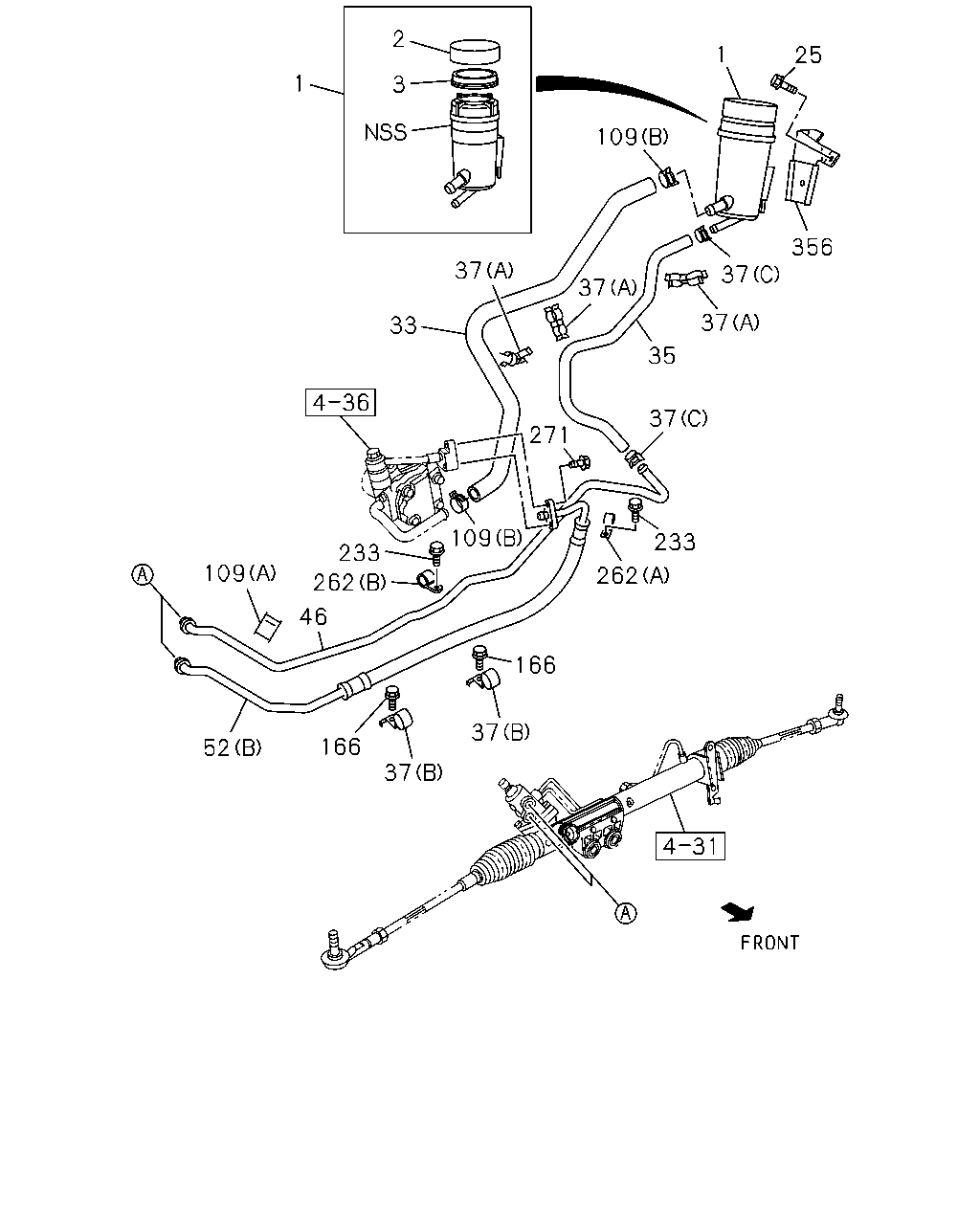

1 3 2 109 1 25 356 37 37 37 37 33 35 37 271 109 233 262 233 262 109 46 52 166 37 37 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	1305-	●	●	●	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	1305-	●	●	●	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1305-	●	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	02	1	1305-	●	●	●	●
33	HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1305-	●	●
33	HOSE; RUBBER,POWER STRG 4JK1-TCX ENG(LR0)	8-97946-138-2	01	1	1305-		●	●	●
35	HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1305-	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1305-	●	●	●	●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) (A) ID=17.5 & 21	8-97177-580-0	02	1	1305-		●	●	●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1305-		●	●	●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=17.5 & 21	8-97177-580-0	01	1	1305-		●		●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) ID=17.5 & 21	8-97177-580-0	01	1	1305-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1017	8-98179-941-0	01	1	1305-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) L=1017	8-98179-941-0	01	1	1305-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-390-0	01	1	1305-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97946-151-2	01	1	1305-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCX ENG(LR0)	8-97946-151-2	01	1	1305-			●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-149-2	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV (A)	8-97946-159-0	01	1	1305-	●
52	HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97946-159-0	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) (A)	8-98209-389-0	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-145-0	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) (B)	8-97946-145-0	01	1	1305-			●	●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-143-0	01	1	1305-		●
109	CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (C)	8-98203-619-0	01	1	1305-	●	●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1305-	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8	8-97944-127-0	02	1	1305-	●	●	●	●
166	BOLT; CLIP 4JK1-TCX ENG(LR0) M6X16 FLANGE	0-28650-616-0	02	1	1305-		●	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	1305-	●	●	●	●
262	CLIP; P/S PIPE 4JA1-T ENG(LP0) (C) ID=11X2 L=16	8-98177-573-0	01	1	1305-	●	●
262	CLIP; P/S PIPE 4JK1-TCX ENG(LR0) (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1305-		●	●	●
262	CLIP; P/S PIPE 4JK1-TCX ENG(LR0) (B) ID=11 L=20	0-95235-032-0	01	1	1305-		●	●	●
271	BOLT; P/S OIL PIPE FIX 4JK1-TCX ENG(LR0) M6X16 FLANGE	0-28650-616-0	02	1	1305-		●	●	●
356	BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1305-	●	●	●	●

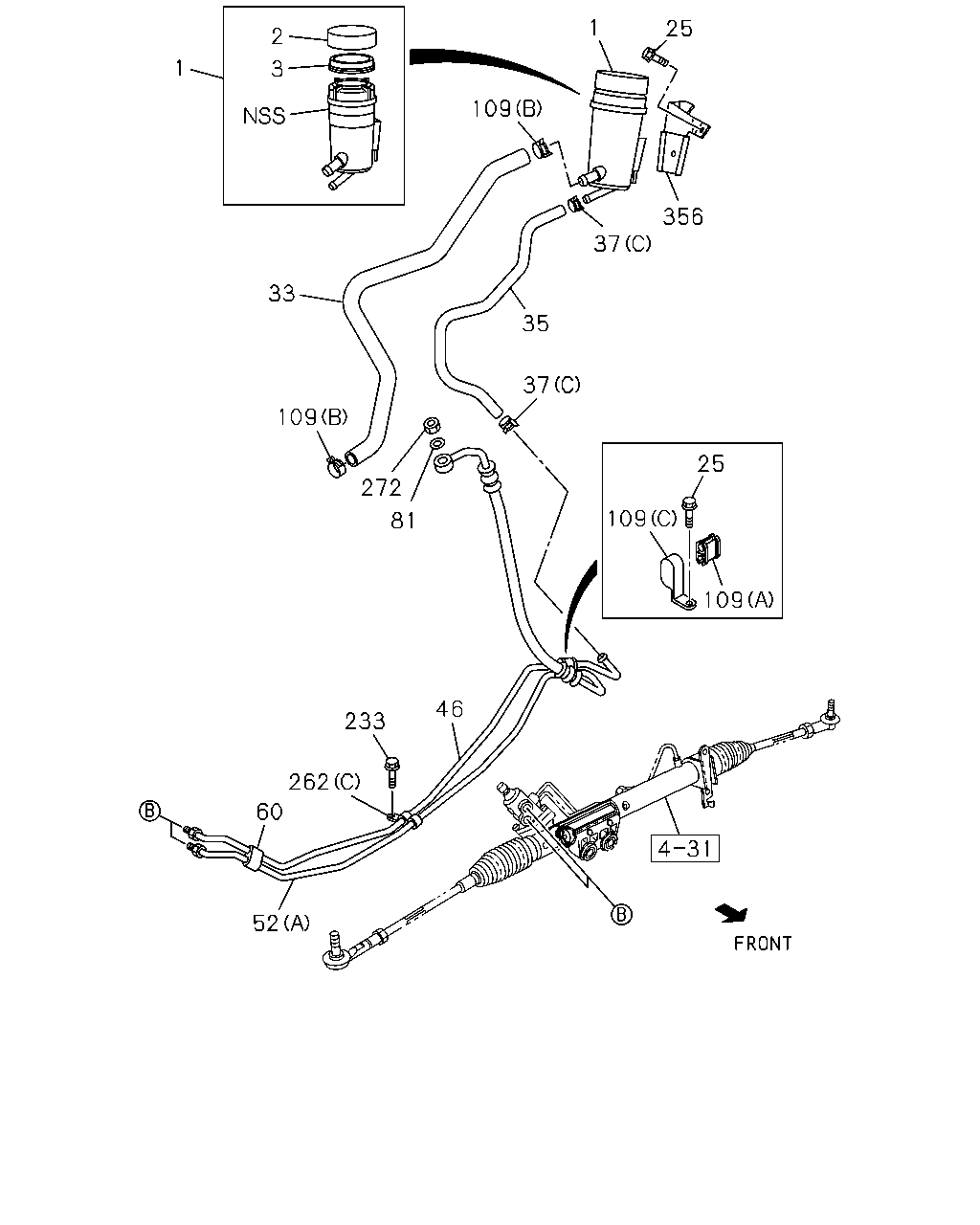

1 2 3 109 1 25 356 37 35 33 109 272 37 81 109 25 109 46 233 262 60 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S	8-97234-350-0	01	1	1305-	●	●	●	●
2	CAP; OIL TANK,P/S	8-97349-476-0	01	1	1305-	●	●	●	●
3	GASKET; OIL TANK,P/S	8-97349-477-0	01	1	1305-	●	●	●	●
25	BOLT; OIL TANK BRKT M6X16 FLANGE	0-28650-616-0	02	1	1305-	●	●	●	●
33	HOSE; RUBBER,POWER STRG 4JA1-T ENG(LP0)	8-97946-137-0	01	1	1305-	●	●
33	HOSE; RUBBER,POWER STRG 4JK1-TCX ENG(LR0)	8-97946-138-2	01	1	1305-		●	●	●
35	HOSE; RETURN,P/S TANK	8-97946-140-1	01	1	1305-	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=16	8-98030-682-0	02	1	1305-	●	●	●	●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) (A) ID=17.5 & 21	8-97177-580-0	02	1	1305-		●	●	●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) (B) ID=21.5 L=21	8-98211-907-0	02	1	1305-		●	●	●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) ID=17.5 & 21	8-97177-580-0	01	1	1305-		●		●
37	CLIP; HOSE,P/S 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) ID=17.5 & 21	8-97177-580-0	01	1	1305-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1017	8-98179-941-0	01	1	1305-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) L=1017	8-98179-941-0	01	1	1305-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC)	8-98209-390-0	01	1	1305-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC)	8-97946-151-2	01	1	1305-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCX ENG(LR0)	8-97946-151-2	01	1	1305-			●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC)	8-97946-149-2	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV (A)	8-97946-159-0	01	1	1305-	●
52	HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) EXC. HIGH RIDE SUSPENSION(7YC) (A)	8-97946-159-0	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV 4JA1-T ENG(LP0) HIGH RIDE SUSPENSION(7YC) (A)	8-98209-389-0	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) (B)	8-97946-145-0	01	1	1305-		●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) (B)	8-97946-145-0	01	1	1305-			●	●
52	HOSE; FLEX,P/S CONT VLV 4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-97946-143-0	01	1	1305-		●
60	CLAMP; PIPE,RETURN 4JA1-T ENG(LP0) ID=10X2 H=22	8-94252-455-2	01	1	1305-	●	●
81	WASHER; LK,FLEX HOSE 4JA1-T ENG(LP0) ID=12.2	0-91510-812-0	01	1	1305-	●	●
109	CLIP; RUBBER HOSE 4JA1-T ENG(LP0) (C)	8-98203-619-0	01	1	1305-	●	●
109	CLIP; RUBBER HOSE (A) ID=10X2 H=22	8-94252-455-2	01	1	1305-	●	●	●	●
109	CLIP; RUBBER HOSE (B) ID=20.8	8-97944-127-0	02	1	1305-	●	●	●	●
233	BOLT; PIPE CLIP,P/S M6X16 FLANGE	0-28650-616-0	02	1	1305-	●	●	●	●
262	CLIP; P/S PIPE 4JA1-T ENG(LP0) (C) ID=11X2 L=16	8-98177-573-0	01	1	1305-	●	●
262	CLIP; P/S PIPE 4JK1-TCX ENG(LR0) (A) ID=11 H=20 L=20	0-95207-310-0	01	1	1305-		●	●	●
262	CLIP; P/S PIPE 4JK1-TCX ENG(LR0) (B) ID=11 L=20	0-95235-032-0	01	1	1305-		●	●	●
272	NUT; P/S OIL PIPE FIX 4JA1-T ENG(LP0) M12	0-91111-512-0	01	1	1305-	●	●
356	BRACKET; P/S,RESERVOIR	8-97946-163-0	01	1	1305-	●	●	●	●
