0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#119048) — 127 parça

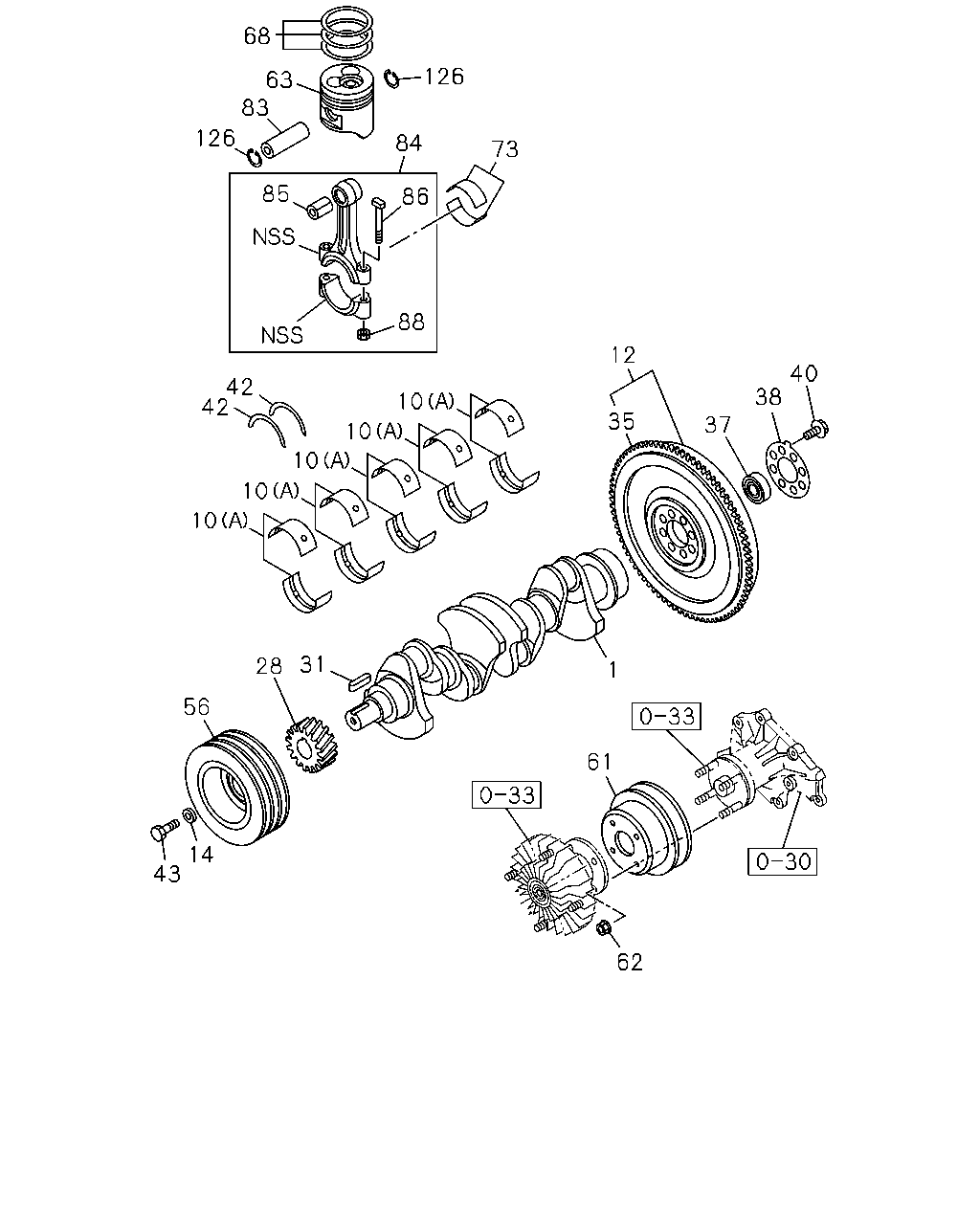

68 126 73 84 83 63 126 85 86 88 12 37 38 40 35 10 10 10 10 10 42 42 31 28 56 43 61 1 62 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97190-927-1	01	1	1305-	●
1	CRANKSHAFT	8-98131-999-1	01	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 5	8-97387-970-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 4	8-97387-971-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 3	8-97387-972-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 2	8-97387-973-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 1	8-97387-974-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (B) GREEN	8-97388-502-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) BLACK	8-97388-503-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) BLUE	8-97388-504-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) YELLOW	8-97388-505-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) RED	8-97388-506-0	05	1	1305-		●
12	FLYWHEEL	8-94172-529-1	01	1	1305-	●
12	FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1305-		●
12	FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) W/RING GEAR	8-97021-401-2	01	1	1305-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1305-	●	●
28	GEAR; CR/SHF Z=30	8-97240-011-2	01	1	1305-	●
28	GEAR; CR/SHF Z=44	8-97386-232-1	01	1	1305-		●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	1305-	●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	1305-		●
35	GEAR; RING Z=108	8-94419-602-1	01	1	1305-	●
35	GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-94419-602-1	01	1	1305-		●
35	GEAR; RING A/T 5 SPEED-AISIN(MA1) Z=122	8-94364-395-1	01	1	1305-		●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	1305-	●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1305-	●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) ID=50.5 OD=97	8-98171-700-0	01	1	1305-		●
38	WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65)	8-98132-506-0	01	1	1305-		●
38	WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98195-090-0	01	1	1305-		●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1305-	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97065-984-1	08	1	1305-		●
40	BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1305-		●
42	WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	1305-	●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1305-		●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1305-	●	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	1305-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1305-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1305-	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1305-		●
62	NUT; FAN PULLEY M6 FLANGE	5-09440-004-0	04	1	1305-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97942-985-0	04	1	1305-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97942-986-0	04	1	1305-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98132-548-1	04	1	1305-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98132-549-1	04	1	1305-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98132-550-1	04	1	1305-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	1305-	●
68	RING SET; PISTON,STANDARD STD	8-98171-040-0	04	1	1305-		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1305-	●
73	METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1305-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1305-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1305-		●
84	ROD ASM; CONN	8-98012-611-2	04	1	1305-	●
84	ROD ASM; CONN	8-97388-921-2	04	1	1305-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	1305-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1305-		●
86	BOLT; CONNROD M11X59	5-12235-009-0	08	1	1305-	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1305-		●
88	NUT; CONNROD M11	5-09409-016-0	08	1	1305-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	1305-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1305-		●

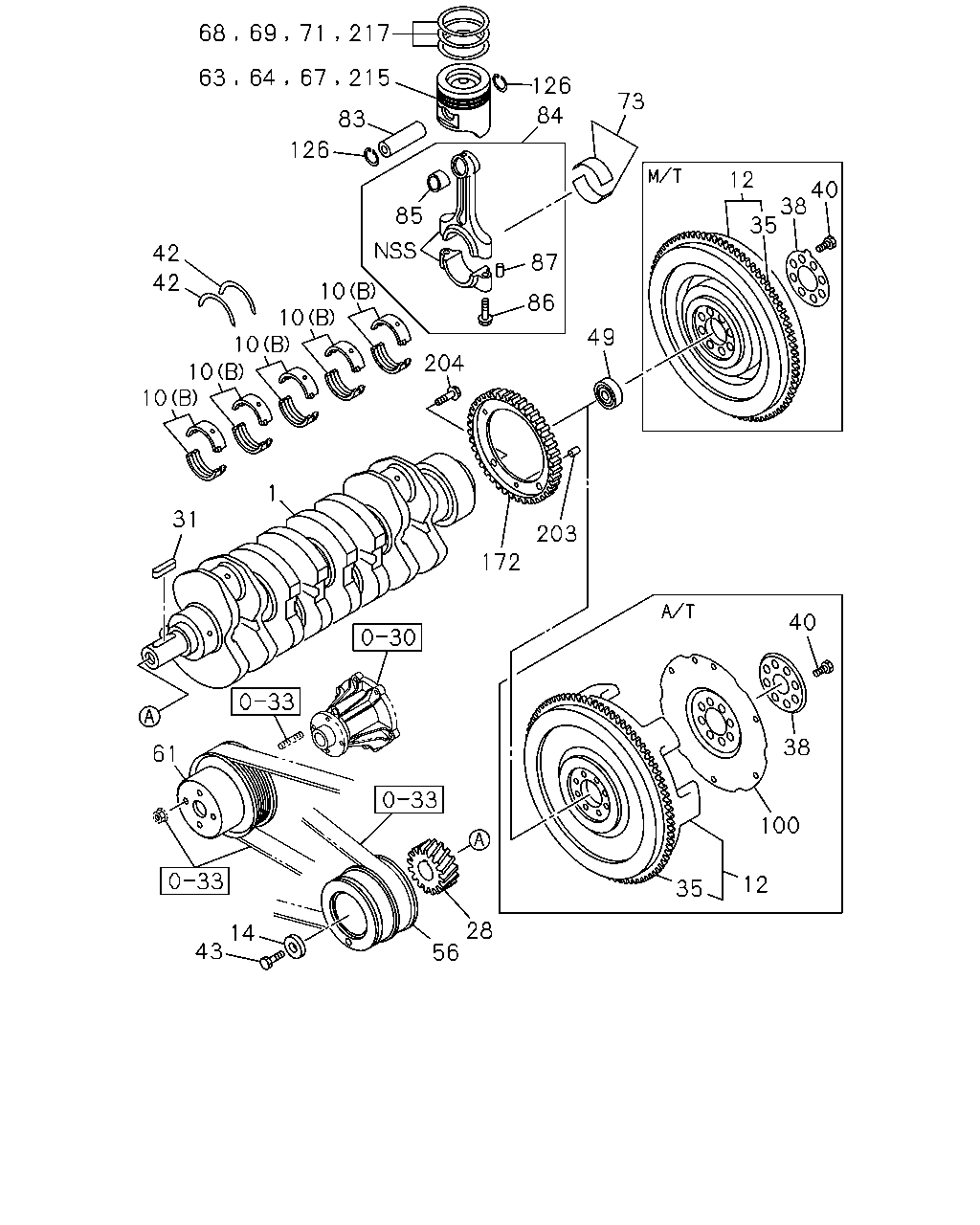

68 69 71 217 215 67 64 63 126 83 85 126 84 73 87 86 204 49 12 35 38 40 40 38 100 12 35 28 56 14 43 61 172 203 10 10 10 10 10 42 42 31 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97190-927-1	01	1	1305-	●
1	CRANKSHAFT	8-98131-999-1	01	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 5	8-97387-970-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 4	8-97387-971-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 3	8-97387-972-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 2	8-97387-973-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (A) GRADE 1	8-97387-974-0	05	1	1305-	●
10	METAL SET; CRANKSHAFT,STANDARD (B) GREEN	8-97388-502-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) BLACK	8-97388-503-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) BLUE	8-97388-504-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) YELLOW	8-97388-505-0	05	1	1305-		●
10	METAL SET; CRANKSHAFT,STANDARD (B) RED	8-97388-506-0	05	1	1305-		●
12	FLYWHEEL	8-94172-529-1	01	1	1305-	●
12	FLYWHEEL A/T 5 SPEED-AISIN(MA1)	8-98132-505-0	01	1	1305-		●
12	FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) W/RING GEAR	8-97021-401-2	01	1	1305-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	1305-	●	●
28	GEAR; CR/SHF Z=30	8-97240-011-2	01	1	1305-	●
28	GEAR; CR/SHF Z=44	8-97386-232-1	01	1	1305-		●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	1305-	●
31	KEY; FEATHER,CR/SHF	9-08030-743-0	01	1	1305-		●
35	GEAR; RING Z=108	8-94419-602-1	01	1	1305-	●
35	GEAR; RING M/T MUA 5 SPEED 5H(MWQ) Z=108	8-94419-602-1	01	1	1305-		●
35	GEAR; RING A/T 5 SPEED-AISIN(MA1) Z=122	8-94364-395-1	01	1	1305-		●
38	WASHER; FLYWHEEL ID=50.5 OD=97	8-98171-700-0	01	1	1305-	●
38	WASHER; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) ID=50.5 OD=97	8-98171-700-0	01	1	1305-		●
38	WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1) AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65)	8-98132-506-0	01	1	1305-		●
38	WASHER; FLYWHEEL A/T 5 SPEED-AISIN(MA1) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)	8-98195-090-0	01	1	1305-		●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	1305-	●
40	BOLT; FLYWHEEL M/T MUA 5 SPEED 5H(MWQ) M13X36	8-97065-984-1	08	1	1305-		●
40	BOLT; FLYWHEEL A/T 5 SPEED-AISIN(MA1) M13X78	8-97080-561-1	08	1	1305-		●
42	WASHER; THRUST,CR/SHF	8-97383-751-0	02	1	1305-	●
42	WASHER; THRUST,CR/SHF	8-98040-704-0	02	1	1305-		●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	1305-	●	●
49	BEARING; PILOT M/T MUA 5 SPEED 5H(MWQ) NSK	9-00090-679-0	01	1	1305-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-97306-533-5	01	1	1305-	●
56	PULLEY; CR/SHF DAMPER 2-GROOVE	8-98183-902-0	01	1	1305-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-94146-638-2	01	1	1305-	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98131-628-0	01	1	1305-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97942-985-0	04	1	1305-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97942-986-0	04	1	1305-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=A	8-98132-548-1	04	1	1305-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=B	8-98132-549-1	04	1	1305-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=C	8-98132-550-1	04	1	1305-		●
64	PISTON; O/S=0.50	8-98132-708-1	04	1	1305-		●
67	PISTON; O/S=0.25	8-98132-707-1	04	1	1305-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97319-087-1	04	1	1305-	●
68	RING SET; PISTON,STANDARD STD	8-98171-040-0	04	1	1305-		●
69	RING SET; PISTON,O/S=0.50 OVSI=0.50	8-98171-042-0	04	1	1305-		●
71	RING SET; PISTON,O/S=0.25 OVSI=0.25	8-98171-041-0	04	1	1305-		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	1305-	●
73	METAL SET; CONN ROD,STANDARD	8-97388-735-0	04	1	1305-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94454-479-0	04	1	1305-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98015-193-1	04	1	1305-		●
84	ROD ASM; CONN	8-98012-611-2	04	1	1305-	●
84	ROD ASM; CONN	8-97388-921-2	04	1	1305-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97352-889-0	04	1	1305-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET. AFTER PRESS FITTING,SHAPE THE BUSHING.	8-97383-066-0	04	1	1305-		●
86	BOLT; CONNROD M11X59	5-12235-009-0	08	1	1305-	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	1305-		●
87	PIN; CONNROD BIG END OD=5 L=8	9-08160-508-0	08	1	1305-		●
100	PLATE; FLEX A/T 5 SPEED-AISIN(MA1)	8-98192-379-0	01	1	1305-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. ID=33.9	8-94133-969-0	08	1	1305-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=37.5	8-94460-687-0	08	1	1305-		●
172	ROTOR; CRANK SENSOR	8-98163-693-0	01	1	1305-		●
203	PIN; ROTOR OD=5 L=8	9-08160-508-0	01	1	1305-		●
204	BOLT; ROTOR M6X10	8-98038-343-0	03	1	1305-		●
215	PISTON; O/S=0.75	8-98132-709-1	04	1	1305-		●
217	RING SET; PISTON,O/S=0.75 OVSI=0.75	8-98171-043-0	04	1	1305-		●
