1-31 — AIR DUCT (#119047) — 28 parça

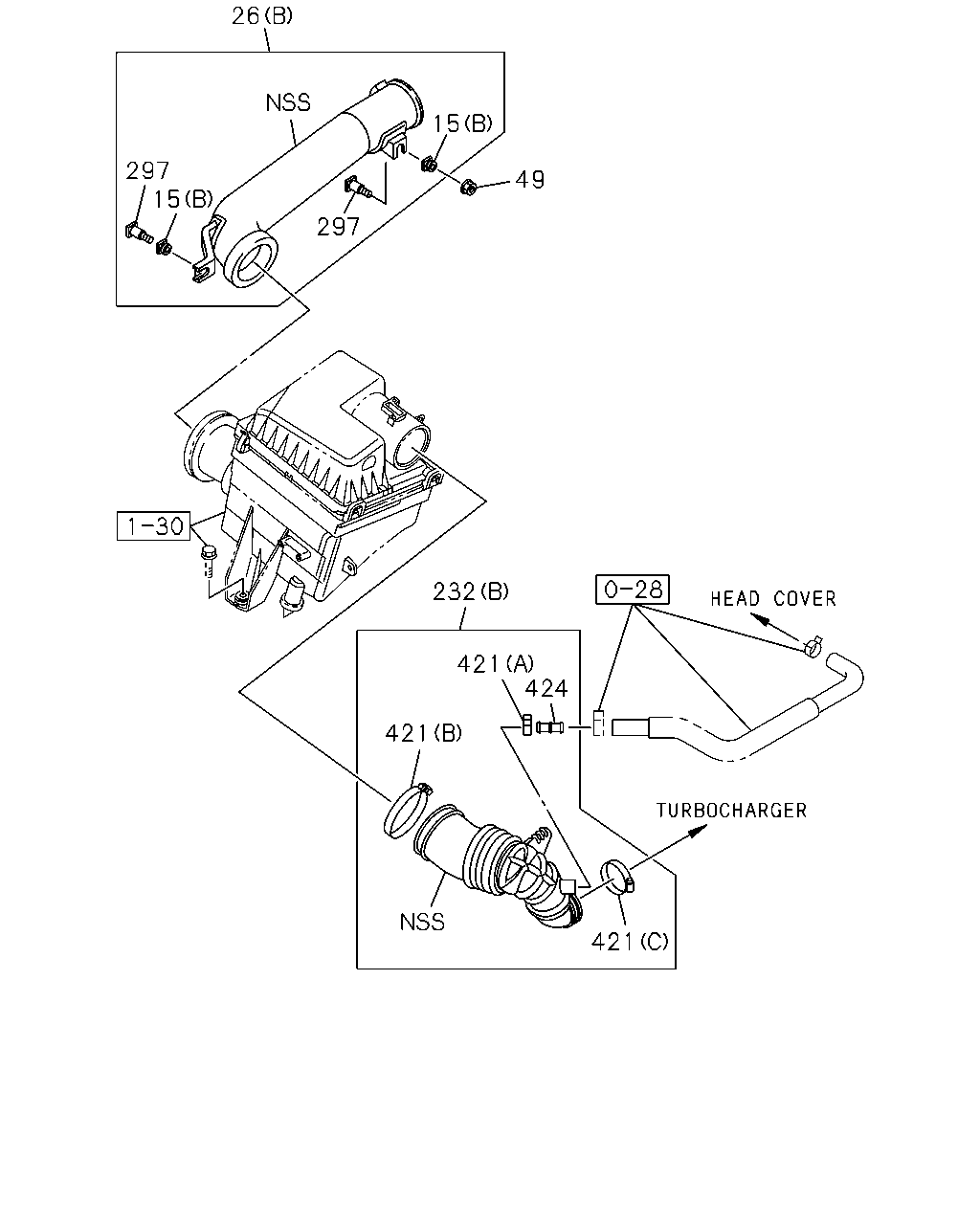

çizim 350056
26 297 297 15 15 49 232 421 421 424 421
BalonParca AdiParca NoAdetTipApplied Date A B
15 INSULATOR
(B) 		8-98203-901-0 02 1 1305- ● ●
15 INSULATOR
(A) 		8-98137-140-0 01 1 1305- ●
15 INSULATOR
(C) 		8-98214-036-0 01 1 1305- ●
26 DUCT; AIR INT
(B) 		8-98065-550-1 01 1 1305- ●
26 DUCT; AIR INT
(A) 		8-98104-472-1 01 1 1305- ●
49 NUT; AIR DUCT
M6 FLANGE 		0-91180-106-0 02 1 1305- ● ●
232 HOSE; CONN
(B) 		8-98089-970-2 01 1 1305- ●
232 HOSE; CONN
(A) 		8-98212-086-0 01 1 1305- ●
297 BOLT; DUCT 8-98203-900-0 02 1 1305- ● ●
421 CLAMP; AIR DUCT
(A) 		8-98183-047-0 01 1 1305- ●
421 CLAMP; AIR DUCT
(B) 		8-98183-050-0 01 1 1305- ●
421 CLAMP; AIR DUCT
(C) 		8-98183-051-0 01 1 1305- ●
424 PIPE; AIR,INL 8-98183-035-0 01 1 1305- ●

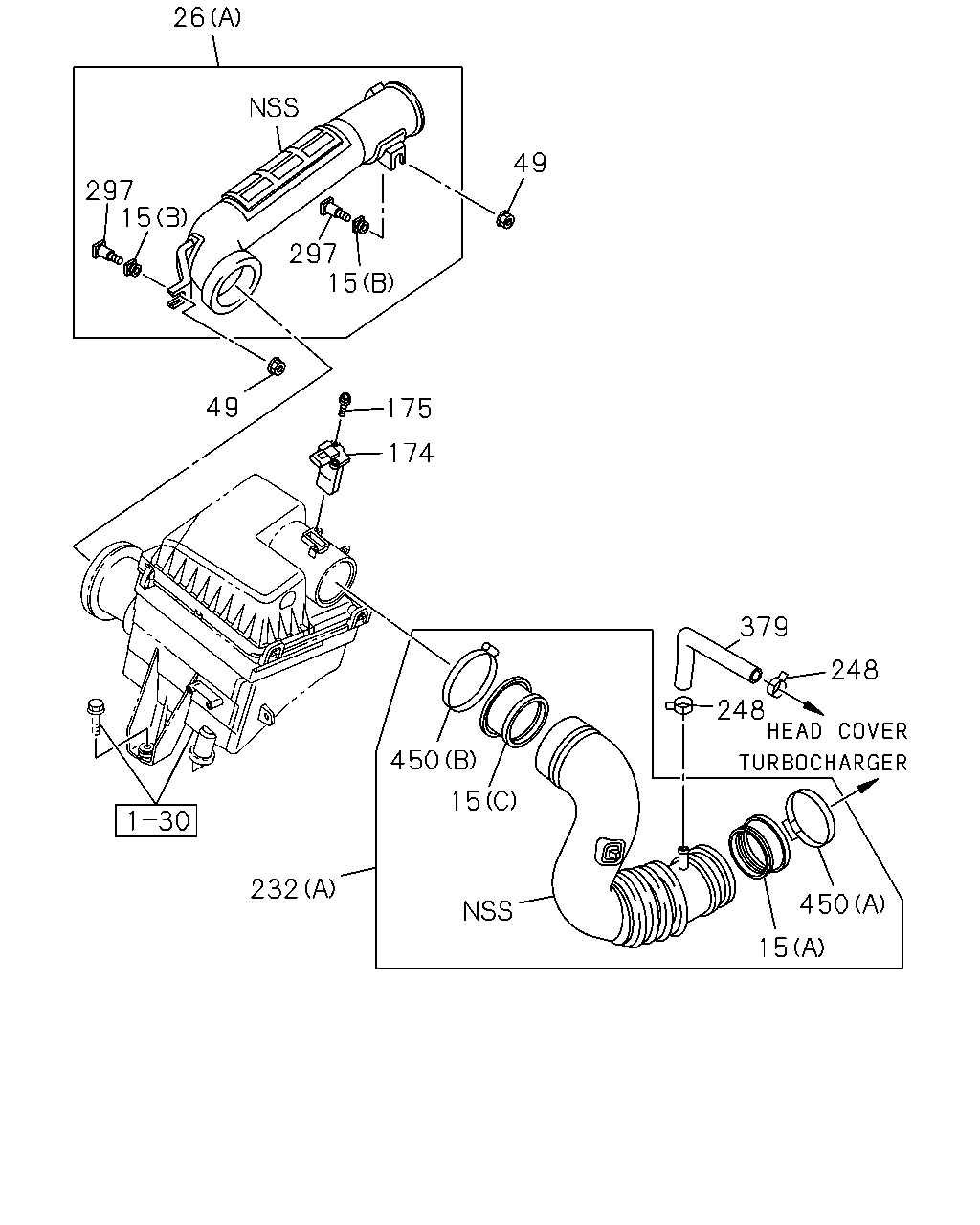

çizim 350455
26 297 15 297 15 49 49 175 174 232 450 15 379 248 248 450 15
BalonParca AdiParca NoAdetTipApplied Date A B
15 INSULATOR
(B) 		8-98203-901-0 02 1 1305- ● ●
15 INSULATOR
(A) 		8-98137-140-0 01 1 1305- ●
15 INSULATOR
(C) 		8-98214-036-0 01 1 1305- ●
26 DUCT; AIR INT
(B) 		8-98065-550-1 01 1 1305- ●
26 DUCT; AIR INT
(A) 		8-98104-472-1 01 1 1305- ●
49 NUT; AIR DUCT
M6 FLANGE 		0-91180-106-0 02 1 1305- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1305- ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1305- ●
232 HOSE; CONN
(B) 		8-98089-970-2 01 1 1305- ●
232 HOSE; CONN
(A) 		8-98212-086-0 01 1 1305- ●
248 CLIP; RUBBER HOSE
ID=20.4 		8-94121-113-0 02 1 1305- ●
297 BOLT; DUCT 8-98203-900-0 02 1 1305- ● ●
379 HOSE; RUBBER 8-98065-694-1 01 1 1305- ●
450 CLAMP; HOSE
(B) 		8-98136-623-0 01 1 1305- ●
450 CLAMP; HOSE
(A) 		8-98136-624-0 01 1 1305- ●
