7-45 — CONSOLE BOX (#119042) — 113 parça

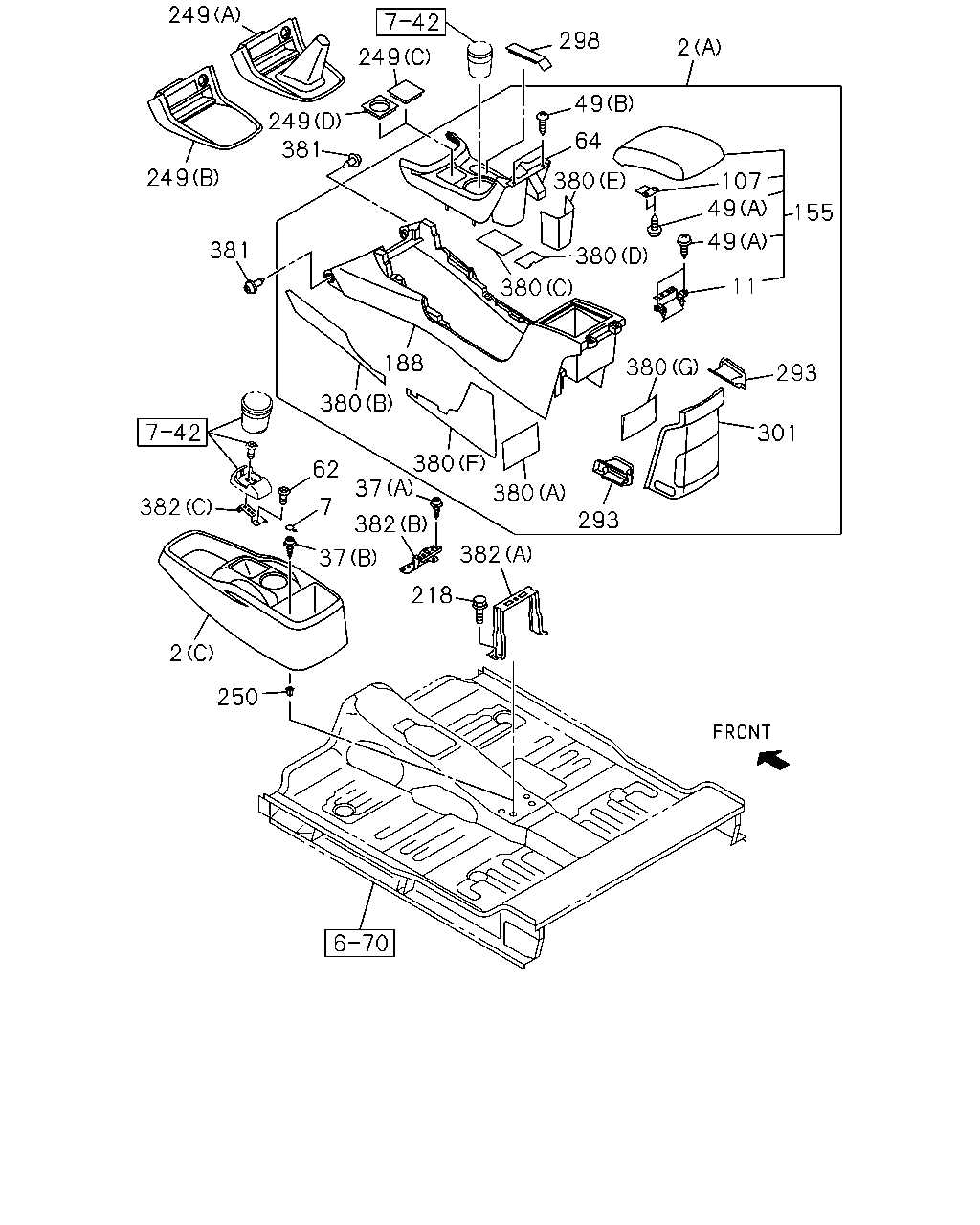

çizim 350720
301 293 155 11 49 49 107 2 298 49 380 64 380 380 380 380 382 218 382 37 380 380 188 381 249 249 249 249 381 382 62 37 7 250 2 293
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1305- ● ● ●
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-653-3 01 1 1305- ● ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97416-654-9 01 1 1305- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97416-654-9 01 1 1305- ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-329-1 01 1 1305- ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97416-652-9 01 1 1305- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-330-1 01 1 1305- ● ●
7 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-610-0 02 1 1305- ● ● ●
11 HINGE; CONSOLE LID
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1305- ● ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1305- ● ●
37 SCREW; CONSOLE
FRONT CONSOLE WO/LID<D54> (B) M5X16 TAPPING W/PL WASHER 		8-98039-091-0 02 1 1305- ● ● ●
37 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1305- ● ●
37 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1305- ● ●
49 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1305- ● ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1305- ● ●
49 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1305- ● ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1305- ● ●
62 SCREW; BRKT
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X10 TAPPING 		0-71240-510-0 02 1 1305- ● ● ● ●
64 BEZEL; CENTER CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1305- ● ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1305- ● ●
107 LOCK; LID,RR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1305- ● ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1305- ● ●
155 LID; PARCEL BOX
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1305- ● ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1305- ● ●
188 CONSOLE; RR
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1305- ● ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1305- ● ●
218 BOLT; BRKT
FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1305- ● ●
218 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1305- ● ●
249 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1305- ● ● ● ●
249 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1305- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5G(RSP) FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1305- ●
249 COVER
AUTO COOLER SYSTEM(CJ2) (E) BLACK 		8-97416-614-2 01 1 1305- ● ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-153-1 01 1 1305- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-152-1 01 1 1305- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-152-1 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-150-2 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-150-2 01 1 1305- ●
249 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1305- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1305- ●
250 GROMMET; CONSOLE BOX
FRONT CONSOLE WO/LID<D54> D=7X7 L=7.5 		5-09983-007-0 02 1 1305- ● ● ●
293 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-786-0 01 1 1305- ● ●
293 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-787-0 01 1 1305- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1305- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1305- ● ●
301 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1305- ● ● ● ●
301 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (F) 		8-98234-826-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98234-827-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98234-828-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) 		8-98234-829-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98234-830-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (E) 		8-98234-831-0 01 1 1305- ● ●
380 INSULATOR; CONSOLE
FRONT CONSOLE W/LID<D55> (G) 		8-98234-825-0 01 1 1305- ● ● ● ●
380 INSULATOR; CONSOLE
CUSTOM FRONT CONSOLE<D07> (G) 		8-98234-824-0 01 1 1305- ● ●
381 RETAINER; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1305- ● ●
381 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1305- ● ●
382 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1305- ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1305- ● ●
382 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1305- ● ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1305- ● ●
382 BRACKET; FLOOR CONSOLE
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1305- ● ● ● ●
çizim 351457
350 170 50 2 350 139 350 249
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1305- ● ● ●
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-653-3 01 1 1305- ● ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97416-654-9 01 1 1305- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97416-654-9 01 1 1305- ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-329-1 01 1 1305- ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97416-652-9 01 1 1305- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97423-330-1 01 1 1305- ● ●
50 CLIP; CONSOLE
FRONT CONSOLE WO/LID<D54> (B) 		8-98164-677-0 02 1 1305- ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-891-0 02 1 1305- ● ●
139 BOX; CONSOLE,UPR
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C) BLACK 		8-97416-619-0 01 1 1305- ● ● ●
139 BOX; CONSOLE,UPR
RADIO DELETE(UL5) BLACK 		8-97416-619-0 01 1 1305- ●
170 RETAINER; CONSOLE BOX
FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-699-0 02 1 1305- ● ● ●
249 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1305- ● ● ● ●
249 COVER
FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1305- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5G(RSP) FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-151-2 01 1 1305- ●
249 COVER
AUTO COOLER SYSTEM(CJ2) (E) BLACK 		8-97416-614-2 01 1 1305- ● ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR BASIC(RBA) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-153-1 01 1 1305- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-152-1 01 1 1305- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) BLACK 		8-97417-152-1 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) INTERIOR CUSTOM(RBD) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-150-2 01 1 1305- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97417-150-2 01 1 1305- ●
249 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1305- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1305- ●
350 COVER; CONSOLE
RADIO DELETE(UL5) (B) BLACK 		8-97416-806-0 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) BLACK 		8-97416-807-0 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1305- ● ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1305- ● ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98103-424-2 01 1 1305- ● ●

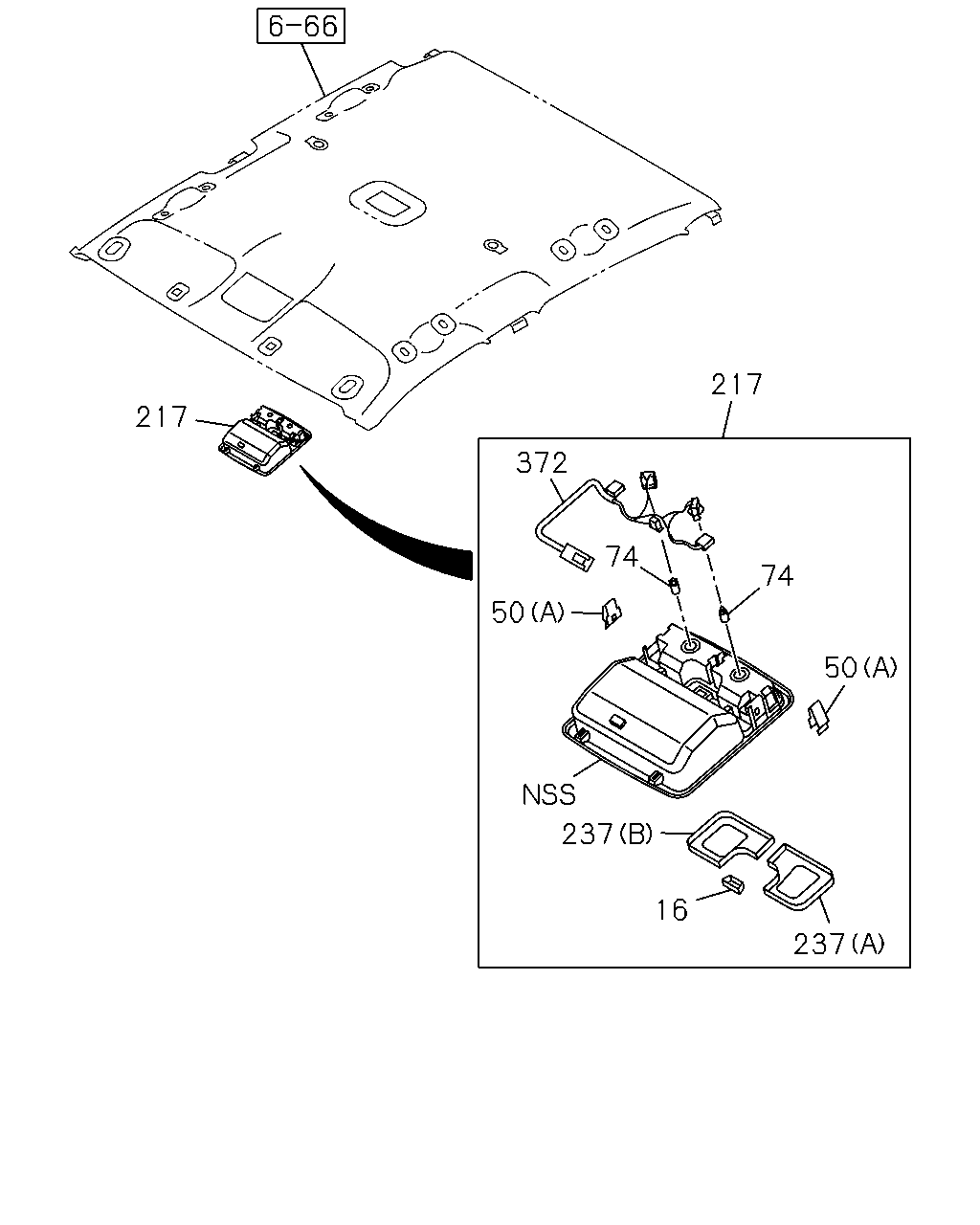

çizim 351461
237 16 237 50 372 217 74 50 217 74
BalonParca AdiParca NoAdetTipApplied Date A B C D
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1305- ● ●
50 CLIP; CONSOLE
FRONT CONSOLE WO/LID<D54> (B) 		8-98164-677-0 02 1 1305- ● ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-891-0 02 1 1305- ● ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1305- ● ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1305- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1305- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1305- ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1305- ● ●
