4-60 — REAR SUSPENSION (#119039) — 54 parça

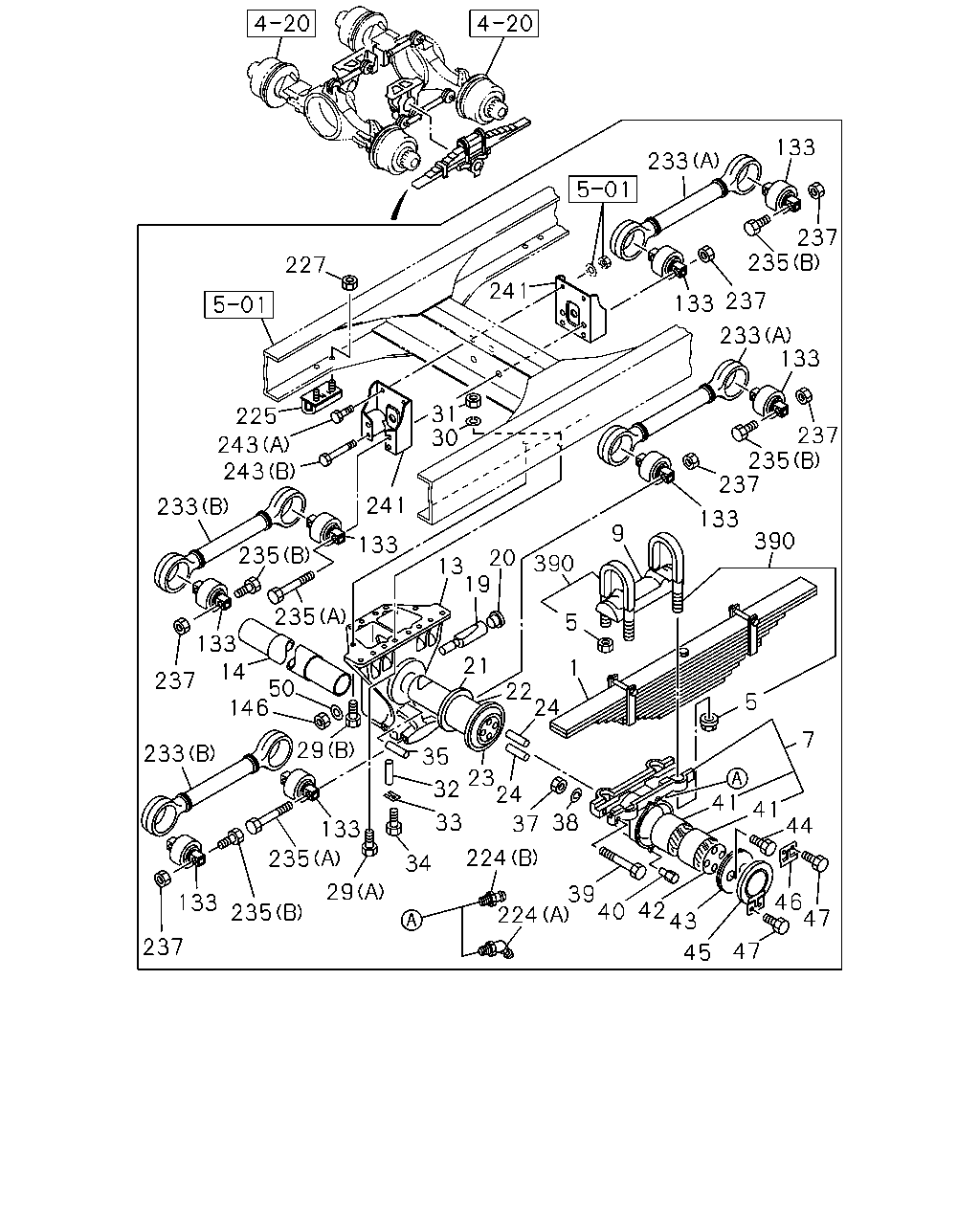

çizim 350698
227 241 225 233 133 237 235 237 133 31 30 243 243 233 235 133 241 13 19 20 235 133 237 14 50 146 233 133 237 235 235 29 133 29 34 33 32 35 23 24 37 224 224 39 40 42 43 45 38 47 46 47 44 41 41 7 5 24 22 21 5 390 9 133 390 237 235 237 133 233 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. THA 		1-51410-269-1 02 1 1305- ● ●
5 NUT; U-BOLT,RR SPR
M27 FLANGE THA 		1-09440-058-0 08 1 1305-1306 ● ●
5 NUT; U-BOLT,RR SPR
THA 		8-97948-151-0 08 1 1307- ● ●
7 SEAT; SPR,LWR
THA 		8-97916-703-2 02 1 1305- ● ●
9 PAD; U BOLT,RR SPR 8-98177-265-0 02 1 1305- ● ●
13 BRACKET; TRUNNION SHAFT
THA 		8-97915-942-3 02 1 1305- ● ●
14 PIPE; TRUNNION BRKT 1-51389-060-0 01 1 1305- ● ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 1305- ● ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 1305- ● ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 1305- ● ●
22 SHAFT; TRUNNION,RR SUSP
THA 		8-97916-554-0 02 1 1305- ● ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 1305- ● ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 1305- ● ●
29 BOLT; BRKT TO FRAME
(A) M18X75 		8-98012-872-0 24 1 1305- ● ●
29 BOLT; BRKT TO FRAME
(B) M18X55 		9-92061-855-0 04 1 1305- ● ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 1305- ● ●
31 NUT; TRUNNION BRKT
M18 THA 		0-91110-518-0 28 1 1305- ● ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 1305- ● ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 1305- ● ●
34 BOLT; LOCK PLATE
M10X16 FLANGE THA 		0-28051-016-0 02 1 1305- ● ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 1305- ● ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 1305- ● ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 1305- ● ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 1305- ● ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 1305- ● ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 1305- ● ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 1305- ● ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 1305-1306 ● ●
43 PLATE; SIDE,TRUNNION SHAFT
THA 		8-97948-142-0 02 1 1307- ● ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 1305- ● ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 1305- ● ●
46 BRACKET; COVER 1-51387-015-2 02 1 1305- ● ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE THA 		0-28050-812-0 08 1 1305- ● ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 1305- ● ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1305- ● ●
133 BUSHING; RUBBER,TORQUE ROD
THA 		8-98218-958-0 06 1 1305- ● ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 1305- ● ●
224 NIPPLE; GREASE,SPR SEAT
(B) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1305- ●
224 NIPPLE; GREASE,SPR SEAT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1305- ●
225 RUBBER; CUSHION,RR SPR
FORWARD RH,REARWARD LH THA 		8-97916-009-0 02 1 1305- ● ●
225 RUBBER; CUSHION,RR SPR
FORWARD LH,REARWARD RH THA 		8-97916-011-0 02 1 1305- ● ●
227 NUT; CUSHION RUBBER
M12 FLANGE THA 		0-91180-212-0 08 1 1305- ● ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=525 THA 		8-98218-994-0 03 1 1305- ● ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=550 THA 		8-98218-998-0 03 1 1305- ● ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 1305- ● ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 1305- ● ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 1305- ● ●
241 BRACKET; TORQUE ROD 1-53363-031-2 02 1 1305- ●
241 BRACKET; TORQUE ROD
EXC. ANTILOCK BRAKE SYSTEM<BFA> 		1-53363-031-2 02 1 1305- ●
243 BOLT; BRKT,TORQUE ROD
(A) M14X50 		0-20951-450-0 02 1 1305- ●
243 BOLT; BRKT,TORQUE ROD
EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) M14X50 		0-20951-450-0 02 1 1305- ●
243 BOLT; BRKT,TORQUE ROD
(B) M14X205 		1-09000-147-0 02 1 1305- ●
243 BOLT; BRKT,TORQUE ROD
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) M14X205 		1-09000-147-0 02 1 1305- ●
390 U-BOLT SET; RR SPRING
L=370 		1-87870-217-3 04 1 1305- ● ●
