6-20 — SIDE PANEL AND STEP (#119032) — 99 parça

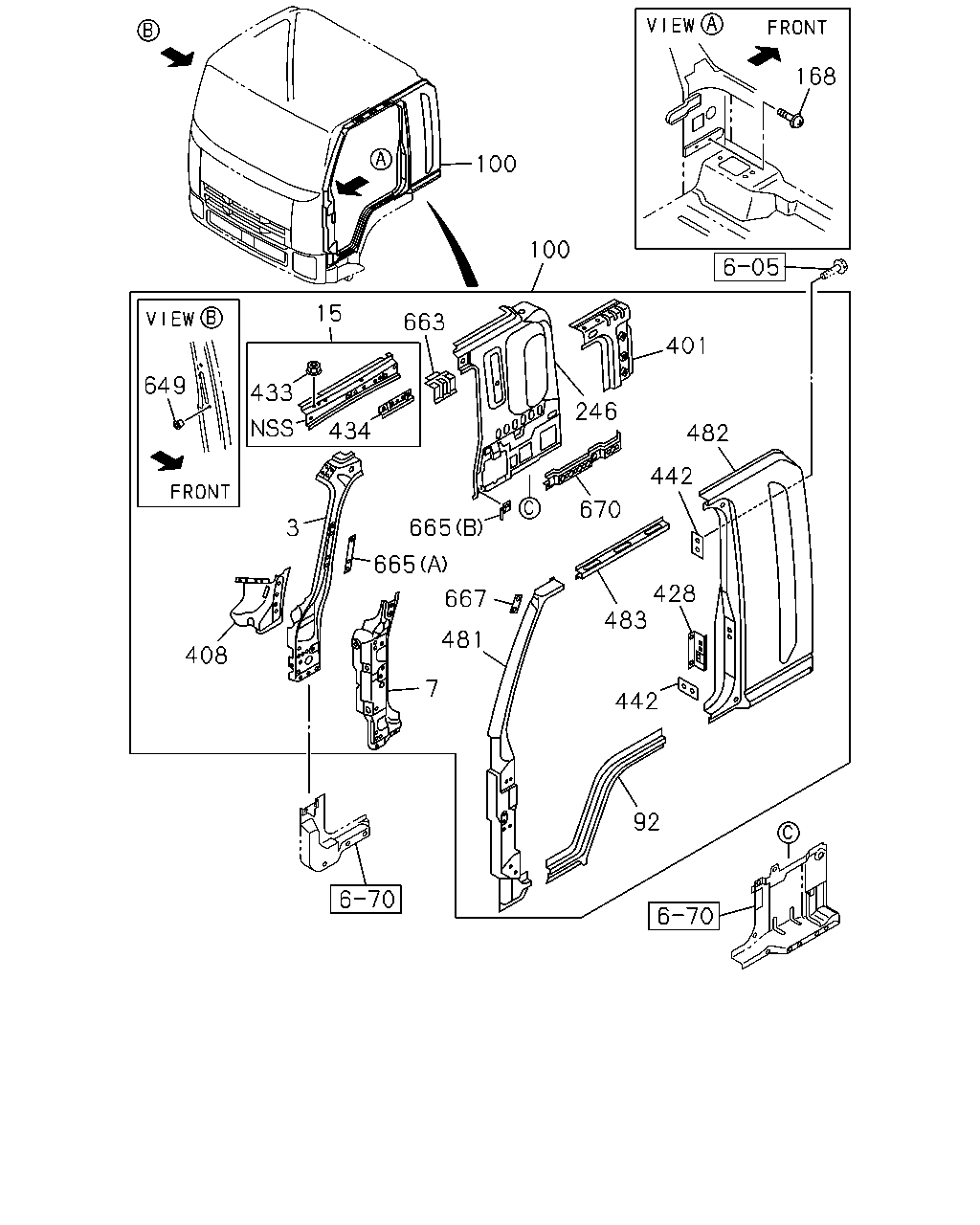

çizim 350059
92 442 483 428 442 482 401 670 246 7 481 667 665 665 408 3 649 433 434 15 663 168 100 100
BalonParca AdiParca NoAdetTipApplied Date A B
3 PANEL; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98058-237-1 01 1 1305- ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1305- ●
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1305- ● ●
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-244-4 01 1 1305-1312 ●
7 REINFORCEMENT; HINGE
THA 		8-97585-244-4 01 1 1305-1312 ●
7 REINFORCEMENT; HINGE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97927-059-0 01 1 1401- ●
7 REINFORCEMENT; HINGE
THA 		8-97927-059-0 01 1 1401- ●
7 REINFORCEMENT; HINGE
THA 		8-97585-240-3 01 1 1305-1312 ● ●
7 REINFORCEMENT; HINGE
THA 		8-97927-058-0 01 1 1401- ● ●
15 PANEL; CANT RAIL SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97585-293-2 01 1 1305- ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-293-2 01 1 1305- ●
15 PANEL; CANT RAIL SIDE
THA 		8-97585-292-2 01 1 1305- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1305- ● ●
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1305- ● ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-073-9 01 1 1305-1306 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-575-1 01 1 1307- ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98166-303-0 01 1 1305-1306 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-570-1 01 1 1307- ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98122-095-1 01 1 1305-1306 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-568-1 01 1 1307- ●
100 PANEL ASM; BODY SIDE
THA 		8-98096-023-2 01 1 1305-1306 ●
100 PANEL ASM; BODY SIDE
THA 		8-97948-576-1 01 1 1307- ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98167-118-0 01 1 1305-1306 ●
100 PANEL ASM; BODY SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-571-1 01 1 1307- ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98122-096-1 01 1 1305-1306 ●
100 PANEL ASM; BODY SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-569-1 01 1 1307- ●
168 BOLT; BODY SIDE PANEL
M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 08 1 1305- ● ●
246 PANEL; RR PILLAR,INNER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-158-5 01 1 1305- ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-158-5 01 1 1305- ●
246 PANEL; RR PILLAR,INNER
THA 		8-97586-156-5 01 1 1305- ● ●
401 PATCH; CLOSING,FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97586-161-2 01 1 1305- ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-161-2 01 1 1305- ●
401 PATCH; CLOSING,FRT PILLAR
THA 		8-97586-160-2 01 1 1305- ● ●
408 GUSSET; PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-194-2 01 1 1305- ●
408 GUSSET; PILLAR 8-97586-194-2 01 1 1305- ●
408 GUSSET; PILLAR 8-97586-193-3 01 1 1305- ● ●
428 REINFORCEMENT; DOOR STRIKER
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-261-4 01 1 1305- ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1305- ●
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1305- ● ●
433 NUT; HEADER SHELF
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6 THA 		9-09114-086-0 04 1 1305- ●
433 NUT; HEADER SHELF
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6 THA 		9-09114-086-0 02 1 1305- ●
433 NUT; HEADER SHELF
M6 THA 		9-09114-086-0 02 1 1305- ●
434 PATCH; ASSIST GRIP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98039-020-0 01 1 1305- ●
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1305- ●
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1305- ● ●
442 PATCH
THA 		8-98096-158-0 02 1 1305- ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-453-0 01 1 1305- ● ●
481 PANEL; SIDE FRT PILLAR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-471-0 01 1 1305- ● ●
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98055-470-0 01 1 1305- ● ●
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 1305- ●
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1305- ●
482 PANEL; SIDE RR PILLAR 8-98103-378-0 01 1 1305- ●
482 PANEL; SIDE RR PILLAR 8-98103-377-0 01 1 1305- ●
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1305- ● ●
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1305- ● ●
649 NUT; POP
M5 POP NUT THA 		8-97249-574-0 02 1 1305- ● ●
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97585-208-2 01 1 1305-1306 ●
663 BRACKET; AIR 8-97585-208-2 01 1 1305-1306 ●
663 BRACKET; AIR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-278-0 01 1 1307- ●
663 BRACKET; AIR
THA 		8-97948-278-0 01 1 1307- ●
663 BRACKET; AIR 8-97585-207-2 01 1 1305-1306 ● ●
663 BRACKET; AIR
THA 		8-97948-277-0 01 1 1307- ● ●
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-97585-314-0 02 1 1305- ●
665 REINFORCEMENT; GRIP,ASSIST
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98012-287-1 02 1 1305- ●
665 REINFORCEMENT; GRIP,ASSIST
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) 		8-97585-314-0 01 1 1305- ●
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1305- ●
665 REINFORCEMENT; GRIP,ASSIST
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) 		8-98012-287-1 01 1 1305- ●
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1305- ●
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 03 1 1305- ●
667 BRACKET; MIRROR 8-98109-948-0 01 1 1305- ●
667 BRACKET; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 02 1 1305- ●
670 STIFFENER; PANEL,SIDE
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98015-044-1 02 1 1305- ●
670 STIFFENER; PANEL,SIDE
EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98015-044-1 01 1 1305- ●
670 STIFFENER; PANEL,SIDE
THA 		8-98015-044-1 01 1 1305- ●

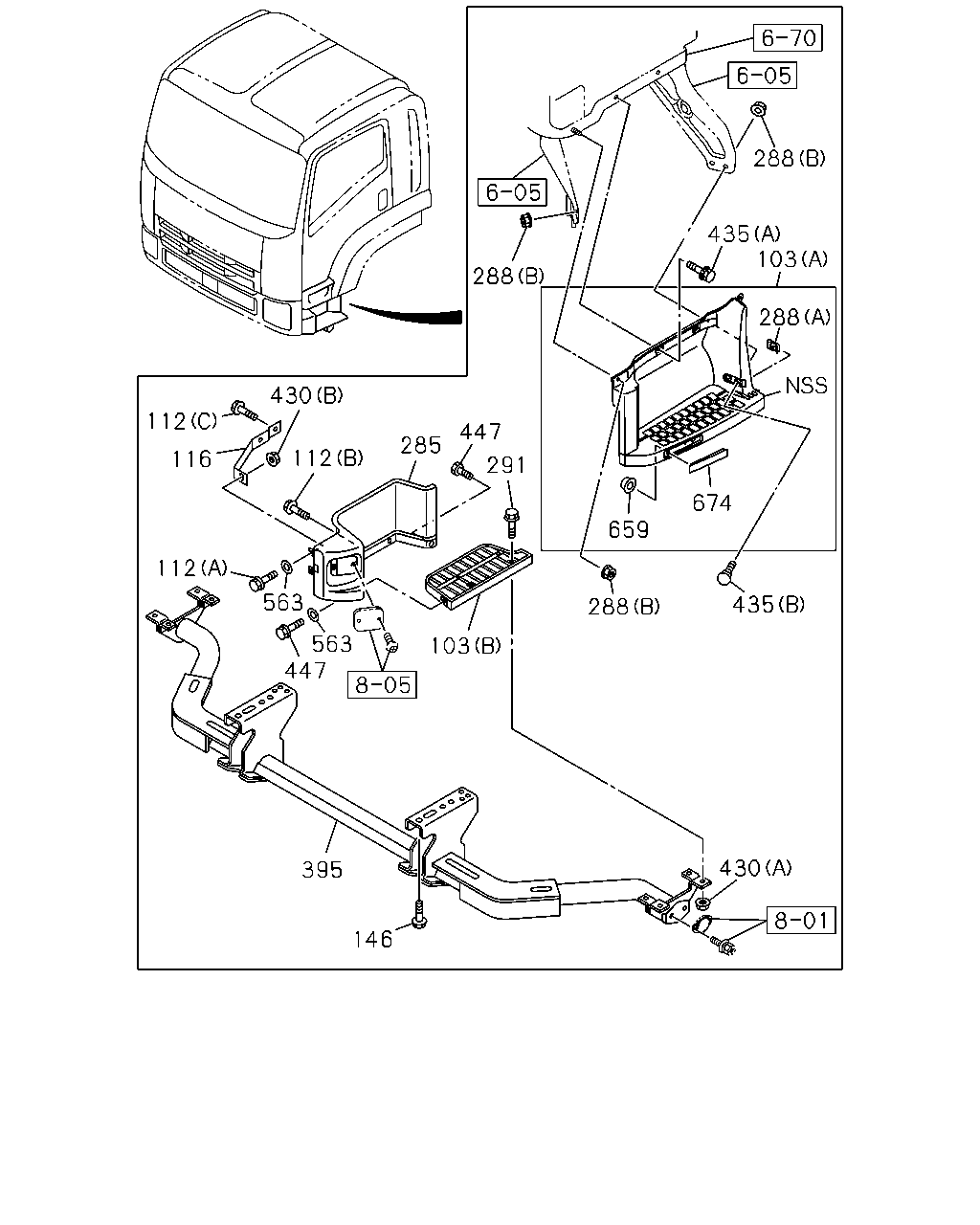

çizim 351300
112 116 112 430 112 563 563 447 395 146 285 103 447 288 288 435 103 288 674 659 288 435 291 430
BalonParca AdiParca NoAdetTipApplied Date A B
103 PLATE; STEP
(B) THA 		8-97924-110-0 01 1 1305- ● ●
103 PLATE; STEP
(A) 		8-98069-977-2 01 1 1305- ● ●
103 PLATE; STEP
(B) THA 		8-97924-109-0 01 1 1305- ● ●
103 PLATE; STEP
(A) 		8-98069-976-2 01 1 1305- ● ●
112 BOLT; 1ST STEP
(A) M6X16 FLANGE THA 		0-28050-616-0 02 1 1305- ● ●
112 BOLT; 1ST STEP
(B) M6X20 FLANGE 		0-28050-620-0 02 1 1305- ● ●
112 BOLT; 1ST STEP
(C) M8X12 FLANGE THA 		0-28050-812-0 04 1 1305- ● ●
116 STAY; 1ST STEP,FRT
THA 		8-98196-756-0 02 1 1305- ● ●
146 BOLT; STEP BRKT
M16X40 		0-20851-640-0 02 1 1305- ● ●
146 BOLT; STEP BRKT
M16X50 		0-20851-650-0 06 1 1305- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-703-1 01 1 1305- ● ●
285 PLATE; STEP,1ST STEP
THA 		8-97924-704-1 01 1 1305- ● ●
288 NUT; STEP
(B) M8 FLANGE THA 		0-91180-108-0 10 1 1305- ● ●
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1305- ● ●
291 BOLT; STEP PLATE
M8X40 FLANGE THA 		0-28650-840-0 08 1 1305- ● ●
395 BRACKET; SIDE STEP
THA 		8-98182-923-2 01 1 1305- ● ●
430 NUT; PANEL
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1305- ● ●
430 NUT; PANEL
(A) M8 FLANGE THA 		0-91180-108-0 08 1 1305- ● ●
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1305- ● ●
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1305- ● ●
447 BOLT; PANEL
M6X12 FLANGE THA 		0-28050-612-0 06 1 1305- ● ●
563 WASHER; PL
ID=6.4 OD=18 		0-91610-706-0 10 1 1305- ● ●
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1305- ● ●
674 COVER; REFLECTOR 8-98092-734-0 01 1 1305- ● ●
674 COVER; REFLECTOR 8-98092-733-0 01 1 1305- ● ●
