1 |

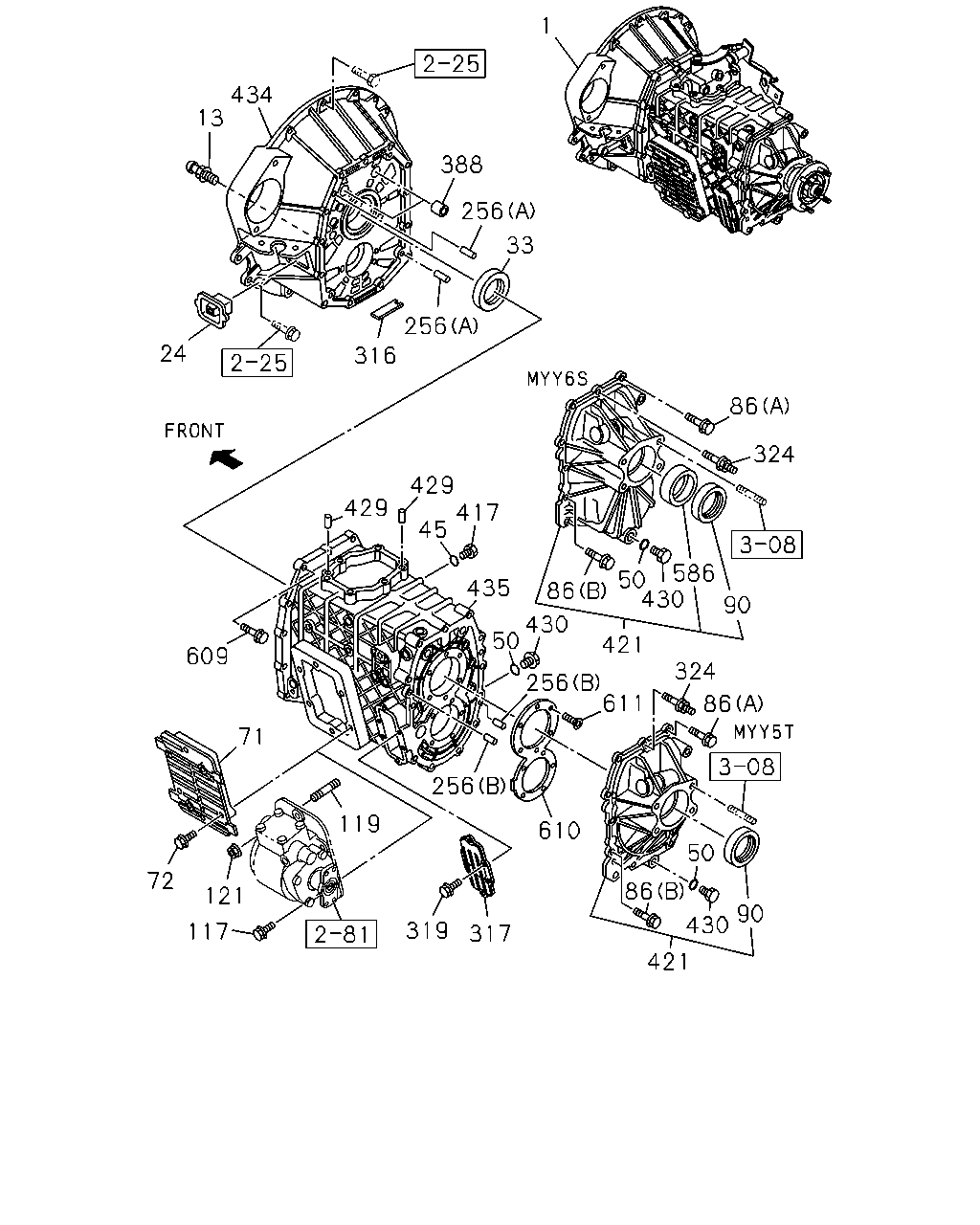

TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE<V66>
PTO MANUAL CONTROL<6WC>
IMA
|
8-98067-623-0 |
01 |
1 |
1304- |
● |
|
| |
1 |
TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL
CONTROL<6WC>
IMA
|
8-98067-623-0 |
01 |
1 |
1304- |
● |
|
| |
1 |
TRANSMISSION ASM; MANUAL
PTO TRANSMISSION SIDE<V66>
PTO MANUAL CONTROL<6WC>
IMA
|
8-98067-656-0 |
01 |
1 |
1304- |
|
● |
| |
1 |
TRANSMISSION ASM; MANUAL
EXC. PTO TRANSMISSION SIDE<V66>,PTO MANUAL
CONTROL<6WC>
IMA
|
8-98067-656-0 |
01 |
1 |
1304- |
|
● |
| |
13 |
SUPPORT; SHIFT FORK
IMA
|
8-97255-384-1 |
01 |
1 |
1304- |
● |
● |
| |
24 |
COVER; CHECK HOLE,DUST
IMA
|
8-97255-201-0 |
01 |
1 |
1304- |
● |
● |
| |
33 |
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T).
IMA
|
8-97253-550-0 |
01 |
1 |
1304- |
● |
● |
| |
45 |
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
IMA
|
8-97115-712-0 |
01 |
1 |
1304- |
● |
● |
| |
50 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
IMA
|
8-97115-712-0 |
01 |
1 |
1304- |
● |
|
| |
50 |
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T).
ID=17
IMA
|
8-97115-712-0 |
02 |
1 |
1304- |
|
● |
| |
71 |
COVER; SIDE,TRANS CASE
EXC. PTO TRANSMISSION SIDE<V66>
IMA
|
8-97252-625-0 |
01 |
1 |
1304- |
● |
● |
| |
72 |
BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE<V66>
M10X20 FLANGE
IMA
|
8-98014-142-0 |
06 |
1 |
1304- |
● |
● |
| |
86 |
BOLT; RR COVER
(A)
M10X40 FLANGE
IMA
|
0-28151-040-0 |
09 |
1 |
1406- |
|
● |
| |
86 |
BOLT; RR COVER
(A)
M10X40 FLANGE
IMA
|
0-28151-040-0 |
10 |
1 |
1304-1405 |
● |
● |
| |
86 |
BOLT; RR COVER
(A)
M10X40 FLANGE
IMA
|
0-28151-040-0 |
10 |
1 |
1406- |
● |
|
| |
86 |
BOLT; RR COVER
(B)
M10X40 FLANGE
IMA
|
8-97365-377-0 |
02 |
1 |
1304- |
● |
● |
| |
90 |
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
NOK
IMA
|
8-97253-552-1 |
01 |
1 |
1304- |
● |
● |
| |
117 |
BOLT; PTO FIX
PTO TRANSMISSION SIDE<V66>
M10X30 FLANGE
IMA
|
0-28751-030-0 |
02 |
1 |
1304- |
● |
● |
| |
119 |
STUD; PTO FIX
PTO TRANSMISSION SIDE<V66>
M10X25 L=40
THA
|
0-44011-025-0 |
02 |
1 |
1304- |
● |
● |
| |
119 |
STUD; PTO FIX
PTO TRANSMISSION SIDE<V66>
M10X30 L=45
IMA
|
0-44011-030-0 |
02 |
1 |
1304- |
● |
● |
| |
121 |
NUT; PTO FIX
PTO TRANSMISSION SIDE<V66>
M10 FLANGE
THA
|
0-91180-210-0 |
04 |
1 |
1304- |
● |
● |
| |
256 |
PIN; KNOCK
(A)
OD=10 L=20
IMA
|
8-97135-423-0 |
02 |
1 |
1304- |
● |
● |
| |
256 |
PIN; KNOCK
(B)
ID=6 L=12
THA
|
9-08160-612-0 |
02 |
1 |
1304- |
● |
● |
| |
316 |
MAGNET; TRANS CASE
IMA
|
8-94249-524-2 |
01 |
1 |
1304- |
● |
● |
| |
317 |
COVER; CASE
IMA
|
8-97252-626-0 |
01 |
1 |
1304- |
● |
● |
| |
319 |
BOLT; COVER
M8X20 FLANGE
THA
|
0-28050-820-0 |
06 |
1 |
1304- |
● |
● |
| |
324 |
STUD; RR COVER
M10X15,M10X40 L=65
IMA
|
8-97365-379-0 |
02 |
1 |
1406- |
|
● |
| |
324 |
STUD; RR COVER
M10X15,M10X40 L=65
IMA
|
8-97365-379-0 |
01 |
1 |
1304-1405 |
● |
● |
| |
324 |
STUD; RR COVER
M10X15,M10X40 L=65
IMA
|
8-97365-379-0 |
01 |
1 |
1406- |
● |
|
| |
388 |
BUSHING; CLU HSG
IMA
|
8-97241-326-2 |
02 |
1 |
1304- |
● |
● |
| |
417 |
PLUG; OIL FILLER,TRANS
IMA
|
8-97365-373-0 |
01 |
1 |
1304- |
● |
● |
| |
421 |
COVER; RR,TRANS
IMA
|
8-98020-029-0 |
01 |
1 |
1304- |
● |
|
| |
421 |
COVER; RR,TRANS
IMA
|
8-98020-028-0 |
01 |
1 |
1304- |
|
● |
| |
429 |
PIN; STRAIGHT
OD=10 L=20
IMA
|
8-97135-423-0 |
02 |
1 |
1304- |
● |
● |
| |
430 |
PLUG; OIL DRAIN
IMA
|
8-97365-374-0 |
01 |
1 |
1304- |
● |
|
| |
430 |
PLUG; OIL DRAIN
IMA
|
8-97365-374-0 |
02 |
1 |
1304- |
|
● |
| |
434 |
HOUSING; CLU
IMA
|
8-97237-099-5 |
01 |
1 |
1304- |
● |
● |
| |
435 |
CASE; TRANS
IMA
|
8-97379-375-0 |
01 |
1 |
1304- |
● |
|
| |
435 |
CASE; TRANS
IMA
|
8-97379-374-0 |
01 |
1 |
1304- |
|
● |
| |
586 |
BEARING; NEEDLE
IMA
|
8-97253-109-0 |
01 |
1 |
1304- |
|
● |
| |
609 |
BOLT; HSG TO CASE
M10X40 FLANGE
IMA
|
0-28151-040-0 |
13 |
1 |
1304- |
● |
● |
| |
610 |
RETAINER; BRG
IMA
|
8-97241-315-1 |
01 |
1 |
1304- |
● |
● |
| |
611 |
SCREW
M10X27 TORQUES
IMA
|
8-97365-354-0 |
11 |
1 |
1304- |
● |
● |
