51421 - TFR/TFS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

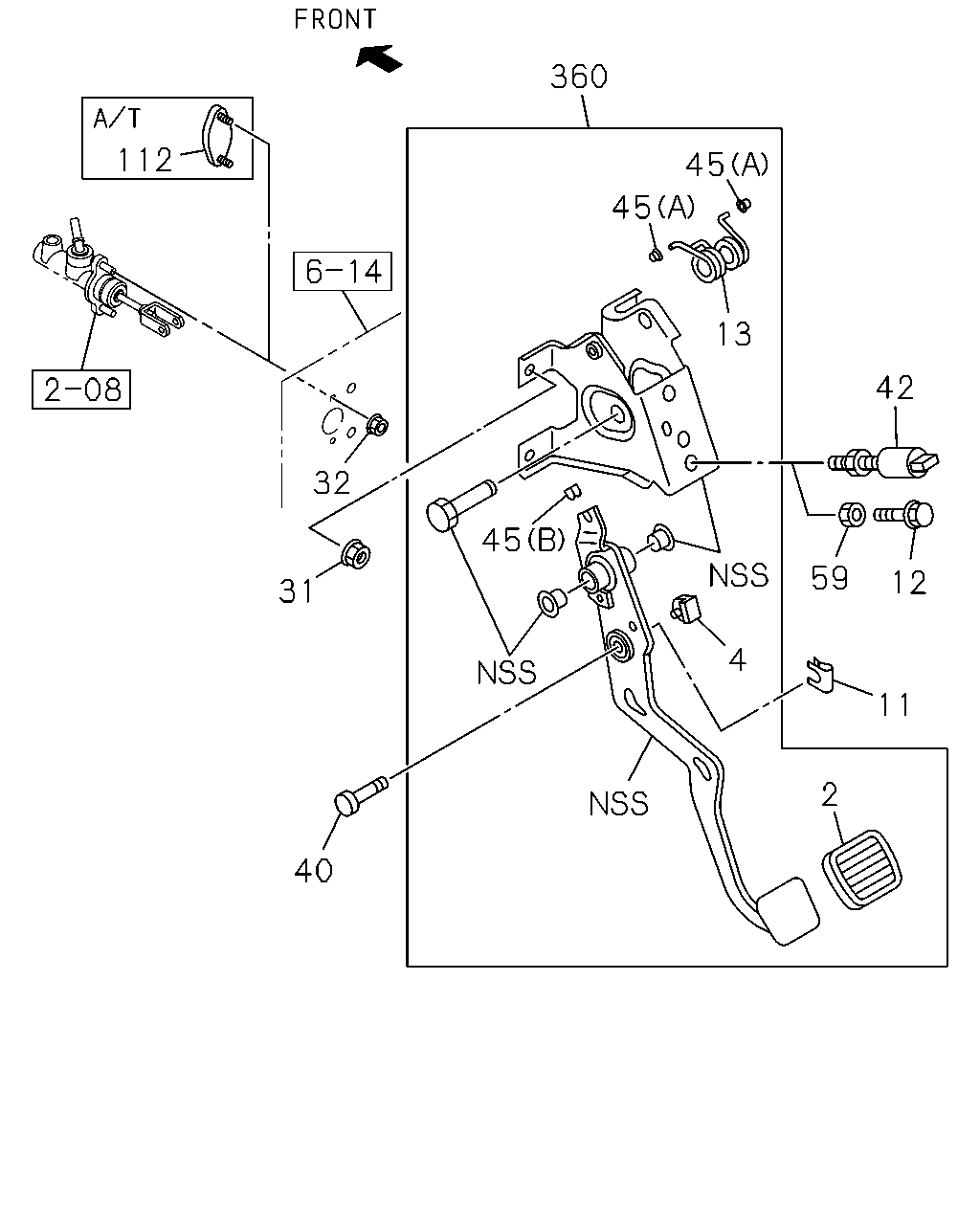

2-03 — CLUTCH PEDAL AND CONTROL
(#119025) — 20 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
112
32
31
40
4
2
11
59
12
42
45
13
45
360
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
COVER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP)
8-97318-799-0
01
1
1305-
●
●
●
●
4
STOPPER; CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP)
8-97947-783-0
01
1
1305-
●
●
●
●
11
PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP)
8-98007-161-0
01
1
1305-
●
●
●
●
12
BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) M10X35
0-20851-035-0
01
1
1305-
●
●
13
SPRING; ASSIST,CLU PEDAL
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP)
8-98207-852-0
01
1
1305-
●
●
13
SPRING; ASSIST,CLU PEDAL
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)
8-97942-312-0
01
1
1305-
●
●
●
31
NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) M8 FLANGE
0-91180-108-0
04
1
1305-
●
●
●
●
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91180-108-0
02
1
1305-
●
●
●
●
40
PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) OD=7.9 L=27.5
8-97312-338-0
01
1
1305-
●
●
●
●
42
SWITCH; CLU
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)
8-98154-210-0
01
1
1305-1408
●
●
●
42
SWITCH; CLU
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EURO3 SPECIFICATION<NT3>
8-98154-210-0
01
1
1409-
●
42
SWITCH; CLU
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)
8-98154-210-0
01
1
1409-
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (A)
8-97942-313-0
02
1
1305-
●
●
●
●
45
BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) (B)
8-97942-314-0
01
1
1305-
●
●
●
●
59
NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED 5H(MWQ),M/T MUA 5 SPEED 5G(RSP) M10
0-91110-510-0
01
1
1305-
●
●
112
PLUG; METAL,M/CYL
A/T 5 SPEED-AISIN(MA1)
8-97945-168-0
01
1
1305-
●
●
360
PEDAL ASM; CLUTCH
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP)
8-97947-854-0
01
1
1305-1512
●
●
360
PEDAL ASM; CLUTCH
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP)
8-98317-388-0
01
1
1601-
●
●
360
PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)
8-98219-800-0
01
1
1305-1512
●
●
●
360
PEDAL ASM; CLUTCH
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ)
8-98317-389-0
01
1
1601-
●
●
●
