2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#119008) — 27 parça

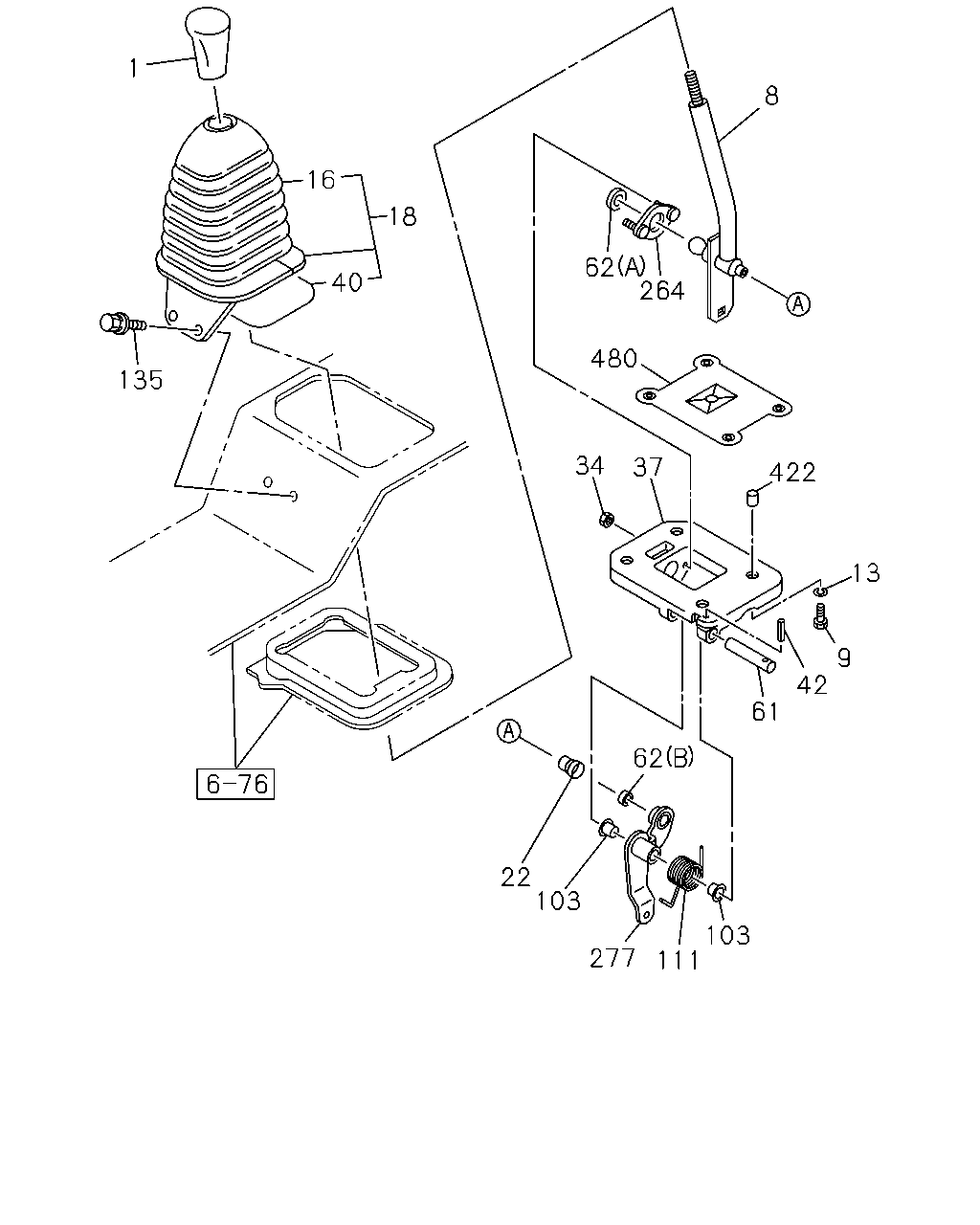

1 135 40 18 16 8 62 480 422 264 37 34 61 13 9 42 62 22 103 277 111 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER	1-33611-082-1	01	1	1305-
8	LEVER; CHANGE	8-98199-046-1	01	1	1305-
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28650-825-0	04	1	1305-
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	0-91610-708-0	04	1	1305-
16	BOOT; CHANGE LEVER	1-79996-688-0	01	1	1305-
18	BOOT; CHANGE LEVER	8-98199-743-0	01	1	1305-
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	1305-
34	NUT M6 FLANGE	0-91180-106-0	02	1	1305-
37	BRACKET; CHANGE LEVER SUPPORT	8-98100-876-1	01	1	1305-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	1305-
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	1305-
61	PIN; SELECT LEVER	1-33619-470-0	01	1	1305-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	1305-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	1305-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	1305-
111	SPRING	8-98199-054-0	01	1	1305-
135	BOLT M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	1305-
264	PLATE; COVER	1-33619-469-0	01	1	1305-
277	LEVER; RELAY	8-98199-053-0	01	1	1305-
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	1305-
480	RUBBER; COVER	8-98119-365-0	01	1	1305-

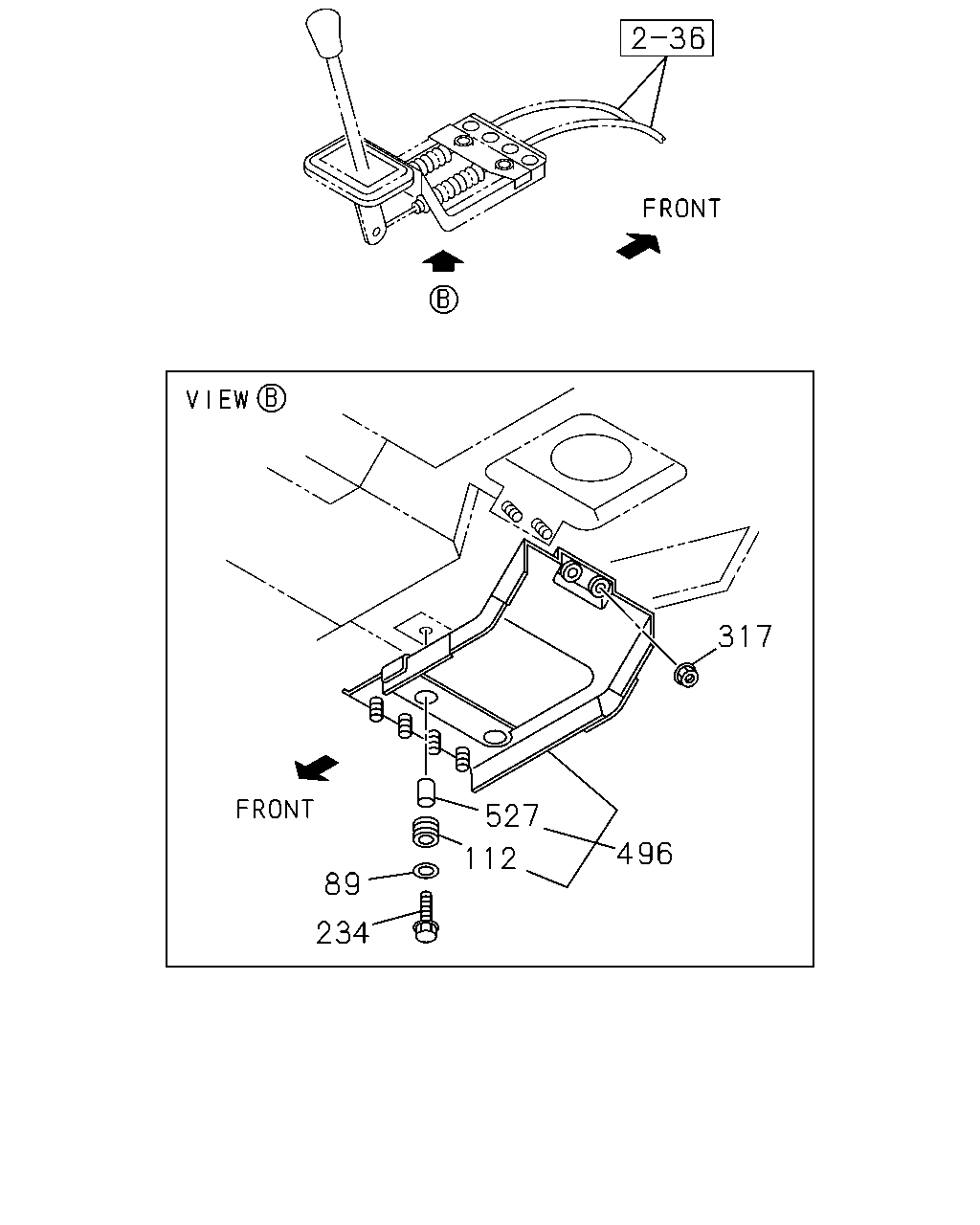

317 496 527 112 89 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
89	WASHER; PL,LWR SUPPORT BRKT ID=8.4 OD=22	0-91610-708-0	02	1	1305-
112	RUBBER; CUSHION	1-33619-442-0	04	1	1305-
234	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1305-
317	NUT; BRKT M8 W/DISHED WASHER	8-97329-625-0	02	1	1305-
496	BRACKET ASM; T/M CABLE	8-98198-828-1	01	1	1305-
527	COLLAR; DIST,T/M CABLE BRACKET	1-33619-443-0	04	1	1305-
