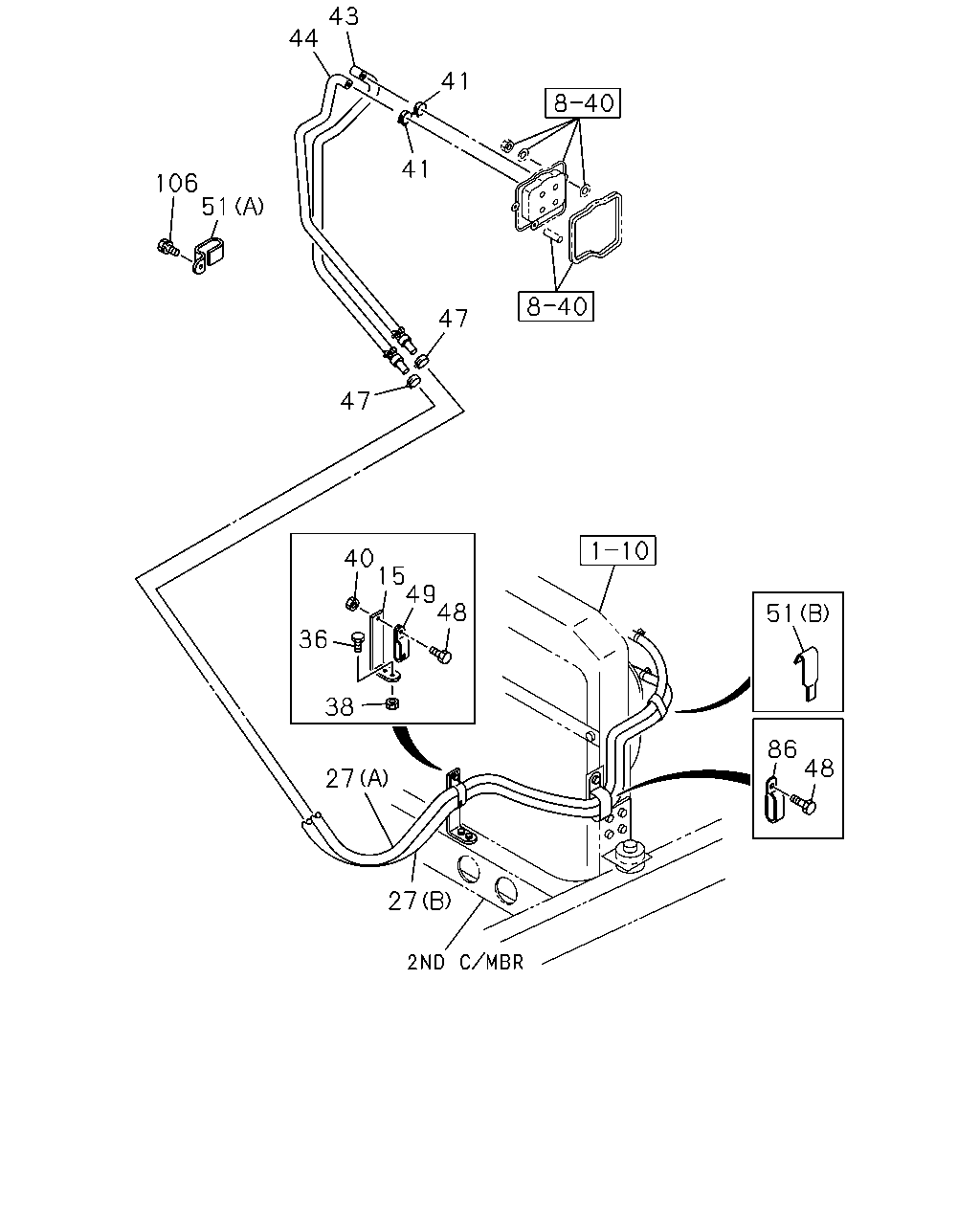

8-45 — HEATER PIPING (#119) — 19 parça

106 51 44 43 41 41 47 47 40 15 49 48 36 38 27 27 51 86 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	BRACKET; WATER HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83571-603-1	01	1	9202-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-83565-565-0	01	1	9202-	●	●
27	HOSE; WATER,HTR UNIT TO WATER PIPE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B)	1-83565-566-0	01	1	9202-	●	●
36	BOLT; BRKT M8X18 FLANGE	0-28080-818-0	02	1	9202-9207	●	●
36	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●
38	NUT; BRKT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	9202-	●	●
40	NUT; CLIP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8	9-09110-408-0	01	1	9202-	●	●
41	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=26	1-09704-090-1	02	1	9202-	●	●
43	HOSE; WATER,OUTLET,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-410-1	01	1	9202-	●	●
44	HOSE; WATER,HTR,INL HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-83565-409-1	01	1	9202-	●	●
47	CLAMP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=26	1-09704-090-1	04	1	9202-	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X18	0-28010-818-0	02	1	9202-9204	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	02	1	9205-9207	●	●
48	BOLT; CLIP FIX HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M8X20 FLANGE	0-28080-820-0	02	1	9208-	●	●
49	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=24X2 L=25	1-09700-710-0	01	1	9202-	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-09700-625-0	02	1	9202-	●	●
51	CLIP; WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B)	1-83574-139-0	02	1	9202-	●	●
86	CLIP; HTR HOSE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	9-09917-380-0	01	1	9202-	●	●
106	BOLT; CLIP,WATER HOSE,HTR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M6X20 W/LK&PL WASHER	1-09980-493-0	02	1	9202-	●	●
