0-13 — OIL PAN AND LEVEL GAUGE (#11897) — 50 parça

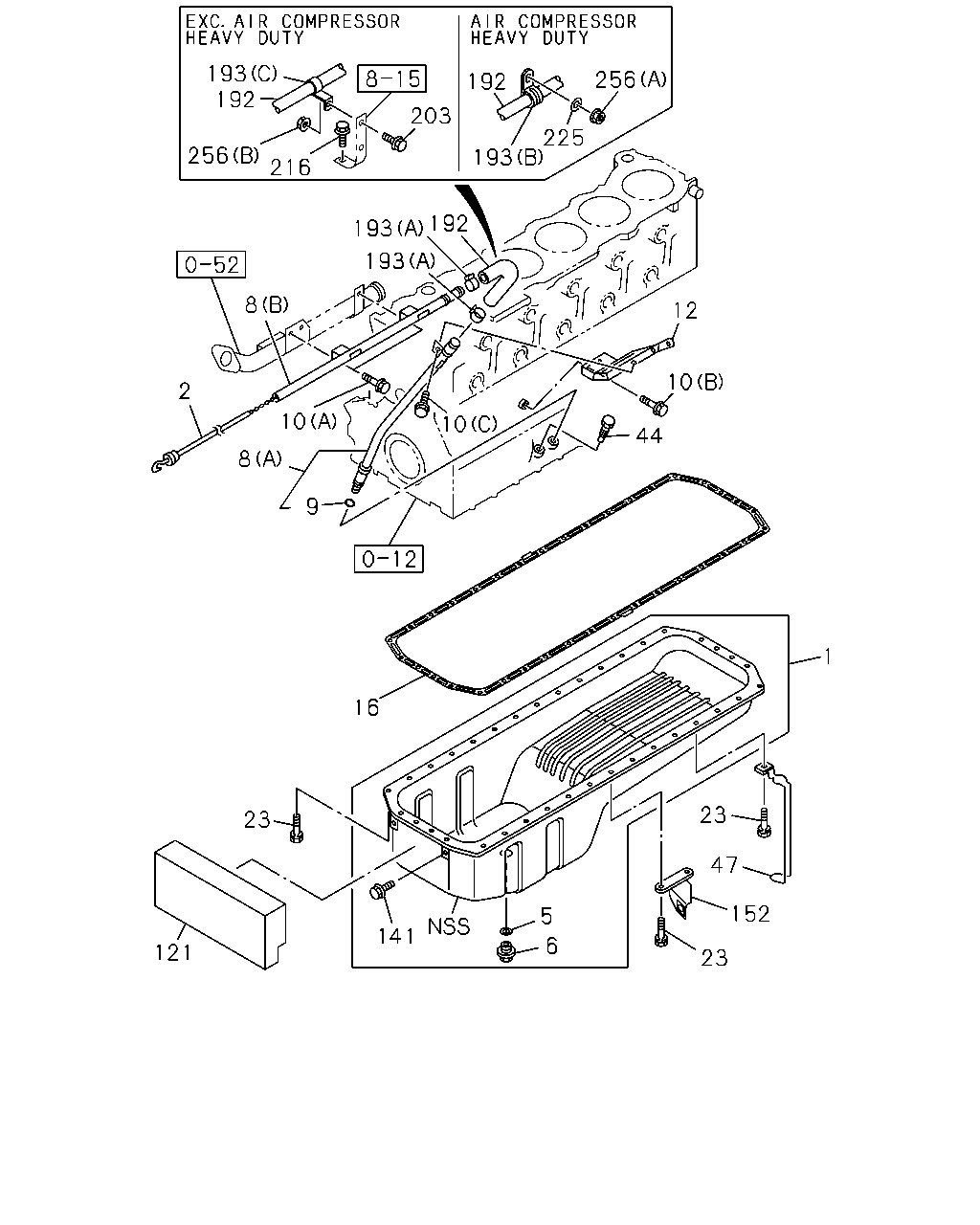

çizim 80760
193 192 256 192 203 225 193 256 216 192 193 193 8 12 10 2 10 10 44 8 9 1 16 23 23 47 152 5 141 6 121 23
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PAN ASM; OIL 1-11360-862-0 01 1 0105-0309 ● ● ● ●
1 PAN ASM; OIL 1-11360-912-0 01 1 0310- ● ● ● ●
2 GAUGE; OIL LEVEL 1-11760-405-0 01 1 0105- ● ● ●
2 GAUGE; OIL LEVEL 1-11760-427-0 01 1 0105- ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 		8-94399-398-0 01 1 0105-0309 ● ● ● ●
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0310- ● ● ● ●
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0105- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		1-11766-470-0 01 1 0105- ● ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-488-0 01 1 0105-0107 ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-601-0 01 1 0108- ● ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		1-11766-591-0 01 1 0105- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-496-0 01 1 0105- ● ● ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28081-020-0 01 1 0105-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(C) M10X20 FLANGE 		0-28051-020-0 01 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28181-020-0 02 1 0105-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(B) M10X20 FLANGE 		0-28151-020-0 02 1 0601- ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0512 ● ● ● ●
10 BOLT; GUIDE TUBE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
12 BRACKET; TUBE,OIL LEVEL GAUGE 1-11769-170-0 01 1 0105- ● ● ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-130-0 01 1 0105- ● ● ● ●
23 BOLT; OIL PAN
M10X28 W/LK&PL WASHER 		0-50151-028-0 36 1 0105- ● ● ● ●
44 PLUG
M22X41 		1-09604-098-0 01 1 0105- ● ● ● ●
47 CLIP; HOSE,AIR BREATHER 1-11369-147-1 01 1 0105- ● ● ● ●
121 COVER; OIL PAN 1-19389-209-0 01 1 0105- ● ●
141 BOLT; BRKT TO OIL PAN FIX
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0309 ● ● ● ●
152 BRACKET; CLIP POWER STRG PIPE 1-21119-130-1 01 1 0105- ● ● ● ●
192 HOSE; GUIDE TUBE
L=600 L=430 		0-02361-300-0 01 1 0105- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(A) ID=17 		1-09707-158-0 02 1 0105- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=20 L=24 		1-09700-730-1 01 1 0105-0107 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
AIR COMPRESSOR HEAVY DUTY(E1Q) (B) ID=20 L=24 		1-09700-730-1 02 1 0108- ● ● ● ●
193 CLIP; HOSE,GUIDE TUBE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0107 ● ● ●
193 CLIP; HOSE,GUIDE TUBE
(C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0107 ●
193 CLIP; HOSE,GUIDE TUBE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (C) ID=20 H=23 L=27 		1-09700-861-0 01 1 0108- ● ● ● ●
203 BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE 		0-28690-820-0 01 1 0105-0107 ● ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28690-820-0 01 1 0105-0107 ●
203 BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE 		0-28690-820-0 01 1 0108-0512 ● ● ● ●
203 BOLT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X20 FLANGE 		0-28660-820-0 01 1 0601-0604 ● ● ● ●
203 BOLT; CLIP
M8X20 FLANGE 		0-28660-820-0 01 1 0605- ● ● ● ●
216 BOLT; BRKT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M8X30 FLANGE 		0-28690-830-0 01 1 0105-0107 ● ● ●
216 BOLT; BRKT
M8X30 FLANGE 		0-28690-830-0 01 1 0105-0107 ●
225 WASHER; PL
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26 		9-09160-710-0 01 1 0105-0107 ● ● ●
225 WASHER; PL
AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.5 OD=26 		9-09160-710-0 01 1 0108- ● ● ● ●
256 NUT; CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0105-0107 ● ● ●
256 NUT; CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE 		0-91150-210-0 01 1 0108-0602 ● ● ● ●
256 NUT; CLIP
AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10 FLANGE 		0-91180-210-0 01 1 0603- ● ● ● ●
256 NUT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8 FLANGE 		0-91150-108-0 01 1 0105-0107 ● ● ●
256 NUT; CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0105-0107 ●
256 NUT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8 FLANGE 		0-91150-108-0 01 1 0108-0602 ● ● ● ●
256 NUT; CLIP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M8 FLANGE 		0-91180-108-0 01 1 0603-0604 ● ● ● ●
256 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 01 1 0605- ● ● ● ●
