9-01 — TOOLS (#11892) — 190 parça

120 119 122 75 163 163 166 123 414 408 408 167

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	TOOL; SETTING,OIL SEAL	1-85221-096-0	01	1	0105-
119	PULLER ASM; TOP GEAR BRG MJA7 M/T<X9Q>,MJA6 M/T<X9S> L=235	9-85210-190-0	01	1	0105-
120	PULLER ASM; MAIN REAR BRG ISUZU M/T<X9A> L=285	9-85210-184-0	01	1	0105-
122	PULLER ASM; COUNTER FRT ISUZU M/T<X9A>	9-85210-129-1	01	1	0105-
123	PULLER; SPEEDOMETER BUSHING ISUZU M/T<X9A>	9-85210-091-0	01	1	0105-
163	TOOL; SETTING ISUZU M/T<X9A> (A) L=195	1-85221-162-1	01	1	0105-
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=150	1-85221-163-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85221-193-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-247-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (X)	1-85221-248-0	01	1	0105-
166	ALIGNER; CLU RELEASE LEVER CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-85253-015-0	01	1	0105-
166	ALIGNER; CLU RELEASE LEVER EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-85253-010-0	01	1	0105-
167	ALIGNER; CLU PILOT L=300 OD=41.1	1-85253-020-0	01	1	0105-
408	TOOL; SETTING,SHIFT ASSISTER (A)	1-85221-268-0	01	1	0105-
408	TOOL; SETTING,SHIFT ASSISTER (B)	1-85221-269-0	01	1	0105-
414	PULLER; REV IDLE SHAFT ISUZU M/T<X9A>	9-85210-095-0	01	1	0105-

82 86 87 88 90 89 99 93 106 191 329 133 114 218 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	PULLER ASM; CR/SHF GEAR	9-85211-139-0	01	1	0105-
86	REPLACER; FLYWHEEL	1-85230-006-0	01	1	0105-
87	TOOL; PISTON	1-85220-082-0	01	1	0105-
88	TOOL; CONNROD BUSHING	1-85220-002-0	01	1	0105-
89	TOOL; PISTON RING	1-85221-029-0	01	1	0105-
90	PULLER; INJ PUMP BRG	1-85210-039-0	01	1	0105-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	0105-
99	WRENCH; CYL HD BOLT	1-85115-013-0	01	1	0105-
106	TOOL; SETTING PILOT BRG	1-85221-057-0	01	1	0105-
114	WRENCH; INJ PUMP	1-85220-027-0	01	1	0105-
133	WRENCH; NUT STARTER	1-85221-030-0	02	1	0105-
191	ADAPTER	1-85317-002-0	01	1	0105-
218	PLUG	1-15629-043-0	01	1	0105-
219	GASKET	9-09720-555-0	01	1	0105-
329	PULLER ASM; SLINGER ID=124	1-85220-052-0	01	1	0105-

50 47 51 17 49 63 57 70 54 61 70 73 81 74 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	HAMMER (B)	1-85220-021-0	01	1	0105-
17	HAMMER (A)	9-85121-406-0	01	1	0105-
47	WRENCH ASM; UNIVERSAL,INJ PUMP	1-85220-018-0	01	1	0105-
49	REPLACER ASM; VALVE	1-85235-001-0	01	1	0105-
50	REPLACER; NOZZLE HOLDER L=500	1-85230-007-0	01	1	0105-
51	PULLER ASM; WATER PUMP	1-85210-028-0	01	1	0105-
54	PULLER; THERMOSTAT SEAL	1-85210-029-0	01	1	0105-
57	TOOL; SETTING CRANK GEAR OD=175	1-85221-028-0	01	1	0105-
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	0105-
63	PULLER; NOZZLE SLEEVE	1-85210-026-0	01	1	0105-
70	TOOL; SETTING,OIL SEAL (A) FOR OIL SEAL	1-85220-051-0	01	1	0105-
70	TOOL; SETTING,OIL SEAL (B) FOR OIL THROWER	1-85220-053-0	01	1	0105-
73	TOOL; SETTING,THERMOSTAT SEAL	1-85221-034-0	01	1	0105-
74	TOOL; SETTING,INJ PUMP BRG (A)	1-85220-019-0	01	1	0105-
74	TOOL; SETTING,INJ PUMP BRG (B)	1-85220-020-1	01	1	0105-
81	PULLER; BRG CAP	1-85210-015-0	01	1	0105-

40 39 38 37 115 36 189 193 237 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
36	WRENCH; 24	9-85111-377-0	01	1	0105-
37	WRENCH; 27	9-85111-375-0	01	1	0105-
38	WRENCH; 32	9-85111-358-0	01	1	0105-
39	WRENCH; 36	9-85111-374-0	01	1	0105-
40	WRENCH; 41	9-85111-356-0	01	1	0105-
115	PLIER	5-85171-001-0	01	1	0105-0212
115	PLIER	5-85171-002-0	01	1	0301-
189	TUBE; AIR BREATHER L=460	9-85291-414-0	01	1	0105-
193	JACK ASM 15TON	1-85510-019-1	01	1	0105-
230	PUMP; GREASE	1-85556-007-3	01	1	0105-
237	BAG; TOOL	8-97130-902-0	01	1	0105-

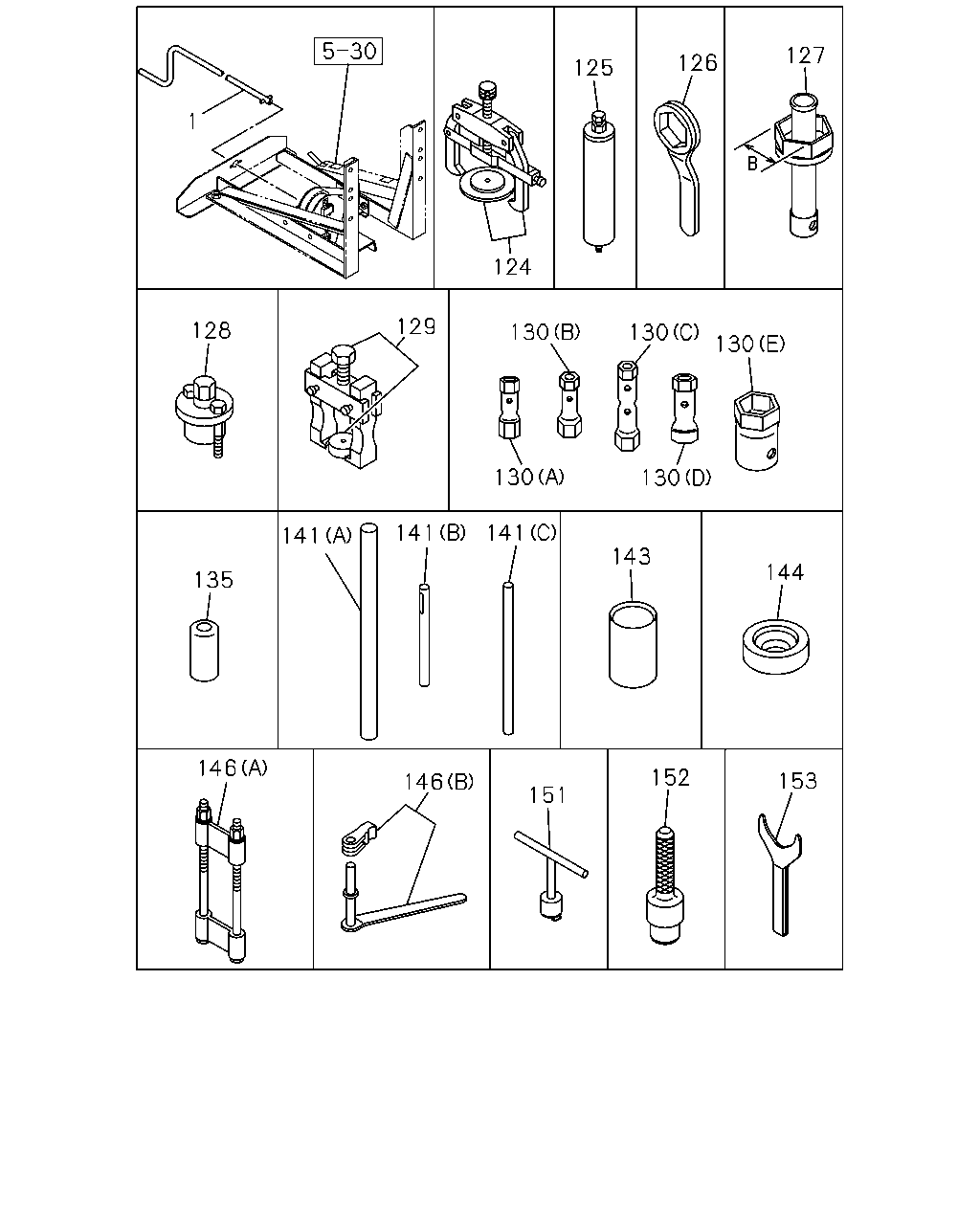

127 126 125 1 124 129 128 130 130 130 130 130 141 141 141 143 144 135 146 152 153 146 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	0105-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	0105-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	0105-
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT REARWARD REAR	9-85113-509-0	01	1	0105-
127	WRENCH ASM; HUB BRG NUT FORWARD REAR	9-85113-524-0	01	1	0105-
128	PULLER ASM; STRG WHEEL	1-85210-078-0	01	1	0105-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	0105-
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	0105-
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	0105-
130	WRENCH; BOX (B) B=32 & 41 L=150	9-85112-322-0	01	1	0105-
130	WRENCH; BOX (C) B=36 & 41 L=200	9-85112-330-0	01	1	0105-
130	WRENCH; BOX (A) B=41 & 46 L=165	9-85113-401-0	01	1	0105-
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	0105-
141	HANDLE; WRENCH (A) OD=25 L=480	1-85116-011-0	01	1	0105-
141	HANDLE; WRENCH (B) OD=16 L=200	9-85111-934-0	01	1	0105-
141	HANDLE; WRENCH (C) OD=19 L=400	9-85114-306-0	01	1	0105-
141	HANDLE; WRENCH (C) OD=16 L=300	9-85114-307-0	01	1	0105-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	0105-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (B)	1-85237-017-0	01	1	0105-
146	REPLACER KIT; LEAF SPR (A)	9-85231-556-0	01	1	0105-
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	0105-
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	0105-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	0105-

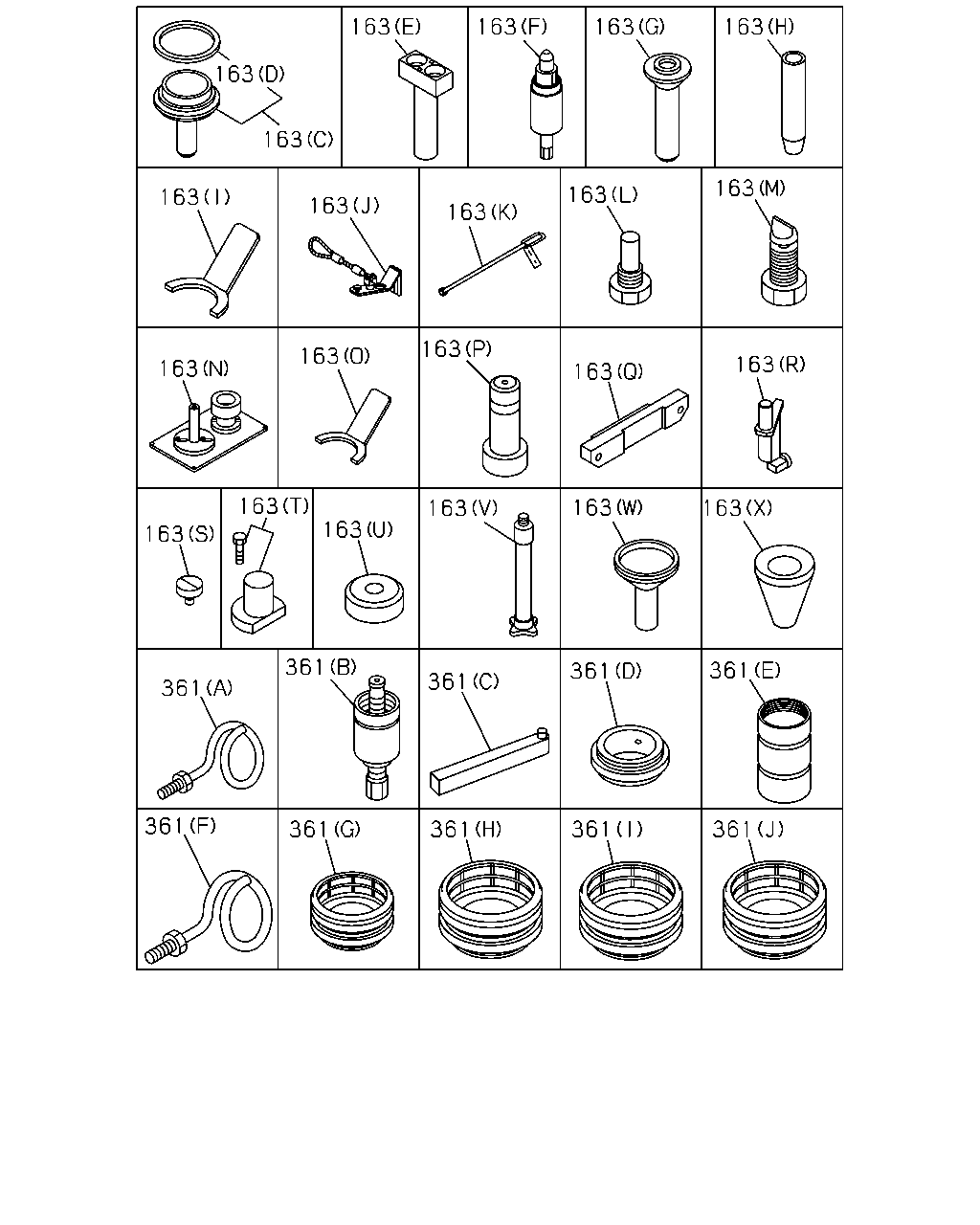

163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361 361 361 361 361

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
163	TOOL; SETTING ISUZU M/T<X9A> (A) L=195	1-85221-162-1	01	1	0105-
163	TOOL; SETTING ISUZU M/T<X9A> (B) L=150	1-85221-163-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85221-193-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85221-194-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (F)	1-85221-229-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (G)	1-85221-230-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (H)	1-85221-231-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT	1-85221-232-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (J)	1-85221-233-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (K)	1-85221-234-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (L)	1-85221-235-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (M)	1-85221-236-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (N)	1-85221-237-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (O) MAIN SHAFT	1-85221-238-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (P)	1-85221-239-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (Q)	1-85221-240-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (R)	1-85221-241-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (S)	1-85221-242-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (T)	1-85221-243-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (U)	1-85221-244-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (V)	1-85221-245-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (W)	1-85221-246-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (D)	1-85221-247-0	01	1	0105-
163	TOOL; SETTING TRANSMISSION-ZF 16S151 OD(Y2N) (X)	1-85221-248-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10	1-85210-091-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-85219-015-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (C)	1-85219-017-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG	1-85219-018-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (E)	1-85219-019-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (F) M12	1-85219-020-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (G) COUNTER BRG RR	1-85219-021-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (H) TOP BRG	1-85219-022-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (I) COUNTER BRG FRT	1-85219-023-0	01	1	0105-
361	PULLER; TRANS TRANSMISSION-ZF 16S151 OD(Y2N) (J) TOP BRG MAIN SHAFT SIDE	1-85219-024-0	01	1	0105-

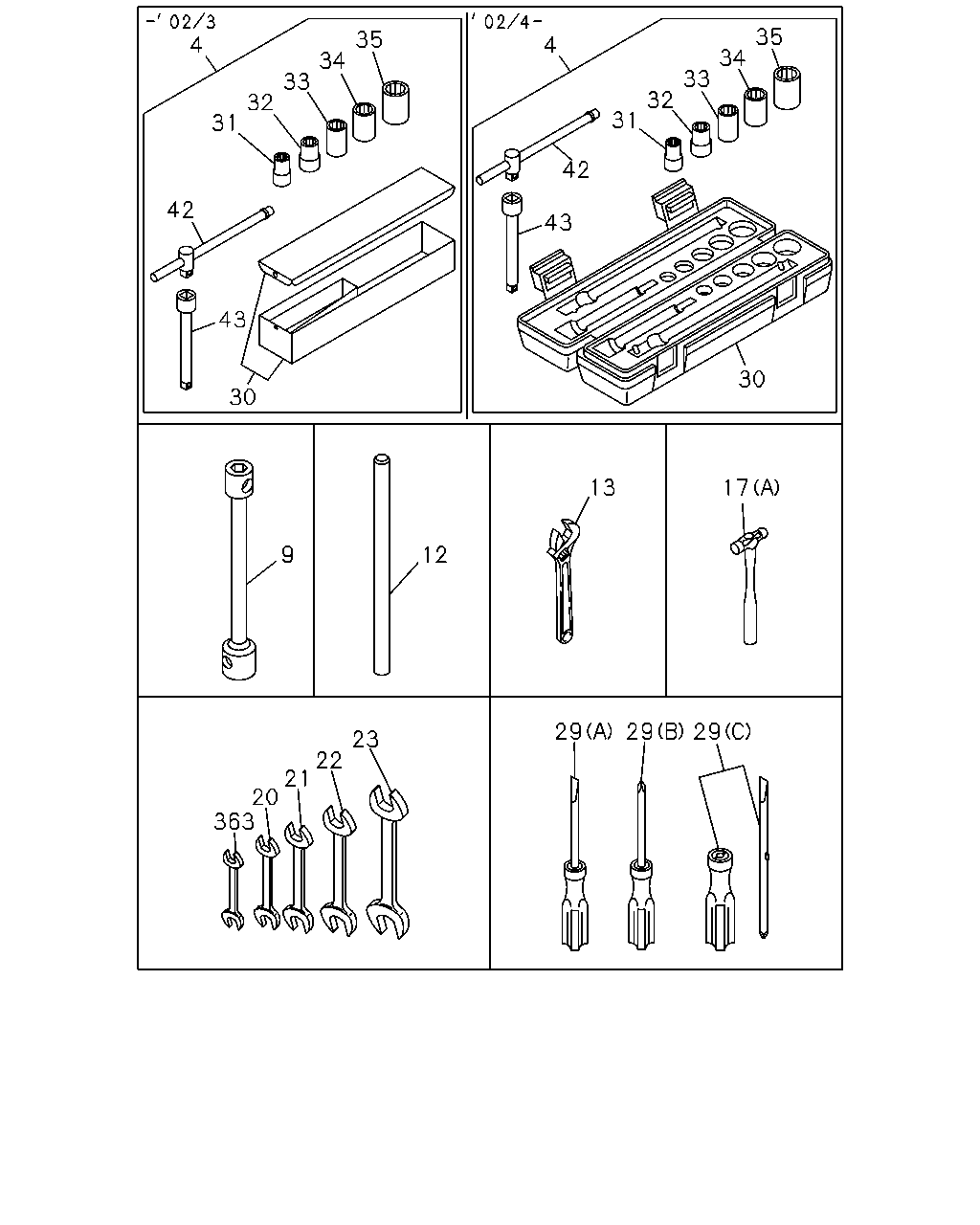

4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET	9-85110-012-0	01	1	0105-0203
4	WRENCH KIT; SOCKET	1-85000-491-0	01	1	0204-
9	WRENCH; WHEEL PIN WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 41X21 L=440	1-85113-015-1	01	1	0105-0110
9	WRENCH; WHEEL PIN EXC. WHEEL 8.25X22.5 165-13(QM6),WHEEL 8STUD 7.00TX20 162-12(Q54),WHEEL 8STUD 7.50VX20 165-13(Q62) 33X30 L=450	1-85111-033-1	01	1	0105-0110
9	WRENCH; WHEEL PIN 33X30 L=450	1-85111-033-1	01	1	0111-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0105-
13	WRENCH; MONKEY L=255	1-85117-002-1	01	1	0105-
17	HAMMER (B)	1-85220-021-0	01	1	0105-
17	HAMMER (A)	9-85121-406-0	01	1	0105-
20	WRENCH; 10X12 10X12	9-09592-110-0	01	1	0105-
21	WRENCH; 14X17 14X17	9-09592-114-0	01	1	0105-
22	WRENCH; 19X22 19X22	9-99592-119-0	01	1	0105-
23	WRENCH; 24X27 24X27	9-09592-124-0	01	1	0105-
29	DRIVER; SCREW (A) <-> L=285	1-85151-004-0	01	1	0105-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	0105-
29	DRIVER; SCREW (B) <+> L=275	9-09595-023-0	01	1	0105-
30	BOX; SOCKET WRENCH	9-85581-260-0	01	1	0105-0203
30	BOX; SOCKET WRENCH	1-85000-492-0	01	1	0204-
31	WRENCH; 12	9-09590-012-0	01	1	0105-0203
31	WRENCH; 12	1-85000-495-0	01	1	0204-
32	WRENCH; 14	9-09590-014-0	01	1	0105-0203
32	WRENCH; 14	1-85000-496-0	01	1	0204-
33	WRENCH; 17	9-09590-017-0	01	1	0105-0203
33	WRENCH; 17	1-85000-497-0	01	1	0204-
34	WRENCH; 19	9-09590-019-0	01	1	0105-0203
34	WRENCH; 19	1-85000-498-0	01	1	0204-
35	WRENCH; 22	9-09590-022-0	01	1	0105-0203
35	WRENCH; 22	1-85000-499-0	01	1	0204-
42	HANDLE; SLIDING	9-09590-512-0	01	1	0105-0203
42	HANDLE; SLIDING	1-85000-500-0	01	1	0204-
43	BAR; EXTENSION,SOCKET WRENCH	9-09590-812-0	01	1	0105-0203
43	BAR; EXTENSION,SOCKET WRENCH	1-85000-501-0	01	1	0204-
363	WRENCH; OPEN END 8X10 8X10	9-99592-108-0	01	1	0105-

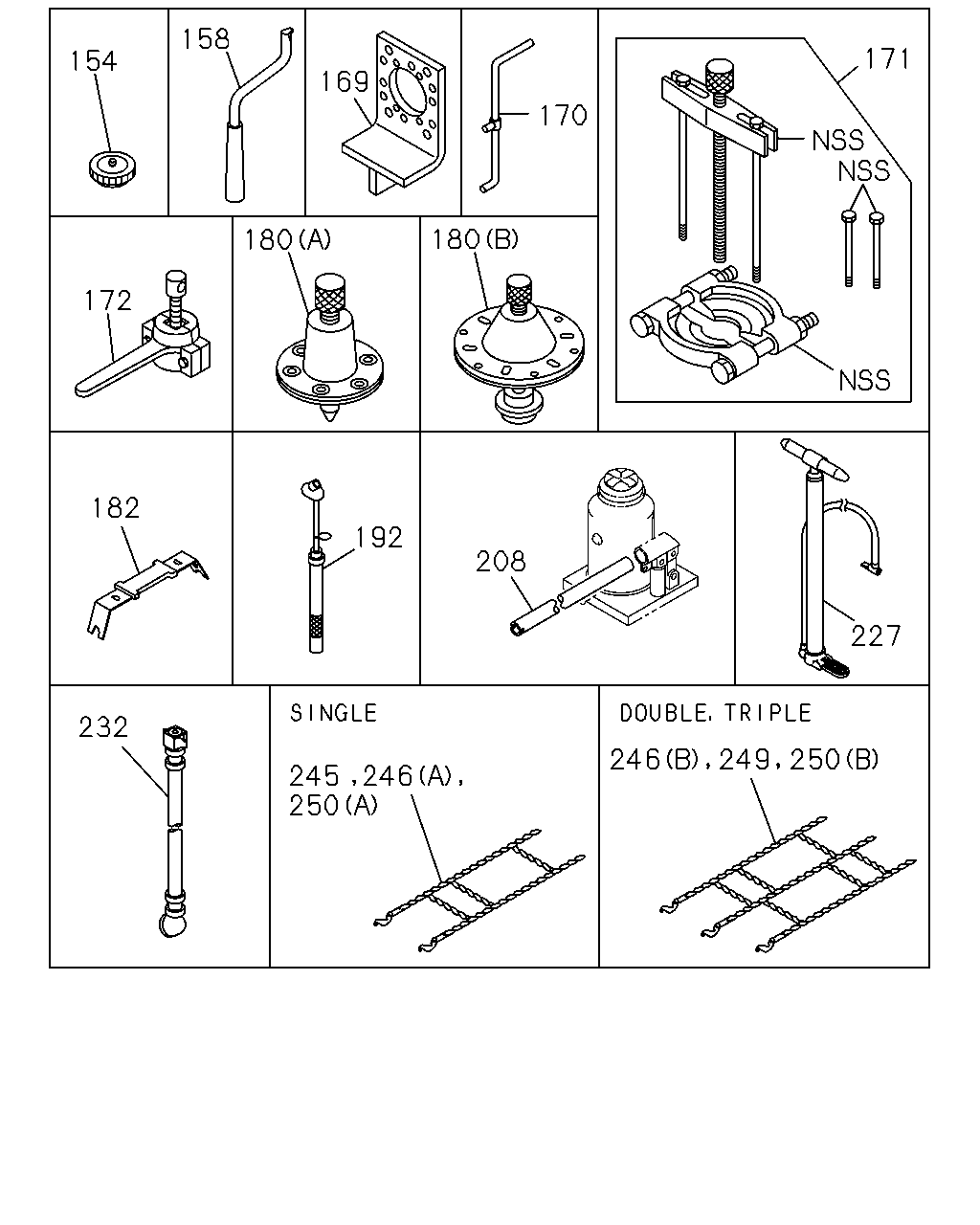

158 169 171 154 170 180 180 172 182 192 208 227 232 250 245 246 246 249 250

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
154	SLEEPER; KING PIN	1-85238-003-0	01	1	0105-
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	0105-
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	0105-
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	0105-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	0105-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	0105-
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	0105-
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	0105-
182	REMOVER ASM	1-85239-008-0	01	1	0105-
192	GAUGE; TIRE PRESSURE TIRE INFLATOR DEVICE<W47>	1-85315-002-0	01	1	0105-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0105-
208	HANDLE; JACK L=600	1-85515-008-0	01	1	0105-0105
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	0105-
232	HOSE; AIR,AIR CHARGE TIRE INFLATOR DEVICE<W47>	1-09360-628-1	01	1	0105-
245	CHAIN; TIRE,SINGLE 9.00-20 SINGLE TYPE	9-85591-254-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE (A) 10.00-20 SINGLE TYPE	9-85591-239-0	AR	1	0105-
246	CHAIN; TIRE,1000-20,SINGLE (B) 11.00-20 SINGLE TYPE	9-85591-259-0	AR	1	0105-
249	CHAIN; TIRE,TRIPLE 9.00-20 TRIPLE TYPE	9-85591-256-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE (A) 10.00-20 TRIPLE TYPE	9-85591-241-0	AR	1	0105-
250	CHAIN; TIRE,1000-20,TRIPLE (B) 11.00-20 TRIPLE TYPE	9-85591-261-0	AR	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
