8-52 — PIPING; AIR CONDITIONING (#11884) — 143 parça

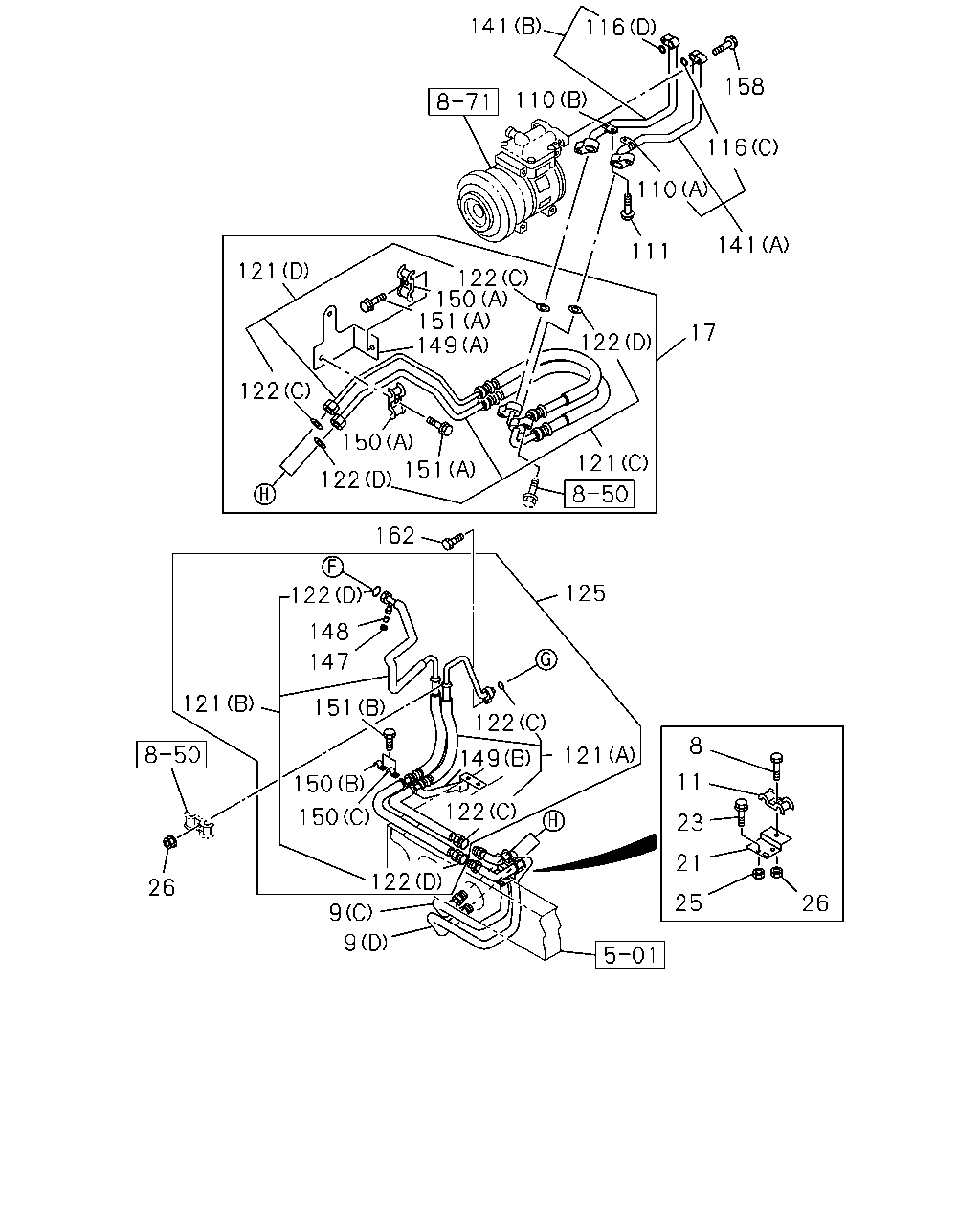

141 116 158 110 116 110 141 111 121 122 150 151 149 17 122 122 150 151 121 122 162 125 122 148 147 121 151 122 8 121 149 122 11 150 150 23 122 21 26 25 26 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A)	1-83567-796-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (C)	1-83572-923-0	01	1	0210-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B)	1-83567-797-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (D)	1-83572-924-0	01	1	0210-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (C)	1-83572-921-0	01	1	0210-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (D)	1-83572-922-0	01	1	0210-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	0105-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-0	01	1	0105-0209
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-695-0	01	1	0210-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-930-1	01	1	0105-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	0105-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	0105-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0105-
110	CLAMP; PIPE TO MTG BRKT AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-243-0	01	1	0210-
110	CLAMP; PIPE TO MTG BRKT AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-244-0	01	1	0210-
111	BOLT; CLAMP AIR CONDITIONER MANUAL CONTROL(C60) M8X20 FLANGE	1-83539-326-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0105-0209
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4	8-97095-906-0	02	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83567-795-0	01	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-835-0	01	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-836-0	01	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-880-1	01	1	0210-0302
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-043-0	01	1	0303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-881-1	01	1	0210-0302
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-044-0	01	1	0303-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-545-0	01	1	0105-0209
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-870-1	01	1	0210-0302
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-969-0	01	1	0303-
141	PIPE; COOLER,CMPR HOSE TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83567-843-0	01	1	0210-
141	PIPE; COOLER,CMPR HOSE TO PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83567-844-0	01	1	0210-
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0105-0209
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0210-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0105-0209
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83573-023-0	01	1	0210-
149	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83573-227-0	01	1	0210-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83574-246-0	02	1	0210-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83574-254-0	01	1	0210-
150	CLIP; HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83574-255-0	01	1	0210-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83539-328-0	02	1	0210-
151	BOLT; CLIP FIX,COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83539-336-0	02	1	0210-
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONTROL(C60) M6X30 FLANGE	1-83539-325-0	02	1	0210-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-0409
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-

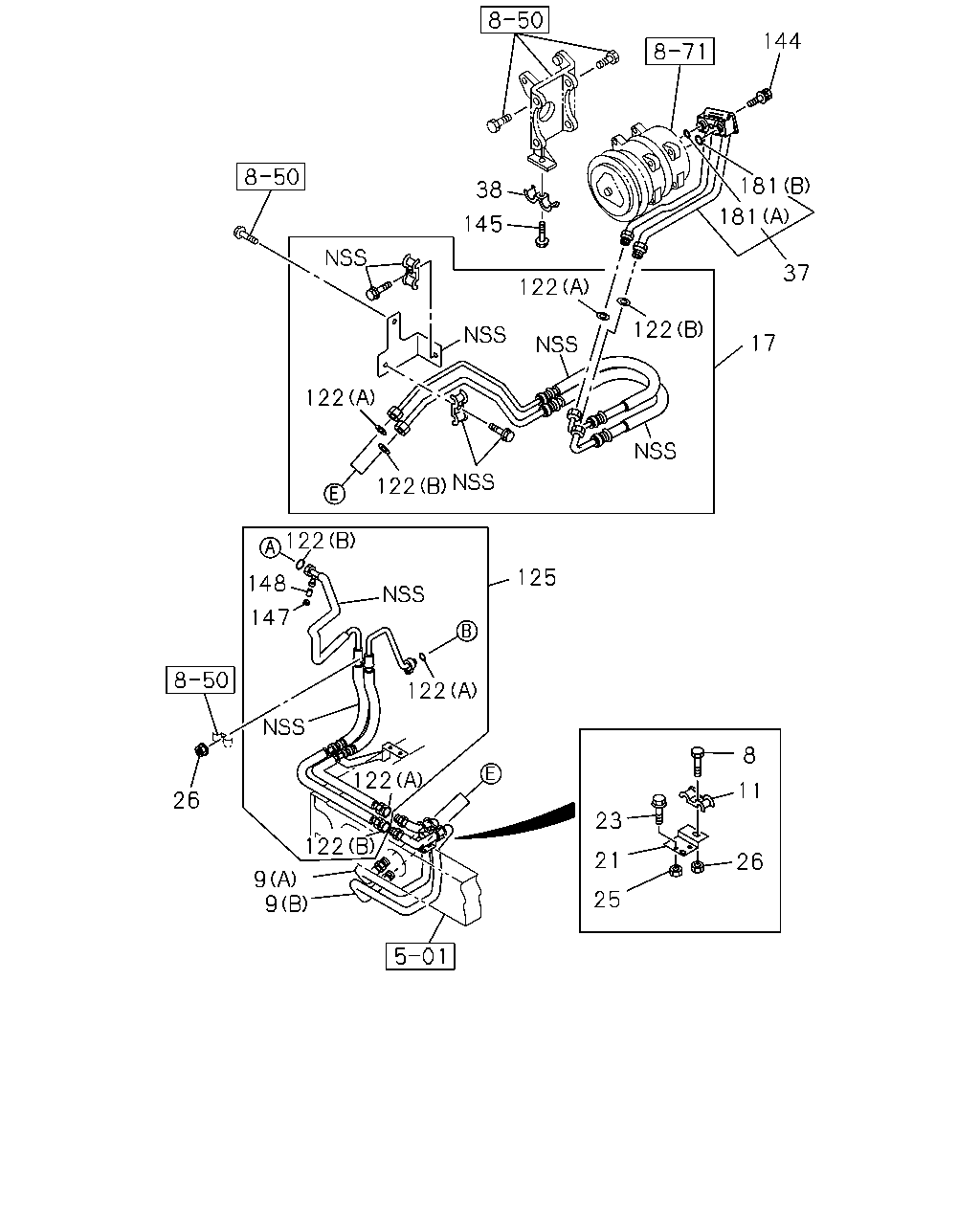

144 181 38 181 145 37 122 122 17 122 122 122 125 148 147 122 122 8 11 26 122 23 21 26 9 9 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X18 FLANGE	0-28080-818-0	01	1	0105-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (A)	1-83567-796-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (C)	1-83572-923-0	01	1	0210-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (B)	1-83567-797-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) FRONT SPOILER<VP1> (D)	1-83572-924-0	01	1	0210-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (A)	1-83572-550-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (C)	1-83572-921-0	01	1	0210-
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (B)	1-83572-554-0	01	1	0105-0209
9	PIPE; COOLER,HOSE TO HOSE AIR CONDITIONER MANUAL CONTROL(C60) EXC. FRONT SPOILER<VP1> (D)	1-83572-922-0	01	1	0210-
11	CLIP; COOLER PIPE AIR CONDITIONER MANUAL CONTROL(C60) ID=20 & 20	1-83574-195-1	01	1	0105-
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-646-0	01	1	0105-0209
17	HOSE; FLEX,CMPR TO PIPE AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-695-0	01	1	0210-
21	BRACKET; COOLER HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83571-930-1	01	1	0105-
23	BOLT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8X16 FLANGE	0-28080-816-0	02	1	0105-
25	NUT; BRKT AIR CONDITIONER MANUAL CONTROL(C60) M8	9-09110-408-0	02	1	0105-
26	NUT; PIPE CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE	0-91150-108-0	02	1	0105-
37	CONNECTOR; CMPR TO FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	1-83563-173-0	01	1	0105-0209
38	CLIP; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60)	1-83574-177-0	01	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=14.5	8-97095-908-0	02	1	0210-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	02	1	0105-0209
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-
122	GASKET AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=11.7	8-97095-907-0	02	1	0210-
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-545-0	01	1	0105-0209
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-870-1	01	1	0210-0302
125	HOSE; FLEX,UNIT TO CMPR AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-969-0	01	1	0303-
144	BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONTROL(C60) M10X45	9-01961-045-0	01	1	0105-0209
145	BOLT; CLIP,CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) M8X16 W/LK WASHER	9-01900-816-0	01	1	0105-0209
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97083-102-0	01	1	0105-0209
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK L	8-97095-910-0	01	1	0210-
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97083-100-0	01	1	0105-0209
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=15.5	8-97161-777-0	01	1	0105-0209
181	GASKET; CONNECTOR AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=18.3	8-97161-778-0	01	1	0105-0209

189 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-
189	GROMMET EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	9-09575-397-0	01	1	0105-

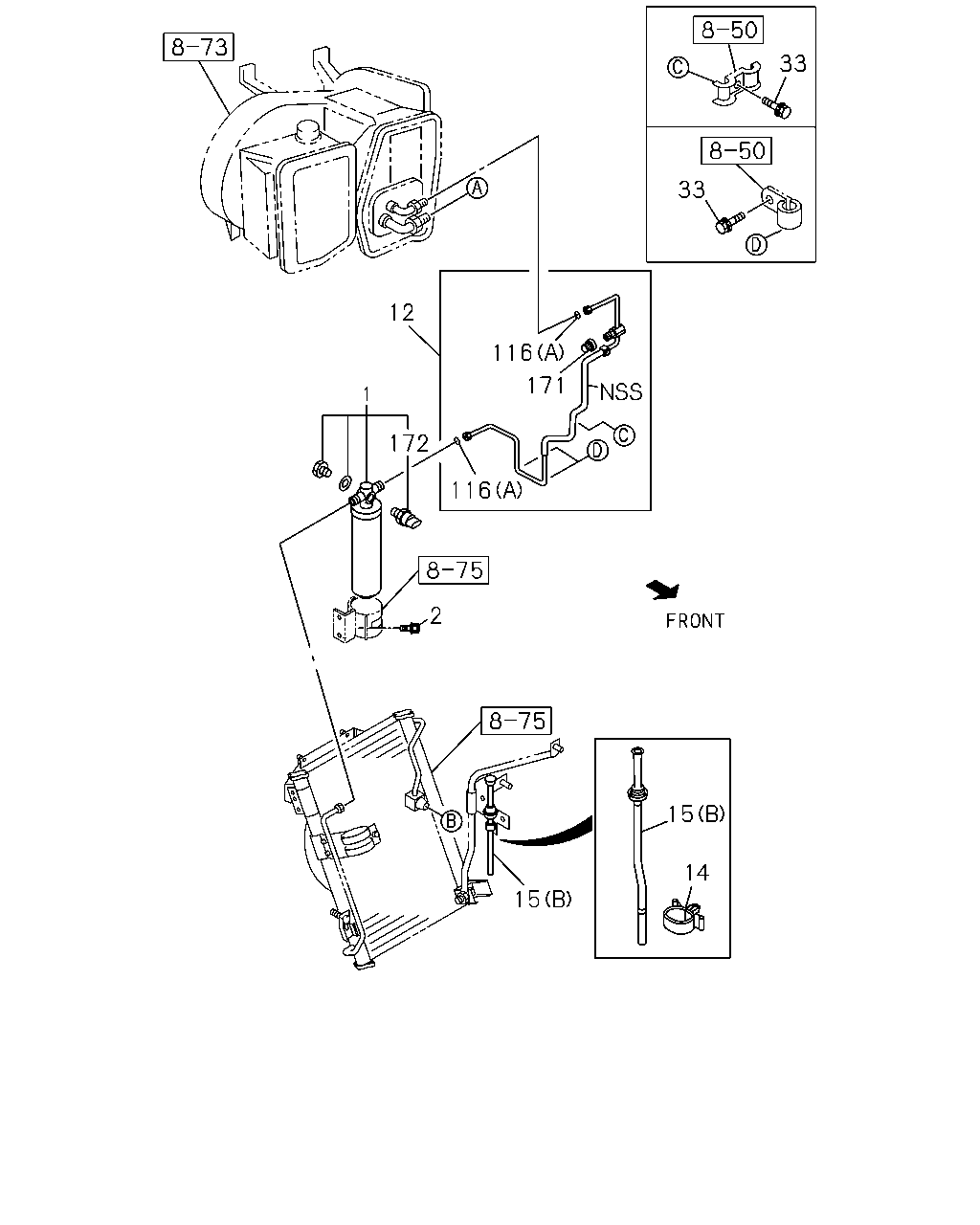

33 33 12 116 171 172 116 2 15 14 15 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; RECEIVER AIR CONDITIONER MANUAL CONTROL(C60)	1-83535-087-0	01	1	0105-0209
2	BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0105-0209
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	0105-0209
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0210-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0105-0105
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0105-0209
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4	8-97095-906-0	02	1	0210-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	0105-0209
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-
172	SWITCH; PRESS,RECEIVER TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83544-044-0	01	1	0105-0209

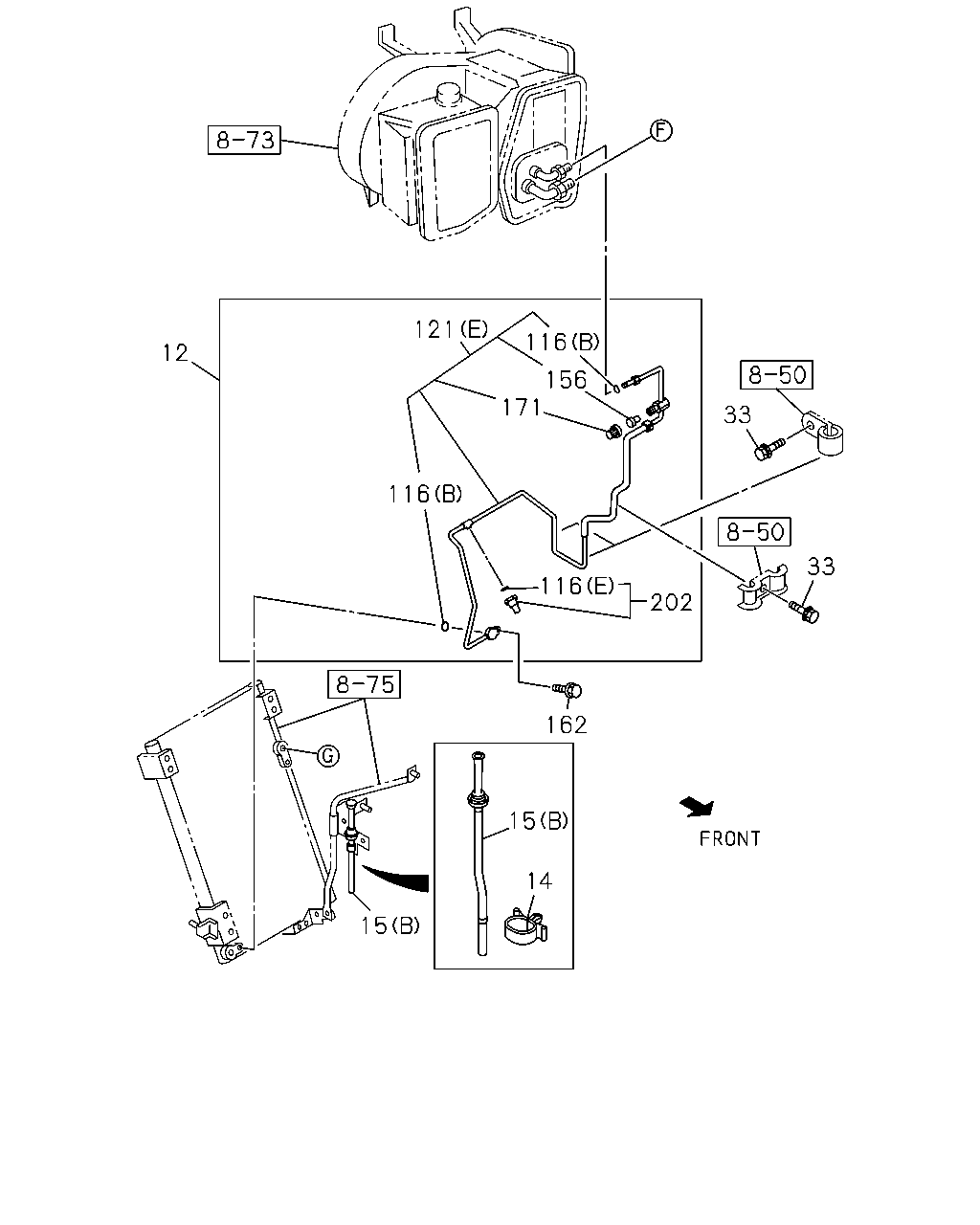

121 116 12 156 171 33 116 33 116 202 162 15 14 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83572-538-0	01	1	0105-0209
12	PIPE; COOLER,EVAP TO TANK AIR CONDITIONER MANUAL CONTROL(C60)	1-83567-718-3	01	1	0210-
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	02	1	0105-0105
14	CLIP; BAND,EVAP DRAIN HOSE AIR CONDITIONER MANUAL CONTROL(C60) ID=20	8-94410-200-0	01	1	0106-
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-411-0	01	1	0105-0105
15	HOSE; DRAIN AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-635-0	01	1	0106-
15	HOSE; DRAIN HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83572-412-0	01	1	0105-
33	BOLT; CLIP AIR CONDITIONER MANUAL CONTROL(C60) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0105-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (E)	8-97178-772-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (D) ID=11.7	1-83539-317-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=14.5	1-83539-324-0	01	1	0210-
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-97161-776-0	02	1	0105-0209
116	GASKET; PIPE AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=7.4	8-97095-906-0	02	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (E)	1-83567-795-0	01	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (D)	1-83572-835-0	01	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-83572-836-0	01	1	0210-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83572-880-1	01	1	0210-0302
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (A)	1-83577-043-0	01	1	0303-
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83572-881-1	01	1	0210-0302
121	HOSE; COOLER AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-83577-044-0	01	1	0303-
156	VALVE; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97095-909-0	01	1	0210-
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28680-625-0	02	1	0210-0409
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONTROL(C60) M6X25 FLANGE	0-28080-625-0	02	1	0410-
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60)	8-97080-101-0	01	1	0105-0209
171	CAP; PIPE AIR CONDITIONER MANUAL CONTROL(C60) CAP MARK H	8-97095-911-0	01	1	0210-
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONTROL(C60)	1-83564-392-1	01	1	0210-
