0-30 — WATER PUMP AND CORROSION RESISTOR (#1188) — 153 parça

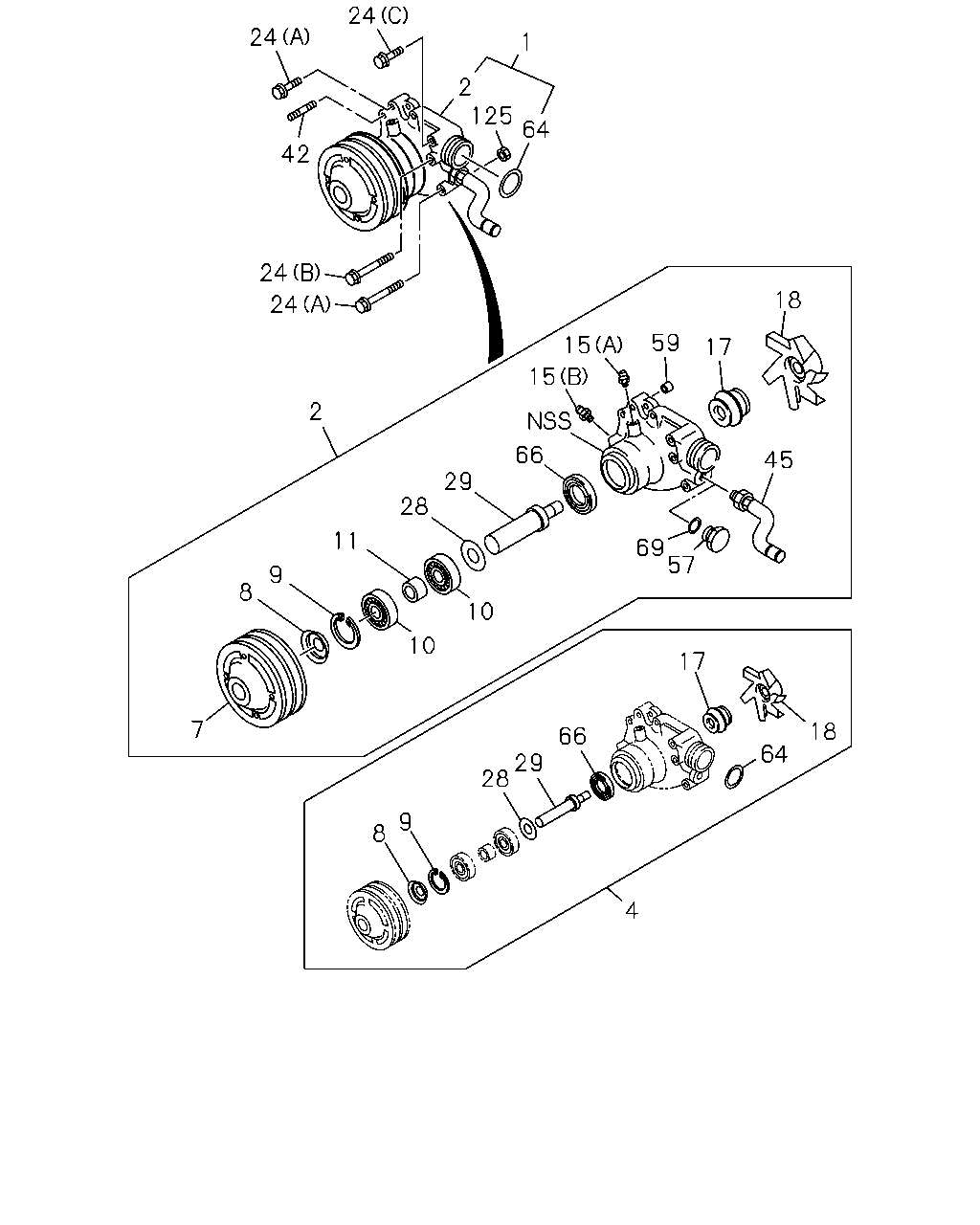

24 24 1 2 125 64 42 24 18 24 59 15 17 15 2 66 45 29 28 11 69 57 9 8 10 10 17 7 18 66 64 29 28 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; WATER,W/GASKET	1-13610-842-0	01	1	9202-	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94395-657-1	01	1	9501-		●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94390-601-0	01	1	9510-		●
2	PUMP ASM; WATER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94396-626-2	01	1	9202-9412		●
2	PUMP ASM; WATER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94393-447-3	01	1	9202-9509		●
2	PUMP ASM; WATER	1-13610-978-0	01	1	9306-			●
4	REPAIR KIT; WATER PUMP	1-87810-386-2	01	1	9202-	●
4	REPAIR KIT; WATER PUMP	1-87810-850-0	01	1	9202-9405		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9406-		●
4	REPAIR KIT; WATER PUMP	1-87810-416-2	01	1	9306-			●
7	PULLEY; WATER PUMP	1-13641-119-1	01	1	9202-	●
7	PULLEY; WATER PUMP 2-GROOVE	8-94399-454-0	01	1	9202-9411		●
7	PULLEY; WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 2-GROOVE	8-94399-454-0	01	1	9412-9412		●
7	PULLEY; WATER PUMP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 2-GROOVE	8-94394-826-0	01	1	9412-9412		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9501-		●
7	PULLEY; WATER PUMP	1-13641-129-0	01	1	9306-			●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9202-		●
8	THROWER; DUST,WATER PUMP	1-13639-021-0	01	1	9306-			●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9202-	●	●	●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	9202-	●
10	BEARING; WATER PUMP (B)	1-09800-155-0	01	1	9202-	●		●
10	BEARING; WATER PUMP	1-09800-011-0	02	1	9202-		●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9306-			●
10	BEARING; WATER PUMP (C)	1-09800-012-0	01	1	9306-			●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9202-	●	●
11	SPACER; BRG,WATER PUMP	1-13634-027-0	01	1	9306-			●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9202-		●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-		●	●
17	SEAL UNIT; WATER PUMP	1-13620-015-0	01	1	9202-	●		●
17	SEAL UNIT; WATER PUMP	8-94399-458-0	01	1	9202-9405		●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9406-		●
18	IMPELLER; WATER PUMP	1-13621-041-0	01	1	9202-	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9202-		●
18	IMPELLER; WATER PUMP	1-13621-043-0	01	1	9306-			●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	9202-	●		●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	9202-	●		●
24	BOLT; WATER PUMP (A) M8X57 FLANGE	8-94107-566-2	03	1	9202-9412		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9501-		●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9202-		●
24	BOLT; WATER PUMP (C)	8-94397-359-1	01	1	9202-		●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9202-		●
28	WASHER; WATER PUMP	1-09503-024-0	01	1	9306-			●
29	SHAFT; WATER PUMP	1-13631-051-0	01	1	9202-	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9202-		●
29	SHAFT; WATER PUMP	1-13631-054-0	01	1	9306-			●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	9202-		●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9202-	●		●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94397-377-2	01	1	9202-		●
57	PLUG; HTR,WATER PUMP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) M20	9-99202-320-0	01	1	9202-9509		●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	9202-		●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	9202-		●
66	SEAL; SECONDARY	1-09625-437-0	01	1	9202-		●
69	GASKET; PLUG,HTR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=20.5 OD=28.0	9-09571-420-0	01	1	9202-9509		●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	9202-		●

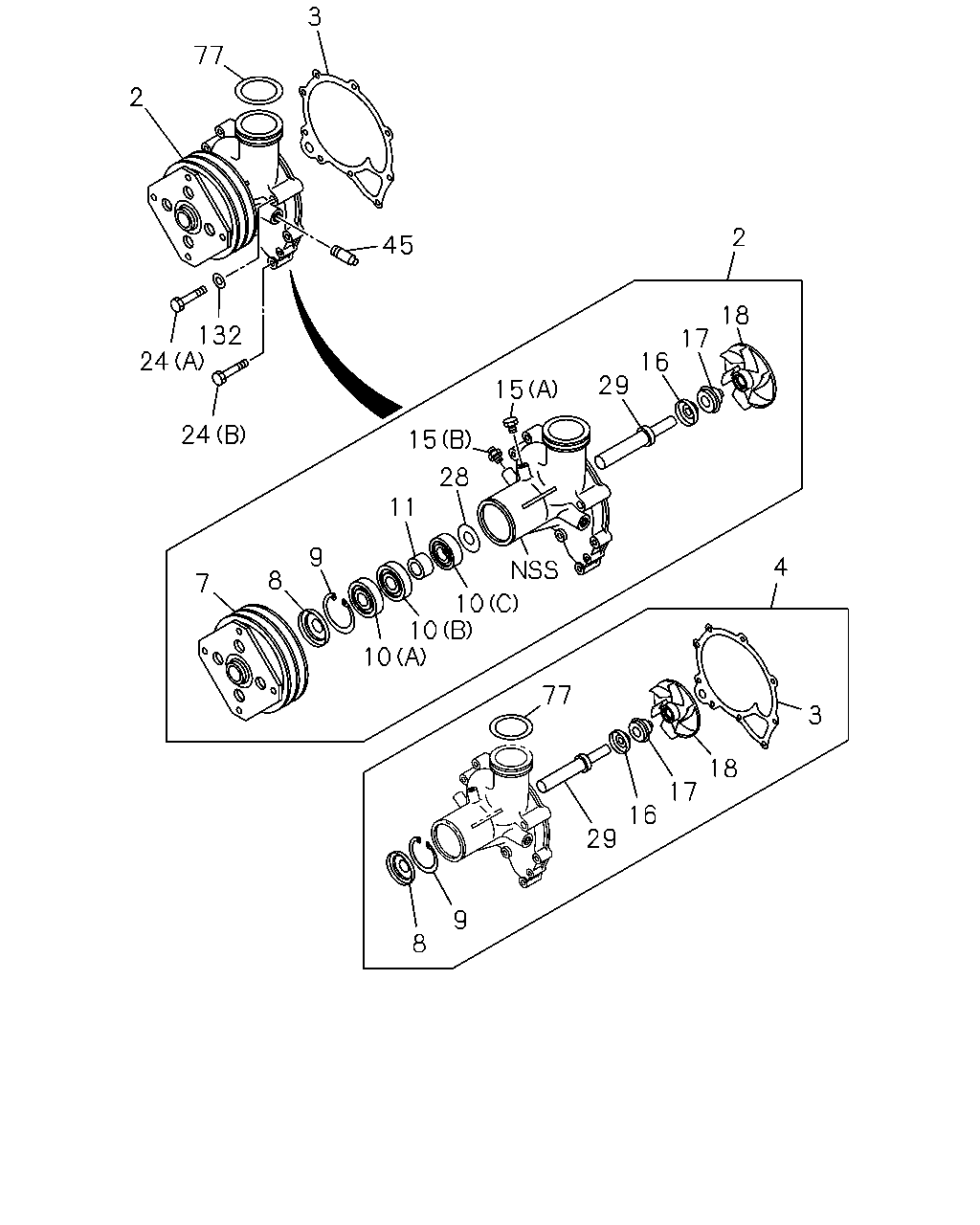

3 77 2 2 45 18 132 17 24 16 29 15 24 15 28 11 9 4 8 7 10 10 10 77 3 18 17 16 29 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	PUMP ASM; WATER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94396-626-2	01	1	9202-9412		●
2	PUMP ASM; WATER EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94393-447-3	01	1	9202-9509		●
2	PUMP ASM; WATER	1-13610-978-0	01	1	9306-			●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13614-012-1	01	1	9202-9203	●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13614-017-0	01	1	9204-	●		●
4	REPAIR KIT; WATER PUMP	1-87810-386-2	01	1	9202-	●
4	REPAIR KIT; WATER PUMP	1-87810-850-0	01	1	9202-9405		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9406-		●
4	REPAIR KIT; WATER PUMP	1-87810-416-2	01	1	9306-			●
7	PULLEY; WATER PUMP	1-13641-119-1	01	1	9202-	●
7	PULLEY; WATER PUMP 2-GROOVE	8-94399-454-0	01	1	9202-9411		●
7	PULLEY; WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 2-GROOVE	8-94399-454-0	01	1	9412-9412		●
7	PULLEY; WATER PUMP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 2-GROOVE	8-94394-826-0	01	1	9412-9412		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9501-		●
7	PULLEY; WATER PUMP	1-13641-129-0	01	1	9306-			●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	9202-		●
8	THROWER; DUST,WATER PUMP	1-13639-021-0	01	1	9306-			●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9202-	●	●	●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	9202-	●
10	BEARING; WATER PUMP (B)	1-09800-155-0	01	1	9202-	●		●
10	BEARING; WATER PUMP	1-09800-011-0	02	1	9202-		●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9306-			●
10	BEARING; WATER PUMP (C)	1-09800-012-0	01	1	9306-			●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9202-	●	●
11	SPACER; BRG,WATER PUMP	1-13634-027-0	01	1	9306-			●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	9202-		●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9202-		●	●
16	SEAL; OIL,WATER PUMP (A)	1-09625-381-0	01	1	9202-	●
16	SEAL; OIL,WATER PUMP (B)	1-09625-382-0	01	1	9202-	●
16	SEAL; OIL,WATER PUMP	1-09625-277-0	01	1	9306-			●
17	SEAL UNIT; WATER PUMP	1-13620-015-0	01	1	9202-	●		●
17	SEAL UNIT; WATER PUMP	8-94399-458-0	01	1	9202-9405		●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9406-		●
18	IMPELLER; WATER PUMP	1-13621-041-0	01	1	9202-	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9202-		●
18	IMPELLER; WATER PUMP	1-13621-043-0	01	1	9306-			●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	9202-	●		●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	9202-	●		●
24	BOLT; WATER PUMP (A) M8X57 FLANGE	8-94107-566-2	03	1	9202-9412		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9501-		●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9202-		●
24	BOLT; WATER PUMP (C)	8-94397-359-1	01	1	9202-		●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	9202-		●
28	WASHER; WATER PUMP	1-09503-024-0	01	1	9306-			●
29	SHAFT; WATER PUMP	1-13631-051-0	01	1	9202-	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9202-		●
29	SHAFT; WATER PUMP	1-13631-054-0	01	1	9306-			●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9202-	●		●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94397-377-2	01	1	9202-		●
77	GASKET; PLUG,WATER PUMP ID=59.6	1-09623-307-0	01	1	9202-	●		●
132	WASHER; PL,WATER PUMP ID=10.5 OD=18	9-09160-510-0	02	1	9202-	●		●

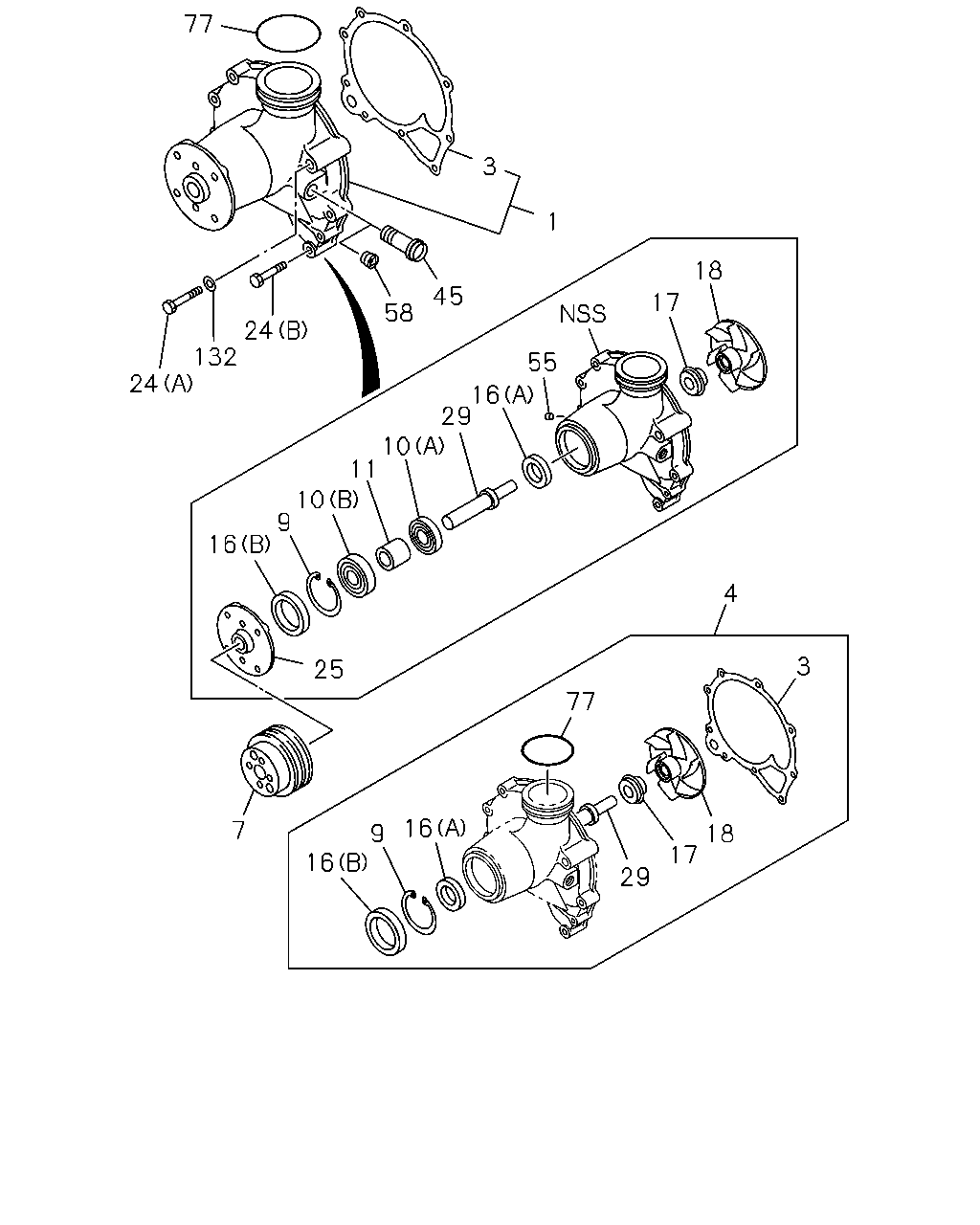

77 3 1 18 45 17 58 24 132 55 24 16 29 10 11 10 9 16 4 3 25 77 16 7 9 16 18 17 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; WATER,W/GASKET	1-13610-842-0	01	1	9202-	●
1	PUMP ASM; WATER,W/GASKET HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94395-657-1	01	1	9501-		●
1	PUMP ASM; WATER,W/GASKET EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94390-601-0	01	1	9510-		●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13614-012-1	01	1	9202-9203	●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13614-017-0	01	1	9204-	●		●
4	REPAIR KIT; WATER PUMP	1-87810-386-2	01	1	9202-	●
4	REPAIR KIT; WATER PUMP	1-87810-850-0	01	1	9202-9405		●
4	REPAIR KIT; WATER PUMP	1-87811-051-0	01	1	9406-		●
4	REPAIR KIT; WATER PUMP	1-87810-416-2	01	1	9306-			●
7	PULLEY; WATER PUMP	1-13641-119-1	01	1	9202-	●
7	PULLEY; WATER PUMP 2-GROOVE	8-94399-454-0	01	1	9202-9411		●
7	PULLEY; WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 2-GROOVE	8-94399-454-0	01	1	9412-9412		●
7	PULLEY; WATER PUMP EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 2-GROOVE	8-94394-826-0	01	1	9412-9412		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	9501-		●
7	PULLEY; WATER PUMP	1-13641-129-0	01	1	9306-			●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	9202-	●	●	●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	9202-	●
10	BEARING; WATER PUMP (B)	1-09800-155-0	01	1	9202-	●		●
10	BEARING; WATER PUMP	1-09800-011-0	02	1	9202-		●
10	BEARING; WATER PUMP (A)	1-09800-011-0	01	1	9306-			●
10	BEARING; WATER PUMP (C)	1-09800-012-0	01	1	9306-			●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	9202-	●	●
11	SPACER; BRG,WATER PUMP	1-13634-027-0	01	1	9306-			●
16	SEAL; OIL,WATER PUMP (A)	1-09625-381-0	01	1	9202-	●
16	SEAL; OIL,WATER PUMP (B)	1-09625-382-0	01	1	9202-	●
16	SEAL; OIL,WATER PUMP	1-09625-277-0	01	1	9306-			●
17	SEAL UNIT; WATER PUMP	1-13620-015-0	01	1	9202-	●		●
17	SEAL UNIT; WATER PUMP	8-94399-458-0	01	1	9202-9405		●
17	SEAL UNIT; WATER PUMP	8-94395-036-0	01	1	9406-		●
18	IMPELLER; WATER PUMP	1-13621-041-0	01	1	9202-	●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	9202-		●
18	IMPELLER; WATER PUMP	1-13621-043-0	01	1	9306-			●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	9202-	●		●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	9202-	●		●
24	BOLT; WATER PUMP (A) M8X57 FLANGE	8-94107-566-2	03	1	9202-9412		●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	9501-		●
24	BOLT; WATER PUMP (B) M8X79 FLANGE	8-94311-617-1	01	1	9202-		●
24	BOLT; WATER PUMP (C)	8-94397-359-1	01	1	9202-		●
25	CENTER; WATER PUMP	1-13642-013-0	01	1	9202-	●
29	SHAFT; WATER PUMP	1-13631-051-0	01	1	9202-	●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	9202-		●
29	SHAFT; WATER PUMP	1-13631-054-0	01	1	9306-			●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	9202-	●		●
45	JOINT; HTR HOSE,WATER PUMP HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	8-94397-377-2	01	1	9202-		●
55	NOZZLE; OIL FEED,WATER PUMP	1-13619-046-0	01	1	9202-	●
58	PLUG; HTR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) PT3/8 T=8.0	1-09605-066-0	01	1	9202-	●
77	GASKET; PLUG,WATER PUMP ID=59.6	1-09623-307-0	01	1	9202-	●		●
132	WASHER; PL,WATER PUMP ID=10.5 OD=18	9-09160-510-0	02	1	9202-	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
