◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#11875) — 386 parça

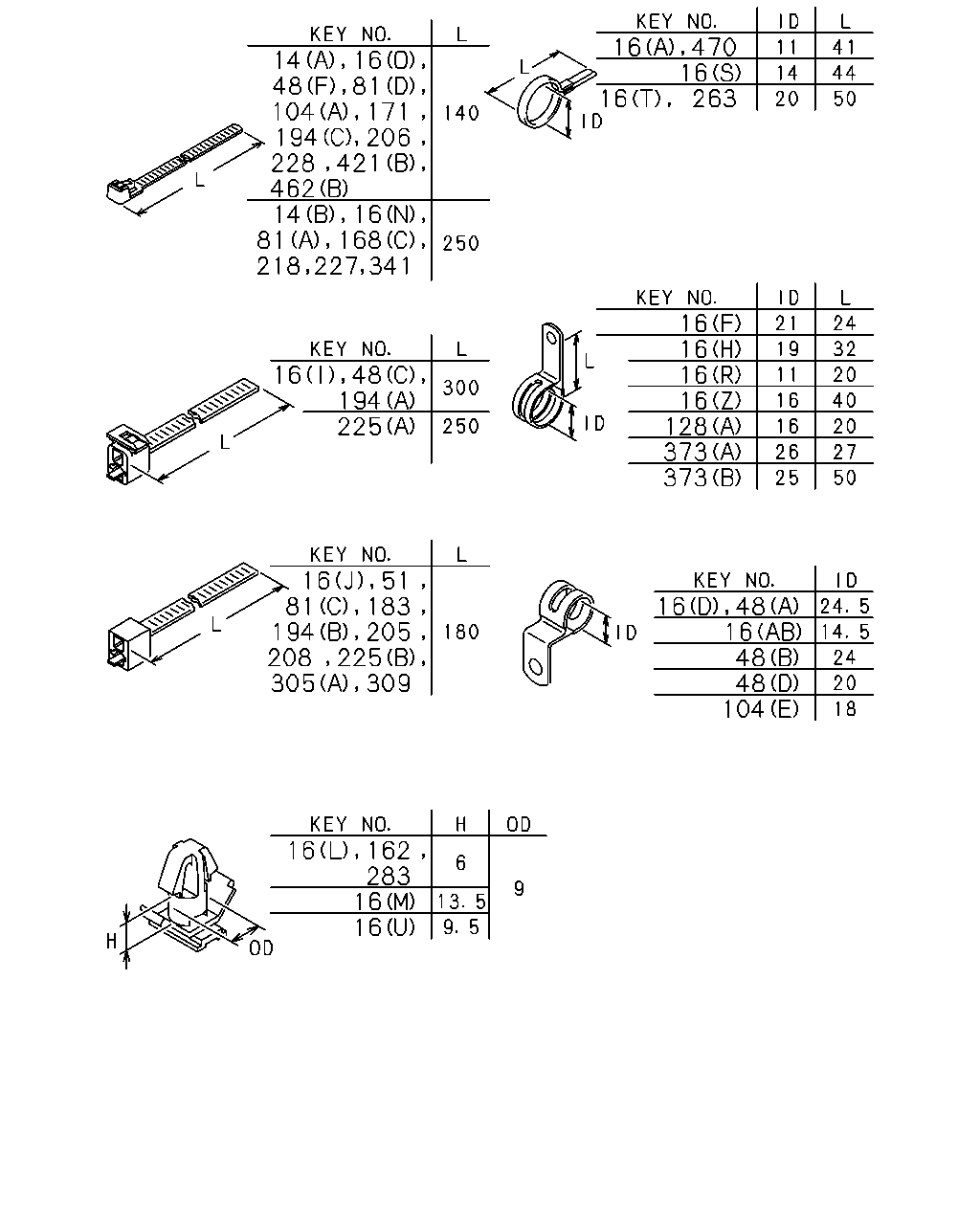

çizim 23936
16 263 14 16 104 171 462 14 16 81 168 16 16 16 16 16 128 373 373 194 225 81 183 16 48 48 104 16 162 283 16 16 48 81 194 206 228 421 218 227 341 16 48 16 51 194 205 208 225 305 309 16 470 16 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=250 		5-09707-030-1 02 1 0105-
14 CLIP; BAND,HARNESS
(A) L=140 		5-09707-031-1 04 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0209
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0210-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0210-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(E) ID=14.5 L=28 		1-09701-013-0 01 1 0105-
16 CLIP; HARNESS
(F) ID=21 L=24 		1-09701-201-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(H) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(I) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 01 1 0105-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 05 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0107-0203
16 CLIP; HARNESS
(M) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0105-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
ISUZU M/T<X9A> (O) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(R) ID=11 L=20 		9-09525-035-0 01 1 0105-
16 CLIP; HARNESS
(S) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 03 1 0108-
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 03 1 0108-
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 03 1 0105-0107
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 14 1 0105-0106
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 13 1 0107-0107
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 12 1 0108-0109
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 13 1 0110-
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107-0203
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (U) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (W) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 04 1 0107-0107
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0108-0209
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0108-0209
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0108-0209
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 01 1 0210-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0210-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (N) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (X) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (X) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (X) ID=16 L=20 		9-09525-535-0 01 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0206-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Y) L=36 		8-94224-891-1 01 1 0105-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (Y) L=36 		8-94224-891-1 01 1 0108-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Z) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (Z) ID=16 L=40 		9-09525-576-0 01 1 0206-
48 CLIP; FRAME HARNESS
ZF M/T<X9E> (F) L=140 		5-09707-031-1 01 1 0210-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-0106
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 06 1 0105-0106
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 04 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0108-0109
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 0105-
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (C) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (C) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (D) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=250 		5-09707-030-1 01 1 0109-0109
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 0105-
183 CLIP; CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0105-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0105-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 03 1 0105-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 0105-0106
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0107-0112
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0201-0305
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
AUTO CAB TILT<WV2> (B) L=180 		1-09707-162-1 01 1 0306-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0105-
194 CLIP; BAND
INTAKE HEATER<SL2> (C) L=140 		5-09707-031-1 02 1 0105-
205 CLIP; BACK LAMP HARNESS
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=180 		1-09707-162-1 01 1 0105-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0105-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
218 CLIP; BAND,RR COMB
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=250 		5-09707-030-1 02 1 0208-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 0105-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105-
225 CLIP; AIR TANK HARNESS
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) (B) L=180 		1-09707-162-1 01 1 0105-
227 CLIP; FOG LAMP HARNESS
FOG LAMP REAR<NHD> L=250 		5-09707-030-1 01 1 0210-
228 CLIP; COOLER HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) L=140 		5-09707-031-1 06 1 0105-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 0105-0305
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0105-
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 0105-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 0105-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 0105-
373 CLIP; BAND,GEN HARNESS
(A) ID=26 L=27 		1-09701-006-0 02 1 0105-
373 CLIP; BAND,GEN HARNESS
(B) ID=25 L=50 		1-09701-019-0 01 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 0105-

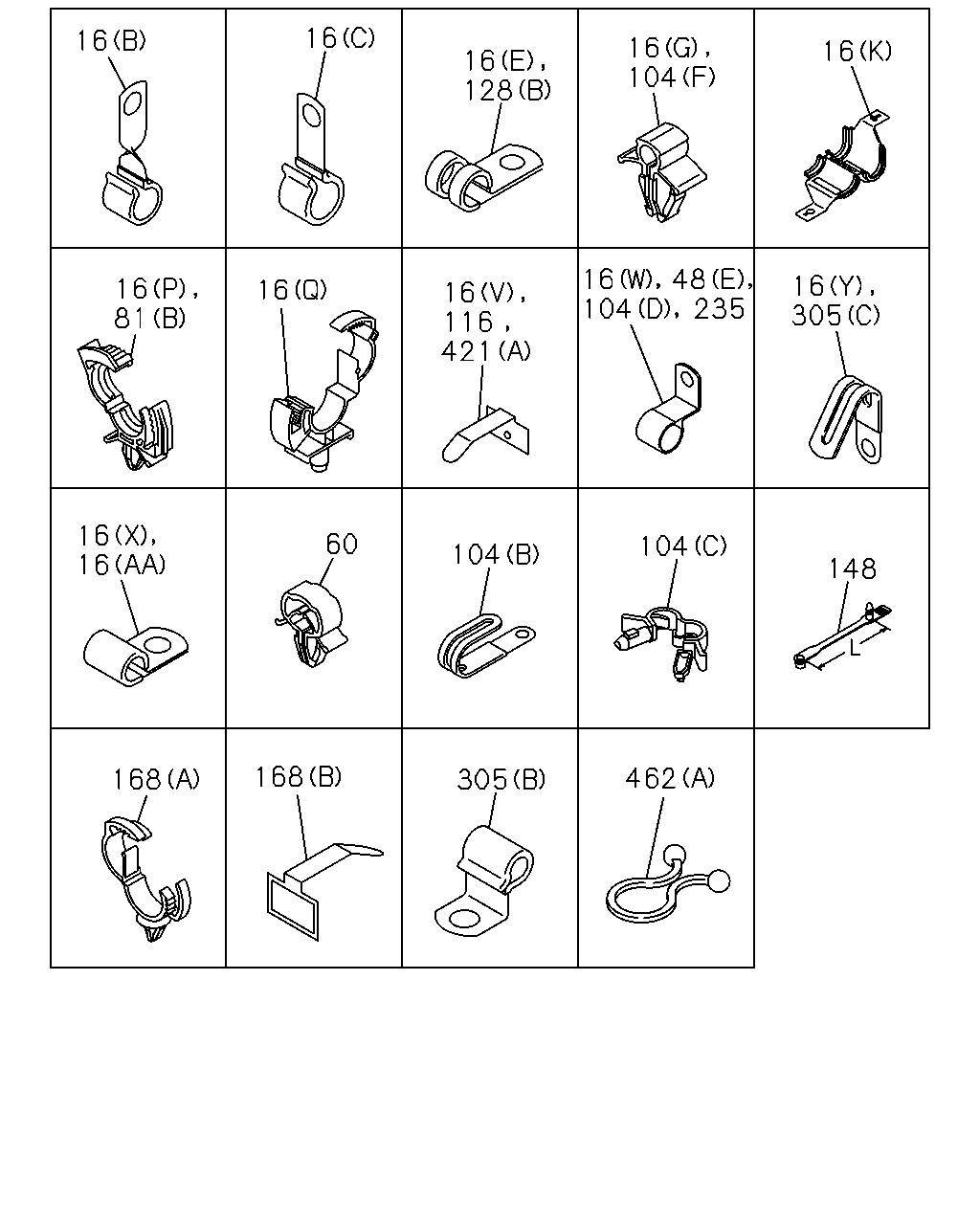

çizim 77282
16 16 16 104 16 16 128 16 305 16 81 16 16 116 421 16 16 60 104 104 148 168 462 168 305 16 48 104 235
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0105-0209
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0210-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0210-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0105-
16 CLIP; HARNESS
(B) ID=15 L=42 		1-09700-479-0 02 1 0105-
16 CLIP; HARNESS
(C) ID=15 L=35 		1-09700-507-0 01 1 0105-
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(D) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-
16 CLIP; HARNESS
(E) ID=14.5 L=28 		1-09701-013-0 01 1 0105-
16 CLIP; HARNESS
(F) ID=21 L=24 		1-09701-201-0 02 1 0105-
16 CLIP; HARNESS
(G) ID=4.8 		1-09701-218-0 01 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0107-0107
16 CLIP; HARNESS
(H) ID=19 L=32 		1-09701-235-0 02 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (G) ID=4.8 		1-09701-218-0 01 1 0107-
16 CLIP; HARNESS
(I) L=300 		1-09707-001-1 03 1 0105-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 01 1 0105-
16 CLIP; HARNESS
(J) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 05 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0107-0203
16 CLIP; HARNESS
(M) OD=9 H=13.5 		1-09709-180-0 01 1 0105-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0105-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 02 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0105-0203
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0204-0209
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(N) L=250 		5-09707-030-1 01 1 0210-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(O) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
ISUZU M/T<X9A> (O) L=140 		5-09707-031-1 01 1 0105-
16 CLIP; HARNESS
(P) ID=7-10 		8-94472-578-0 01 1 0105-
16 CLIP; HARNESS
(Q) ID=14-20 		8-97061-603-0 01 1 0105-0106
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0107-
16 CLIP; HARNESS
(R) ID=11 L=20 		9-09525-035-0 01 1 0105-
16 CLIP; HARNESS
(S) ID=14 L=44 		9-09917-427-0 03 1 0105-
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 01 1 0105-0107
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 03 1 0108-
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 03 1 0108-
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 03 1 0105-0107
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 14 1 0105-0106
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 13 1 0107-0107
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 12 1 0108-0109
16 CLIP; HARNESS
(T) ID=20 L=50 		9-09917-430-0 13 1 0110-
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 04 1 0107-0203
16 CLIP; HARNESS
AUTO CAB TILT<WV2> (L) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0204-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (U) OD=9 H=9.5 		1-09709-179-0 01 1 0105-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (V) L=20 		1-09987-246-2 04 1 0105-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (W) ID=15 H=30 L=30 		1-09700-832-0 01 1 0105-0105
16 CLIP; HARNESS
ZF M/T<X9E> (AA) ID=19 L=28 		9-09525-856-0 01 1 0106-
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 04 1 0105-0106
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 04 1 0107-0107
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0108-0209
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 02 1 0108-0209
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0108-0209
16 CLIP; HARNESS
ZF M/T<X9E> (A) ID=11 L=41 		1-09700-403-0 01 1 0210-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0210-
16 CLIP; HARNESS
ZF M/T<X9E> (L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 03 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (L) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
(L) OD=9 H=6 		1-09709-178-0 02 1 0107-
16 CLIP; HARNESS
ZF M/T<X9E> (N) L=250 		5-09707-030-1 03 1 0105-
16 CLIP; HARNESS
ZF M/T<X9E> (X) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0105-0105
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N) (X) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0106-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (X) ID=16 L=20 		9-09525-535-0 01 1 0108-
16 CLIP; HARNESS
ZF M/T<X9E> (AB) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0206-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Y) L=36 		8-94224-891-1 01 1 0105-0107
16 CLIP; HARNESS
ISUZU M/T<X9A> (Y) L=36 		8-94224-891-1 01 1 0108-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (Z) ID=16 L=40 		9-09525-576-0 01 1 0105-0205
16 CLIP; HARNESS
ISUZU M/T<X9A> (Z) ID=16 L=40 		9-09525-576-0 01 1 0206-
48 CLIP; FRAME HARNESS
ZF M/T<X9E> (F) L=140 		5-09707-031-1 01 1 0210-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0105-0106
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0107-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 06 1 0105-0106
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 03 1 0107-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 10 1 0105-
48 CLIP; FRAME HARNESS
(B) ID=24 H=40 L=24 		1-09701-243-0 04 1 0107-
48 CLIP; FRAME HARNESS
(E) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0107-
48 CLIP; FRAME HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0108-0109
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0306-
81 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=7-10 		8-94472-578-0 02 1 0105-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (B) ID=7-10 		8-94472-578-0 06 1 0105-
81 CLIP; HARNESS
HEADLAMPS RECTANGULAR<TR4> (C) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (C) L=180 		1-09707-162-1 02 1 0105-
81 CLIP; HARNESS
EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> (D) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (C) ID=13-18 L=14.5 		1-09709-290-0 08 1 0105-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) ID=21 L=47.5 		8-94178-108-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (D) ID=12 H=24 L=20 		1-09700-605-0 02 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (E) ID=18 H=23 L=28 		1-09700-860-0 04 1 0105-
104 CLIP; HEADLAMP HARNESS
HEADLAMPS RECTANGULAR<TR4> (F) ID=4.8 		1-09701-218-0 04 1 0105-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0105-0112
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 		1-09987-246-2 05 1 0201-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 06 1 0201-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 		1-09987-246-2 06 1 0201-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0105-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0105-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0105-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 02 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0105-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) L=250 		5-09707-030-1 01 1 0109-0109
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=13 H=29 L=30 		1-09700-001-0 01 1 0105-0106
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ZF M/T<X9E> ID=10 H=25 L=20 		1-09700-519-0 01 1 0107-
305 CLIP; ENG HARNESS
(B) ID=11 H=20 L=17.5 		1-09700-562-1 07 1 0105-
305 CLIP; ENG HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-
305 CLIP; ENG HARNESS
(C) L=36 		8-94224-891-1 02 1 0105-
421 CLIP; FLOOR HARNESS
(A) L=20 		1-09987-246-2 01 1 0105-0207
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (B) L=140 		5-09707-031-1 01 1 0105-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=20 		1-09709-068-0 01 1 0301-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0301-

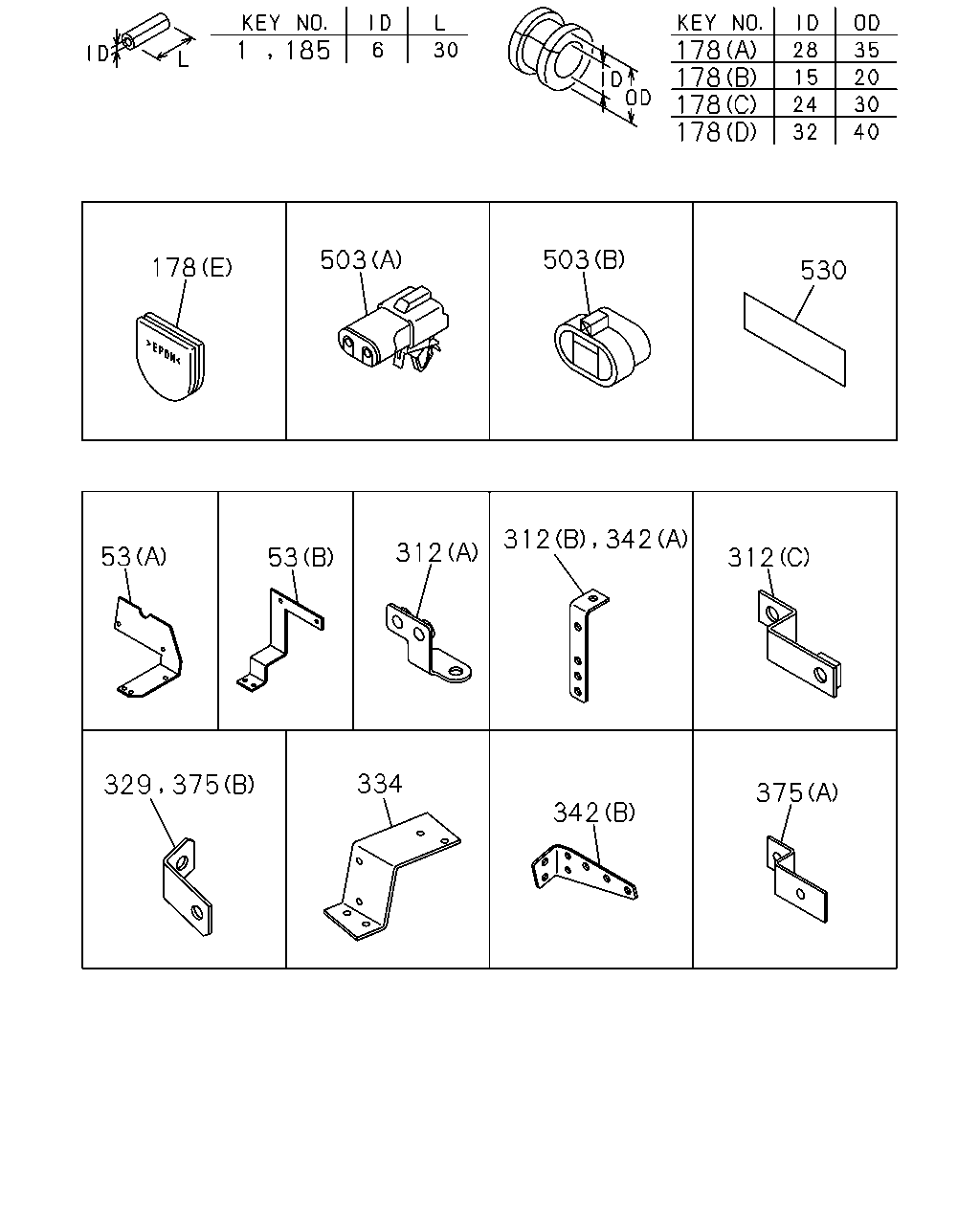

çizim 77317
1 185 178 178 178 178 503 503 178 530 312 53 53 312 334 375 342 312 342 329 375
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) ID=6 L=30 		5-09360-352-0 01 1 0105-
53 BRACKET; HARNESS
(A) 		1-82699-826-0 01 1 0105-
53 BRACKET; HARNESS
(B) 		1-82699-916-0 01 1 0105-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0105-
178 GROMMET; HARNESS
(C) ID=24 OD=30 T=22 		1-09332-104-0 01 1 0105-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0105-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 03 1 0105-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0105-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-358-0 01 1 0105-0205
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (B) 		1-82698-358-0 01 1 0206-
312 BRACKET; CLIP HARNESS
(A) 		1-82699-348-0 01 1 0105-
312 BRACKET; CLIP HARNESS
ZF M/T<X9E> (C) 		1-82699-304-0 01 1 0106-
312 BRACKET; CLIP HARNESS
EXC. ZF M/T<X9E> (B) 		1-82698-358-0 02 1 0206-
329 BRACKET; CLIP,CABLE 1-82699-199-0 01 1 0105-
334 BRACKET 1-53458-706-2 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82698-358-0 01 1 0105-
342 BRACKET; HARNESS CAB MTG
(B) 		1-82699-625-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP
(A) 		1-47476-393-0 01 1 0105-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82699-199-0 01 1 0105-
503 CONNECTOR
EXC. AUTO CAB TILT<WV2> (A) 2P MALE LIGHT GRAY 		1-82691-078-0 01 1 0105-
503 CONNECTOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 		1-82690-666-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 01 1 0105-
530 SEAL; HARNESS
180X40 		1-72498-019-0 07 1 0105-0207
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0208-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> 100X40 		1-72498-022-0 01 1 0105-
çizim 77515
38 119 255 304 219 524 38 38 88 239 423 38 242 133 38 313 242 358 133 516 242 38 242 38 242 38 313 133 219 294 340 515
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M5X8 		0-20800-508-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(C) M6X16 FLANGE 		0-28680-616-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0105-0106
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0107-0112
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0205
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0205
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 05 1 0105-0106
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 10 1 0105-0106
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 04 1 0107-0107
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 12 1 0108-0109
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 04 1 0110-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0105-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 07 1 0107-0107
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 07 1 0110-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0201-0205
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 03 1 0206-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28680-820-0 03 1 0206-
38 BOLT; CLIP,HARNESS
HEADLAMPS RECTANGULAR<TR4> (B) M8X20 FLANGE 		0-28080-820-0 06 1 0105-
38 BOLT; CLIP,HARNESS
ZF M/T<X9E> (D) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0205
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (D) M8X20 FLANGE 		0-28680-820-0 02 1 0206-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0105-
119 SCREW; DOOR HARNESS EARTH
POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0108-0108
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0108-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0206-
219 NUT
ISUZU M/T<X9A>,ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0206-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 13 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0107-0107
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0108-0109
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 0110-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 0105-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 12 1 0108-0109
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0110-
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0205
219 NUT
EXC. ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 0105-0205
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-
219 NUT
ISUZU M/T<X9A> (B) M10 FLANGE 		0-91150-210-0 01 1 0206-
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0105
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0106-0205
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0206-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(A) M8X18 FLANGE 		0-28080-818-0 04 1 0105-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28080-820-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 0105-
242 BOLT; BRKT,HARNESS
(D) M8X25 FLANGE 		0-28680-825-0 01 1 0105-
242 BOLT; BRKT,HARNESS
(E) M8X16 W/LK&PL WASHER 		1-09980-498-0 01 1 0105-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0205
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0105-0205
294 NUT
ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 01 1 0206-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0206-
294 NUT
EXC. ZF M/T<X9E> M8 FLANGE 		0-91150-108-0 02 1 0206-
304 BOLT; ENG HARNESS CLIP
M10X16 W/LK WASHER 		1-09033-012-0 06 1 0105-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0105-0205
313 BOLT; BRKT
ZF M/T<X9E> (A) M8X30 FLANGE 		0-28680-830-0 01 1 0206-
313 BOLT; BRKT
ZF M/T<X9E> (B) M8X20 FLANGE 		0-28680-820-0 01 1 0106-
313 BOLT; BRKT
EXC. ZF M/T<X9E> (A) M8X30 FLANGE 		0-28680-830-0 02 1 0206-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0105-
358 BOLT; EARTH
AUTO CAB TILT<WV2> M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 0105-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0105-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 02 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
