Isuzu WW
▶
TRUCKS
▶
GXR
▶
11528 - GXR(RHD)EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#118723) — 95 parça
◀

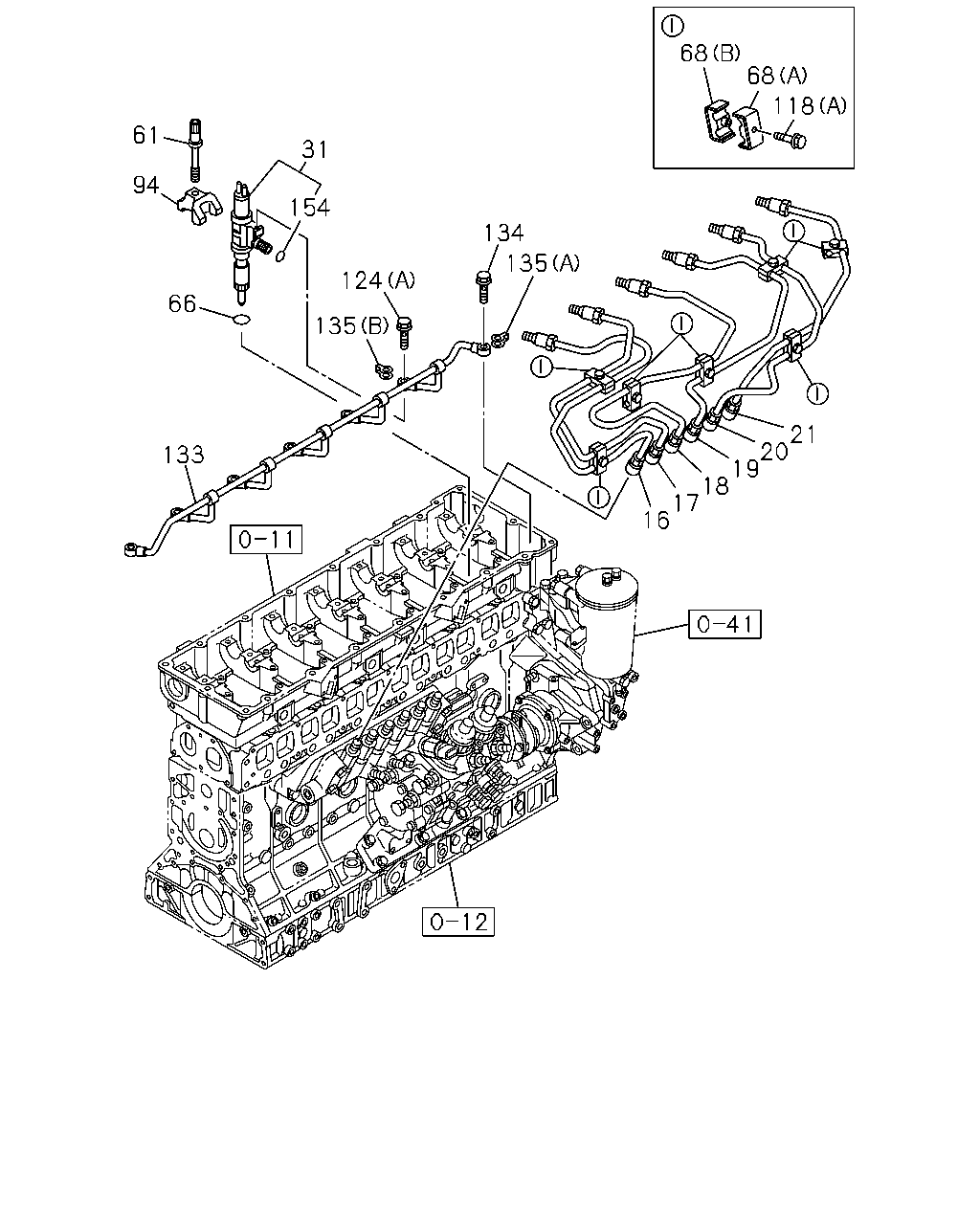

[040A] INJ PIPE AND NOZZLE ASM (23 parça)
[040A] COMPONENT;FUEL FEED PUMP (9 parça)

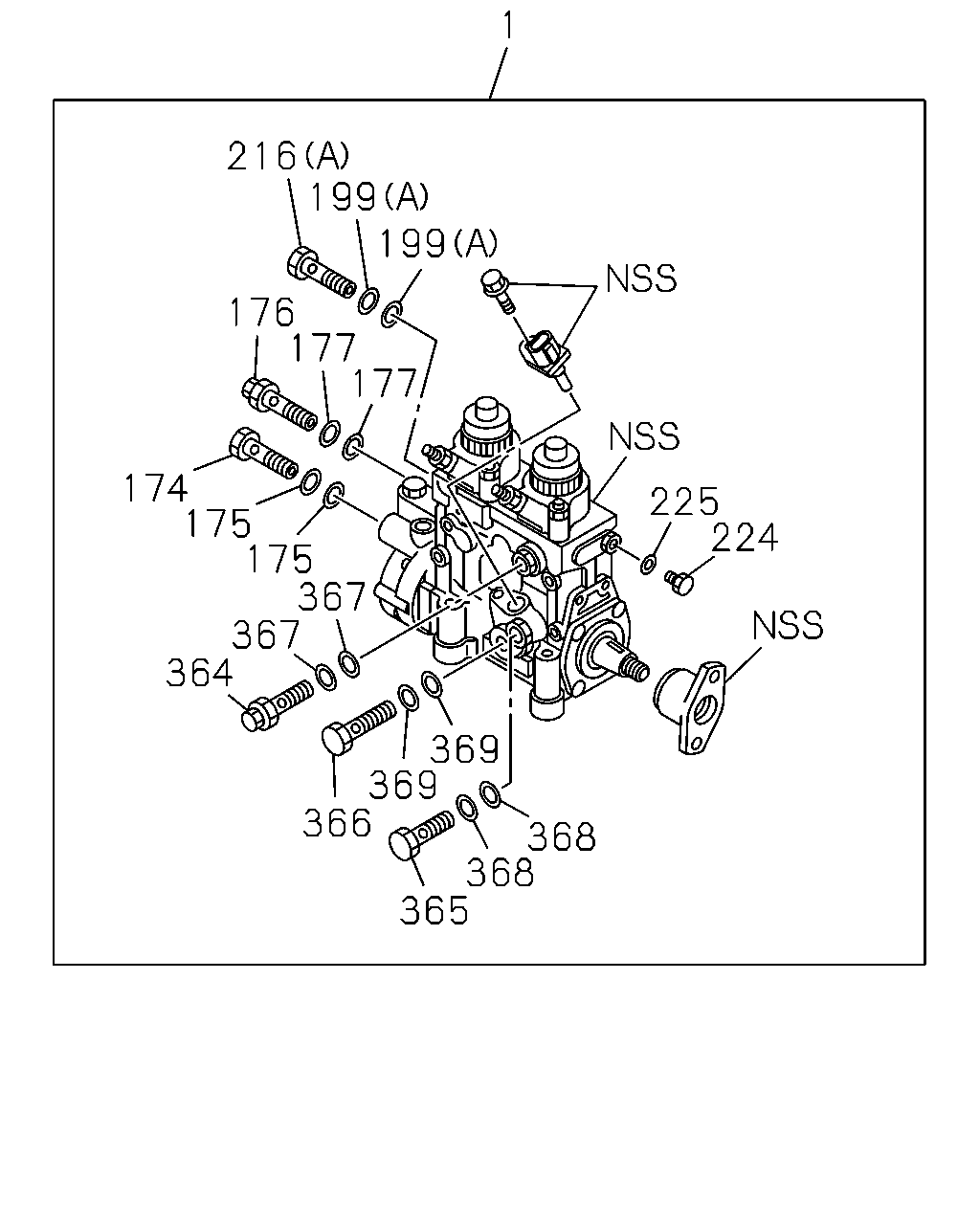

[040A] COMPONENT;INJ PUMP (21 parça)

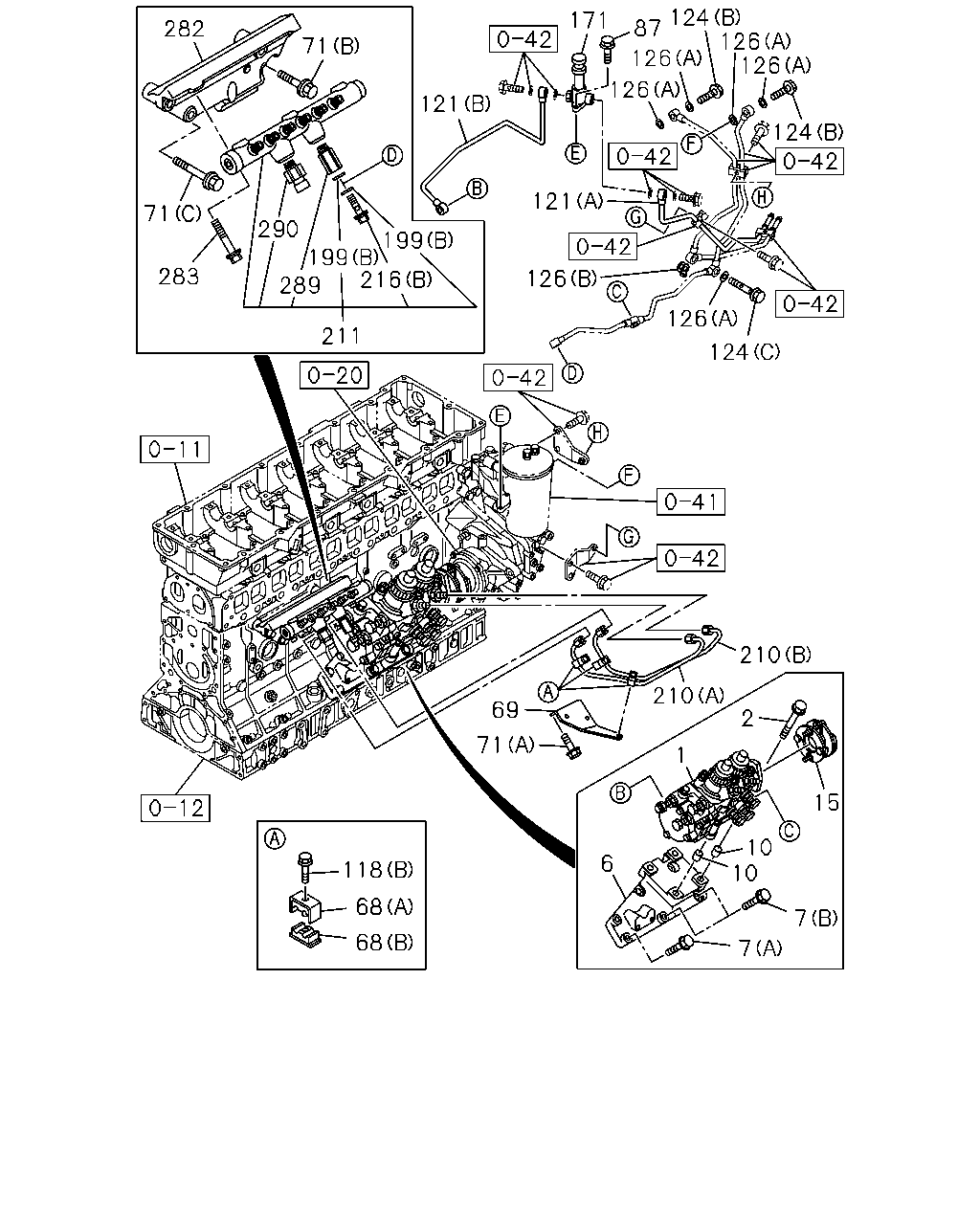

[040A] INJ PUMP AND COMMON RAIL (42 parça)
▶
31
68
118
68
21
20
19
18
17
16
135
134
124
135
66
133
94
61
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
8-98170-931-0
01
1
1304-
17
PIPE; INJ NO.2
8-98170-932-0
01
1
1304-
18
PIPE; INJ NO.3
8-98170-933-0
01
1
1304-
19
PIPE; INJ NO.4
8-98170-934-0
01
1
1304-
20
PIPE; INJ NO.5
8-98170-935-0
01
1
1304-
21
PIPE; INJ NO.6
8-98170-936-0
01
1
1304-
31
NOZZLE ASM; INJ
8-97603-099-5
06
1
1304-
61
BOLT; CLAMP NOZZLE HOLDER
M8X60
8-97603-301-0
06
1
1304-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97608-858-0
06
1
1304-
68
CLIP; INJ PIPE
(A)
8-97330-118-3
10
1
1304-
68
CLIP; INJ PIPE
(B)
8-97330-119-3
10
1
1304-
94
BRACKET; INJ NOZZLE
1-15337-028-0
06
1
1304-
118
BOLT; CLIP,INJ PIPE
(A) M6X30 FLANGE
0-28650-630-0
07
1
1304-
118
BOLT; CLIP,INJ PIPE
(B) M6X35 FLANGE
0-28650-635-0
03
1
1304-
124
BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1304-
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
1304-1405
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
01
1
1406-
124
BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
1304-
133
PIPE; INJ NOZZLE LEAK OFF
8-97603-112-0
01
1
1304-
134
BOLT; JOINT,LEAK OFF PIPE
M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
01
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0
8-98065-992-0
06
1
1304-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.6
8-98065-993-0
01
1
1304-
154
GASKET; CONNECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0
0-95690-111-0
06
1
1304-
171
172
173
178
179
182
179
181
180
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
171
PUMP ASM; FUEL FEED
1-15761-012-0
01
1
1304-1403
171
PUMP ASM; FUEL FEED
8-98257-686-0
01
1
1404-
172
PUMP; PRIMING,FUEL FEED PUMP
1-15761-013-0
01
1
1304-1403
173
GASKET; PRIMING PUMP,FUEL FEED PUMP
1-15769-030-0
01
1
1304-1403
178
CYLINDER; FUEL FEED PUMP
1-15769-024-0
01
1
1304-1403
179
VALVE; CHECK,FEED PUMP
1-15769-027-0
02
1
1304-1403
180
ADAPTER; EYE BOLT,FUEL FEED PUMP
1-15769-031-0
01
1
1304-1403
181
GASKET; ADAPTER
1-15769-029-0
01
1
1304-1403
182
BUSHING; VLV
1-15769-028-0
01
1
1304-1403
1
216
176
177
177
174
175
175
367
367
364
366
369
365
368
368
369
224
225
199
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-98013-910-4
01
1
1304-1312
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-98176-117-2
01
1
1401-
174
BOLT; EYE,FUEL OUTLET,FEED PUMP
5-15759-003-0
01
1
1304-
175
GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP
1-15619-507-0
02
1
1304-
176
BOLT; EYE,FEED PUMP
1-15619-509-0
01
1
1304-1405
176
BOLT; EYE,FEED PUMP
5-15759-002-0
01
1
1406-
177
GASKET; EYE BOLT,INL,FUEL FEED PUMP
1-15619-507-0
02
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
1304-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1304-
216
BOLT; EYE
(B)
8-98043-033-0
01
1
1304-
224
PLUG; INJ PUMP
1-15619-500-0
01
1
1304-
225
GASKET; PLUG
1-15619-502-0
01
1
1304-
364
VALVE; OVER FLOW,INJ PUMP
1-15619-496-0
01
1
1304-
365
BOLT; EYE,OIL INLET
9-88130-088-0
01
1
1304-
366
BOLT; EYE,OIL OUTLET
1-15619-513-0
01
1
1304-1312
366
BOLT; EYE,OIL OUTLET
5-15759-003-0
01
1
1401-1405
366
BOLT; EYE,OIL OUTLET
1-15619-513-0
01
1
1406-
367
GASKET; VALVE,OVER FLOW
1-15619-501-0
02
1
1304-
368
GASKET; EYE BOLT,OIL INLET
1-15619-508-0
02
1
1304-
369
GASKET; EYE BOLT,OIL OUTLET
1-15619-507-0
02
1
1304-
282
71
283
289
290
71
121
126
126
124
124
126
87
124
126
126
171
121
126
211
199
216
210
210
69
71
6
10
10
15
2
1
7
7
118
68
68
199
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
8-98013-910-4
01
1
1304-1312
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
8-98176-117-2
01
1
1401-
2
BOLT; INJ PUMP
M8X90 FLANGE
0-28060-890-0
04
1
1304-
6
BRACKET; INJ PUMP TO C/BL
8-97603-738-1
01
1
1304-
7
BOLT; INJ PUMP BRKT
(A) M12X40 FLANGE
0-28151-240-0
04
1
1304-
7
BOLT; INJ PUMP BRKT
(B) M12X70 FLANGE
0-28151-270-0
02
1
1304-
10
DOWEL; INJ PUMP
1-11229-012-1
02
1
1304-
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
1-15780-202-1
01
1
1304-1312
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
8-97610-800-0
01
1
1401-
68
CLIP; INJ PIPE
(A)
8-97330-118-3
10
1
1304-
68
CLIP; INJ PIPE
(B)
8-97330-119-3
10
1
1304-
69
BRACKET; INJ PIPE CLIP
8-98175-342-0
01
1
1304-
71
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1304-
71
BOLT; BRKT
(B) M10X40 FLANGE
0-28151-040-0
01
1
1304-
71
BOLT; BRKT
(C) M10X60 FLANGE
0-28151-060-0
03
1
1304-
87
BOLT; PUMP
M8X25 FLANGE
0-28650-825-0
02
1
1304-
118
BOLT; CLIP,INJ PIPE
(A) M6X30 FLANGE
0-28650-630-0
07
1
1304-
118
BOLT; CLIP,INJ PIPE
(B) M6X35 FLANGE
0-28650-635-0
03
1
1304-
121
PIPE; FUEL,FEED PUMP,SUCTION
(A)
8-97606-231-0
01
1
1304-1403
121
PIPE; FUEL,FEED PUMP,SUCTION
(A)
8-98257-406-0
01
1
1404-
121
PIPE; FUEL,FEED PUMP,SUCTION
(B)
8-97606-232-0
01
1
1304-
124
BOLT; EYE LEAK OFF PIPE
(A) M8X18 EYE-BOLT
1-09675-037-1
06
1
1304-
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
02
1
1304-1405
124
BOLT; EYE LEAK OFF PIPE
(B) M14X27 FLANGE
1-09675-086-0
01
1
1406-
124
BOLT; EYE LEAK OFF PIPE
(C) M14X43 EYE-BOLT
8-98037-829-0
01
1
1304-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25
1-09630-141-0
05
1
1304-1405
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25
1-09630-141-0
03
1
1406-
126
GASKET; EYE BOLT LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21
8-97251-047-0
01
1
1304-
171
PUMP ASM; FUEL FEED
1-15761-012-0
01
1
1304-1403
171
PUMP ASM; FUEL FEED
8-98257-686-0
01
1
1404-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-15619-507-0
02
1
1304-
199
GASKET; EYE BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
8-97602-218-0
02
1
1304-
210
PIPE; INJ,C/R
(A)
8-98170-937-1
01
1
1304-
210
PIPE; INJ,C/R
(B)
8-98170-938-1
01
1
1304-
211
RAIL ASM; COMMON
8-97622-718-1
01
1
1304-1501
211
RAIL ASM; COMMON
8-98299-773-0
01
1
1502-
216
BOLT; EYE
(A)
5-15759-003-0
01
1
1304-
216
BOLT; EYE
(B)
8-98043-033-0
01
1
1304-
282
BRACKET; COMMON RAIL
8-98098-851-1
01
1
1304-
283
BOLT; COMMON RAIL
M10X50 FLANGE
0-28151-050-0
02
1
1304-
289
LIMITER; FUEL PRESS
8-98097-606-0
01
1
1304-
290
SENSOR; PRESS
8-97318-684-0
01
1
1304-
