◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶

8-03 — LAMP; REAR AND REAR SIDE (#11872) — 115 parça

250 253 186 101 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BRACKET; SEARCH LIGHT	1-53318-344-0	01	1	0105-
186	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0105-
187	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0105-
250	LAMP ASM; SEARCH LIGHT INSPECTION LAMP<T95>	1-82180-014-0	01	1	0105-
253	BULB; SEARCH LIGHT INSPECTION LAMP<T95> 24V 70W	1-82194-087-0	01	1	0105-

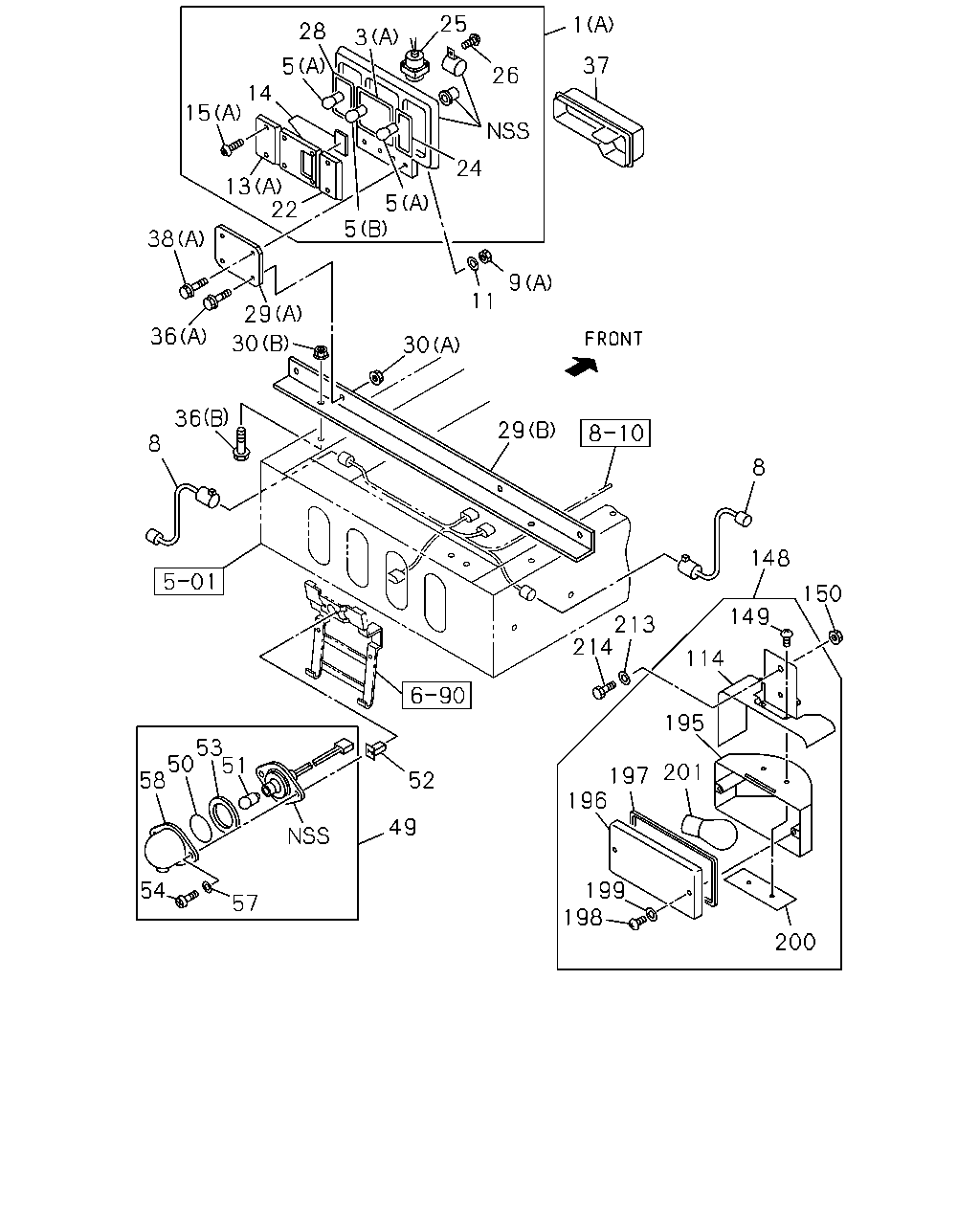

25 1 28 3 37 5 26 14 15 24 13 22 5 5 38 11 29 30 36 29 8 8 148 150 149 213 214 114 195 53 58 201 197 196 52 49 54 199 198 57 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82230-135-2	01	1	0105-
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A)	1-82230-132-2	01	1	0105-
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A)	1-82230-134-2	01	1	0105-
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	0105-
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	0105-
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0105-
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0105-
3	GASKET; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	0105-
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 21W	1-82194-036-0	02	1	0105-
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 24V 21/5W	1-82194-038-0	02	1	0105-
8	HARNESS; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82672-439-0	01	1	0105-
8	HARNESS; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82672-440-0	01	1	0105-
11	WASHER; PL,LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) ID=6.4 OD=18	9-09160-706-0	04	1	0105-
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-015-0	01	1	0105-
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-014-0	01	1	0105-
13	LENS; TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	0105-
14	LENS; TAIL & STOP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-511-0	01	1	0105-
14	LENS; TAIL & STOP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-510-0	01	1	0105-
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0105-
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0105-
15	SCREW; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	0105-
22	LENS; BACKUP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-512-0	01	1	0105-
22	LENS; BACKUP,RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-512-0	01	1	0105-
24	GASKET; BACK,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-506-0	01	1	0105-
24	GASKET; BACK,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-506-0	01	1	0105-
25	HORN ASM; BACK CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9>	8-94257-518-0	01	1	0105-
26	SCREW; BACK HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M4X12 TAPPING	9-07076-412-0	01	1	0105-
26	SCREW; BACK HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> M4X14 TAPPING	9-07076-414-0	02	1	0105-
26	SCREW; BACK HORN CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING	9-07076-410-0	01	1	0105-
28	GASKET; TURN,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-507-0	01	1	0105-
28	GASKET; TURN,LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	8-94257-507-0	01	1	0105-
29	BRACKET; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-82237-037-3	01	1	0105-0207
29	BRACKET; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-53178-016-1	01	1	0208-
29	BRACKET; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82237-050-1	02	1	0105-0207
30	NUT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8 FLANGE	0-91150-108-0	04	1	0105-0207
30	NUT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10 FLANGE	0-91150-210-0	02	1	0105-
36	BOLT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M8X25 FLANGE	0-28680-825-0	04	1	0105-0207
36	BOLT; BRKT,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) M10X40 FLANGE	0-28681-040-0	02	1	0105-
37	COVER; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82239-008-0	01	1	0105-
37	COVER; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82239-007-0	01	1	0105-
38	BOLT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	0105-
38	BOLT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	0105-0105
38	BOLT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0106-
49	LAMP; LICENSE PLATE	1-82120-024-1	01	1	0105-
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0105-
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0105-
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0105-
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0105-
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0105-
114	BRACKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-97108-583-0	01	1	0105-
148	LAMP ASM; RR FOG FOG LAMP REAR<NHD>	8-97181-002-0	01	1	0105-
149	SCREW; BRKT TO LAMP BODY FOG LAMP REAR<NHD>	8-94336-372-0	02	1	0105-
150	NUT; RR FOG LAMP FOG LAMP REAR<NHD> M6 FLANGE	5-09440-004-0	01	1	0105-
195	LAMP UNIT; RR FOG FOG LAMP REAR<NHD>	8-94336-322-0	01	1	0105-
196	LENS; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-325-0	01	1	0105-
197	GASKET; RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-324-0	01	1	0105-
198	SCREW; LENS TO BODY FOG LAMP REAR<NHD>	0-71190-416-0	02	1	0105-
199	WASHER; LENS,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-326-0	02	1	0105-
200	PLATE; SET,RR FOG LAMP FOG LAMP REAR<NHD>	8-94336-323-0	01	1	0105-
201	BULB; RR FOG LAMP FOG LAMP REAR<NHD> 24V 21W	1-82194-036-0	01	1	0105-
213	WASHER; PL,RR FOG LAMP FOG LAMP REAR<NHD>	1-09985-144-0	01	1	0105-
214	BOLT; RR FOG LAMP FOG LAMP REAR<NHD> M6X20 FLANGE	0-28680-620-0	01	1	0105-

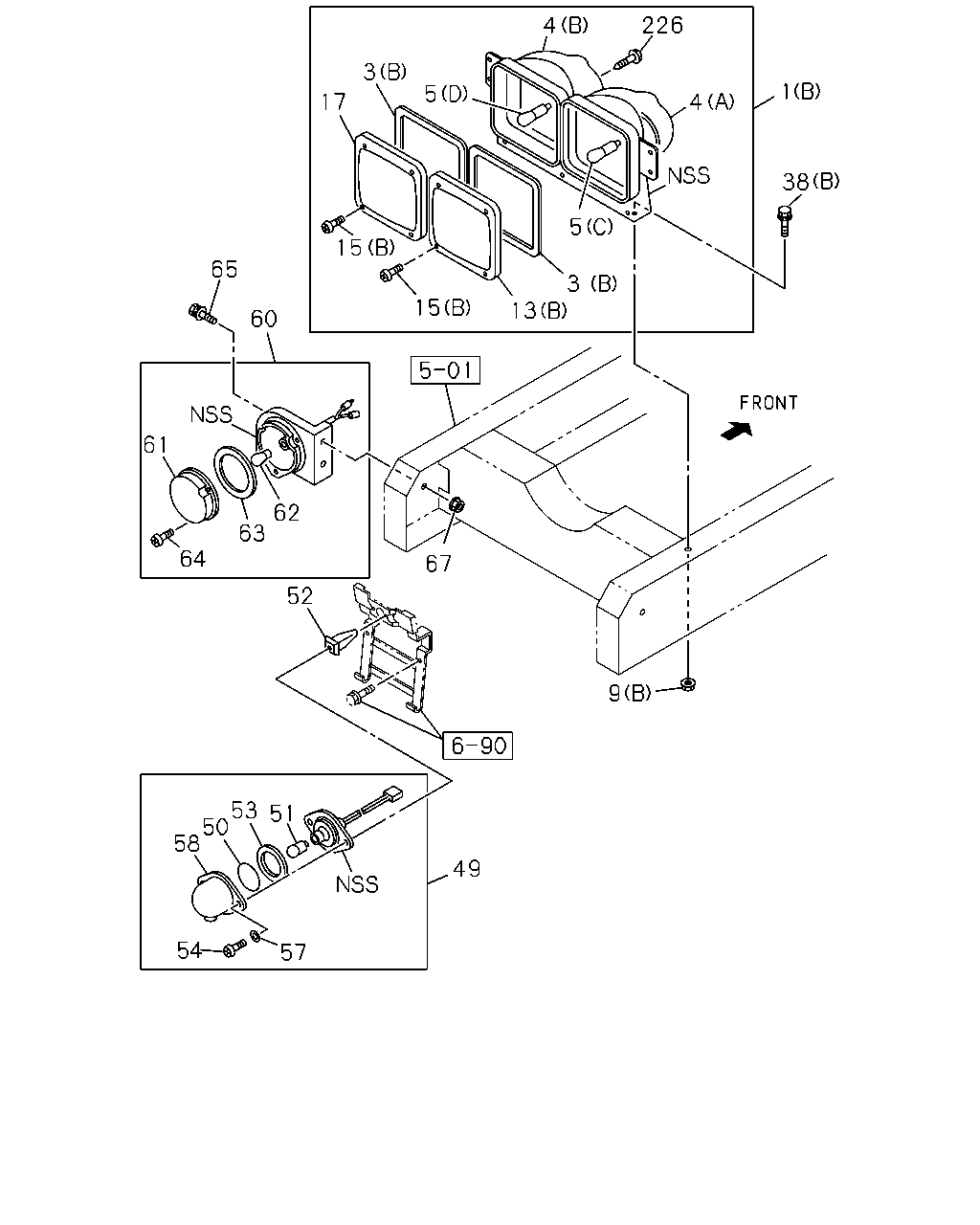

226 4 3 1 5 17 4 5 15 65 3 13 15 60 61 62 63 64 67 52 9 53 50 58 51 49 54 57 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82230-135-2	01	1	0105-
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) REVERSING WARNING BUZZER<YM9> (A)	1-82230-132-2	01	1	0105-
1	LAMP ASM; RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) EXC. REVERSING WARNING BUZZER<YM9> (A)	1-82230-134-2	01	1	0105-
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-160-2	01	1	0105-
1	LAMP ASM; RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82230-159-2	01	1	0105-
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0105-
3	GASKET; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94257-505-0	01	1	0105-
3	GASKET; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82236-003-0	04	1	0105-
4	COVER; RR,RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (A)	1-82239-033-0	02	1	0105-
4	COVER; RR,RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82239-034-0	02	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) 24V 21W	8-94125-956-0	02	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	0105-
5	BULB; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 21/5W	8-94125-957-0	01	1	0105-
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (C) 24V 21W	1-82194-036-0	02	1	0105-
5	BULB; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (D) 24V 21/5W	1-82194-038-0	02	1	0105-
9	NUT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6	9-09110-406-0	04	1	0105-
9	NUT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8 FLANGE	0-91150-108-0	02	1	0105-
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-015-0	01	1	0105-
13	LENS; TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	1-82235-014-0	01	1	0105-
13	LENS; TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82235-016-0	02	1	0105-
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0105-
15	SCREW; RR COMB LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M4X20 TAPPING STAINLESS	0-71190-420-0	08	1	0105-
15	SCREW; RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	1-82239-019-0	16	1	0105-
17	LENS; STOP,RR COMB LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82235-002-0	02	1	0105-
38	BOLT; LAMP,RR COMB CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) M6X30 W/LK&PL WASHER	0-50140-630-0	04	1	0105-
38	BOLT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	0105-0105
38	BOLT; LAMP,RR COMB EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B) M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0106-
49	LAMP; LICENSE PLATE	1-82120-024-1	01	1	0105-
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0105-
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0105-
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0105-
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0105-
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0105-
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0105-
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0105-
60	LAMP; BACKUP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82130-023-1	01	1	0105-
61	LENS; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82135-003-0	01	1	0105-
62	BULB; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	01	1	0105-
63	GASKET; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82136-002-0	01	1	0105-
64	SCREW; BACKUP LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82139-002-0	03	1	0105-
65	BOLT; LAMP,BACKUP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0105-
67	NUT; FLANGE EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M10 FLANGE	0-91150-210-0	02	1	0105-
226	SCREW; PROTECTOR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-82239-032-0	08	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
