Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#11871) — 273 parça

256 81 174 83 80 84 80 82 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) 24V 3W	1-82219-035-0	06	1	0105-
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A) 24V 5W	8-94135-397-0	02	1	0105-
81	SEAT; SCREW LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	0105-
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	0105-
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	03	1	0105-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	0105-
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	0105-
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	0105-
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-0305
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0306-
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0105-
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	0105-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-2	02	1	0105-

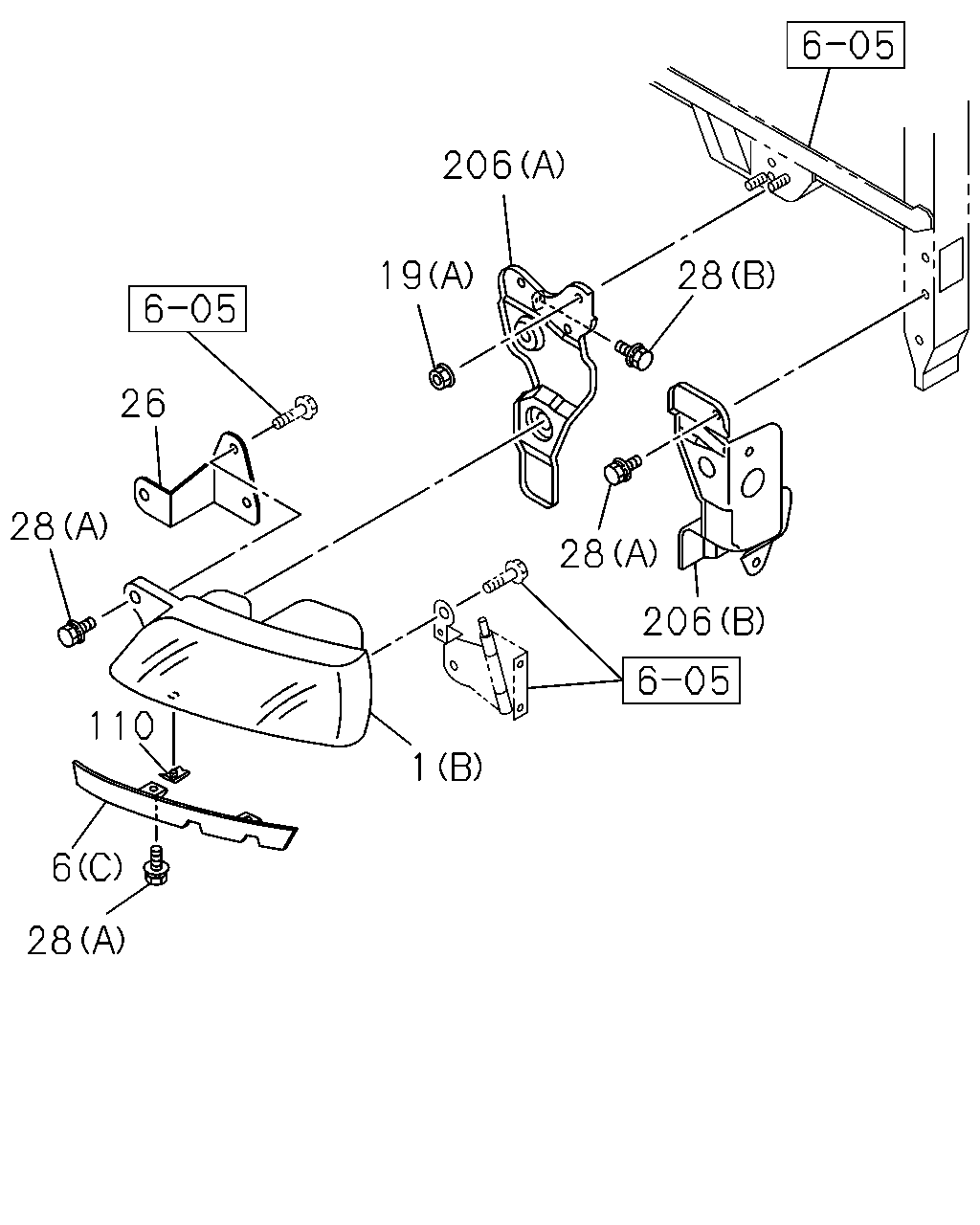

206 28 26 28 28 206 110 1 6 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER	1-82114-018-0	02	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER	1-82114-019-0	02	1	0105-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-085-0	01	1	0105-
26	BRACKET ASM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-084-0	01	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X35 L=50	5-09300-050-0	02	1	0105-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-
110	CLIP; RIM,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-213-0	04	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-

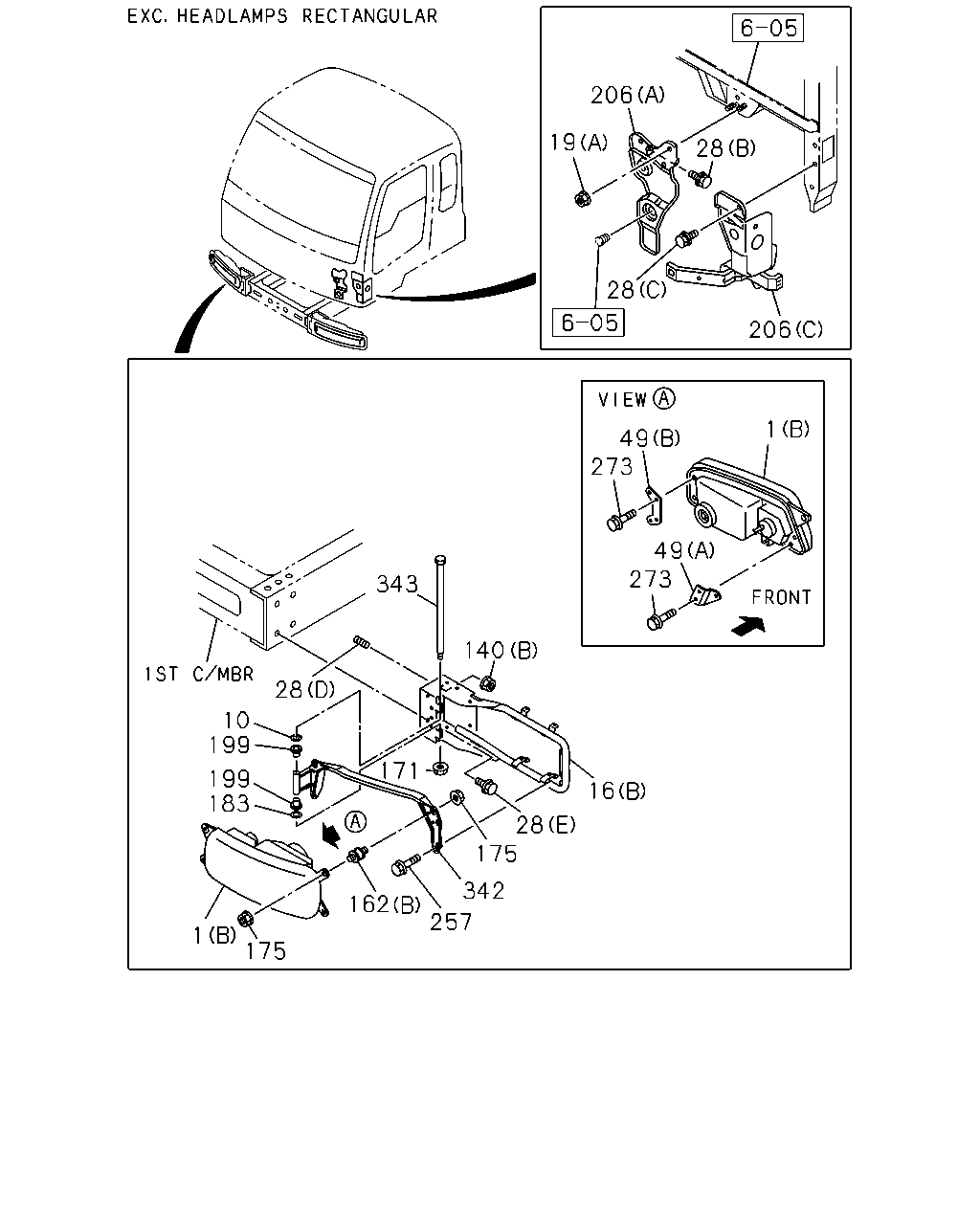

1 19 22 21 5 4 20 6 1 12 14 23 5 15 340 4 13 13 13 18 202 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-133-0	01	1	0105-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-133-0	01	1	0105-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-132-0	01	1	0105-
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-132-0	01	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82191-032-0	02	1	0105-
4	HEADLAMP UNIT HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82191-037-0	02	1	0105-
5	BULB; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B) 24V 75/70W	1-82194-063-0	02	1	0105-
5	BULB; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) 24V 75/70W	1-82194-063-0	02	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) OUTER 24V 75/70W	1-82193-006-0	02	1	0105-
5	BULB; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (A) INNER 24V 70W	1-82193-007-0	02	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER	1-82114-018-0	02	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER	1-82114-019-0	02	1	0105-
12	HARNESS; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	0105-
12	HARNESS; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-82118-012-0	02	1	0105-
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	0105-
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-82119-084-0	04	1	0105-
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	0105-
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	8-94381-588-0	14	1	0105-
14	CAP; BULB,LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	0105-
14	CAP; BULB,LAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-148-0	02	1	0105-
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 70W	8-97203-926-0	02	1	0105-
18	SCREW; GEAR CASE EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	0105-
18	SCREW; GEAR CASE BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> M4X16 TAPPING	1-82119-067-0	08	1	0105-
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-
20	SCREW; HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-023-0	16	1	0105-
21	SPRING; ADJ HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-105-0	04	1	0105-
22	SCREW; ADJ,HEADLAMP HEADLAMPS RECTANGULAR<TR4>	1-82119-095-0	08	1	0105-
23	COVER; BULB,HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	0105-
23	COVER; BULB,HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-147-0	02	1	0105-
202	GEAR UNIT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	0105-
202	GEAR UNIT; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4>	1-86830-139-0	04	1	0105-
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	0105-0105
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-329-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	0105-
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-331-0	01	1	0105-
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	0105-0105
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (A)	1-86830-328-0	01	1	0105-0105
211	TUBE; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	0105-
211	TUBE; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-86830-330-0	01	1	0105-
340	BULB; POSITION EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	0105-
340	BULB; POSITION BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> 24V 5W	1-82194-042-0	02	1	0105-

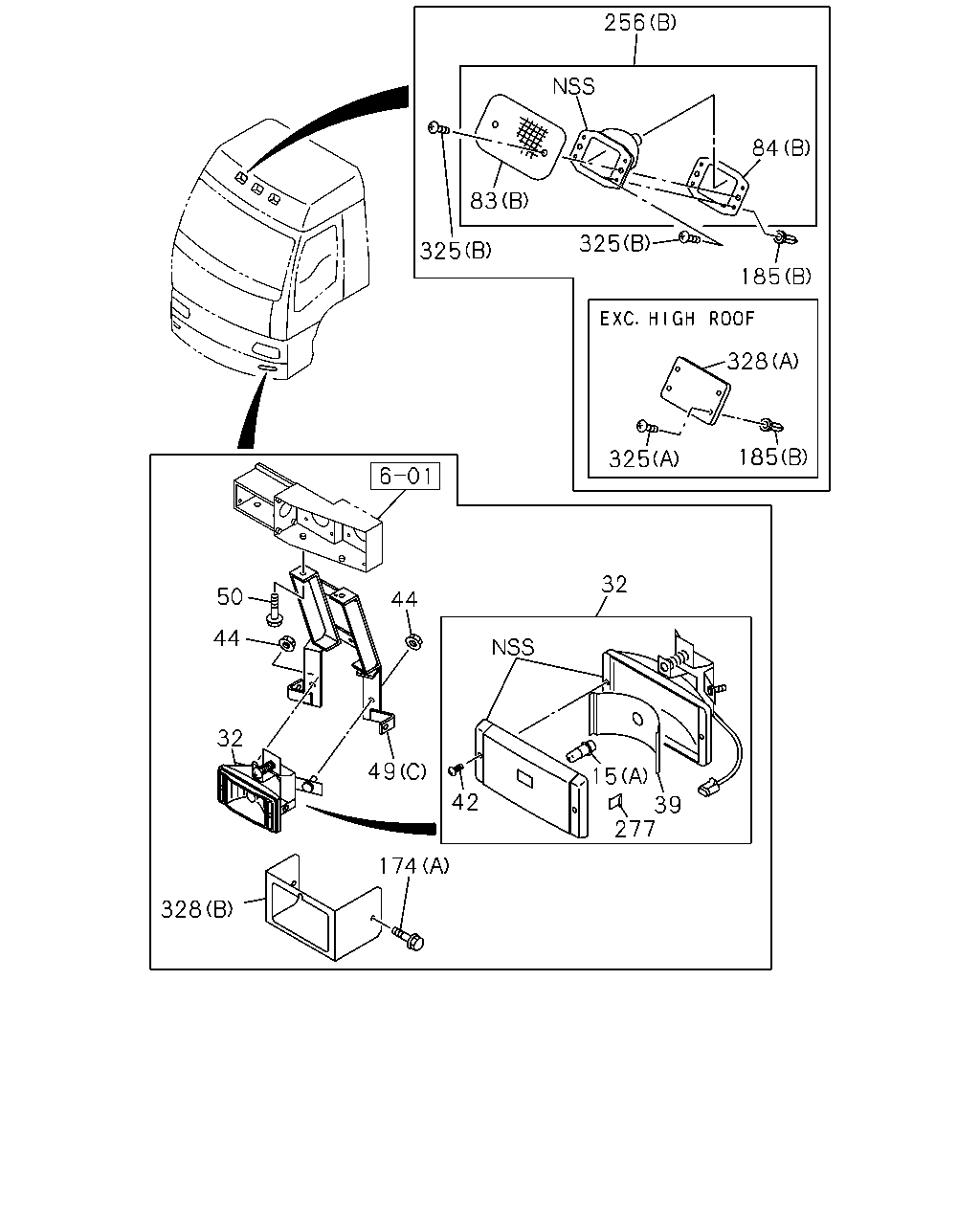

256 84 83 185 328 325 185 32 50 44 44 32 15 42 39 277 174 328 49 325 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-
15	BULB; FOG LAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B) 24V 55W	1-82194-079-0	02	1	0105-
15	BULB; FOG LAMP HEADLAMPS RECTANGULAR<TR4> (A) 24V 70W	8-97203-926-0	02	1	0105-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-942-0	01	1	0105-0303
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97353-955-1	01	1	0304-
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97181-940-0	01	1	0105-0303
32	LAMP ASM; FOG HEADLAMPS RECTANGULAR<TR4>	8-97353-954-1	01	1	0304-
39	UNIT; FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-929-0	02	1	0105-
42	SCREW; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-931-0	04	1	0105-
44	NUT; FOG LAMP HEADLAMPS RECTANGULAR<TR4> M5 CAP NUT	9-61167-090-0	02	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-151-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-152-0	01	1	0105-
50	BOLT; BRKT,FOG LAMP HEADLAMPS RECTANGULAR<TR4> M8X20 FLANGE	0-28680-820-0	04	1	0105-
83	LENS; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-321-0	03	1	0105-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-82215-046-0	02	1	0105-
84	GASKET; MARKER LAMP HIGH ROOF<S2F> (B)	1-86830-153-0	03	1	0105-
84	GASKET; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-288-0	02	1	0105-
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0105-0305
174	BOLT LAMPS TWO ROOF MARKER<TEC> (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0306-
174	BOLT HEADLAMPS RECTANGULAR<TR4> (A) M8X16 FLANGE	0-28080-816-0	04	1	0105-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (C) D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-
256	LAMP; MARKER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-82210-244-0	06	1	0105-
256	LAMP; MARKER HIGH ROOF<S2F> (B)	1-82210-230-0	03	1	0105-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC> (A)	1-86830-242-2	02	1	0105-
277	CLIP; LENS,FOG LAMP HEADLAMPS RECTANGULAR<TR4>	8-97357-930-0	02	1	0105-
325	SCREW; SPD INDICATOR LAMP (A) M5X14 TAPPING	9-07066-514-0	12	1	0105-
325	SCREW; SPD INDICATOR LAMP HIGH ROOF<S2F> (B) M5X20 TAPPING	0-71090-520-0	18	1	0105-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-134-0	01	1	0105-
328	COVER; LAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82117-135-0	01	1	0105-
328	COVER; LAMP EXC. HIGH ROOF<S2F> (A)	1-76217-122-1	03	1	0105-

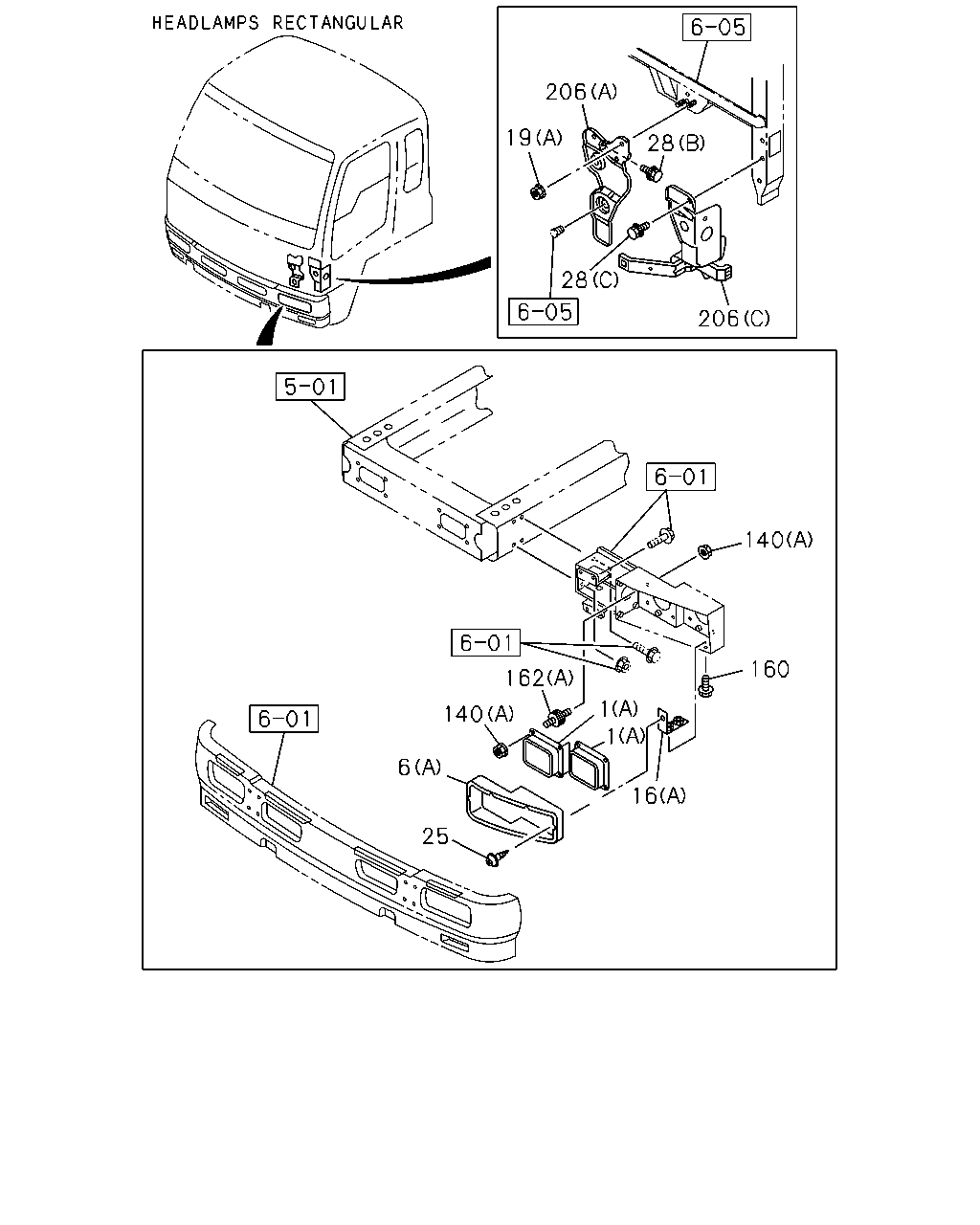

206 28 28 206 140 160 162 1 1 140 6 16 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-079-0	01	1	0105-
6	RIM; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-078-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-024-0	01	1	0105-
6	RIM; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (C)	1-71107-023-0	01	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) INNER	1-82114-018-0	02	1	0105-
6	RIM; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B) OUTER	1-82114-019-0	02	1	0105-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-116-1	02	1	0105-0206
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-155-2	02	1	0207-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-103-1	04	1	0105-
25	SCREW; LAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1>	1-09104-031-0	08	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X35 L=50	5-09300-050-0	02	1	0105-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M5 FLANGE	1-09984-170-0	12	1	0105-
160	BOLT; BRKT TO FRAME BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> M8X16 FLANGE	0-28080-816-0	08	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-086-0	08	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-304-1	16	1	0105-0403
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-166-0	16	1	0404-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-

206 28 28 206 1 49 273 49 273 343 28 10 199 171 199 183 28 175 342 257 1 175 140 16 162 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-400-2	01	1	0105-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>,HEADLAMPS VARIANT SQUARE<TEA>,HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS RECTANGULAR<TR4> (B)	1-82110-399-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-257-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-261-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) INNER TYPE 1 24V 70W	1-82110-256-2	01	1	0105-
1	LAMP ASM; HEAD HEADLAMPS RECTANGULAR<TR4> (A) OUTER TYPE 2 24V 75/70W	1-82110-259-2	01	1	0105-
10	WASHER; PL,HEADLAMP RIM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	02	1	0105-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-116-1	02	1	0105-0206
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-155-2	02	1	0207-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-103-1	04	1	0105-
19	NUT; HEADLAMP (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0105-
19	NUT; HEADLAMP HEADLAMPS RECTANGULAR<TR4> (B)	1-82119-056-0	08	1	0105-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0105-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X35 FLANGE	0-28081-035-0	06	1	0105-0105
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E) M10X30 FLANGE	0-28681-030-0	06	1	0106-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D) M10X35 L=50	5-09300-050-0	02	1	0105-
28	BOLT; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	14	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-82117-100-0	02	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-102-0	01	1	0105-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-101-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-151-0	01	1	0105-
49	BRACKET; LAMP HEADLAMPS RECTANGULAR<TR4> (C)	1-82117-152-0	01	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	0105-
140	NUT BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) M5 FLANGE	1-09984-170-0	12	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-82117-086-0	08	1	0105-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-304-1	16	1	0105-0403
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A)	1-82117-166-0	16	1	0404-
171	NUT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6 FLANGE	0-91150-106-0	02	1	0105-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0105-
183	WASHER; HEADLAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.5	9-09855-333-0	02	1	0105-
199	BUSHING BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	5-15549-001-1	04	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0105-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-762-3	01	1	0105-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C)	1-65671-761-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-574-3	01	1	0105-
206	HOLDER; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-65671-573-3	01	1	0105-
257	BOLT; BRKT HD LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 FLANGE	0-28080-820-0	04	1	0105-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X16 FLANGE	0-28680-616-0	08	1	0105-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-087-2	01	1	0105-
342	HINGE; LAMP BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82117-088-2	01	1	0105-
343	SHAFT; HINGE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-82119-096-1	02	1	0105-

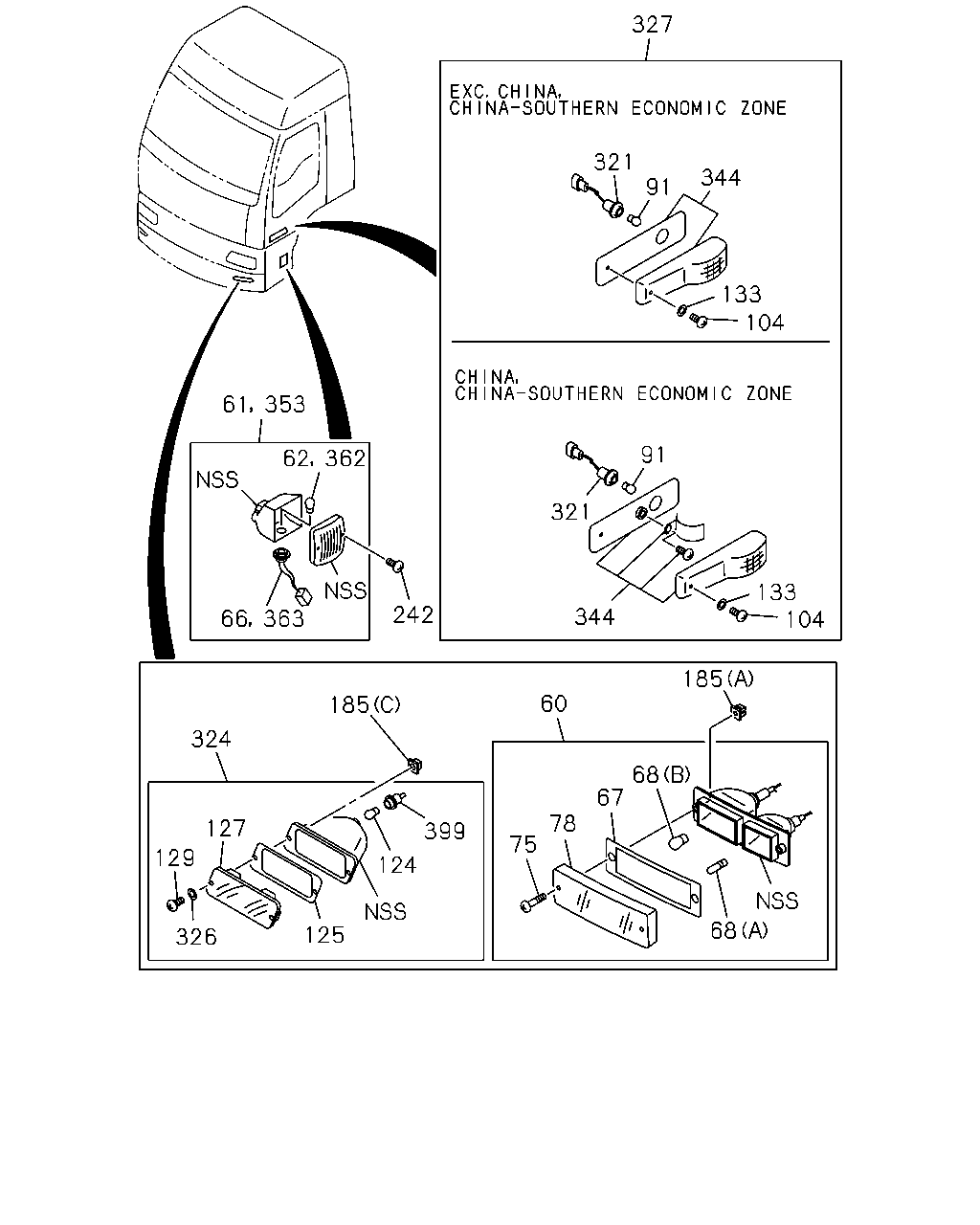

327 321 344 91 133 104 61 353 91 62 362 321 133 104 242 344 66 363 185 60 185 324 68 67 78 127 399 75 129 124 68 125 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	0105-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-273-0	01	1	0105-
60	LAMP ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	0105-
60	LAMP ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	1-86830-272-0	01	1	0105-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS>	1-86830-247-2	01	1	0105-
61	LAMP ASM; CORNERING CORNERING LAMP<TDS> 24V 30W	1-86830-187-2	01	1	0105-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30/10W	1-82194-065-0	01	1	0105-
62	BULB; CORNERING LAMP CORNERING LAMP<TDS> 24V 30W	8-97010-179-0	01	1	0105-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-297-0	01	1	0105-
66	HARNESS; CORNERING LAMP CORNERING LAMP<TDS>	1-86830-146-0	01	1	0105-
67	GASKET; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	0105-
67	GASKET; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	8-94149-259-0	02	1	0105-
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	0105-
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (A) 24V 5W	1-82194-089-0	02	1	0105-
68	BULB; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	0105-
68	BULB; FRT COMB LAMP REINFORCEMENT BUMPER<VG7> (B) 24V 21W	1-82194-090-0	02	1	0105-
75	SCREW; FRT COMB LAMP HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	0105-
75	SCREW; FRT COMB LAMP REINFORCEMENT BUMPER<VG7>	0-91190-435-0	04	1	0105-
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	0105-
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-265-0	01	1	0105-
78	LENS ASM; FRT COMB HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	0105-
78	LENS ASM; FRT COMB REINFORCEMENT BUMPER<VG7>	8-94151-264-0	01	1	0105-
91	BULB; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	0105-
91	BULB; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	0105-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0105-
124	BULB; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> 24V 21W	1-82194-036-0	02	1	0105-
125	GASKET; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-033-0	02	1	0105-
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-065-0	01	1	0105-
127	LENS; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7> ORANGE	1-82215-064-0	01	1	0105-
129	SCREW; FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-026-0	04	1	0105-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0105-0206
133	WASHER; PL,SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-86830-150-0	02	1	0207-
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0105-
185	GROMMET; SCREW EXC. FRONT SPOILER<VP1> (C) D=9X9 L=8 M6	8-94222-314-0	04	1	0105-
185	GROMMET; SCREW HEADLAMPS RECTANGULAR<TR4> EXC. REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-
185	GROMMET; SCREW REINFORCEMENT BUMPER<VG7> (A) M4	5-09470-002-0	04	1	0105-
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	04	1	0105-0207
242	SCREW; CORNERING LAMP CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0208-
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71190-420-0	02	1	0105-0207
242	SCREW; CORNERING LAMP EXC. CORNERING LAMP<TDS> M4X20 TAPPING STAINLESS	0-71090-420-0	02	1	0208-
321	HARNESS; SIDE FLASHER LAMP CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	0105-
321	HARNESS; SIDE FLASHER LAMP EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	0105-
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-203-1	01	1	0105-
324	LAMP; FRT FLASHER EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82210-202-1	01	1	0105-
326	WASHER; PL,FRT TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82216-032-0	04	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-228-2	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82210-227-2	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	0105-
327	LAMP ASM; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	0105-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	0105-
353	LAMP ASM; STEP EXC. CORNERING LAMP<TDS> 24V 5W	1-86830-248-2	01	1	0105-
362	BULB; STEP LAMP EXC. CORNERING LAMP<TDS> 24V 5W	1-82194-042-0	01	1	0105-
363	HARNESS; STEP LAMP EXC. CORNERING LAMP<TDS>	1-86830-296-0	01	1	0105-
399	SOCKET; TURN SIGNAL EXC. HEADLAMPS RECTANGULAR<TR4>,REINFORCEMENT BUMPER<VG7>	1-82219-034-0	02	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
