◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11530 - FXZ/GXZ(RHD)EURO3 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#118706) — 42 parça

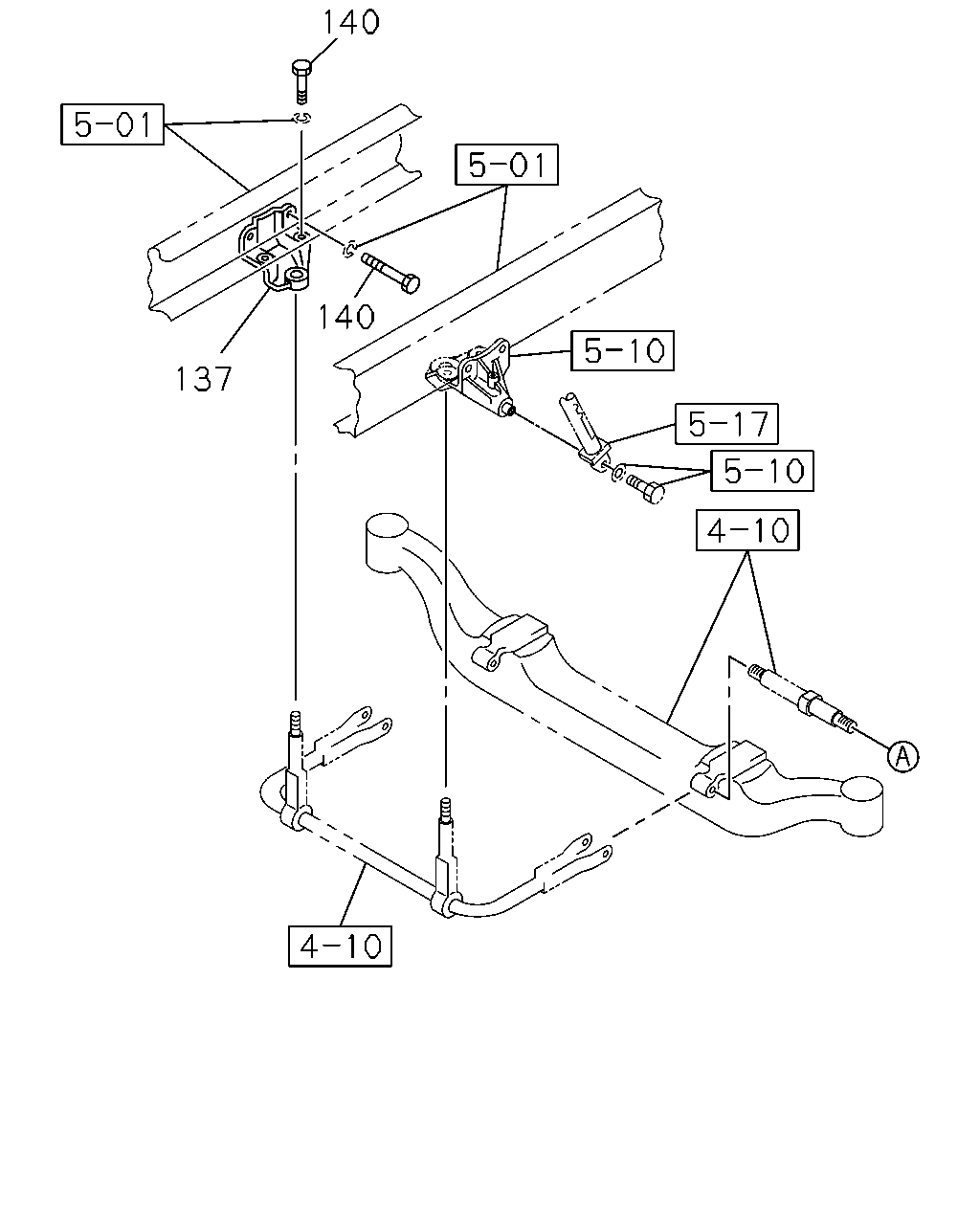

çizim 343543
140 137 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1304- ● ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1304- ● ●

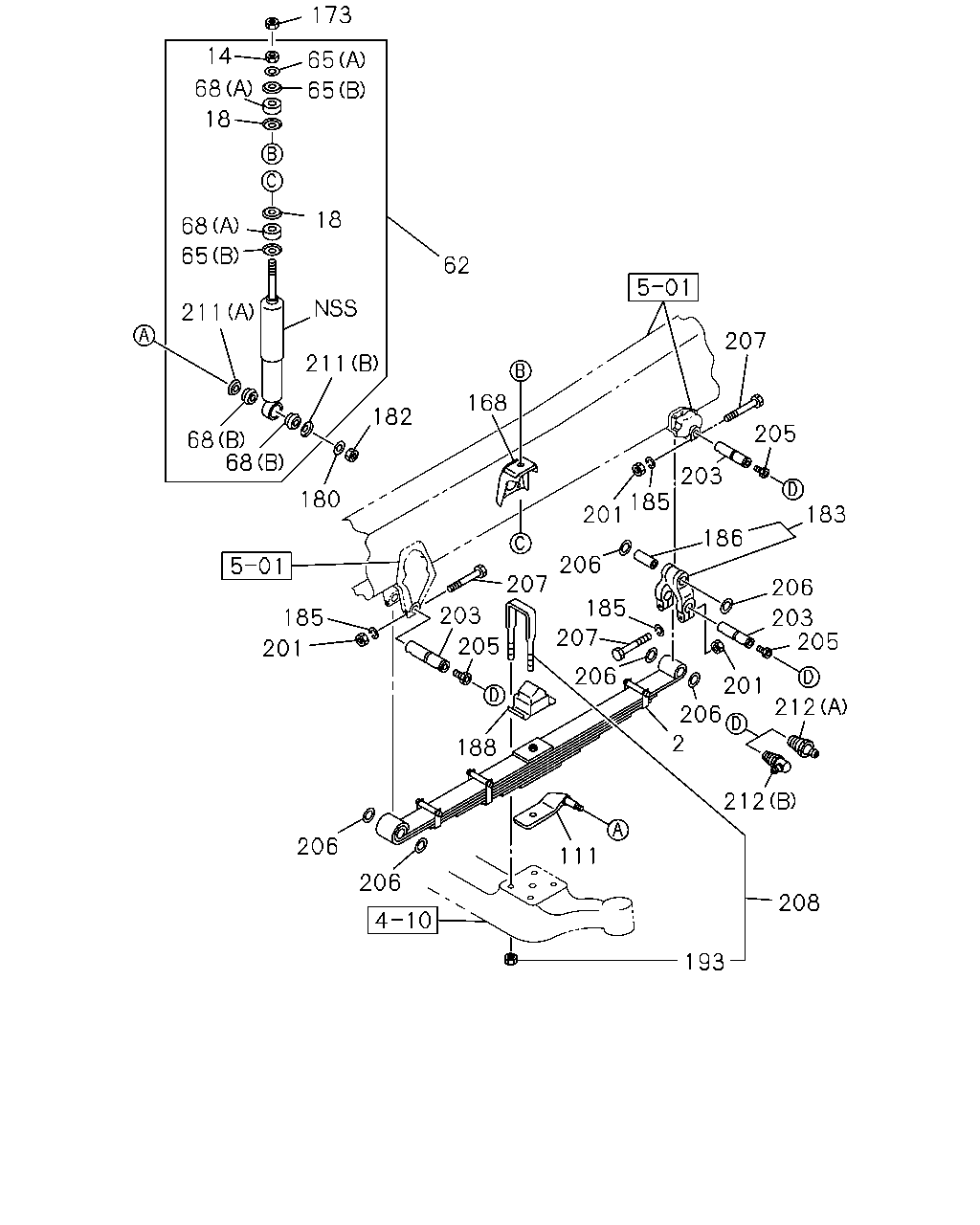

çizim 345311
173 65 65 62 18 211 68 68 211 65 68 18 68 14 207 205 183 206 203 205 212 212 208 193 111 206 206 188 206 205 203 207 207 185 206 201 185 203 186 201 206 2 168 182 180 185 201
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> 4-LEAF 		8-97618-758-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4500MM(45W) 7-LEAF 		8-98162-076-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> 7-LEAF 		8-98236-921-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF 		8-98236-924-0 02 1 1304- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1304- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1304- ● ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> 		1-51630-833-0 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 4500MM(45W) 		1-51630-417-0 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 6600MM(66W) MULTI LEAF SUSPENSION FRT<SAQ> 		1-51630-417-0 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 1304- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1304- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1304- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1304- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1304- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1304- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1304- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1304- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1304- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1304- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1304- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1304- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1304- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1304- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 4500MM(45W) 		1-51172-086-2 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 6600MM(66W) 		1-51172-125-1 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-097-1 02 1 1304- ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1304- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1304- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1304- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1304- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1304- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1304- ● ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 6600MM(66W) FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1304- ●
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1304- ●
208 U-BOLT SET; FRT SPRING
WHEEL BASE 4500MM(45W) FRT TAPER LEAF SUSPENSION<SAR> L=230 		1-87870-493-0 04 1 1304- ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1304- ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1304- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1304- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1304- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1304- ● ●
