Isuzu WW
▶
TRUCKS
▶
FVR
▶
11527 - FVR(MALAYSIA) 280PS
▶
3 - Brakes, Brake System
▶
3-41 - REAR BRAKE POWER CHAMBER
▶
3-41 — REAR BRAKE POWER CHAMBER
(#118702) — 18 parça
◀

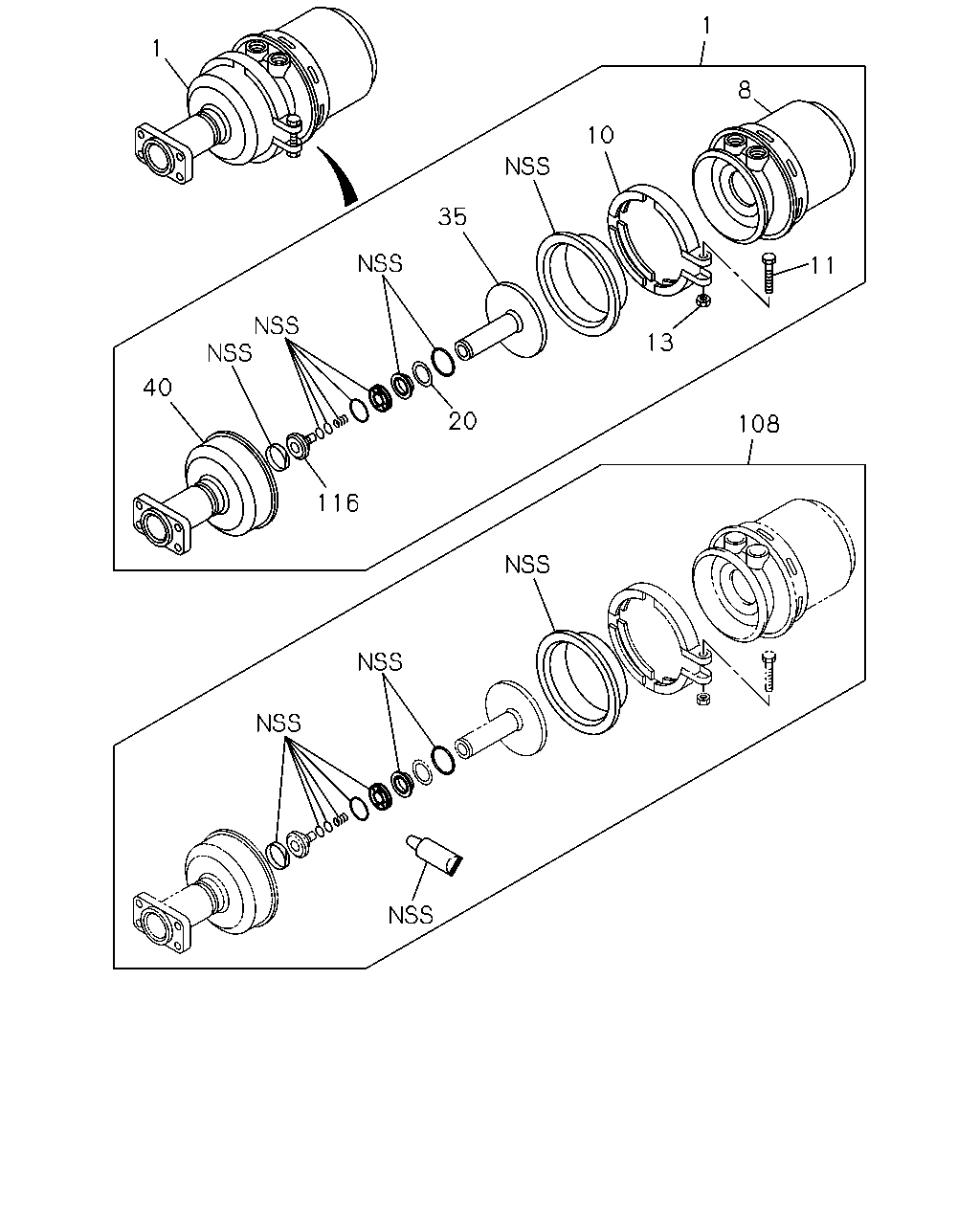

[341A] NO.1 (13 parça)
[341A] NO.2 (5 parça)
▶
40
116
20
35
10
13
11
1
8
108
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-48250-877-4
01
1
1304-
1
CHAMBER ASM; SPRING
1-48250-878-4
01
1
1304-
8
SHELL; CYL,SPR CHAMBER
1-48251-173-2
01
1
1304-
8
SHELL; CYL,SPR CHAMBER
1-48251-174-2
01
1
1304-
10
RING; CLAMP,SPR CHAMBER
1-48269-231-0
02
1
1304-
11
BOLT; CLAMP RING
1-48269-232-0
02
1
1304-
13
NUT; CLAMP RING
1-48269-233-0
02
1
1304-
20
RING; RET
1-48269-236-0
02
1
1304-
35
PLATE; ROD END,SPR CHAMBER
1-48269-253-0
02
1
1304-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-179-0
01
1
1304-
40
COVER ASM; LWR,SPR CHAMBER
1-48251-180-0
01
1
1304-
108
REPAIR KIT; SPR CHAMBER
1-85576-407-1
02
1
1304-
116
GUIDE; SPR CHAMBER
1-48269-237-0
02
1
1304-
1
1
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
1-48250-877-4
01
1
1304-
1
CHAMBER ASM; SPRING
1-48250-878-4
01
1
1304-
32
CONNECTOR; SPR CHAMBER
BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1304-
32
CONNECTOR; SPR CHAMBER
BRAKE REGULATION ECE(TDV) (B) DIN12 & RC1/4 & R3/8 3WAY
1-09661-132-0
02
1
1304-
32
CONNECTOR; SPR CHAMBER
EXC. BRAKE REGULATION ECE(TDV) (A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
1304-
