0-36 — TURBOCHARGER SYSTEM
(#118692) — 29 parça
◀

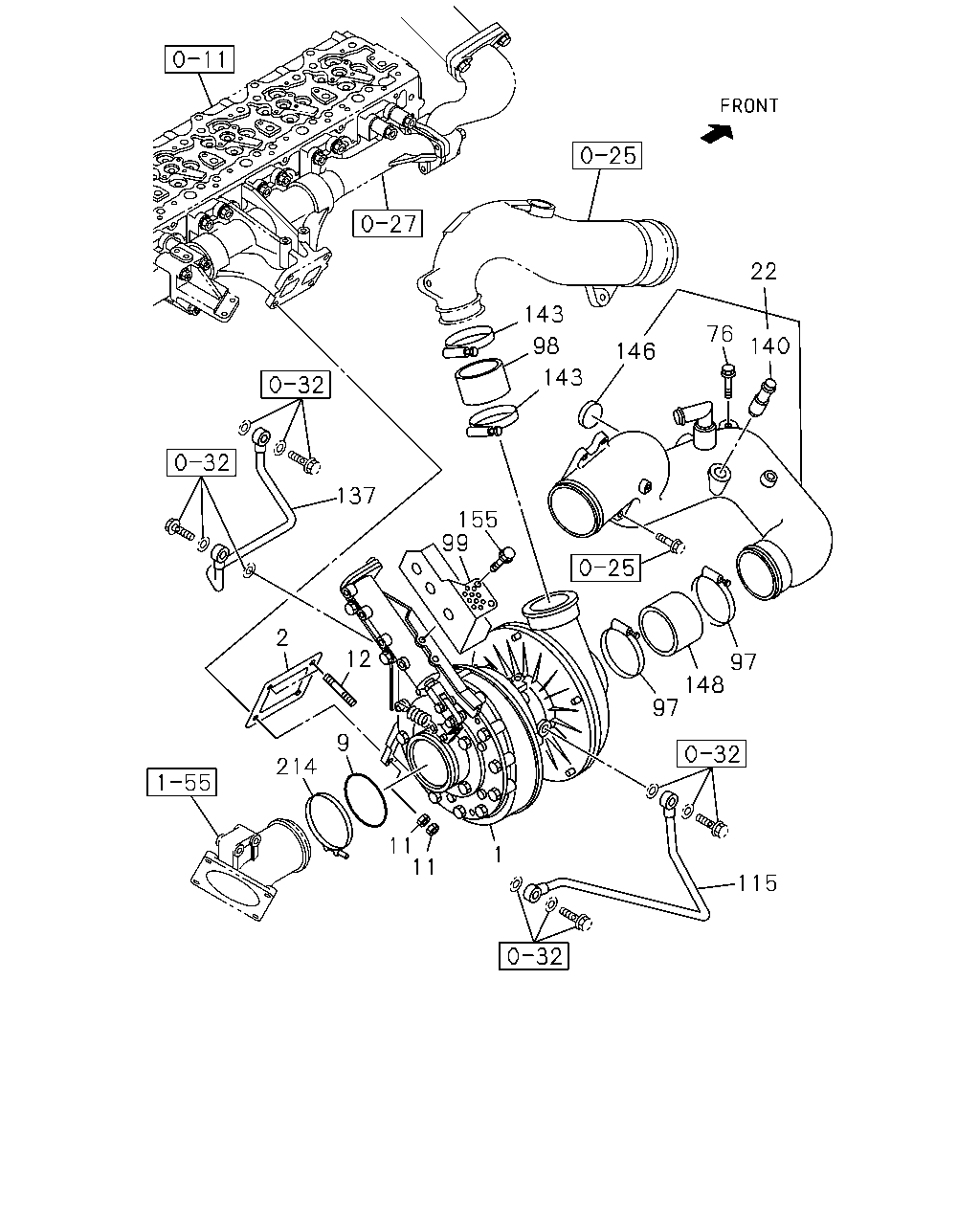

[036A] FIXING;TURBOCHARGER ASM (18 parça)
[036A] FLEXBLE HOSE AND AIR PIPE (11 parça)
▶
115
148
97
97
1
11
11
214
12
2
137
155
99
143
146
76
22
140
98
143
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
1-14400-429-5
01
1
1304-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98162-161-0
01
1
1304-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=80 OD=84
8-97618-761-1
01
1
1304-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1304-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1304-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1304-
76
BOLT; AIR DUCT
M10X45 FLANGE
0-28151-045-0
03
1
1304-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1304-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98169-677-0
01
1
1304-
99
PROTECTOR; HEAT
1-14181-350-0
01
1
1304-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1304-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1304-
140
PIPE; AIR PIPE
8-97603-427-1
01
1
1304-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1304-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1304-
148
HOSE; TURBOCHARGER,INL
L=70
1-09360-913-0
01
1
1304-
155
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
04
1
1304-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1304-
268
272
272
479
479
276
523
523
523
276
515
217
479
272
514
514
268
392
514
268
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
217
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
1304-
268
NUT; FLEX TUBE
M12
0-91110-512-0
03
1
1304-
272
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
03
1
1304-
276
CLIP; PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1304-
392
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1304-
479
UNION; FLEX TUBE
M12 2WAY
1-09654-059-2
03
1
1304-
514
HOSE; FLEX
L=240
1-09363-671-0
03
1
1304-
515
BRACKET; UNION
8-97608-912-1
01
1
1304-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(A) L=512 SERVICED BY L=550
1-47428-808-0
01
1
1304-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(B) L=439
8-97618-499-0
01
1
1304-
523
PIPE; AIR,MAG VLV TO FLEX HOSE
(C) L=379
8-97618-500-0
01
1
1304-
