◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10877 - EXZ LHD FUEL TANK 200L+200L ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#11869) — 11 parça

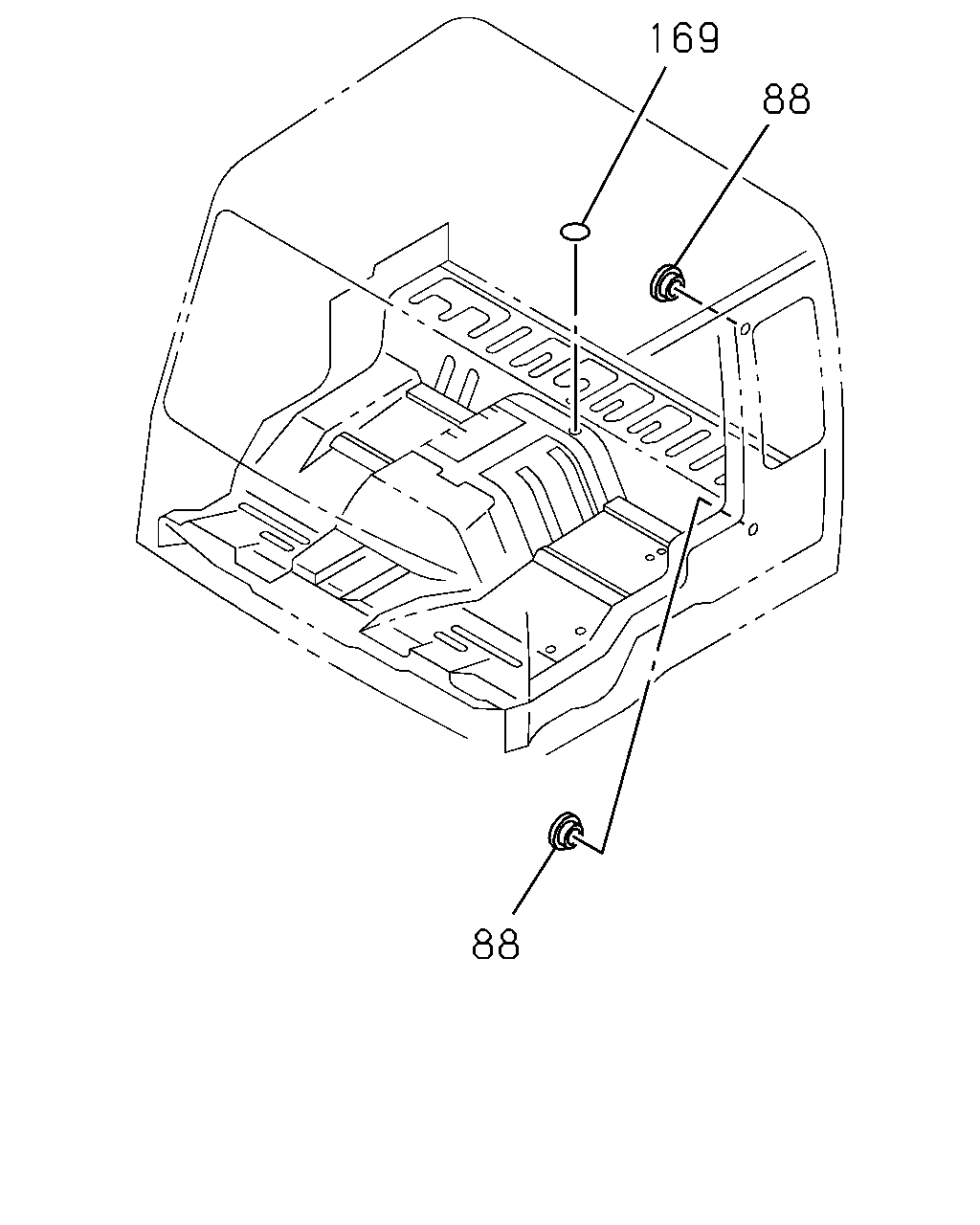

çizim 21353
169 88 88
BalonParca AdiParca NoAdetTipApplied Date
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6 		8-94198-177-0 02 1 0105-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3), FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) OD=25 BLACK 		1-76798-019-0 04 1 0105-

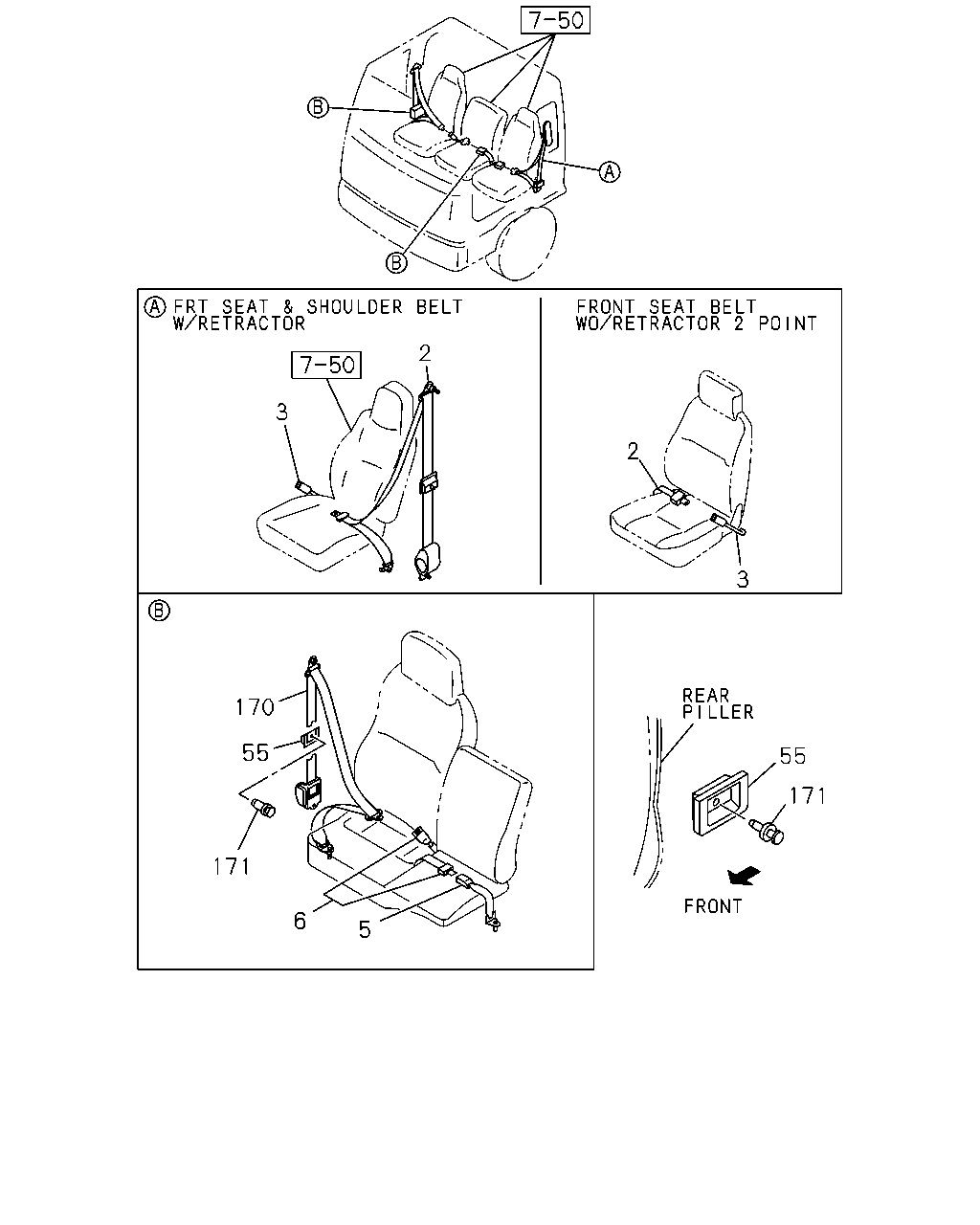

çizim 80667
2 3 2 3 170 55 55 171 171 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-936-3 01 1 0105-
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-909-5 01 1 0105-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0105-
5 BELT; CENTER SEAT,BUCKLE SIDE 1-75617-553-1 01 1 0105-
6 BELT; CENTER SEAT,TONGUE SIDE 1-75618-915-3 01 1 0105-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75617-556-0 02 1 0105-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRONT SEAT BELT WO/RETRACTOR 2 POINT(W25) 		1-75618-936-3 01 1 0105-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) 		1-75618-912-5 01 1 0105-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0105-
